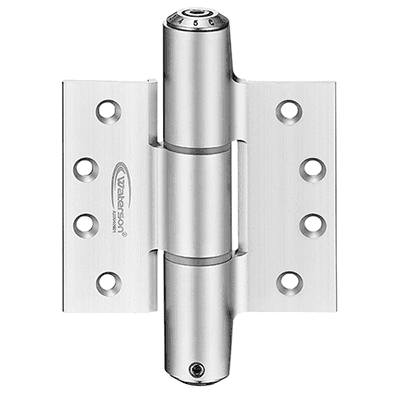

3pcs Aluminum Fence Gate Hinges | Mechanical | Hold Open | 4.5x4.5 | 7ft | 200 lbs | 1 ¾” Thick | W41M-450-C3

$219.99 - $219.99
$219.99
$219.99 - $219.99
$219.99

If your lightweight fence gate needs both automatic closing and an option to stay open at specific angles, Waterson aluminum fence gate hinges provide that dual behavior.

Waterson adjustable spring system allows you to tune closing speed and force to the installation environment.

  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO

  • Applications

    • Non-Fire Rated
    • Self Close Spring Hinge
    • Residential Applications
    • Good to the Eye
    • Easy Installation
    • Replacement for the Traditional Door Closer

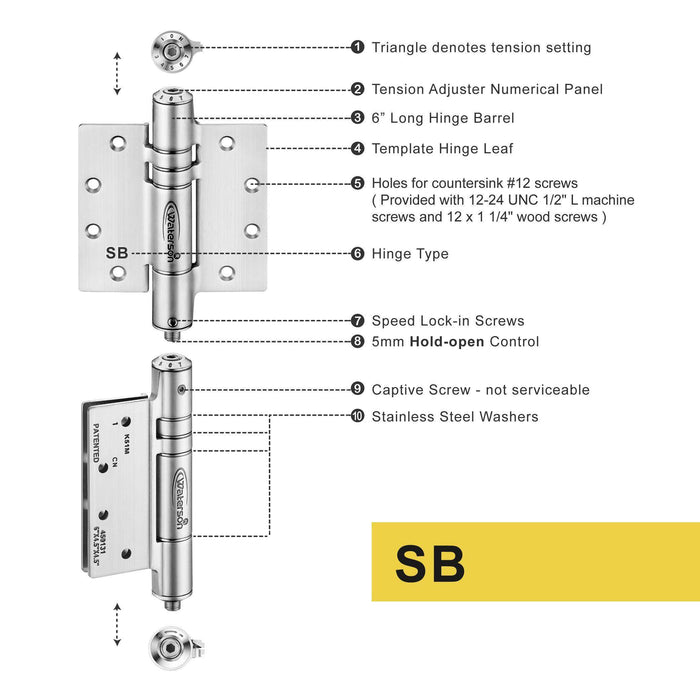

    Product Description and Features

    • Fully adjustable closing force and speed according to environment needs

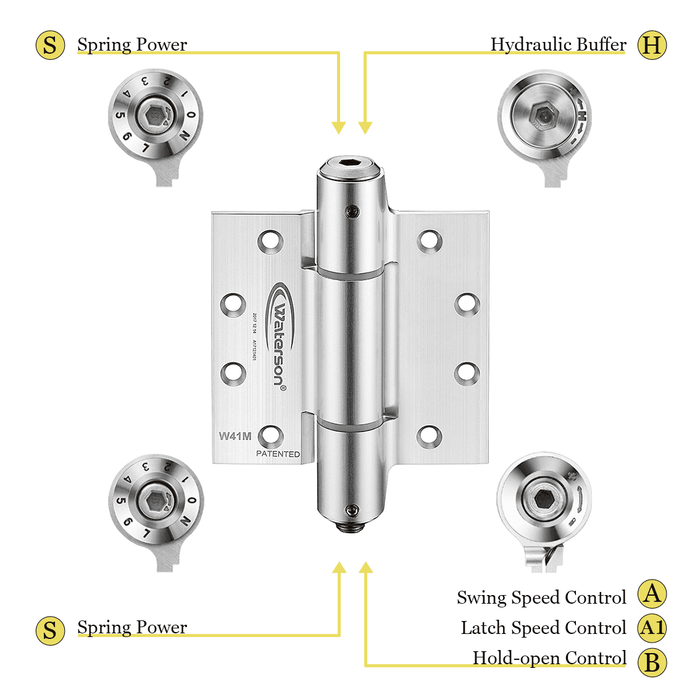

    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • Ensures many years of low maintenance.

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

    Compliance Standards

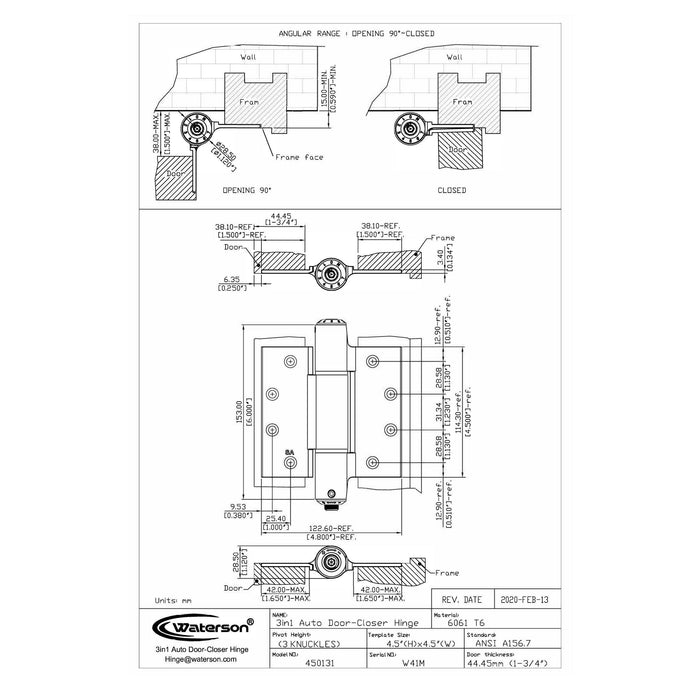

    • ANSI A156.7 Template Hinge : 4.5” x 4.5”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

  • Specifications

    Product SKU W41M-450-C3
    Hinge Type Full Mortise
    Hinge Material Aluminum
    Door Weight Up to 200lbs
    Approx Door Size 1150mm W x 2200mm H (4ft x 7ft)
    Door Thickness 1 ¾” (40-50 mm)
    Self-closing o
    Fluid Motion x
    Hold-open o
    Fixing Method Screw-On, only spot weld AFTER speed adjustment

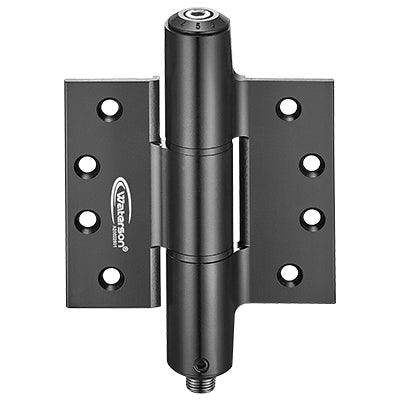

    Color/Finish Anodized Clear,Black
    Combination/Quantity SB.SA.SA1,3 Pack
