W41M-450-D3 | Hydraulic Hybrid Self Closing Hinge | 4.5” x 4.5”| Residential Aluminum Mortise hinge | 3 Pack

Get the best of all worlds with our Waterson K51M-400-D3 self-closing hinge. It's in stock right now and offers superior speed control, adjustable power, and tension settings, as well as a hydraulic function and hold-open feature

Note: We currently have stock available! Simply send us a request!

Talk to Sales

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

  • Non-Fire Rated
  • Soft Close Spring Hinge

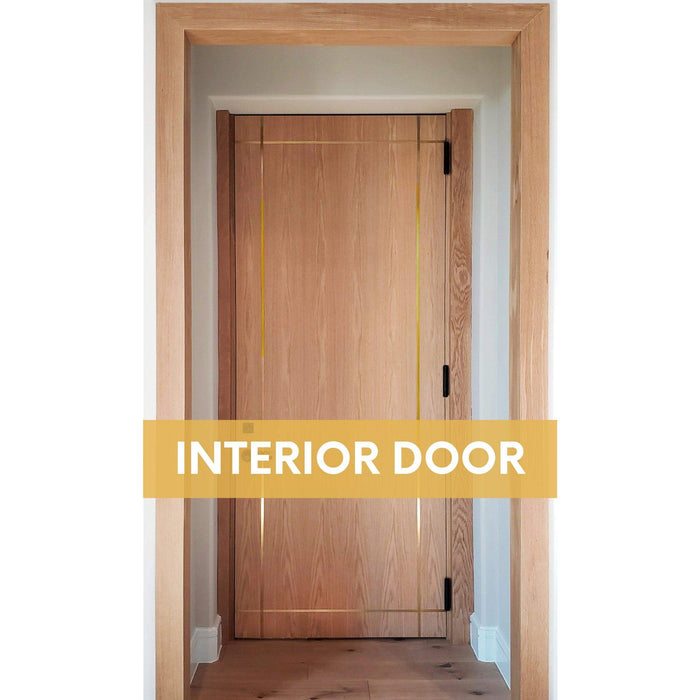

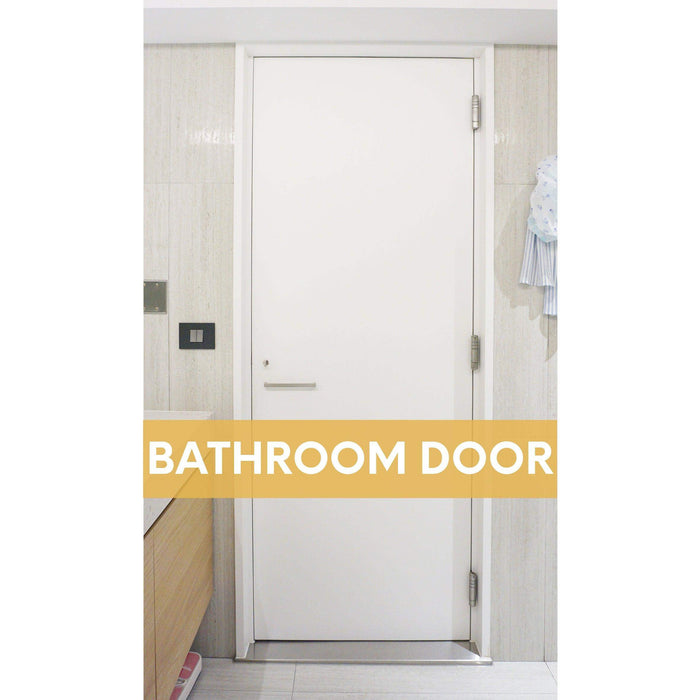

  • Residential Applications
  • Good to the Eye
  • Easy Installation
  • Replacement for the Traditional Door Closer


  Product Description and Features

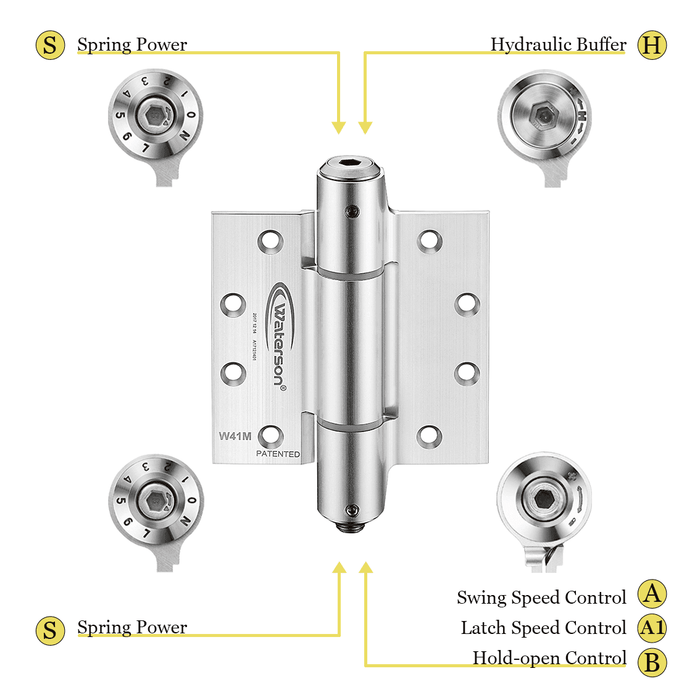

  • Fully adjustable closing force and speed according to environment needs

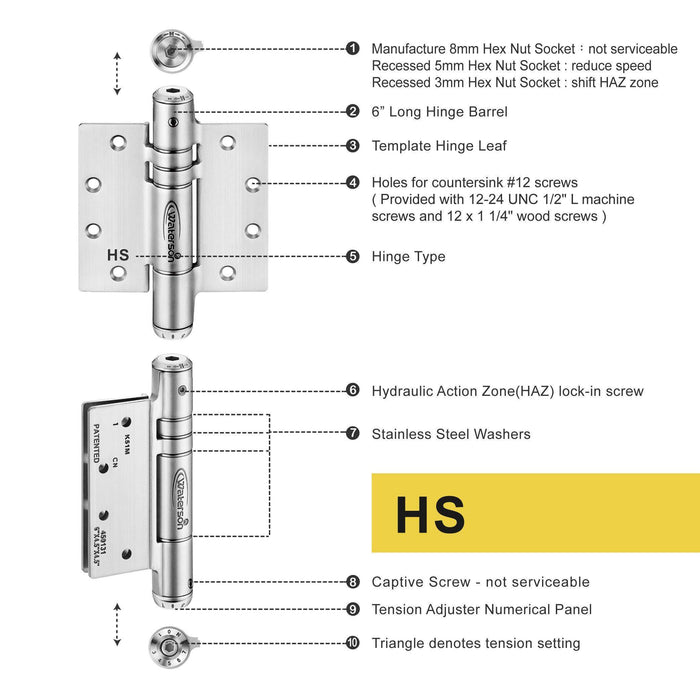

  • Numerical adjustment panel on hinge end to set up precise tension
  • Mechanical only mechanism supporting heavy duty and fully exterior
  • Aesthetically pleasing compared to door closers -- without extrusive arms
  • Ensures many years of low maintenance.

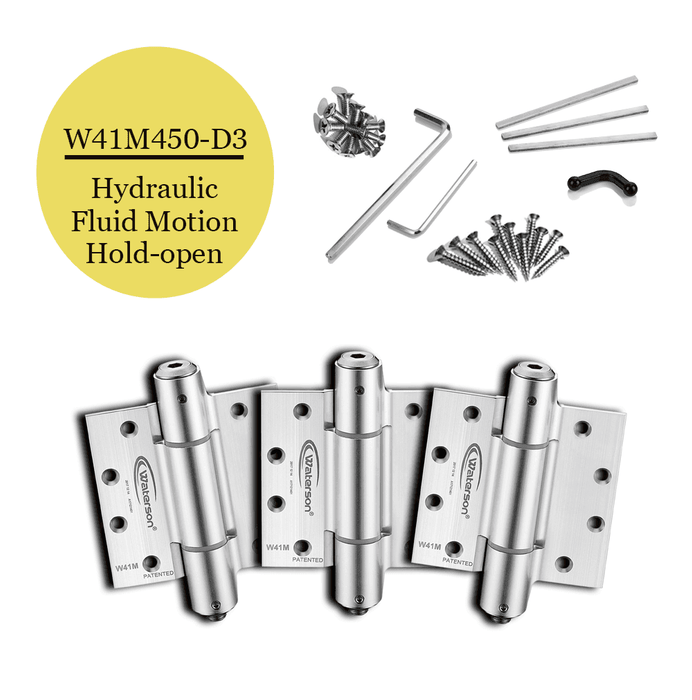

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches


  Compliance Standards

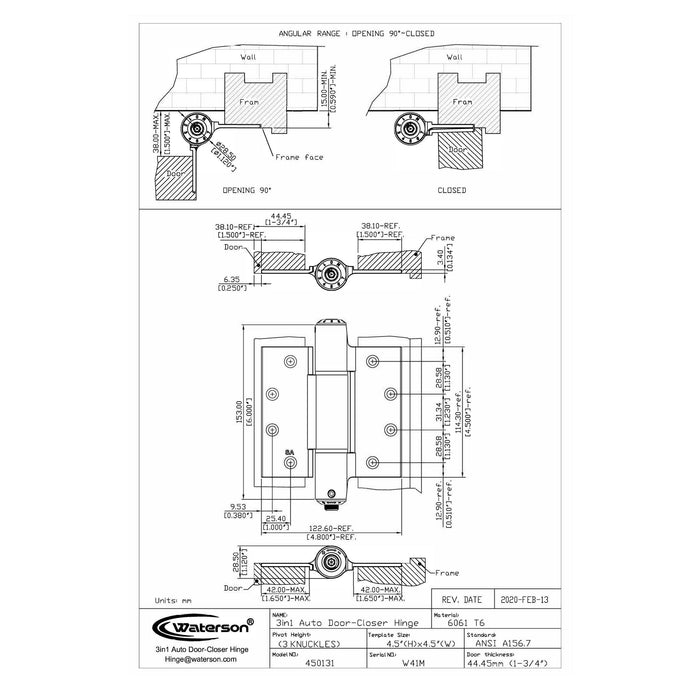

  • ANSI A156.7 Template Hinge : 4.5" x 4.5"
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers


•

  Product SKU	W41M-450-D3
  Hinge Type	Full Mortise
  Hinge Material	Aluminum
  Door Weight	Up to 200lbs
  Approx Door Size	1150mm W x 2200mm H (4ft x 7ft)
  Door Thickness	1 ¾” (40-50 mm)
  Self-closing	o
  Fluid Motion	o
  Hold-open	o
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment

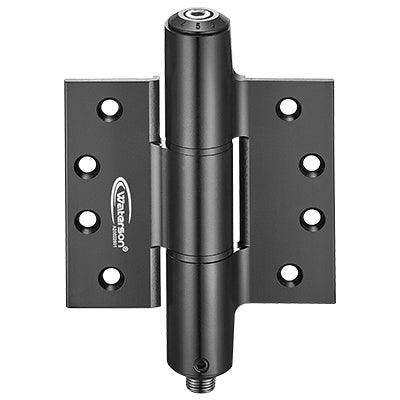

  Color/Finish	Anodized Clear,Black
  Combination/Quantity	SA.HS.SB,3 Pack
