3pcs Wooden Gate Closer Heavy Duty | Mechanical | 7ft | 260 lbs | 1.5” to 2” Thick | SS304 | K51MP-A3
Original price
$456.59
-
Original price
$456.59
Original price
$456.59
$456.59
-
$456.59
Current price
$456.59
Availability:
100 in stock, ready to be shipped
Availability:
100 in stock, ready to be shipped
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

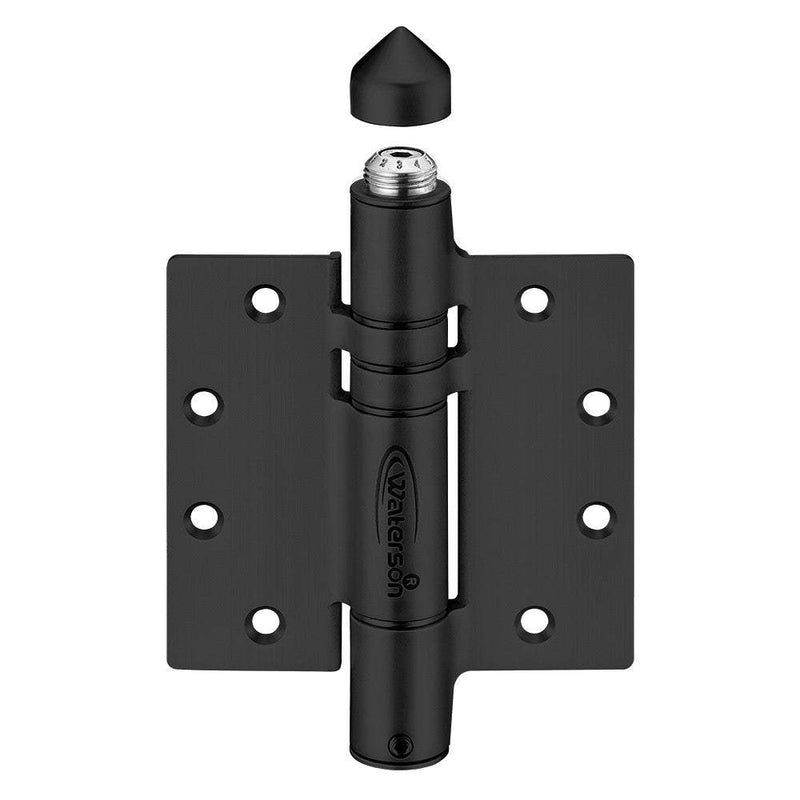

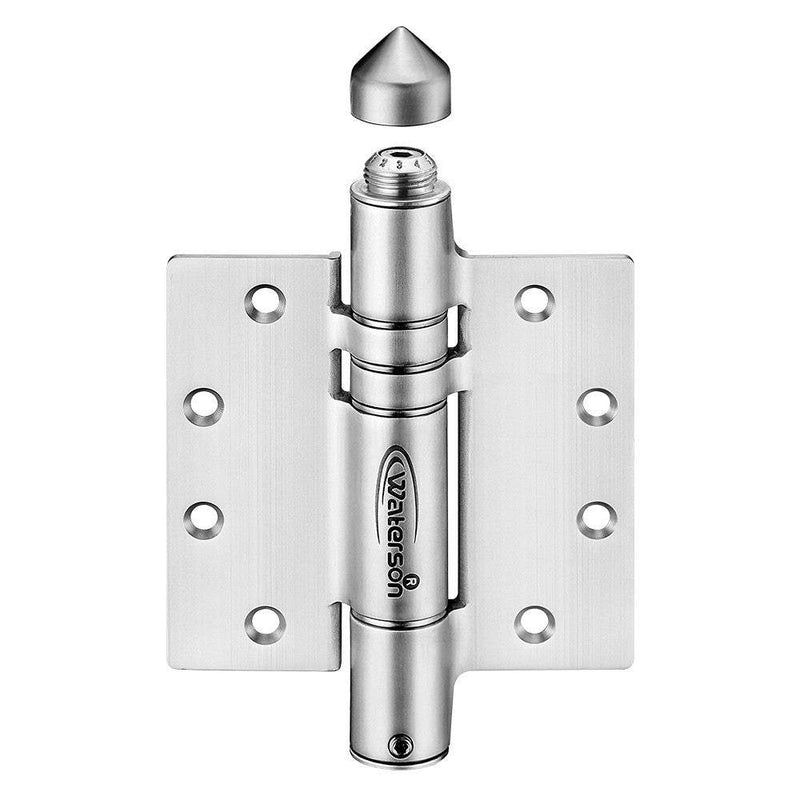

Waterson Wooden Gate Closer Heavy Duty system delivers mechanical self-closing performance for 7 ft wooden gates up to 260 lbs.

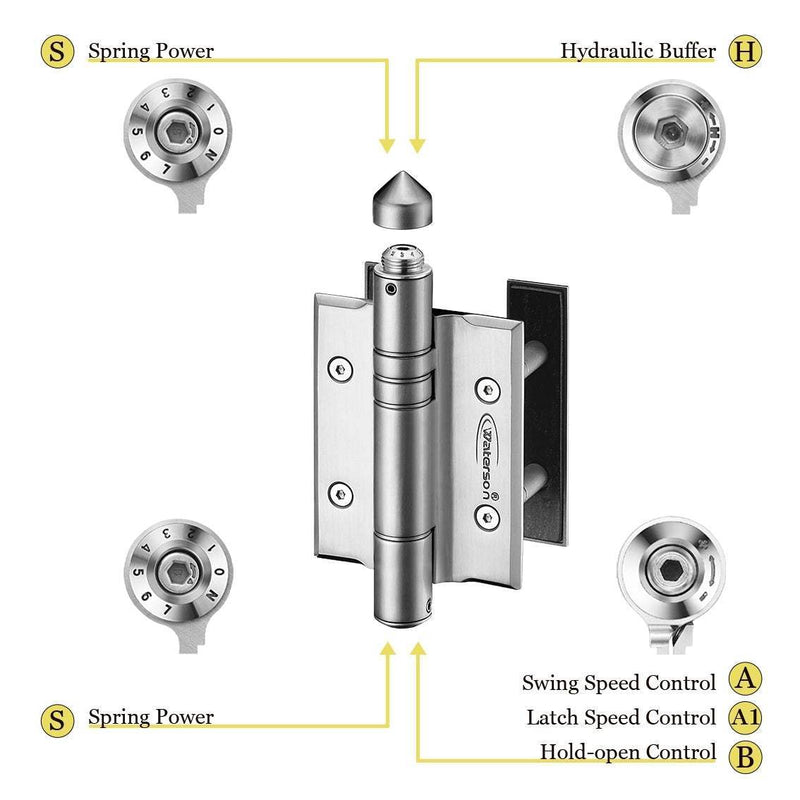

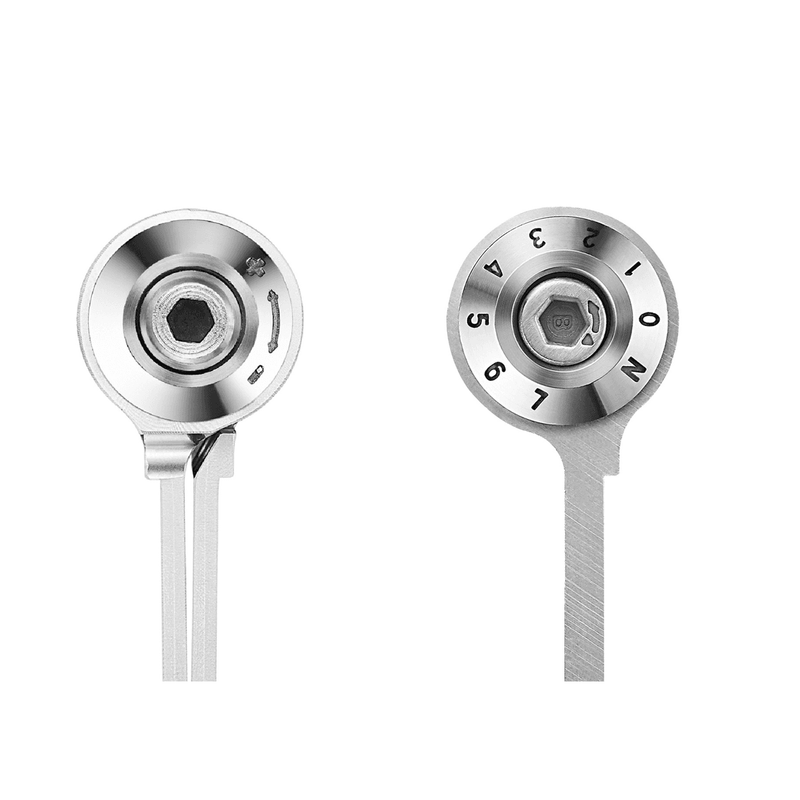

These wooden gate closer provides adjustable closing tension and weatherproof operation, giving you a reliable heavy duty gate closer solution for exterior wood installations. 10 years warranty
- DESCRIPTION
- DETAILS
- SPECIFICATIONS
- VIDEO
-
Applications
-
Gate Entry
- Pedestrian Gate
- Heavier Gate

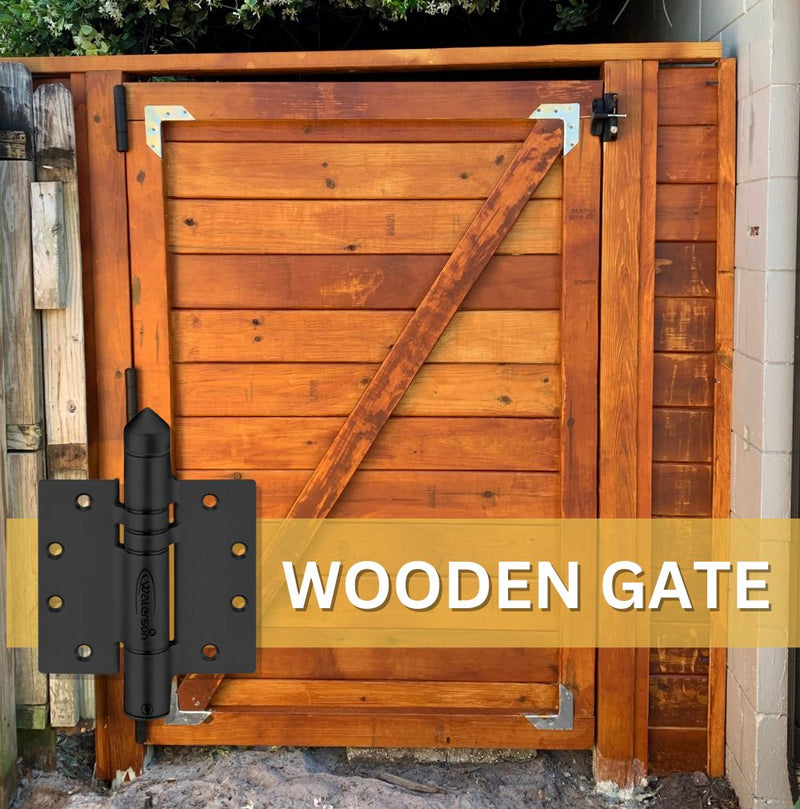

- Garden Gate
- Side Gate
-
Pool Gate (self-closing required)
-

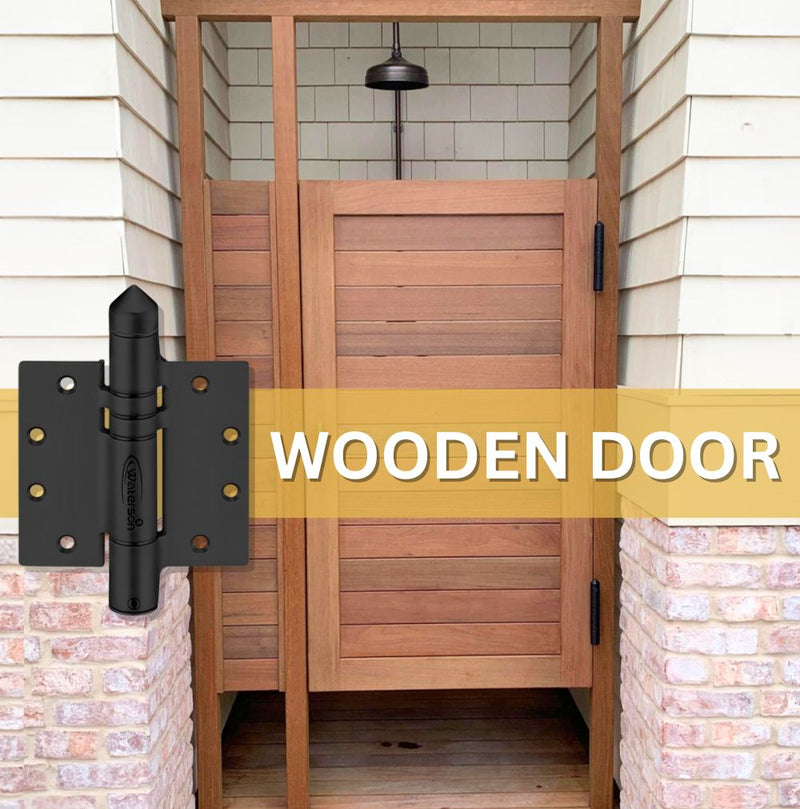

Outdoor Shower Door
- Interior & Exterior
Product Description and Features
- Reliable Self closing to enhance security and privacy

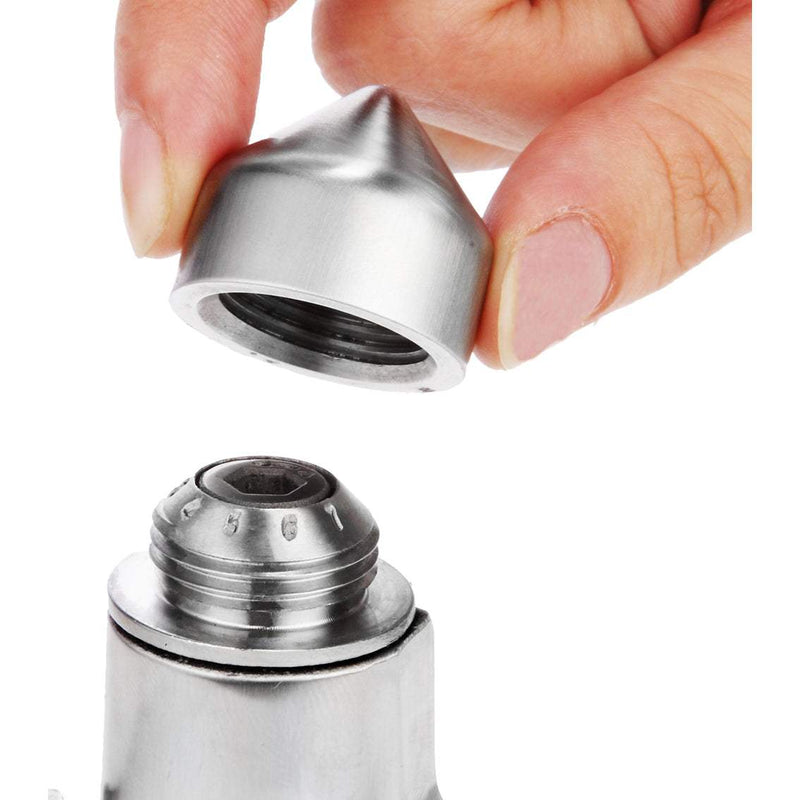

- Suitable for Exterior Use, Stainless Steel ,Weather Cap Extra Protection
- Without explosive closer arms
- Mechanical-only mechanism ( no oil ) supporting sever weather - snow or desert
- Aesthetically pleasing, match with gate color ( for more finishes, ask our sales for quote )
-
-

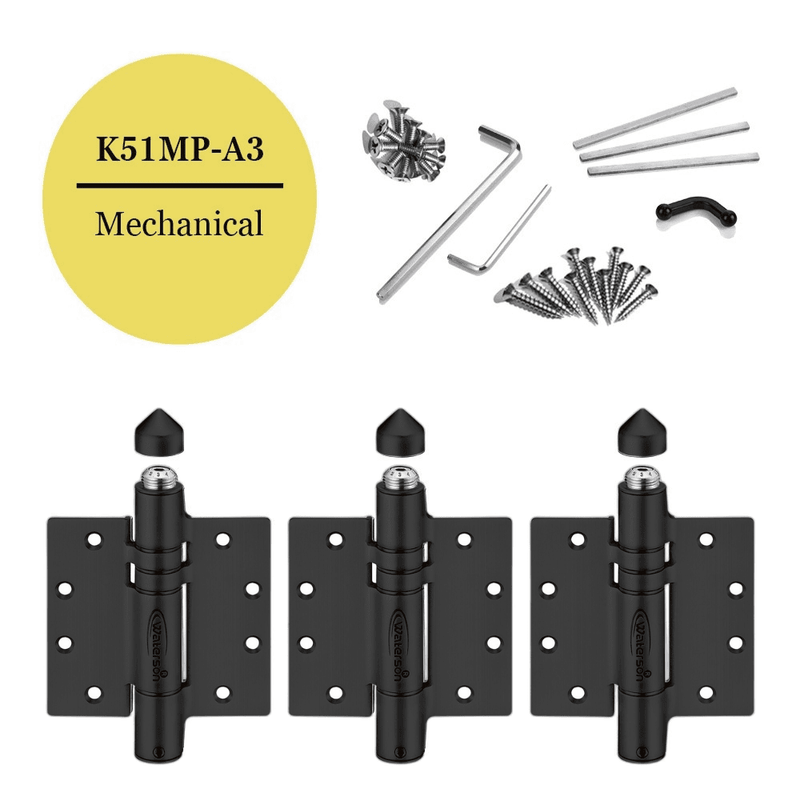

Installation Kits

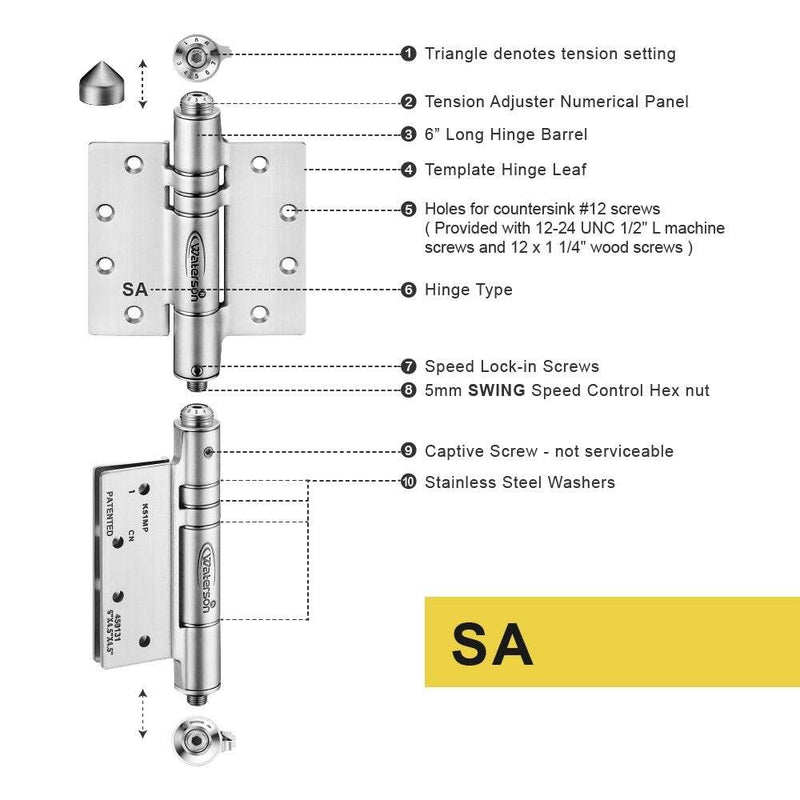

- Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
- Three steel adhesive shims for gap adjustment between door and frame as needed
- Tension Crook: Keeps hinge open during installation
- 5mm & 3mm hex allen wrenches
Compliance Standards
- ANSI A156.17 Grade 1: one million cycle testing

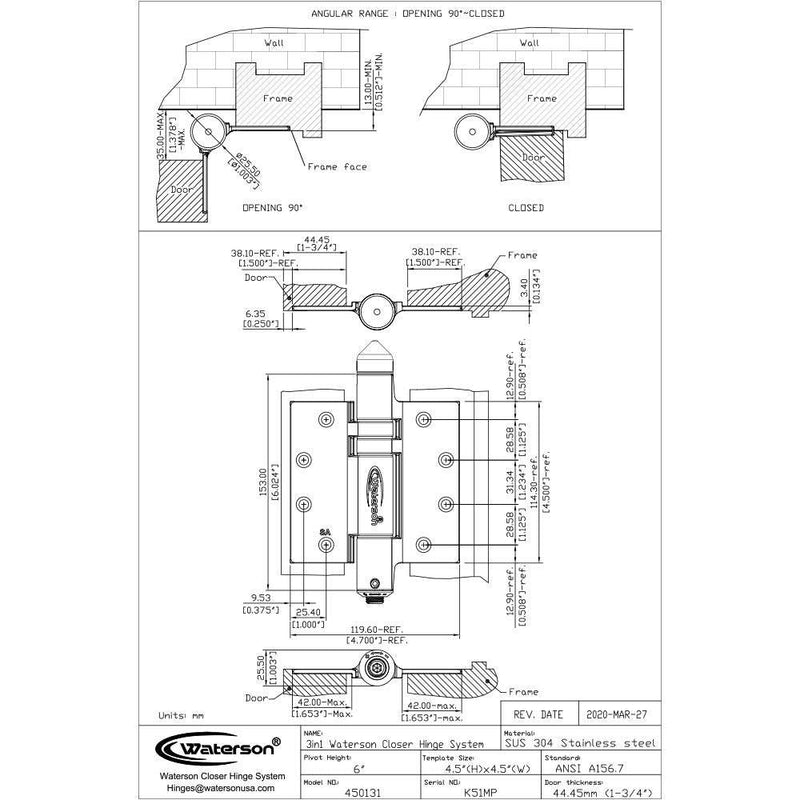

- ANSI A156.7 Template Hinge : 4.5" x 4.5"
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
- ADA Force: opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12°
- ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
-
Specifications
Product SKU K51MP-A3 Hinge Type Between square posts Hinge Material Stainless Steel Door Weight From 40lbs to 260lbs (75kg) Approx Door Size 1150mm W x 2200mm H (4ft x 7ft) Door Thickness 1 ¾” (40-50 mm) Self-closing o Fluid Motion x Hold-open x Fixing Method Screw-On, only spot weld AFTER speed adjustment Color/Finish Satin Brushed, Black Combination/Quantity SA.SA.SA1,3 Pack -
