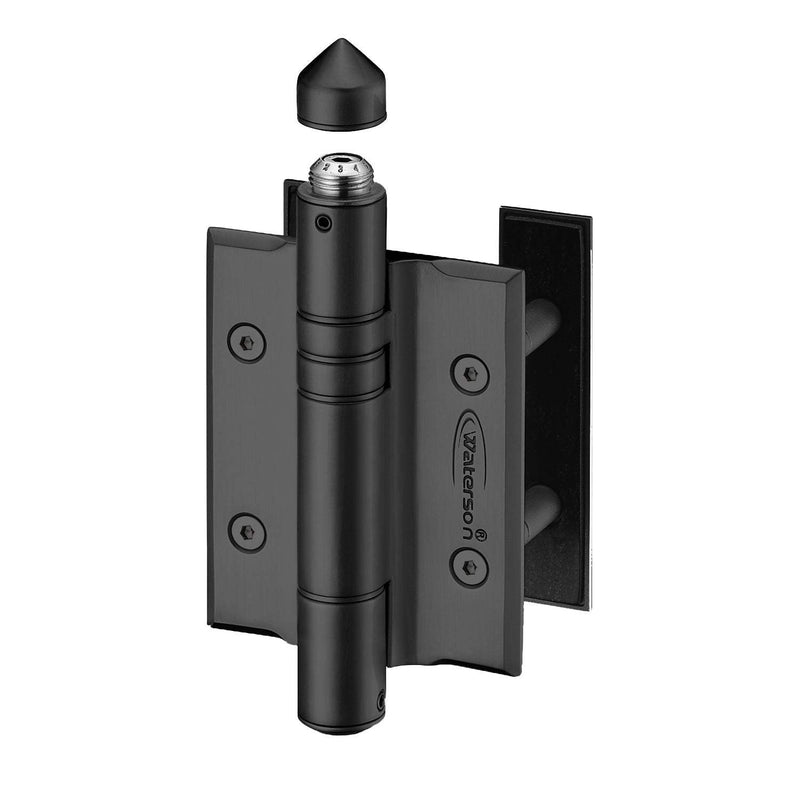

2pcs Gate Hinges Soft Closing | Hydraulic | 6ft | 150 lbs | 1” to 4” Thick | SS304 | K51P-B2

Soft close gate hinge combine self and soft closing performance that regulates speed from start to finish, allowing you to fine-tune closing behavior without relying on torsion springs.

Built with SS316 and a full-surface mounting design, these hydraulic self closing gate hinges support consistent, code-aligned movement in long-term outdoor conditions. 3 years warranty

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• TALK TO SALES FIRST - NON REFUNDABLE

  Applications

  • Gate Entry
  • Pool Gate
  • Interior & Exterior
  • Courtyard Style

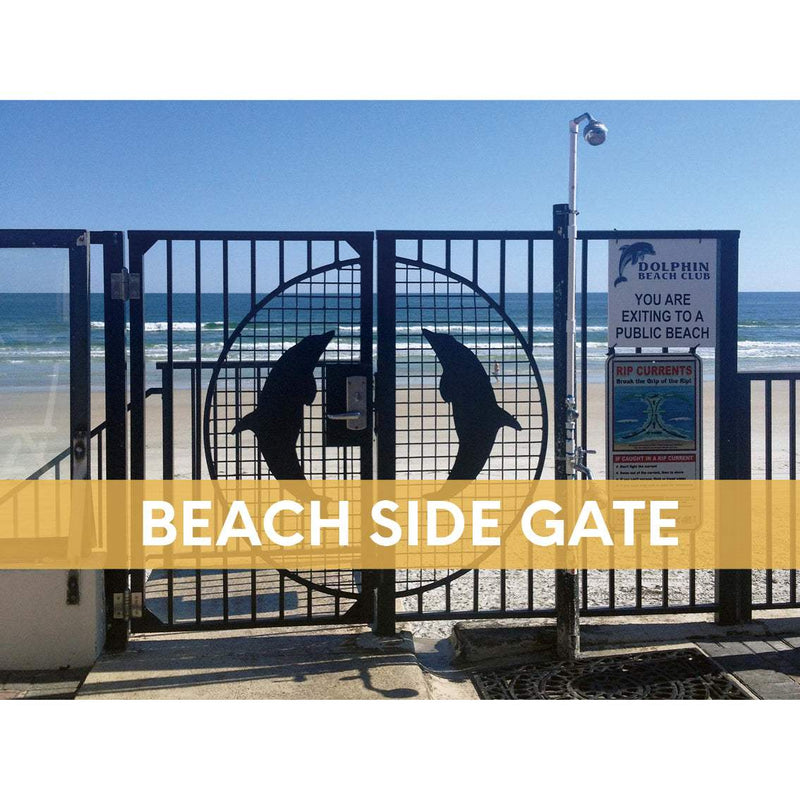

  • Breezy environments

  • Need Corrosion-Free, Marine-Grade Solutions? We got your back!

  Product Description and Features

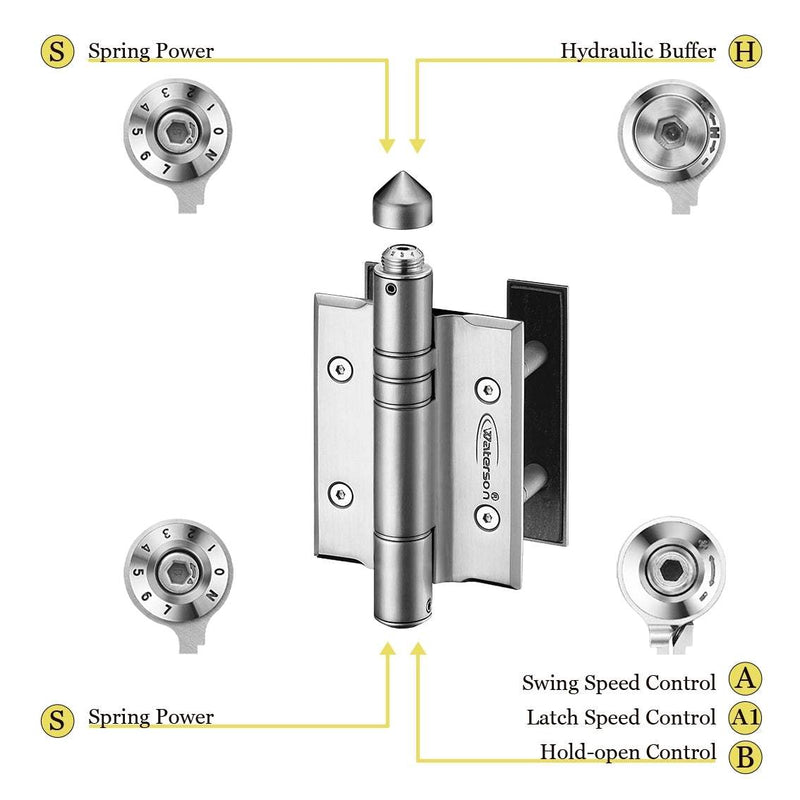

  • Fully adjustable closing force and speed according to environment needs

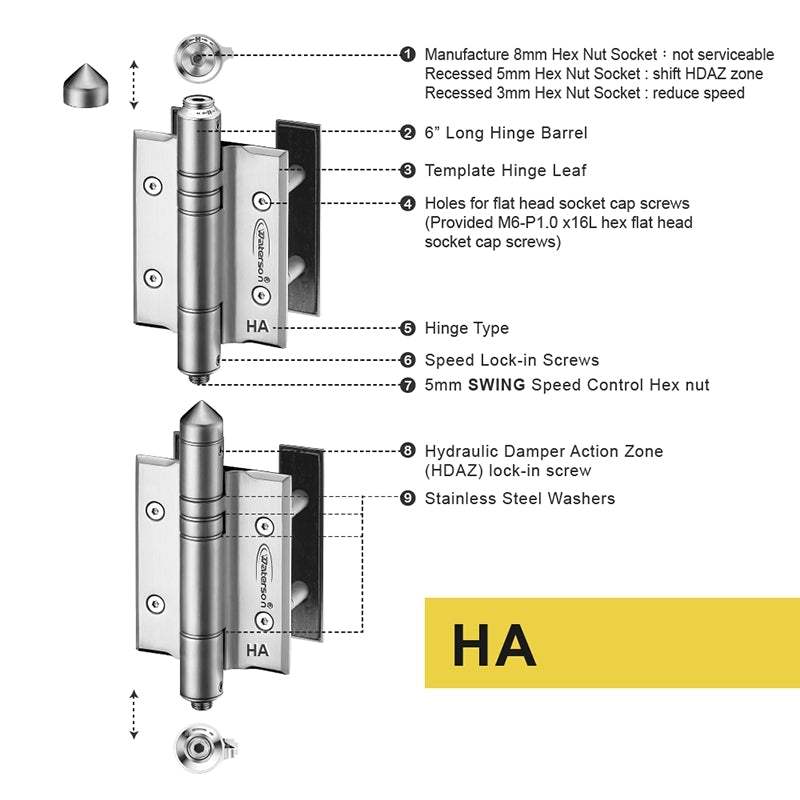

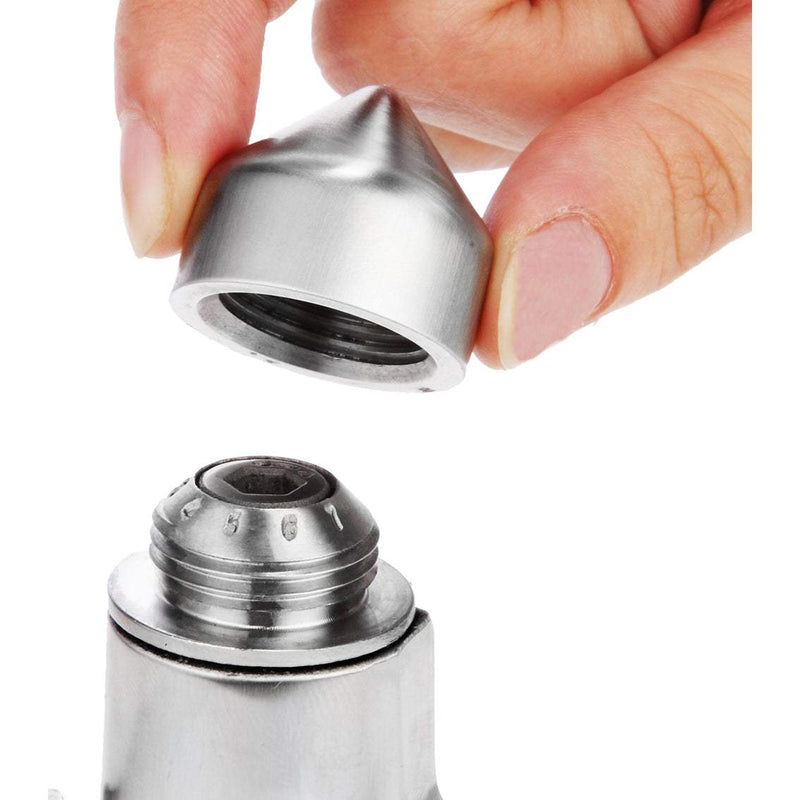

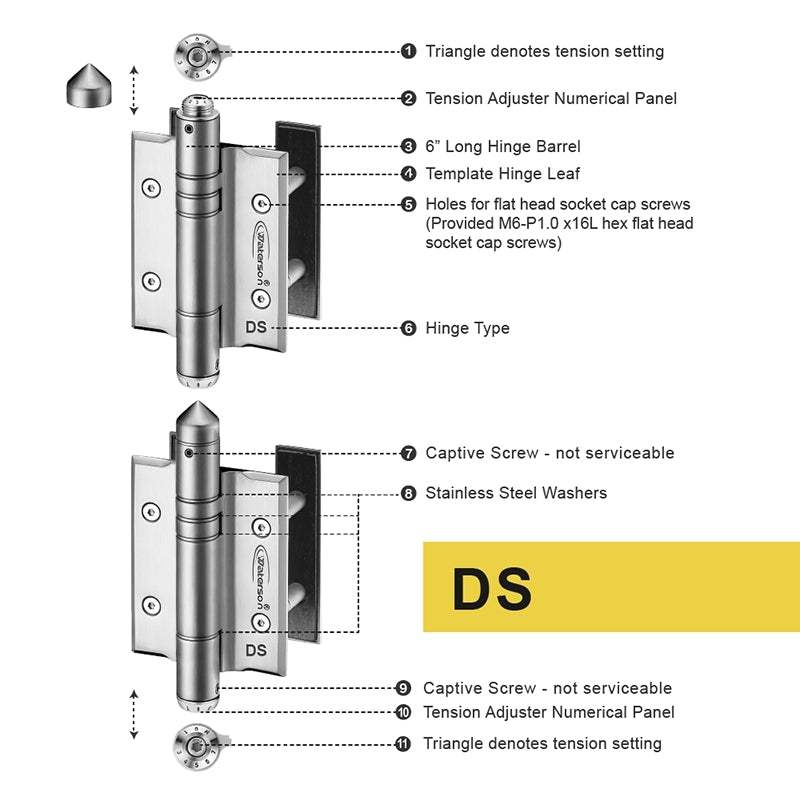

  • Numerical adjustment panel on hinge end to set up precise tension
  • Mechanical only mechanism supporting heavy duty and fully exterior
  • An aesthetically pleasing and sleek all-in-one component
  • One million cycle testing ensures low maintenance longevity

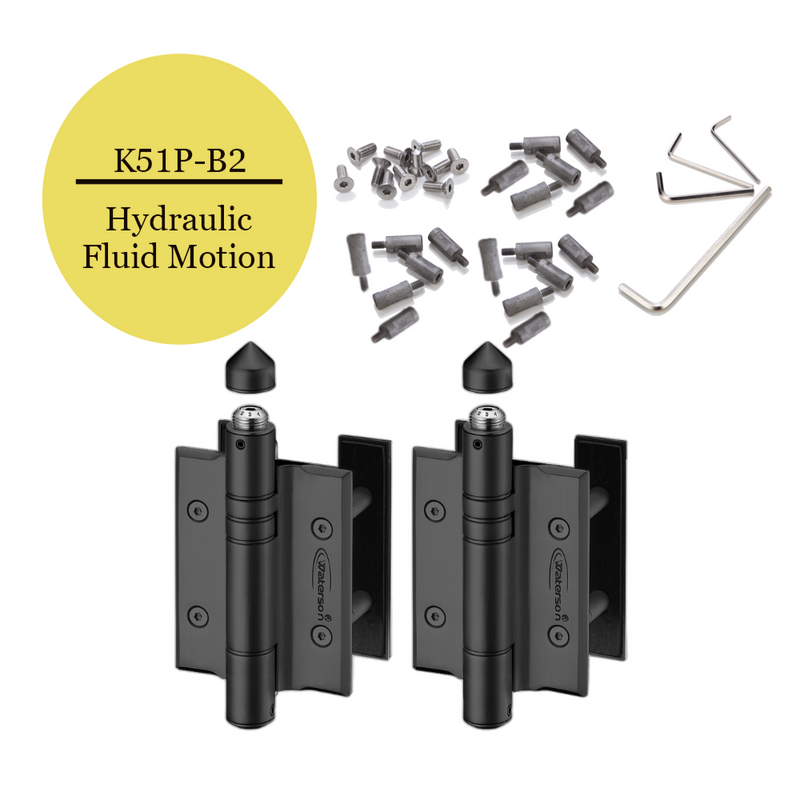

• Installation Kits

  • 316 stainless steel Hex Drive Flat Head M6 x P1 x 0.630"L screws included -- eight (8) of each type per hinge.
  • 5mm & 4mm& 3mm& 2.5mm hex Allen wrenches
  • Sets include 1” extenders.
    * 2-hinge pack: 12 extenders
    * 3-hinge pack: 18 extenders
    * For 0.5” extenders, contact us. These are special order items and not available online.

  Compliance Standards

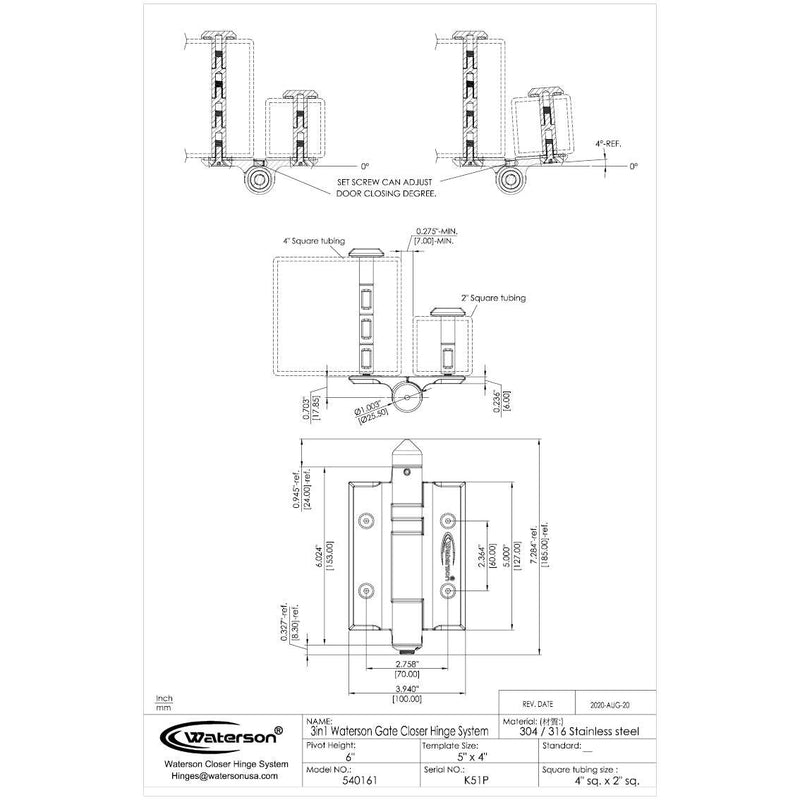

  • Hinge Leaf Size: 5” x 6”
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force: opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°

• Specifications

  Product SKU	K51P-B2
  Hinge Type	Full Surface
  Hinge Material	Stainless Steel 316
  Door Weight	From 40lbs to 150lbs
  Approx Door Size	1150mm W x 1800mm H (4ft x 6ft)

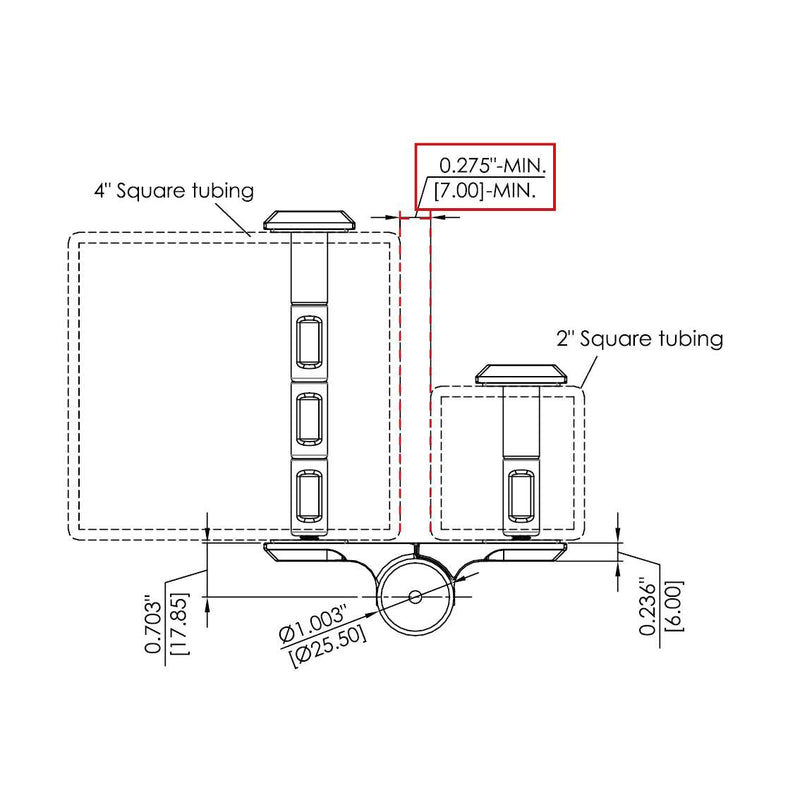

  Door Thickness	1” - 4"
  Self-closing	o
  Fluid Motion	x
  Hold-open	x
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment
  Color/Finish	Satin Brushed or Black
  Combination/Quantity	SA.SA1, 2 Pack





• Product Video
