2pcs Hydraulic Door Hinge | 4.5x4.5 | 6ft | 150 lbs | 1 ¾” Thick | SS304 | K51M-450-B2

Hydraulic door hinge design combines spring tension and hydraulic speed control on a 4.5"×4.5" full-mortise template for interior doors up to 150 lbs.

This configuration gives projects a stable hydraulic hinge option where anti slam, controlled closing, and modern design are required. No overhead arm. 3 years warranty

Attention: Special finishes (US4) is non-refundable

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

  • Offices

  • Interior & Exterior
  • French Style
  • Quiet area
  • Breezy environments
  • Interior Use Recommended


  Product Description and Features

  • Apply for door open ≤ 120°
  • Fully adjustable closing force and speed according to environment needs

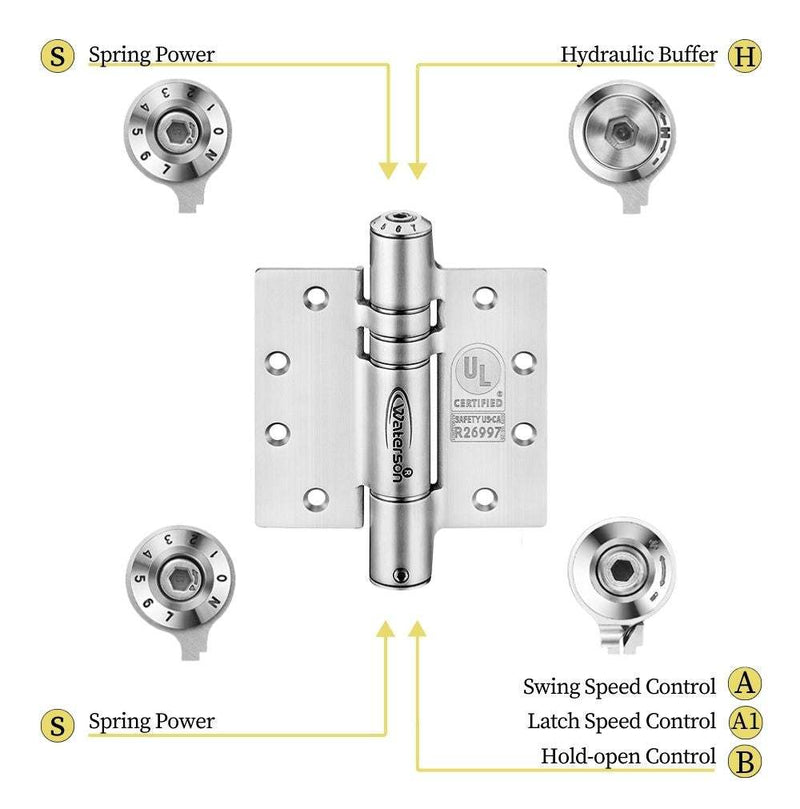

  • Numerical adjustment panel on hinge end to set up precise tension
  • Hydraulic fluid mechanism supporting precise speed and closing force adjustment
  • Aesthetically pleasing compared to door closers -- without extrusive arms
  • UL certified cycle testing ensures many years of low maintenance.

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Two steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

  • ANSI A156.7 Template Hinge : 4.5” x 4.5”
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

• Specifications

  Product SKU	K51M-450-B2
  Hinge Type	Full Mortise, 4 1/2 Inch x 4 1/2 Inch
  Hinge Material	Stainless Steel
  Door Weight	From 40lbs to 150lbs
  Approx Door Size	4ft x 6ft
  Door Thickness	1 ¾” (40-50 mm)
  Self-closing	o
  Fluid Motion	o
  Hold-open	x
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment
  Color/Finish	Satin Brushed,Black,Gold,ORB
  Combination/Quantity	DS.HA, 2 Pack
