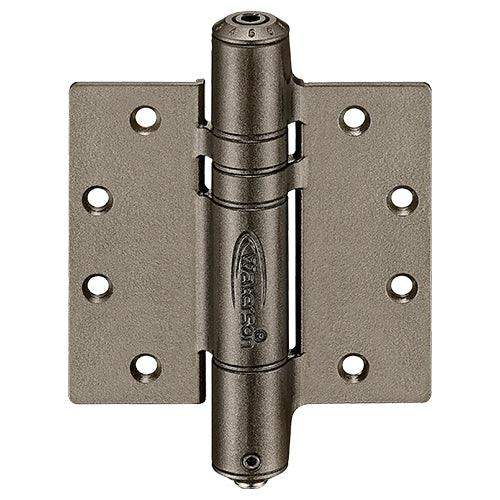

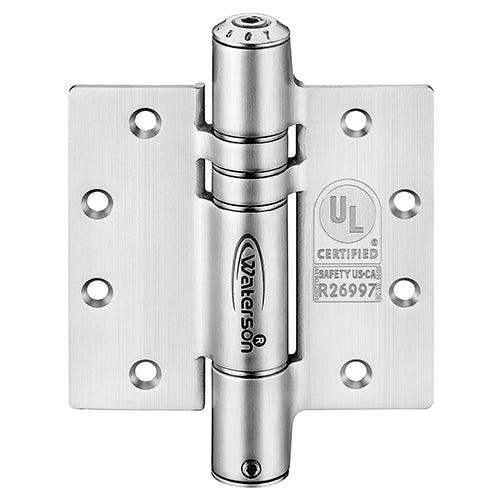

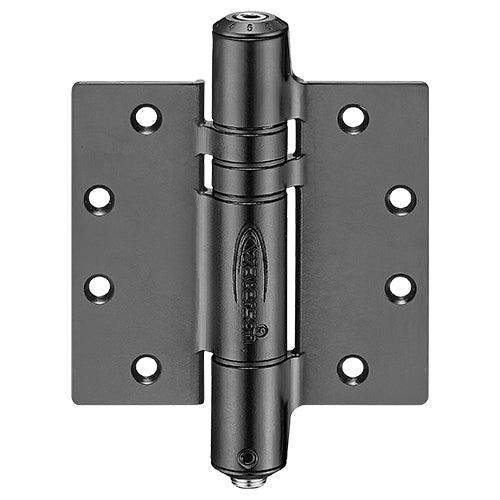

K51M-500D-A3 | Mechanical Adjustable Self Closing Hinge | 5” x 5” | Fire-rated Stainless Steel | 3 Pack
by selfclosing
Original price
$456.59
-
Original price
$513.59
Original price
$456.59
$456.59
-
$513.59
Current price
$456.59

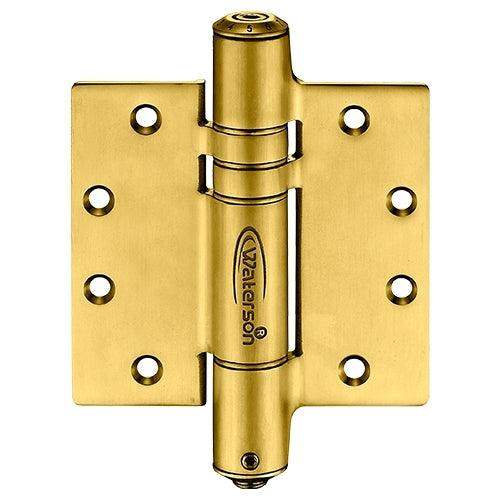

Attention: Special finishes (US4) is non-refundable
- DESCRIPTION
- DETAILS
- SPECIFICATIONS
- VIDEO
-
Applications
- Hotel Rooms

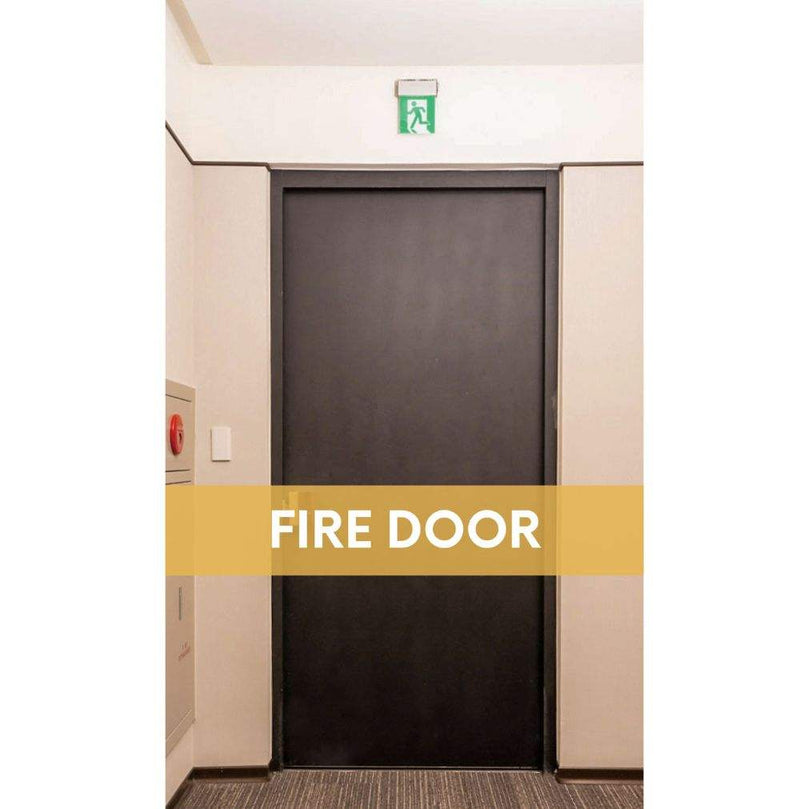

- 3Hr Fire-rated
- Fully Exterior
- Arch Top
- Heavy Duty
- Courtyard Style
Product Description and Features
- Fully adjustable closing force and speed according to environment needs

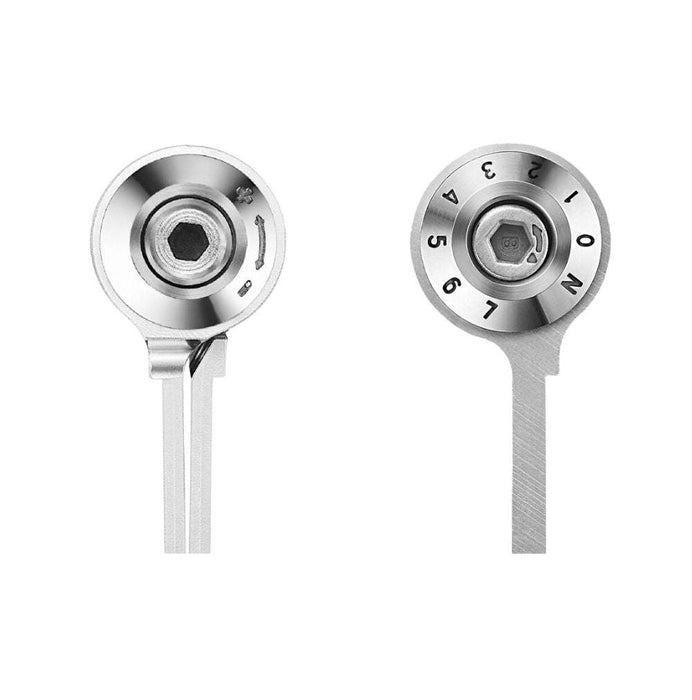

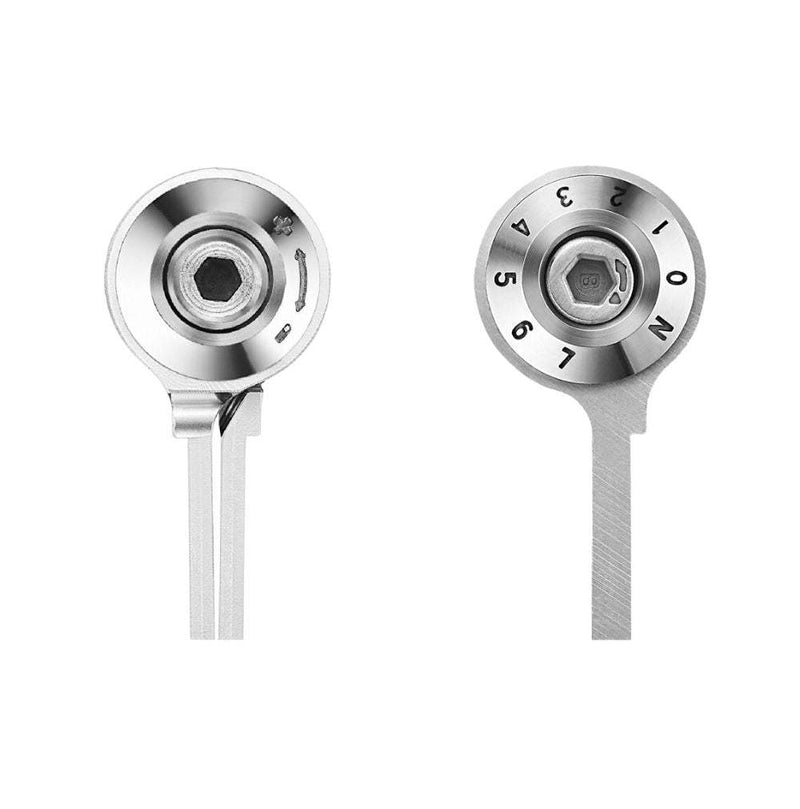

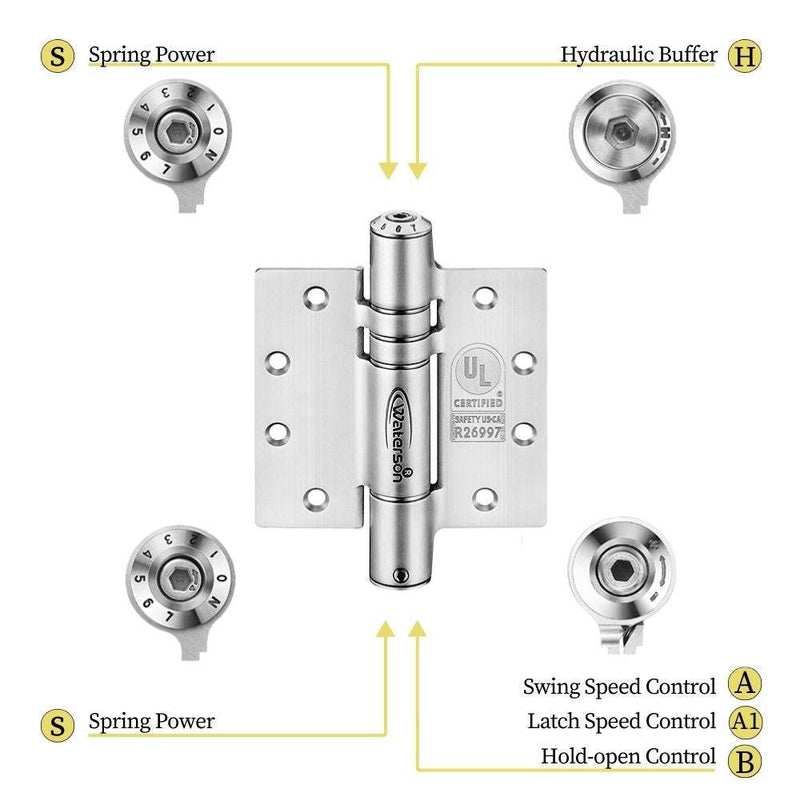

- Numerical adjustment panel on hinge end to set up precise tension
- Mechanical only mechanism supporting heavy duty and fully exterior
- Aesthetically pleasing compared to door closers -- without extrusive arms
- UL certified cycle testing ensures many years of low maintenance.
-

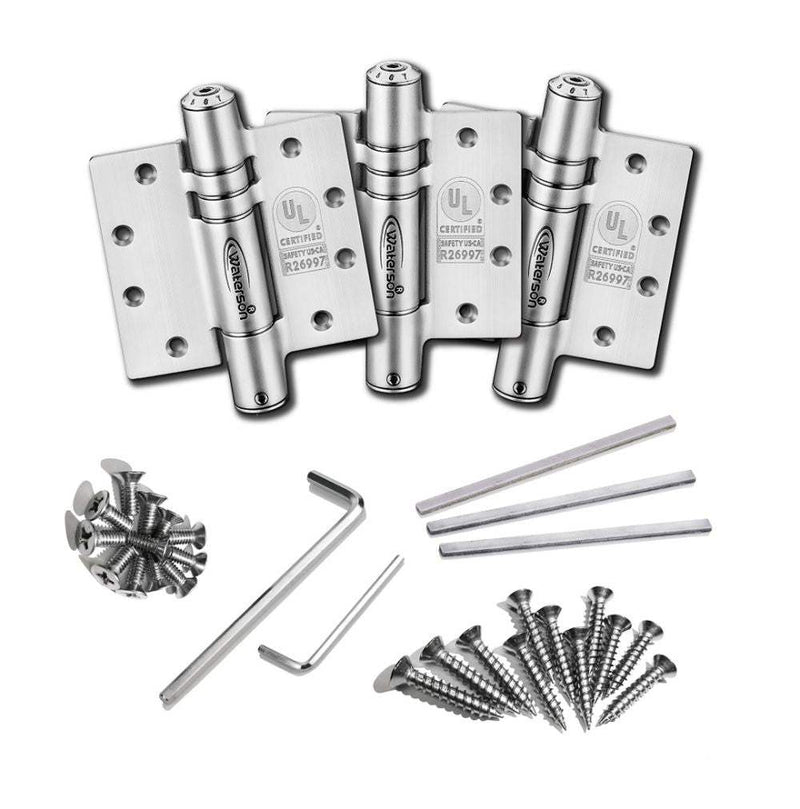

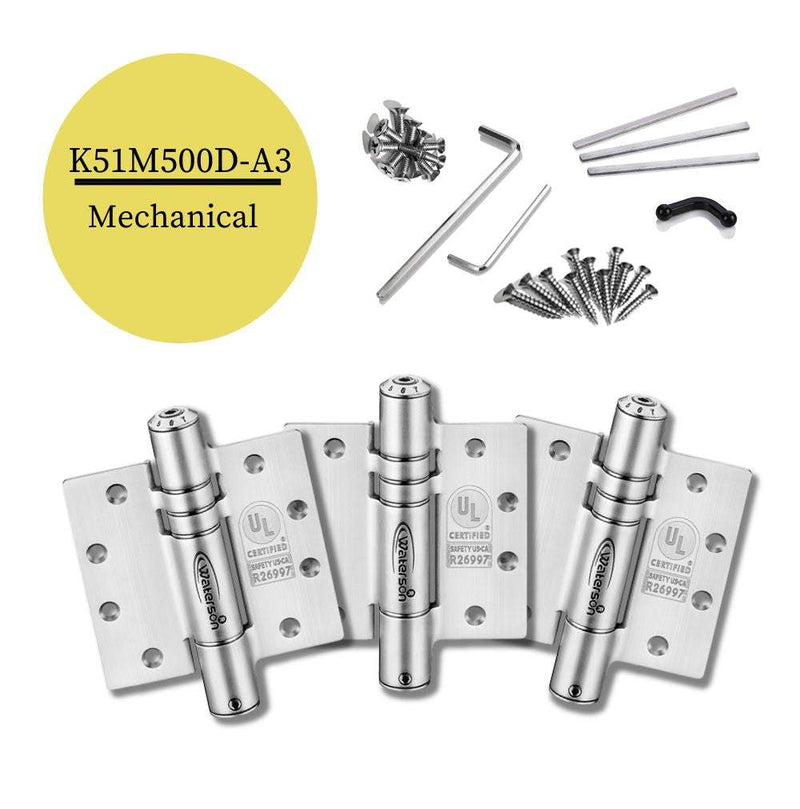

Installation Kits
- Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
- Three steel adhesive shims for gap adjustment between door and frame as needed
- Tension Crook: Keeps hinge open during installation
- 5mm & 3mm hex allen wrenches
Compliance Standards
- ANSI A156.17 Grade 1 : one million cycle testing

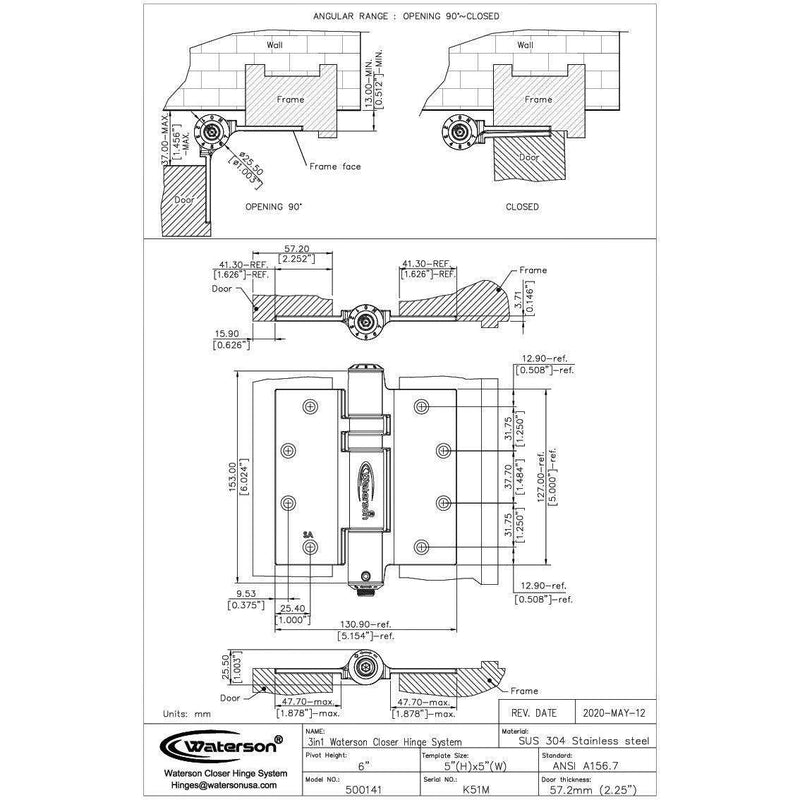

- ANSI A156.7 Template Hinge : 5” x 5”
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
- ADA Force : opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12°
- ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
-
Product SKU K51M-500D-A3 Hinge Type Full Mortise, 5 Inch x 5 Inch Hinge Material Stainless Steel Door Weight Up to 260lbs Approx Door Size 1150mm W x 2200mm H (4ft x 7ft) Door Thickness 1 ¾” ~ 2 ½” (45-65 mm) Self-closing o Fluid Motion x Hold-open x Fixing Method Screw-On, only spot weld AFTER speed adjustment Color/Finish Satin Brushed,Black,Gold,ORB Combination/Quantity SA.SA.SA1,3 Pack -
