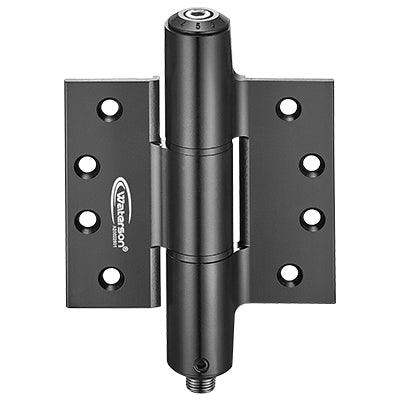

W41M-400-D3 | Hydraulic Hybrid Self Closing Hinge | 4 x 4 | Residential Aluminum Mortise hinge | 3 Pack
Get the best of all worlds with our Waterson K51M-450-D3 self-closing hinge. It's in stock right now and offers superior speed control, adjustable power, and tension settings, as well as a hydraulic function and hold-open feature
Note: We currently have stock available! Simply send us a request!
- Non-Fire Rated
- Soft Close Spring Hinge

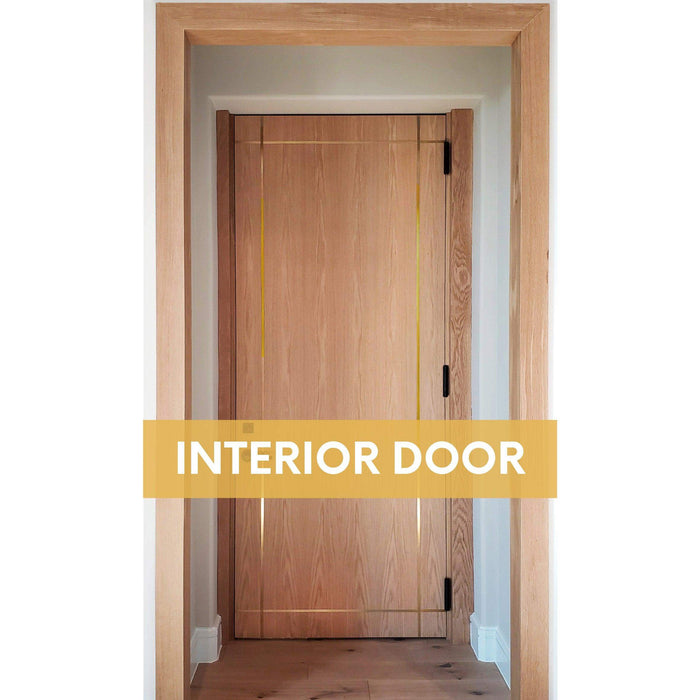

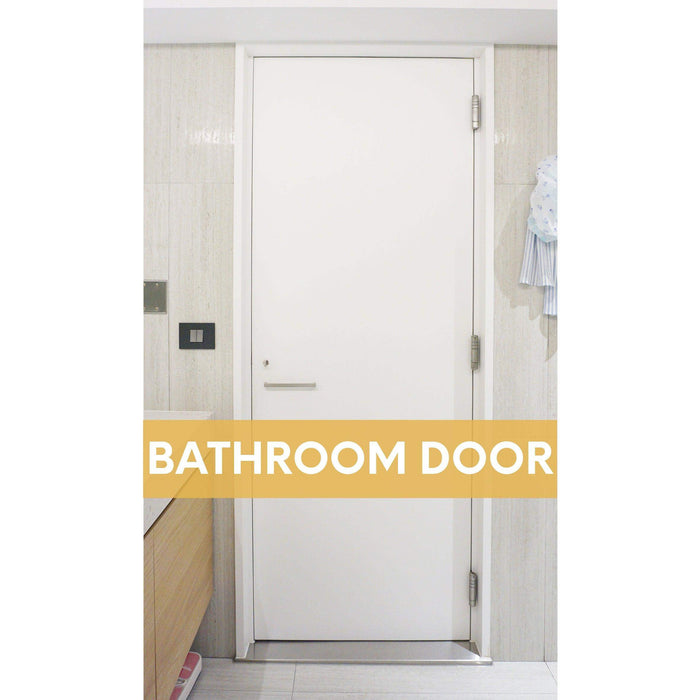

- Residential Applications
- Good to the Eye
- Easy Installation
- Replacement for the Traditional Door Closer

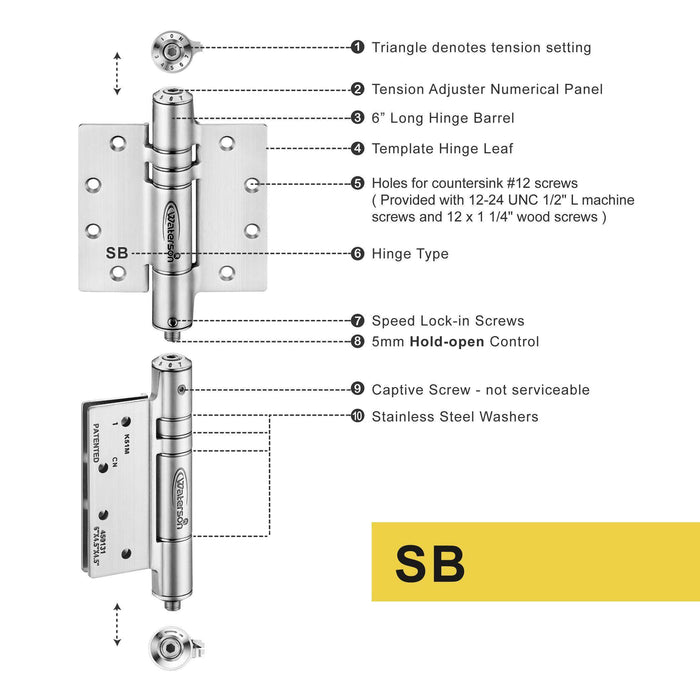

Product Description and Features

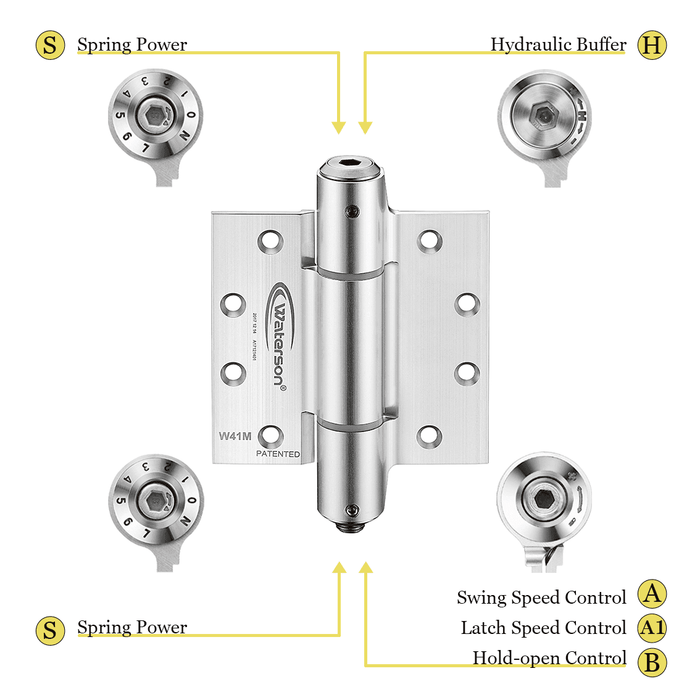

- Fully adjustable closing force and speed according to environment needs

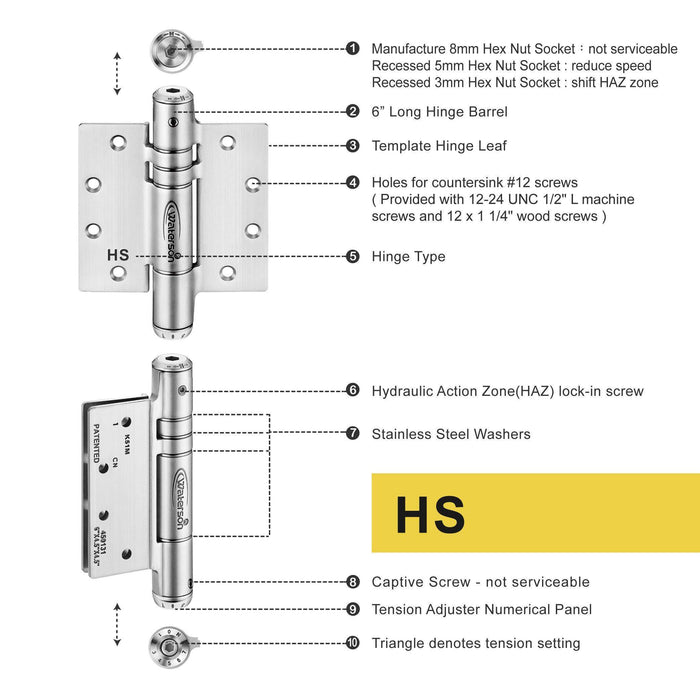

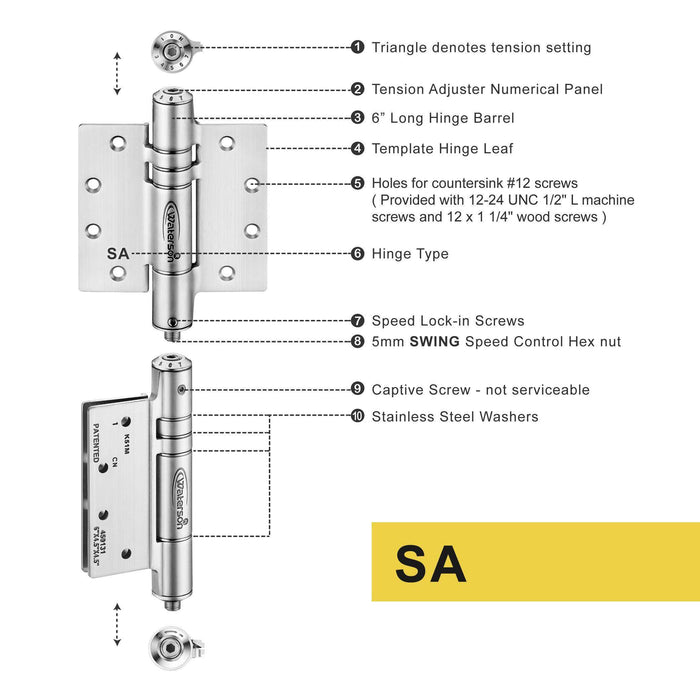

- Numerical adjustment panel on hinge end to set up precise tension
- Mechanical only mechanism supporting heavy duty and fully exterior
- Aesthetically pleasing compared to door closers -- without extrusive arms
- Ensures many years of low maintenance.

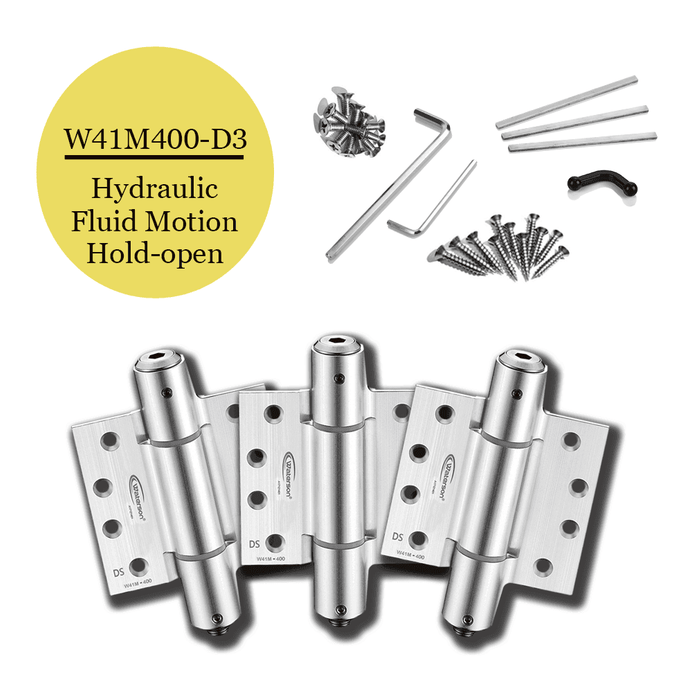

- Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
- Three steel adhesive shims for gap adjustment between door and frame as needed
- Tension Crook: Keeps hinge open during installation
- 5mm & 3mm hex allen wrenches

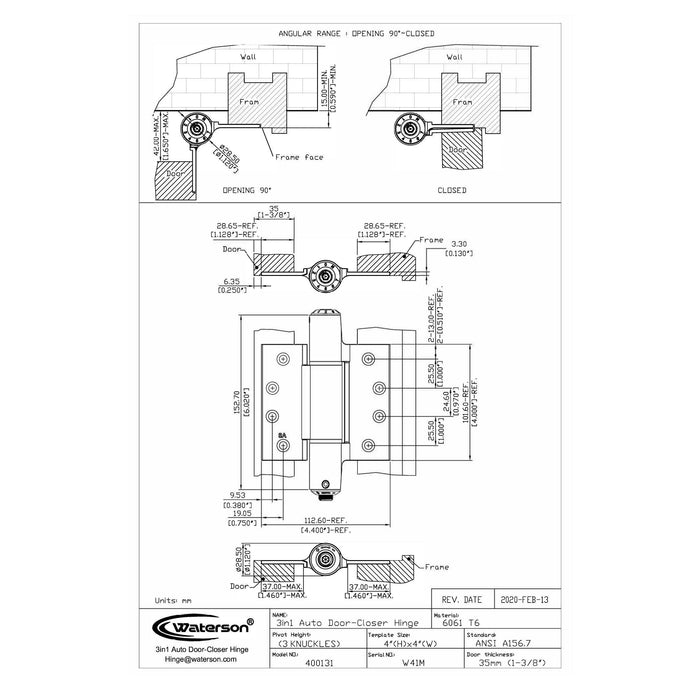

- ANSI A156.7 Template Hinge : 4" x 4"
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
- ADA Force : opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12°
- ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
Product SKU W41M-400-D3
Hinge Type Full Mortise Hinge Material Aluminum
Door Weight Up to 200lbs Approx Door Size 1150mm W x 2200mm H (4ft x 7ft) Door Thickness 1 ¾” (40-50 mm) Self-closing o Fluid Motion o Hold-open o Fixing Method Screw-On, only spot weld AFTER speed adjustment Color/Finish Anodized Clear,Black
Combination/Quantity SA.HS.SB,3 Pack
