What Does ANSI/BHMA Grade 1 Actually Mean for Door Hinges?

Grade 1 is not a marketing tier, it is a pass or fail line in a published standard. Before you accept a substitution or defend the line item, here is exactly what the grade certifies, what it does not, and where the number earns its keep.

What Does "Grade 1" in ANSI/BHMA A156.17 Actually Certify?

ANSI/BHMA A156.17 covers Self Closing Hinges and Pivots. Section 5.3.1 sets the cycle requirements, and that is where the grade lives. Grade is a durability tier tied to a cycle count on a controlled test rig, nothing more and nothing less. It does not, on its own, rate finish, corrosion resistance, or fire performance. Those are separate qualifications.

The standard is candid about its own limits: it states the cycle test procedure should not be read as a guide for an actual installation. That caveat matters, but it does not weaken the number. What it gives you is a consistent, third-party benchmark for build quality. So when a product carries Grade 1 under A156.17, it means the hinge completed one million open and close cycles on the test without failing the acceptance criteria. Grade 2 stops at half that. Grade 3 stops at a quarter.

How Many Years of Service Does One Million Cycles Buy You?

This is where the grade stops being an abstraction. Translate the cycle count into duty at your opening.

A busy multifamily corridor, stair, or amenity door commonly sees 200 to 400 full cycles a day. At roughly 300 cycles a day, one million cycles is about nine years of continuous service before the door even reaches the test ceiling. Grade 2, at 500,000 cycles, gets you to roughly half of that. Grade 3, at 250,000, is a light-duty, residential expectation and has no business on a corridor.

Cycle requirement per ANSI/BHMA A156.17.

The read for a spec writer is short. Match the grade to the traffic. A closet or a low-use interior door does not need a million cycles. A door on a closer, in a corridor, on an entry, or in a stairwell does.

How Do You Keep a Grade 1 Spec From Being Substituted Down?

Write the standard and the grade explicitly: ANSI/BHMA A156.17, Grade 1, 1,000,000 cycles. Then require the manufacturer's cycle-test evidence for that grade, not a verbal assurance that a product is "basically the same." The two failure patterns to watch for are a submittal that names the standard but lists a lower grade, and one that names the standard but omits the cycle count entirely. Either one is a Grade 1 spec quietly becoming a Grade 2 install. When the number is on paper and the test data backs it, the substitution conversation ends on your terms.

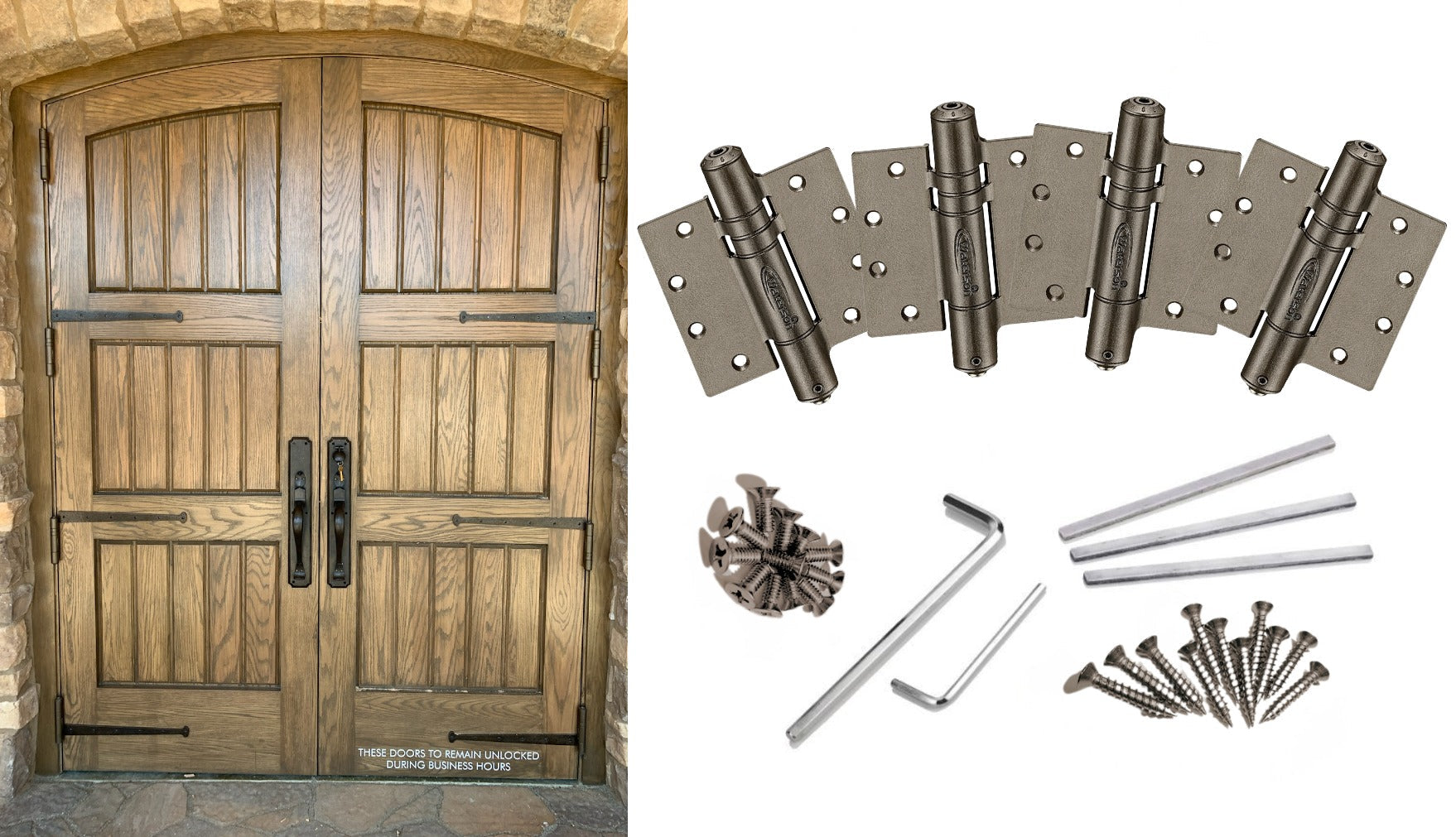

Where Waterson 3-in-1 ANSI/BHMA Grade 1 Hinges Fit the Corridor Opening

Waterson closer hinges are built for exactly the opening in the quote above: a high-cycle door where a spec writer wants durability on paper and fewer devices on the frame. Each hinge combines three functions in one component, a door closer, a heavy-duty hinge, and an optional door hold-open, and the assembly is tested to ANSI/BHMA A156.17 Grade 1, over 1,000,000 cycles.

That combination is also a money saver. It eliminates the overhead door closer and the separate hold-open, along with the extra door and frame preparation those overhead devices demand. The patented mechanical-hydraulic action tunes quietly and securely in the field, and because the hinge fits standard hinge templates, it drops into normal prep. Here is how the feature set maps to the multifamily corridor:

Finishes include Satin Stainless Steel (US32D), Flat Black (US19), Dark Satin Bronze (695), and Satin Brass (US4), so the design match does not cost you the rating.
