What is a 1/4 radius hinge used for?
A 1/4 radius hinge is defined by its corner geometry: each corner curves with a radius equal to the edge of a US dime, producing a tighter, squarer profile compared to the wider 5/8 radius curve. It is used whenever the door or frame mortise was cut with a 1/4 inch radius corner prep.
- Newer residential construction where precision router cuts favor the tighter 1/4 radius for a cleaner, contemporary look.
- Specialty and custom doors in hotels, offices, and design-forward commercial interiors where the squarer corner reads as more premium.
- Replacement projects where the existing mortise was already cut to 1/4 inch and re-chiseling is not an option.
- Aluminum-framed doors and narrow-stile applications where the tighter radius seats better within the available material.
How to choose the right 1/4 radius hinge for an interior door
Confirming the radius is only the first filter. Three more variables determine the right hinge for your specific opening:
- Door weight and height. Waterson 1/4 radius hinges support doors up to 330 lbs and heights up to 8 ft (2 pcs for up to 6 ft, 3 pcs for 7 ft, 4 pcs for 8 ft).
- Closing behavior. Choose mechanical self-closing (A-C type) for spring-return action, or hydraulic soft-closing (B-D type) for controlled, noise-free closure.
- Finish. Available in Satin Stainless (US32D), Flat Black (US19), Satin Brass (US4), and Dark Satin Bronze (695).
- Fire rating. A-B models carry a UL 3-hour fire rating for fire-rated openings.
- Hold-open. C-D models include a hold-open feature for high-traffic corridors or accessible-design requirements.
Where can I purchase door hinges with a 1/4 inch corner radius?

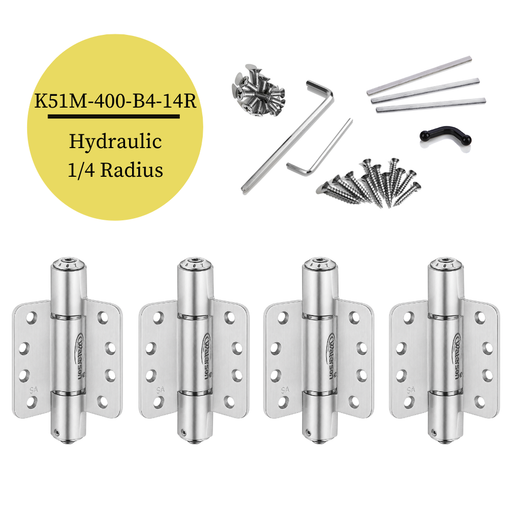

Waterson 1/4 radius hinges are available directly through this page. Every model ships with all required fasteners and installation hardware. For specific quantities, custom finishes, or project-level pricing, use the Request Quotation option to connect with our specification team.
How to install a hinge with a 1/4 inch radius corner
The mortise must already match the 1/4 inch radius profile before installation. Do not seat a 1/4 radius hinge in a 5/8 radius mortise, as the corner will gap and the leaf will not sit flush.
- Verify the mortise radius using a dime to test the corner curve.
- Check the mortise depth. The hinge leaf should sit flush with the door or frame face.
- Position the hinge and mark screw locations with an awl or sharp pencil.
- Pre-drill pilot holes to prevent splitting and ensure screws drive straight.
- Fasten the door leaf first, then the frame leaf, checking for flush seating after each screw.
- Hang the door and test the swing. For hydraulic models, adjust closing speed using the barrel adjustment screws without removing the hinge.
Common applications for 1/4 inch radius door hinges
The 1/4 radius profile is specified most often where precision fit and modern aesthetics matter:
- Hotel guestroom doors
- Office interior doors
- Residential bedroom and bathroom doors
- Healthcare facility doors
- Aluminum-framed commercial doors
- Custom millwork and specialty doors
- Fire-rated corridor doors (A-B models)
- Accessible design openings
