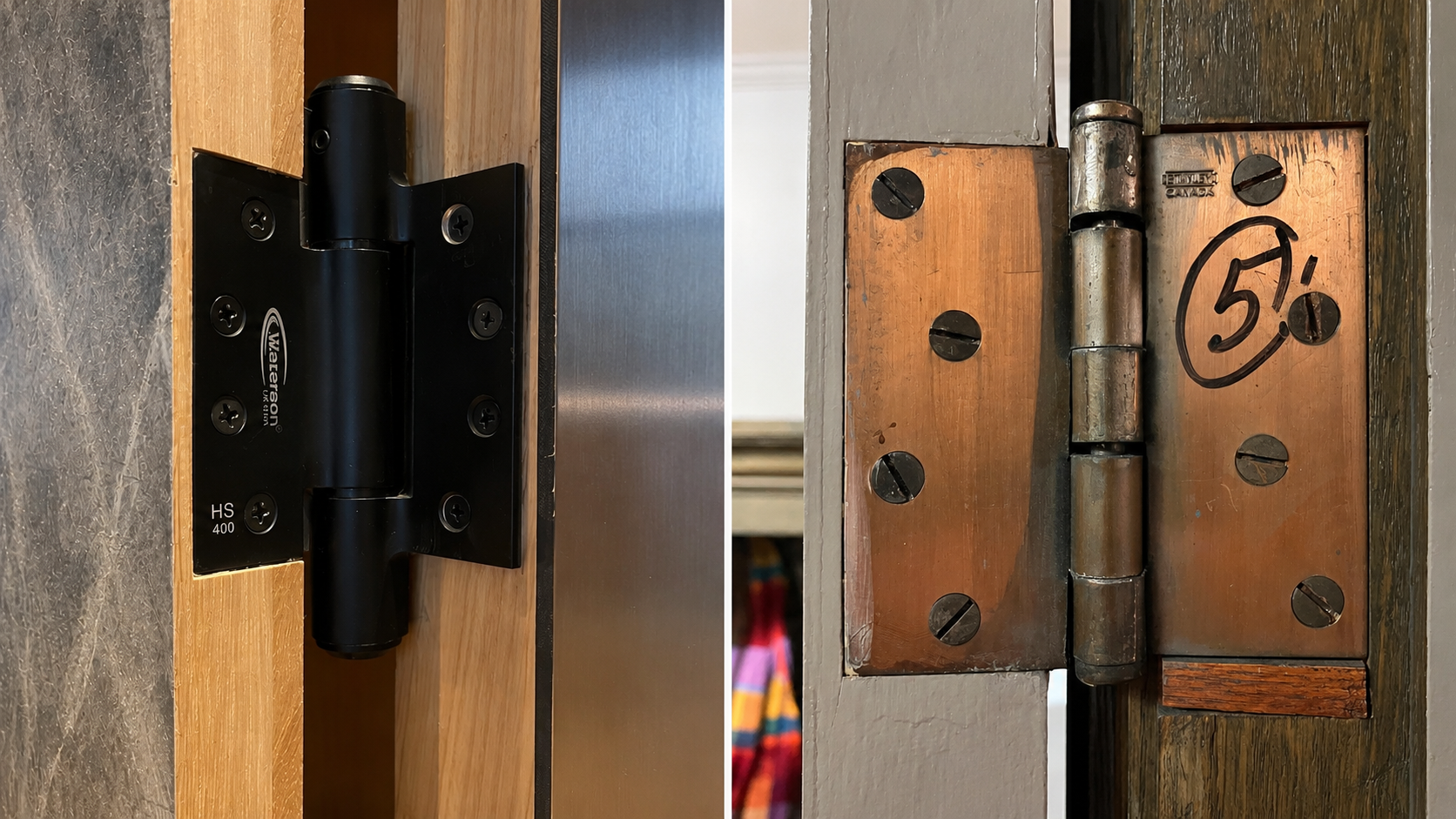

What Is the Difference Between Full Mortise and Non Mortise Hinges
A door that sags, fails inspection, or swings open on its own is not just an inconvenience; it is a liability. In most cases, the root cause traces back to one simple decision made early in the project: the wrong hinge type.
Full mortise and non-mortise hinges look similar on paper but perform very differently in the field. Get it wrong and you are looking at rework costs, compliance failures, or hardware that gives out long before the door does.
What Is a Full Mortise Hinge?
A full mortise hinge is installed by cutting a shallow recess (called a mortise) into the edge of the door and the door frame. Each leaf sits flush within that recess, making the hinge nearly invisible when the door is closed.
Why specifiers and contractors prefer full mortise hinges:
- Supports heavy doors up to 260 lbs (with a 3-hinge set) or 330 lbs (with a 4-hinge set)
- Creates a clean, flush surface with no protruding hardware
- Meets ANSI/BHMA A156.1 standards and UL 3-hour fire ratings
- Preferred for commercial, industrial, and fire-rated door applications
- Offers long-term durability with ball bearing construction for smooth, quiet operation
Full mortise hinges are the standard choice for high-traffic commercial buildings, fire-rated corridors, healthcare facilities, schools, and anywhere door performance is non-negotiable.
What Is a Non Mortise Hinge?
A non-mortise hinge (also called a surface-mounted hinge) skips the cutting entirely. Both leaves are screwed directly onto the face of the door and the frame.
Where non-mortise hinges make sense:
- Lightweight interior doors, cabinet doors, or closet applications
- Quick retrofits or temporary installs
- Low-traffic residential settings where aesthetics are secondary
- Projects with tight timelines and limited installation resources
The tradeoff is clear: easier installation comes with lower load capacity (typically 30 to 50 lbs per pair) and no fire-rated or ADA compliance.
Full Mortise vs. Non-Mortise: Side-by-Side Comparison
| Feature | Full Mortise Hinge | Non-Mortise Hinge |
|---|---|---|
| Installation | Requires mortising (cutting a recess) | Surface-mounted, no cutting needed |
| Load Capacity | Up to 330 lbs (4-hinge set) | Typically 30 to 50 lbs per pair |
| Appearance | Flush, concealed, professional | Fully visible hardware |
| Compliance | ANSI/BHMA, UL 3-hr fire rated, ADA compliant | Not fire-rated or ADA compliant |
| Warranty | 3 to 10 years | 1 to 2 years |
| Best For | Commercial, fire-rated, heavy-duty doors | Cabinets, closets, light interior doors |
Bottom line: if your door handles daily traffic, carries significant weight, or needs to meet building codes, full mortise is the only sensible choice.
Why Waterson Full Mortise Hinges Outperform the Rest
Waterson closer hinges do not just hold a door; they control it. By combining a heavy-duty full mortise hinge with a built-in hydraulic closer, Waterson eliminates the need for a separate overhead door closer unit. That means fewer components, cleaner aesthetics, and less maintenance.
Key features of Waterson Full Mortise Ball Bearing Hinges:
- Self-Closing with Adjustable Tension: Built-in spring mechanism closes the door automatically. The numerical tension adjuster lets you fine-tune closing speed without removing the hinge.
- Ball Bearing Design: Ensures smooth, whisper-quiet operation across thousands of open/close cycles, reducing wear on both the hinge and the door frame.
- High Load Capacity: A 3-hinge set carries up to 260 lbs; a 4-hinge set handles up to 330 lbs, covering the full range of commercial door applications.
- UL 3-Hour Fire Rating: Certified and compliant with NFPA 80, making Waterson hinges a code-approved solution for fire-rated door assemblies.
- ADA and ICC A117.1 Compliant: Engineered to meet low opening force requirements and smooth closing standards for accessible openings.
- Hold-Open and Door-Stop Options: Configurable to hold the door open at a specific angle, adding convenience in high-traffic or ADA-required applications.
- Stainless Steel Construction: Corrosion-resistant and built for both interior and all-weather exterior environments.
- Flush Mount Aesthetic: The full mortise design keeps everything tight and concealed, a finish that architects and project owners consistently request.
Who Should Be Using Waterson Full Mortise Hinges?
Waterson hinges are a direct fit for:
- Architects and specifiers who need a single-component solution that replaces both hinge and closer in the door schedule
- General contractors and installers looking for hardware that goes in fast and stays calibrated over time
- Door manufacturers seeking custom hinge sizes, finishes, and leaf designs that integrate seamlessly with existing frame systems
- Facility managers in commercial, education, hospitality, or healthcare settings who need reliable self-closing performance without ongoing maintenance calls
- End users and building owners who want doors that close quietly, securely, and consistently every time, with minimal upkeep over the life of the building
Ready to Specify or Source Waterson Full Mortise Door Hinges?
Waterson ships from the USA and offers full customization as a direct manufacturer. Whether you need a standard finish in stainless or a custom leaf configuration for a specialty frame, Waterson can accommodate the spec.
Note: Waterson closer hinges start from a minimum size of 4"x4". For smaller self-closing hinges, other solutions may be more appropriate. All Waterson models are single-acting closer hinges.
