What Door Hinge Size Do I Need? Waterson 4", 4.5", 5" & 6" Guide

Door hinge size is not a cosmetic decision. It’s structural.

If the hinge is undersized, the door feels heavy, closes inconsistently, and wears out faster. If it’s oversized without reason, you’re adding cost and overengineering the opening. The right size comes down to four factors: door height, door weight, traffic level, and code requirements.

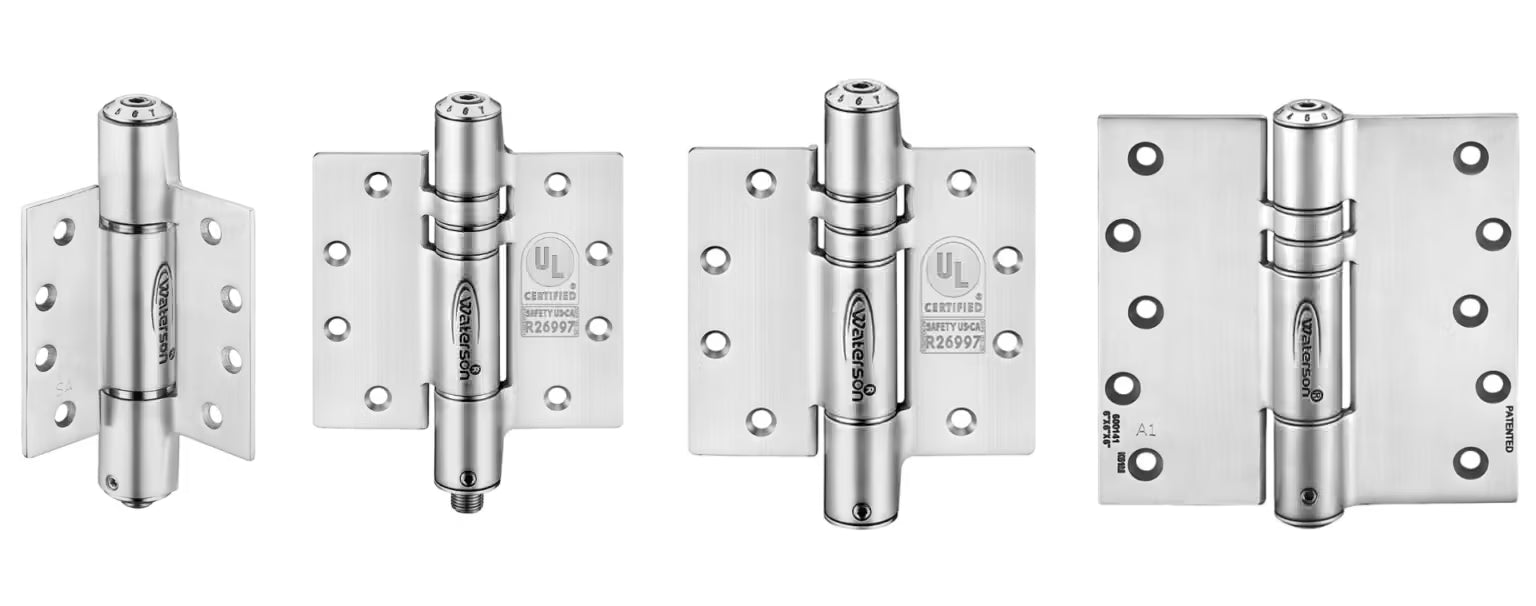

This guide explains how Waterson's template sizes (4", 4.5", 5", and 6") map to real-world applications, with a quick-reference sizing chart you can use before specifying.

What Does Door Hinge Size Mean?

In Waterson’s case, “size” refers to the hinge template dimension — 4"x4", 4.5"x4.5", 5"x5", or 6"x6".

Because Waterson integrates the closing mechanism inside the hinge body, template size directly impacts performance. Larger hinges provide more bearing surface and better stress distribution across the frame and door edge.

What Door Hinge Size Do I Need for a Standard Interior Door?

For a typical interior door — 6'8" high, 1-3/8" thick, moderate weight — a 4" template usually works.

Once you move into commercial territory (1-3/4" doors, 8 feet tall, solid core or steel), 4.5" becomes the practical baseline.

Anything beyond standard commercial — heavier steel doors, fire-rated assemblies, high-cycle environments — you start looking at 5" or 6".

Waterson’s four sizes exist for a reason. They match different structural demands. See our Door Hinge Catalog here for more references.

4 Inch Door Hinges

The 4" template is typically used in residential or light-duty commercial settings. It works well for interior wood doors and lower-traffic openings.

If the door is standard height and under heavy stress, this size is efficient and clean. It maintains the architectural look without overbuilding the hinge system.

You’ll commonly see 4" specified in:

• Residential interiors

• Small offices

• High-traffic retail

• Light fire-rated configurations

It’s the right answer when the load is moderate.

4.5 Inch Door Hinges

4.5" is where commercial application begins.

This size handles taller and heavier doors more reliably. It’s commonly used on 1-3/4" thick commercial doors, especially when height reaches 8 feet.

Architects often default to 4.5" in office buildings, schools, and general commercial corridors because it balances strength and cost.

If you’re working with:

• Hollow metal doors

• Solid core commercial doors

• Medium traffic

• Fire-rated assemblies

4.5" is usually the starting point.

5 Inch Door Hinges

5" hinges are selected when the door weight moves into the heavier commercial category.

This is where you’re dealing with reinforced steel doors, higher cycle counts, or larger fire-rated openings. The additional surface area improves long-term durability and reduces stress concentration at the frame.

You’ll typically see 5" used in:

• Institutional projects

• High-traffic entries

• Heavier fire-rated doors

• Industrial applications

If the door is pushing 300+ lbs or used constantly throughout the day, 5" becomes practical, not excessive.

6 Inch Door Hinges

6" is specified when structural load is the primary concern.

Oversized doors, heavy steel construction, hospitals, airports, and industrial facilities often require this level of reinforcement. The hinge leaf size distributes force across a larger frame area, improving stability and service life.

Best for:

• Oversized doors (8 ft+, 260 lbs+)
• Heavy steel construction: airports, industrial facilities
• High-cycle exterior entries in demanding environments
• Projects where long service life under heavy load is non-negotiable

How to Measure a Door for Proper Hinge Sizing

Before selecting a hinge size, confirm four things:

• Door height.

• Door thickness.

• Door weight.

• Fire-rating requirement.

Height determines hinge quantity. Weight determines template size. Fire rating determines compliance requirements.

As a practical reference:

• 6-foot doors or less usually use two hinges
• 7-foot doors generally use three hinges.

• 8-foot doors typically require four.

• Heavier doors often require larger templates. Please contact us for more recommendations.

ADA Compliant Door Hinge Size Requirements

ADA does not specify hinge template size. It specifies usability.

Interior doors should not require more than 5 pounds of opening force. That means hinge sizing and adjustment must allow easy operation while still ensuring positive closing and latching.

Improper sizing can create excessive resistance. Correct sizing allows:

• Smooth opening

• Controlled closing

• Reliable latch engagement

In commercial ADA applications, 4.5" or 5" hinges are commonly used, depending on door mass.

Warranty

Waterson warrants its hinge products to be free from defects in materials and workmanship for a defined period when installed and used according to published instructions. Coverage depends on hinge type and environment:

• Mechanical only – 10 years

• Hydraulic/Hybrid – 3 years

Go further with Waterson Hinge Warranty here.
