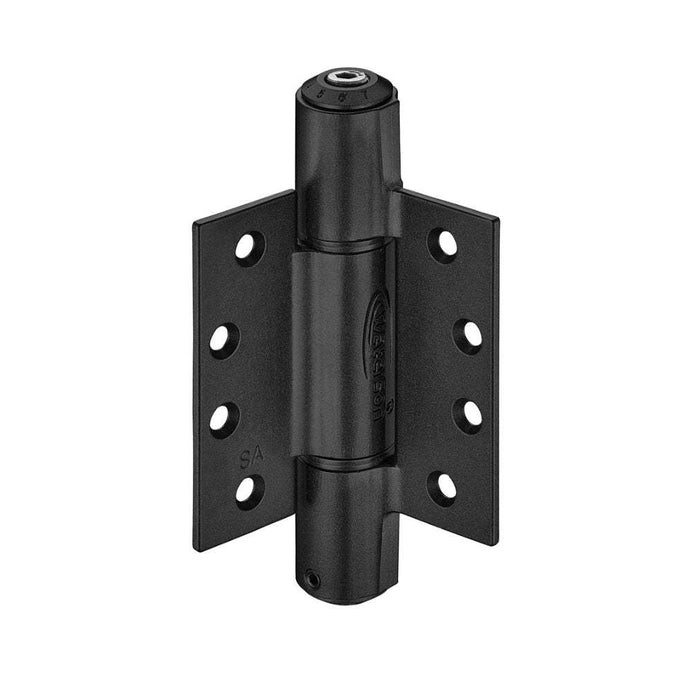

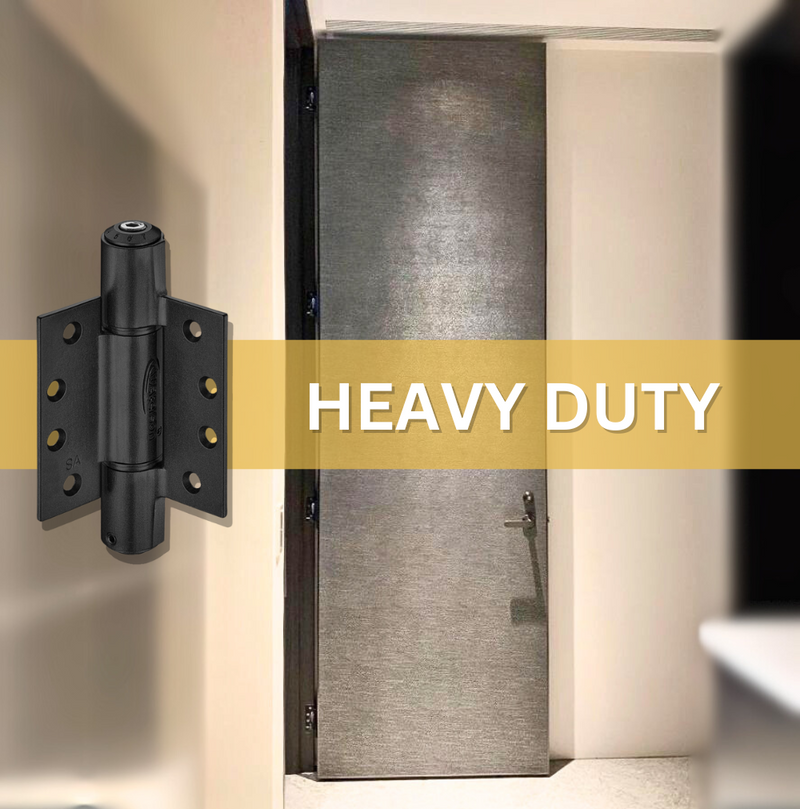

4pcs Anti Slam Door Hinges | Hydraulic | Fire Rated | 4x4 | 8ft | 330 lbs | 1 ⅜ or 1 ¾” Thick | SS304 | K51M-400-B4

$573.80 - $649.80
$573.80
$573.80 - $649.80
$573.80

If you need anti slam door hinges that control speed, eliminate hard impact, and stay compliant under daily commercial use, this hydraulic hinges for doors gives you the adjutable tension and no overhead hardware.

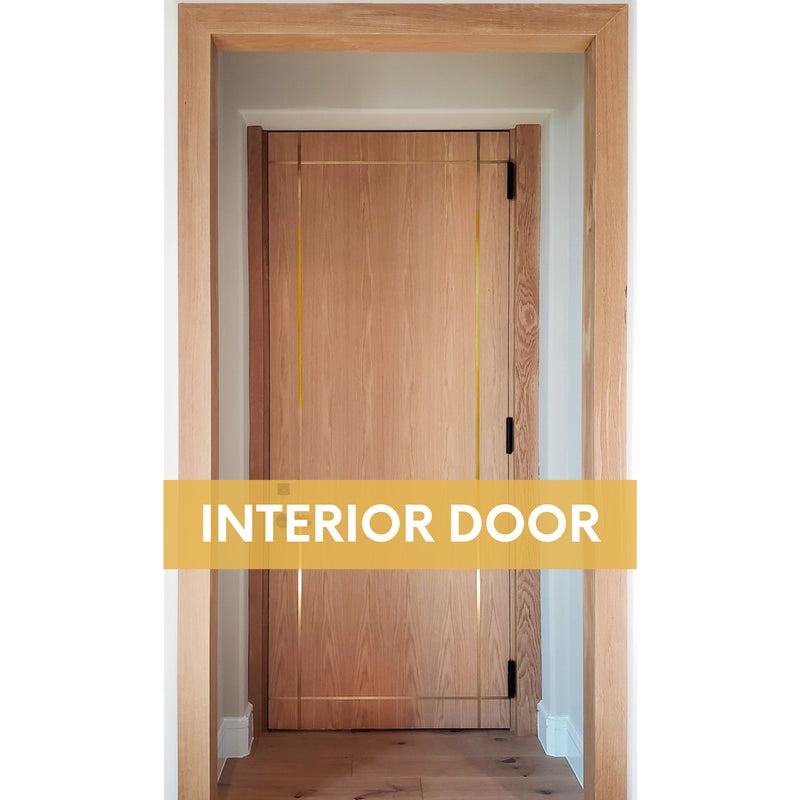

Waterson anti slam hinges function as door closure hinges by a hydraulic damper, giving you predictable closing performance for interior 4x4 full-mortise doors up to 330 lbs. 3 years warranty

Attention: This model is non-refundable

  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO

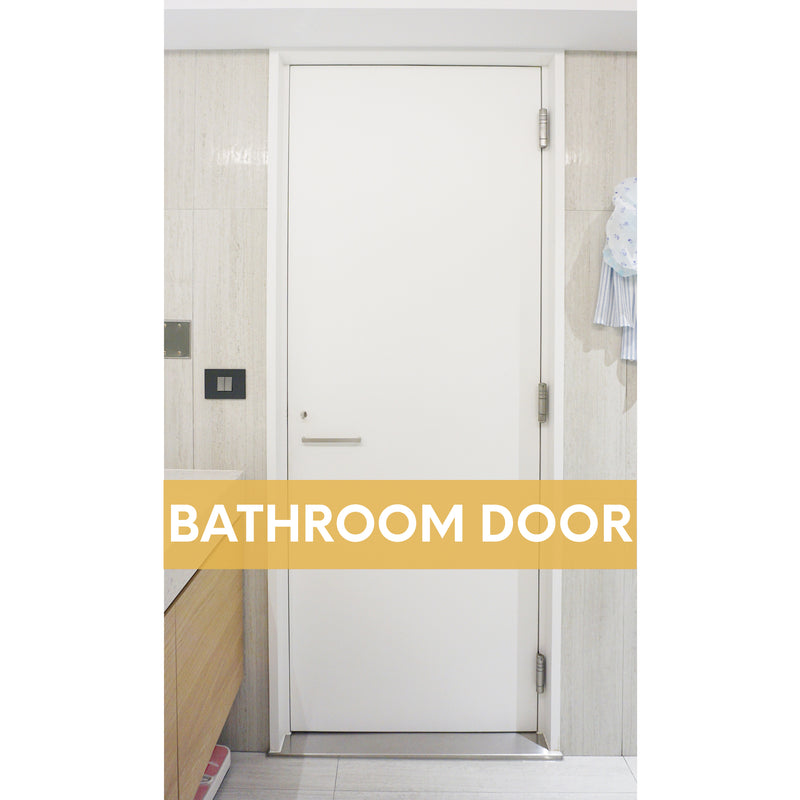

  • Applications

    • Hotel Rooms
    • 3Hr Fire-rated
    • Interior & Exterior
    • Arch Top
    • Heavy Duty
    • Courtyard Style
    • 8ft Door

    Product Description and Features

    • Apply for door open ≤ 120°
    • Fully adjustable closing force and speed according to environment needs

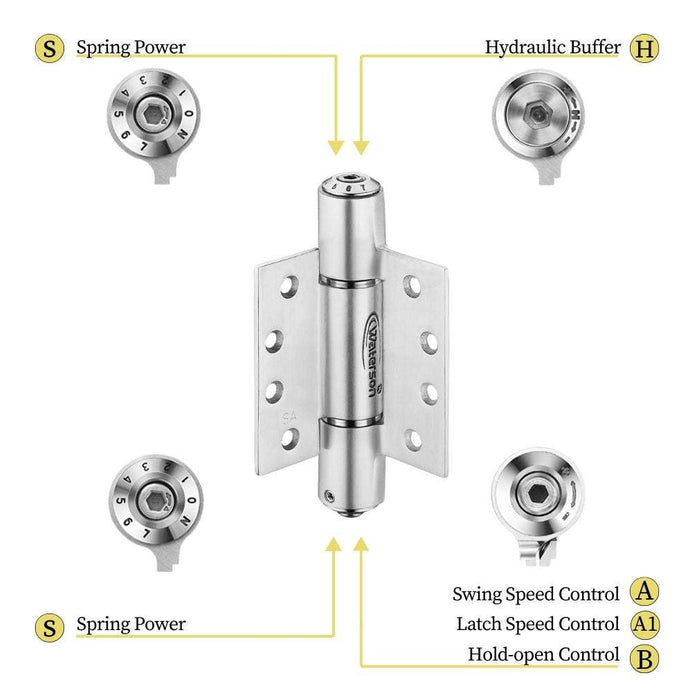

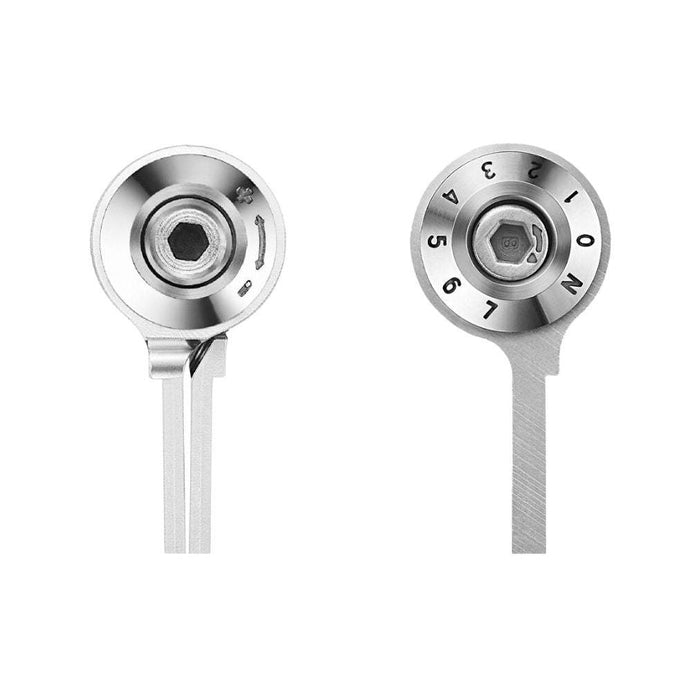

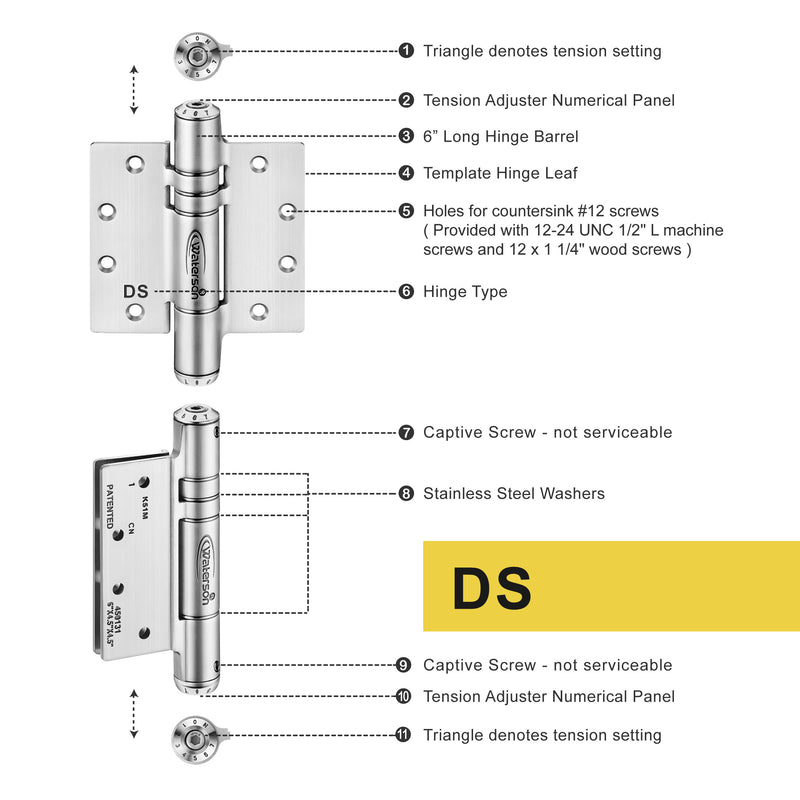

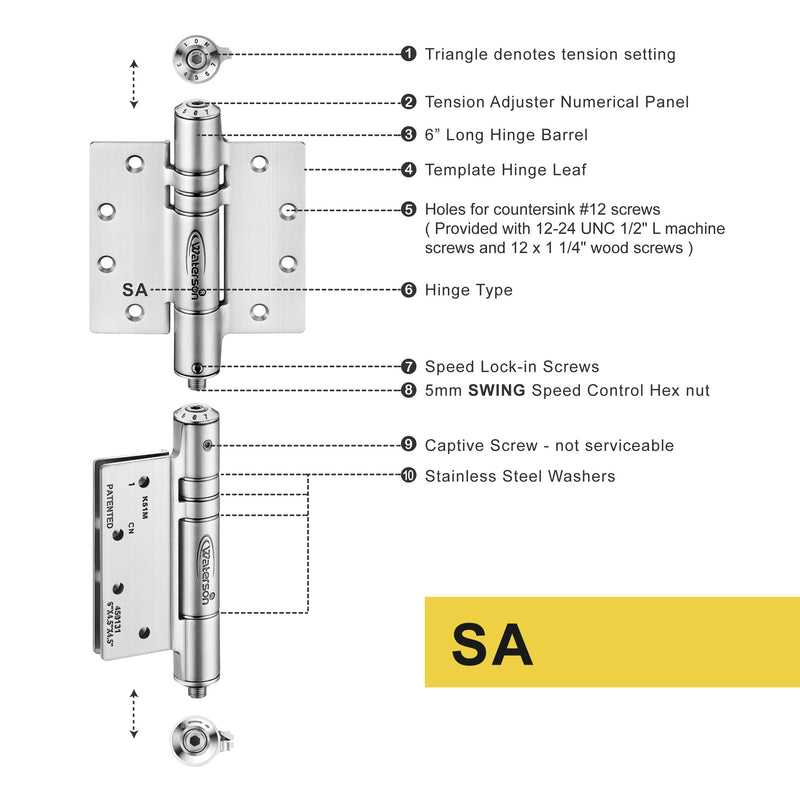

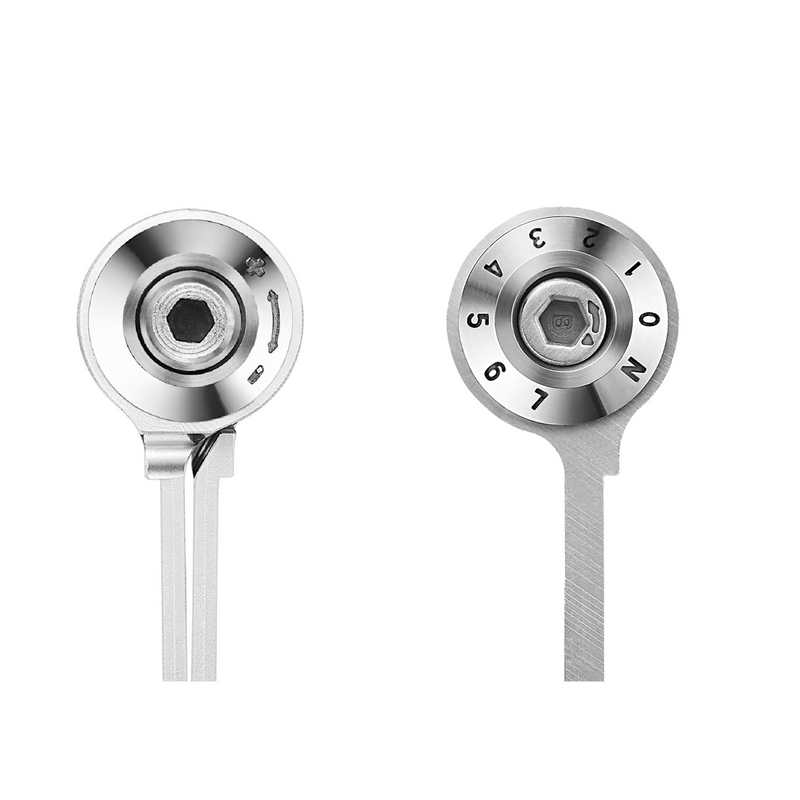

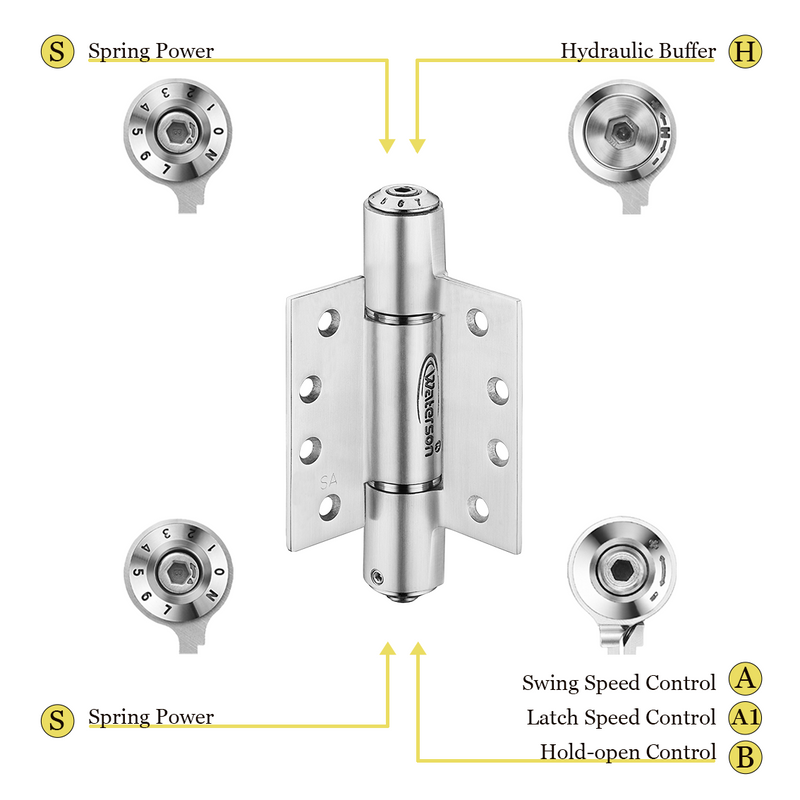

    • Numerical adjustment panel on hinge end to set up precise tension
    • Include both mechanical and hydraulic mechanism supporting quiet close needs
    • Aesthetically pleasing compared to door closers -- without obtrusive arm

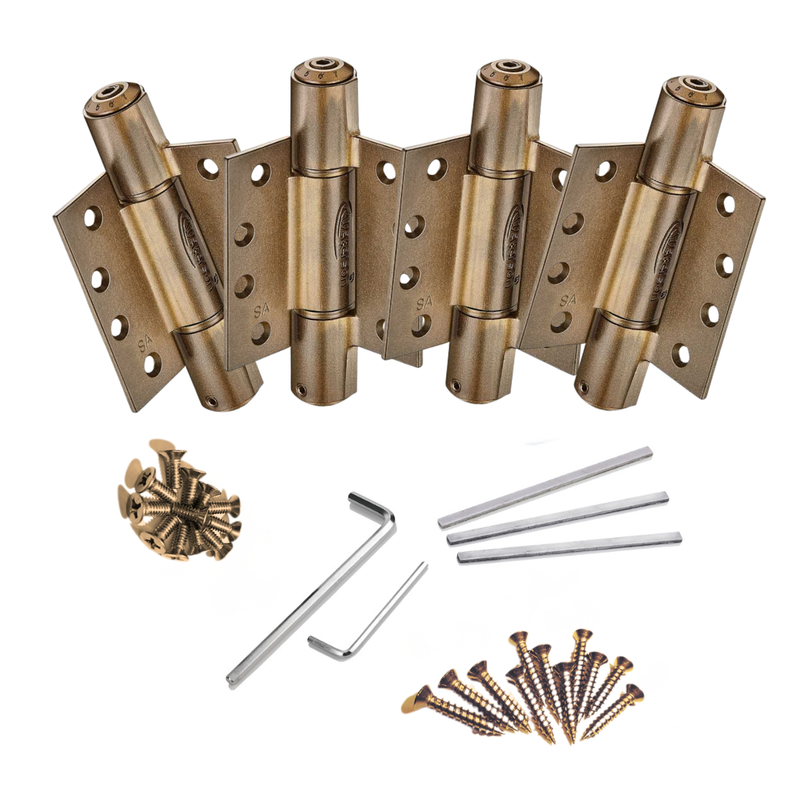

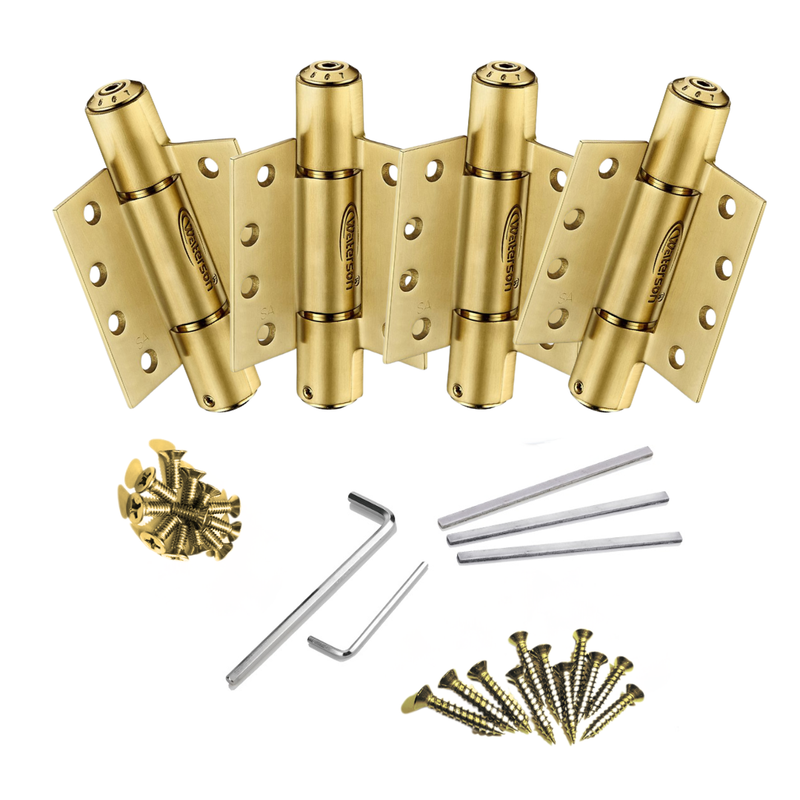

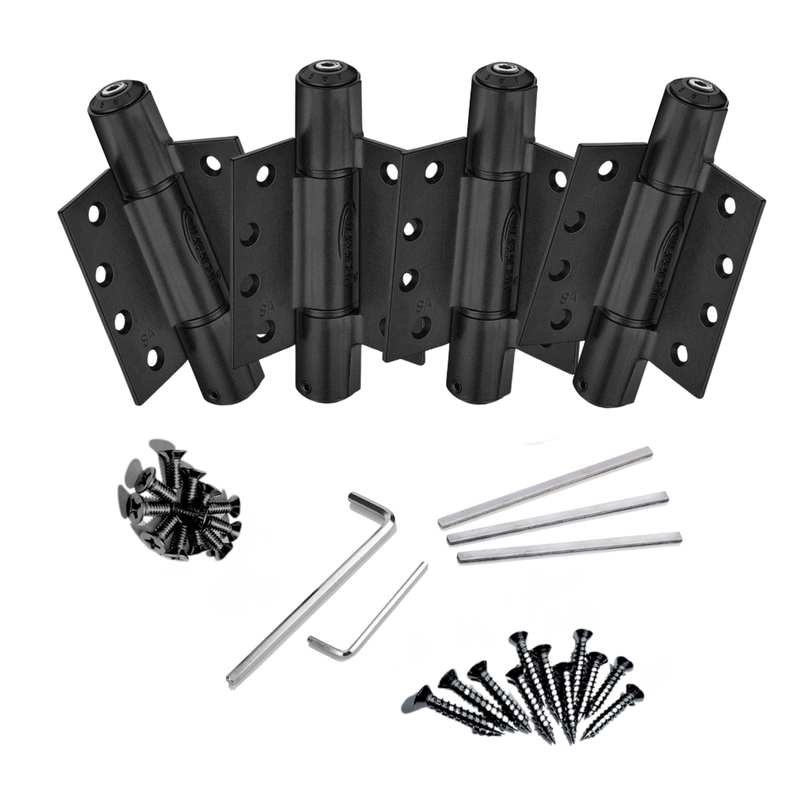

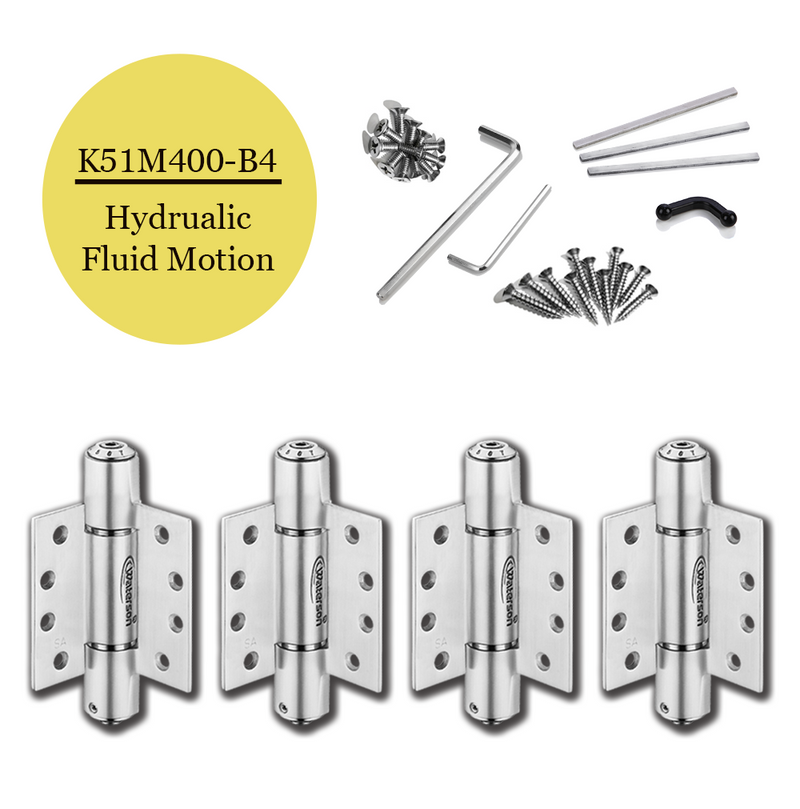

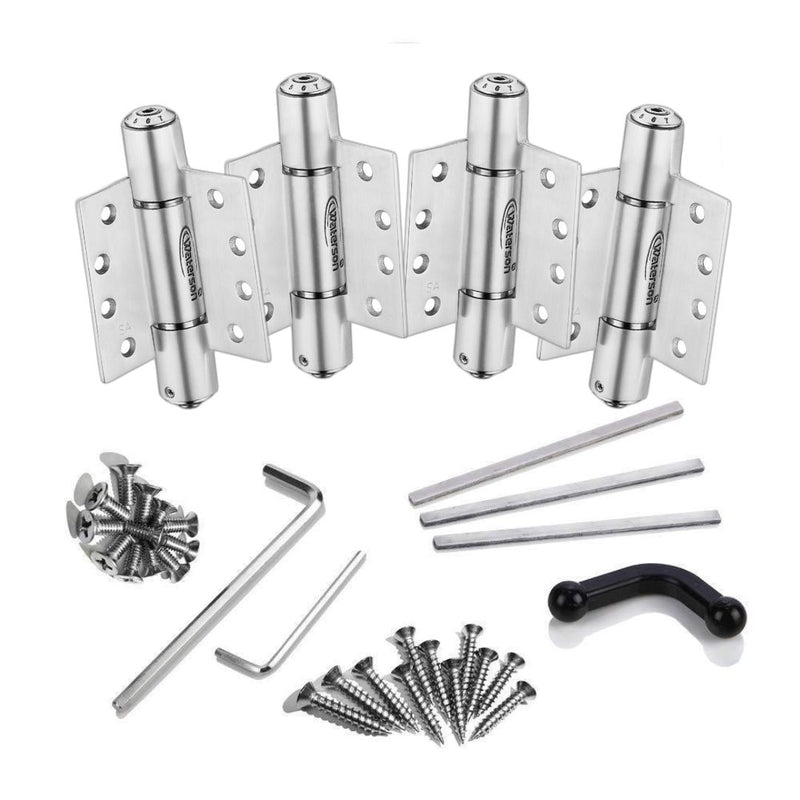

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

    Compliance Standards

    • ANSI A156.17 Grade 1: one million cycle testing

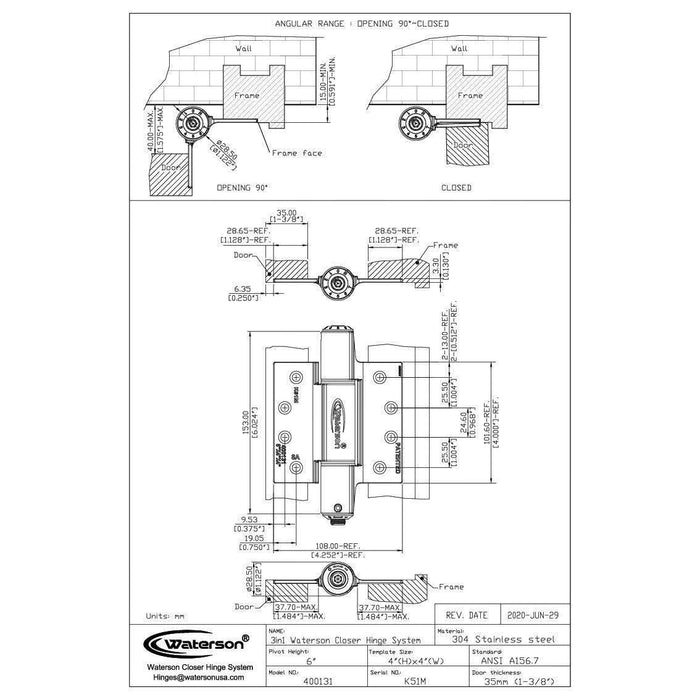

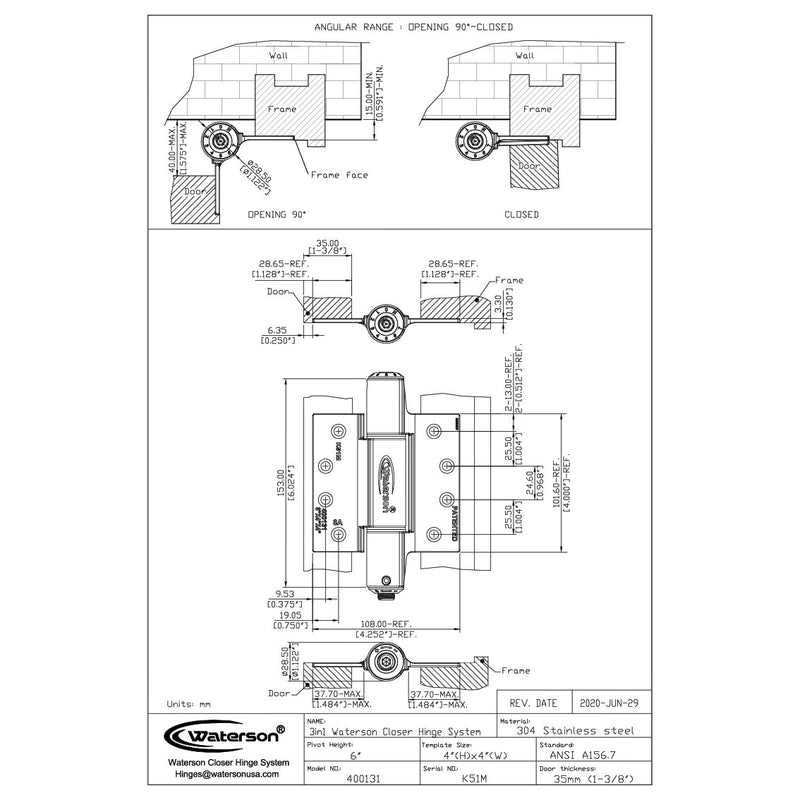

    • ANSI A156.7 Template Hinge : 4” x 4”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

  • Specifications

    Product SKU K51M-400-B4

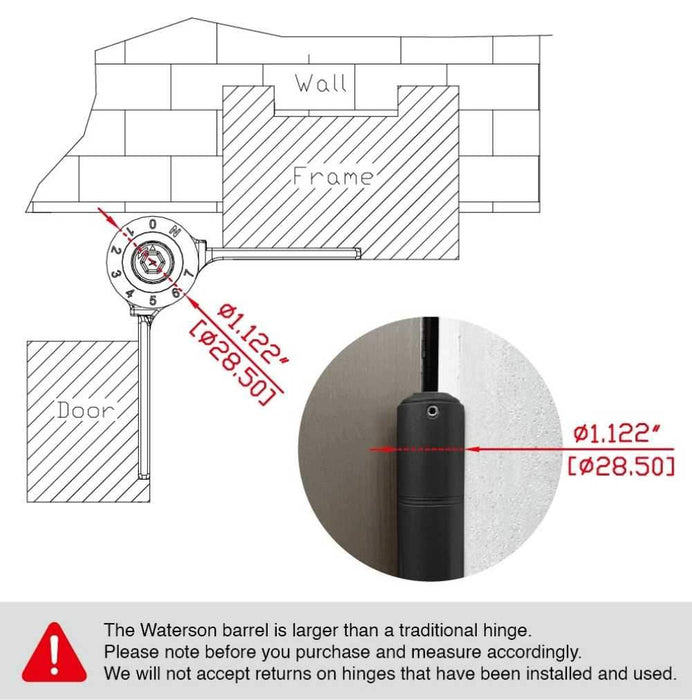

    Hinge Type Full Mortise, 4 Inch x 4 Inch
    Hinge Material Stainless Steel
    Door Weight From 40lbs to 330lbs
    Approx Door Size 1150mm W x 2200mm H (4ft x 8ft)
    Door Thickness 1 ¾” (40-50 mm)
    Self-closing o
    Fluid Motion o
    Hold-open x
    Fixing Method Screw-On, only spot weld AFTER speed adjustment

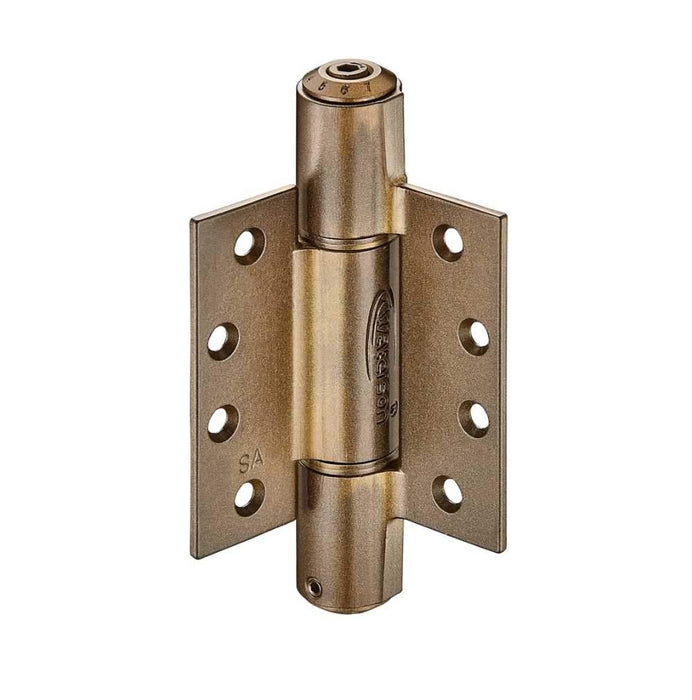

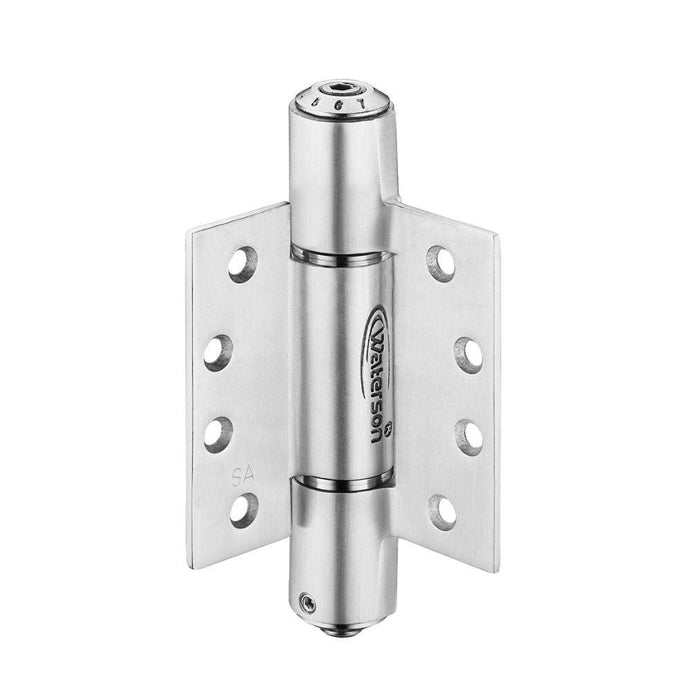

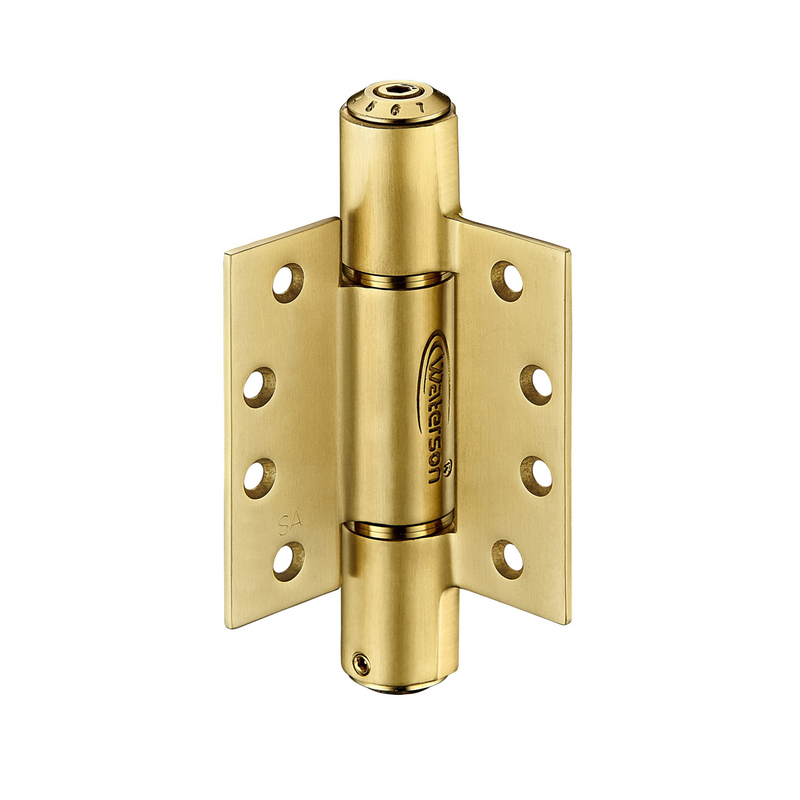

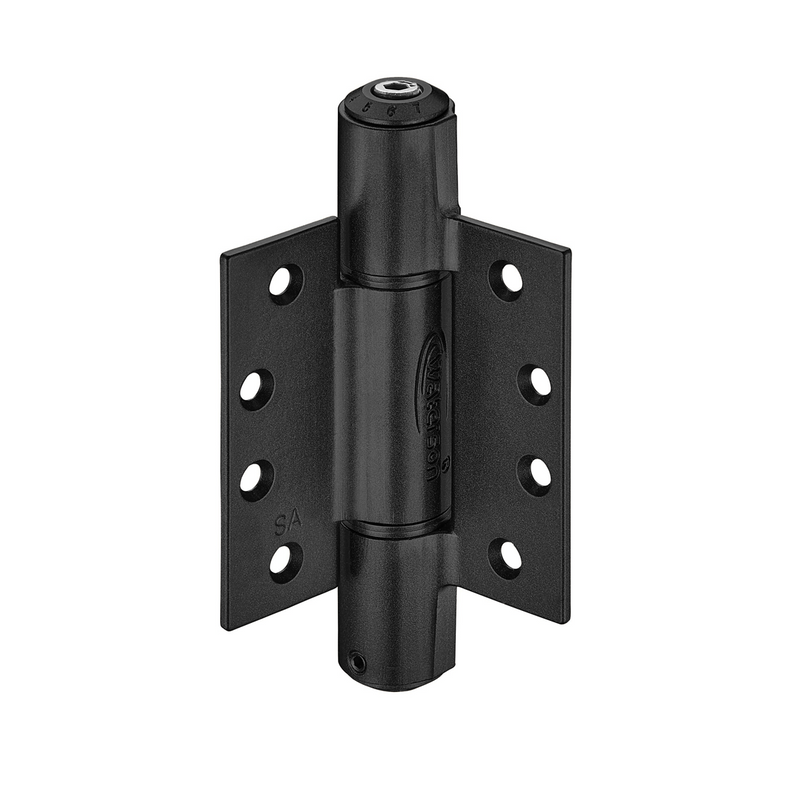

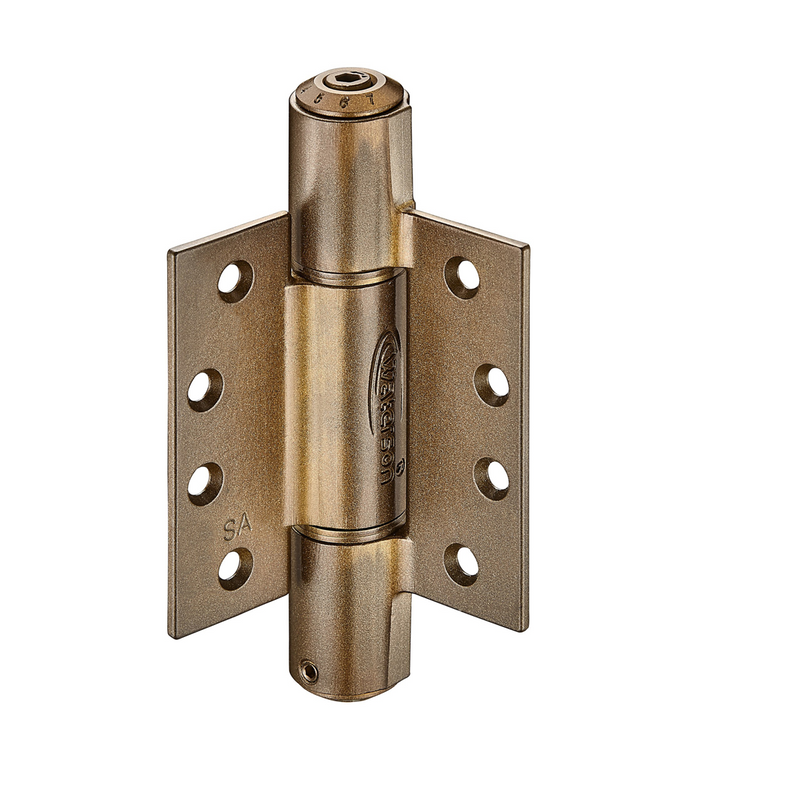

    Color/Finish Satin Brushed,Black,Gold,ORB

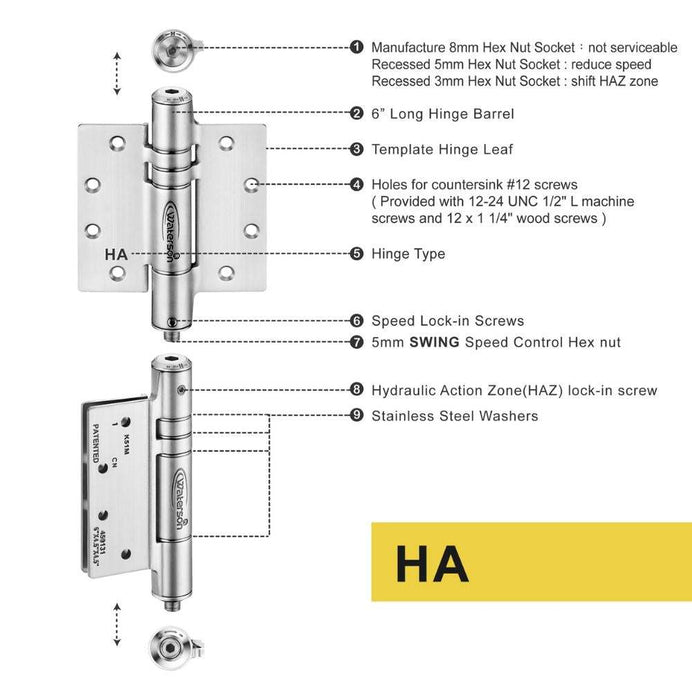

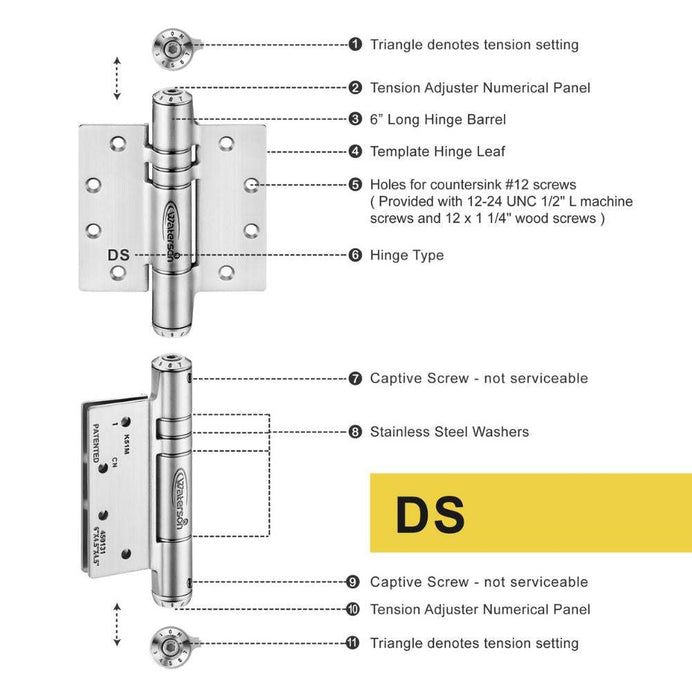

    Combination/Quantity DS.SA.HA.SA,4 Pack





  • Product Video

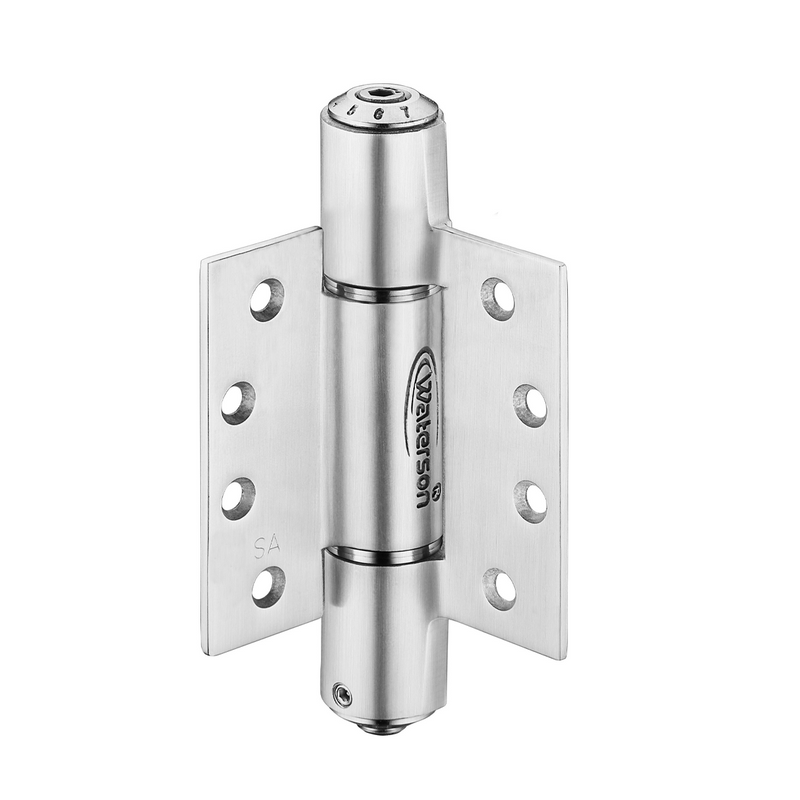

Color: Satin Stainless Steel-US32D
