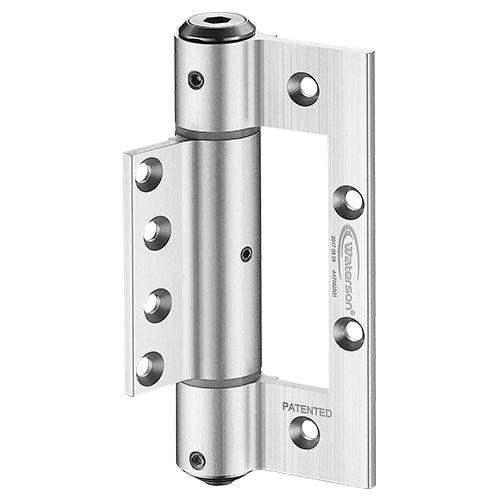

W41K-B3 | Hydraulic Hybrid Interfold Self Closing Hinge | Residential Aluminum hinge | 3 Packs

Original price $257.99 - Original price $257.99
Original price
$257.99
$257.99 - $257.99
Current price $257.99
  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO
  • Applications

    • Non-Fire Rated
    • Soft Close Spring Hinge
    • Residential Applications
    • Good to the Eye
    • Easy Installation
    • Replacement for the Traditional Door Closer

    Product Description and Features

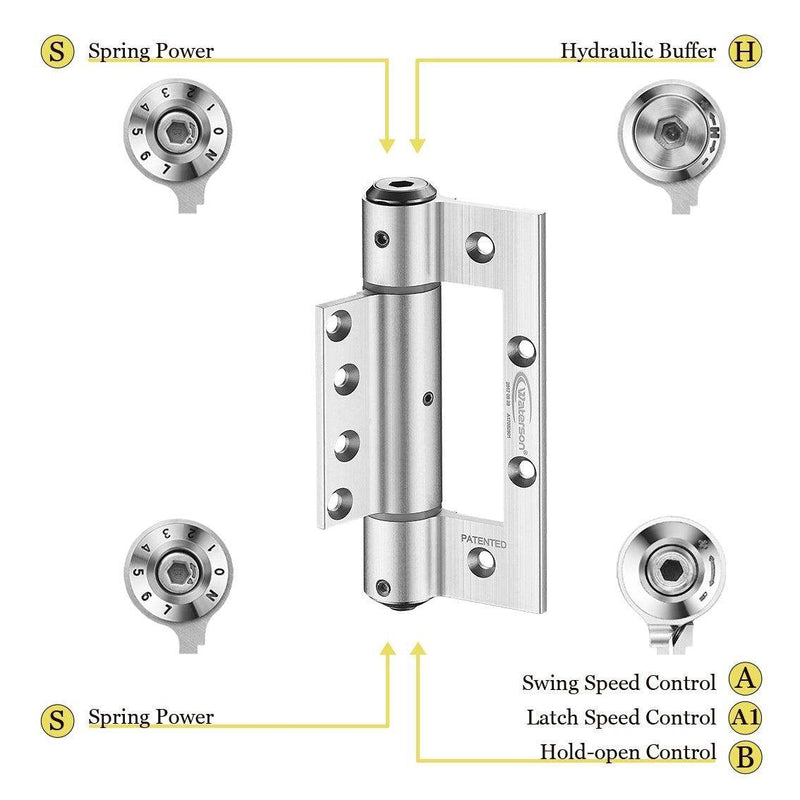

    • Fully adjustable closing force and speed according to environment needs
    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • Ensures many years of low maintenance.

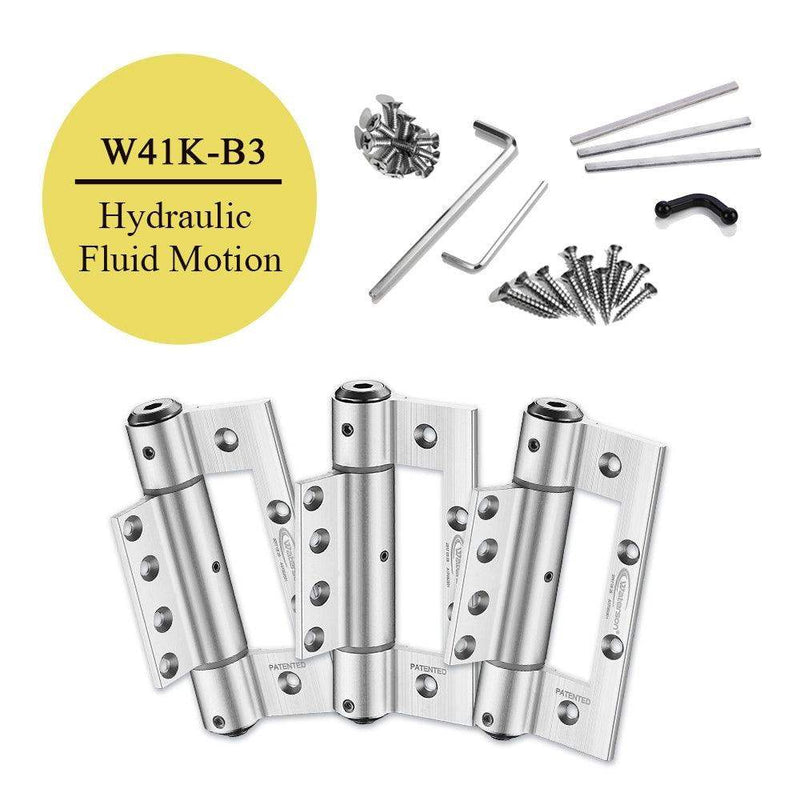

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

    Compliance Standards

    • ANSI A156.7 Template Hinge : 4 ½ x 4 ½
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
  •

    Product SKU W41K-B3
    Hinge Type Interfold
    Hinge Material Aluminum
    Door Weight Up to 200lbs
    Approx Door Size 1150mm W x 2200mm H (4ft x 7ft)
    Door Thickness 1 ¾” (40-50 mm)
    Self-closing o
    Fluid Motion o
    Hold-open x
    Fixing Method Screw-On, only spot weld AFTER speed adjustment
    Color/Finish Anodized Clear,Black
    Combination/Quantity SA.HS.SA1,3 Pack





  • Tab 4 content goes here.

Color: Anodized Clear-US28
