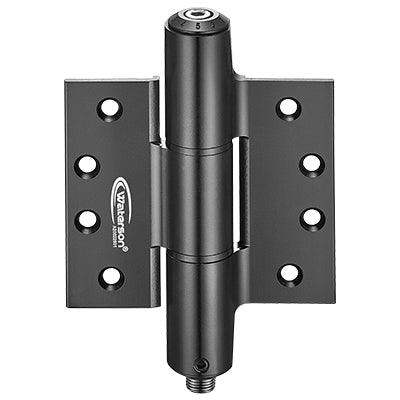

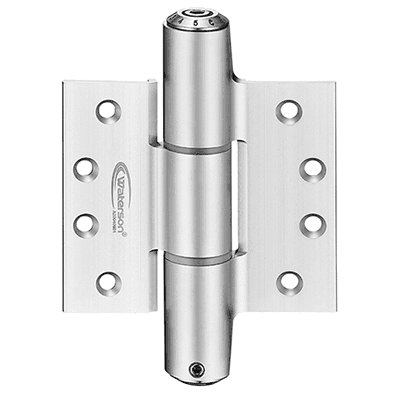

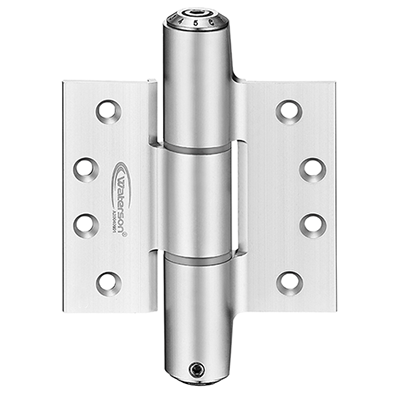

W41M-400-A3 | Mechanical Adjustable Self Closing Hinge | 4" x 4" | Residential Aluminum Mortise hinge | 3 Pack
by selfclosing
Original price
$219.99
-
Original price
$219.99
Original price
$219.99
$219.99
-
$219.99
Current price
$219.99
- DESCRIPTION
- DETAILS
- SPECIFICATIONS
- VIDEO
-
Applications
- Non-Fire Rated
- Soft Close Spring Hinge

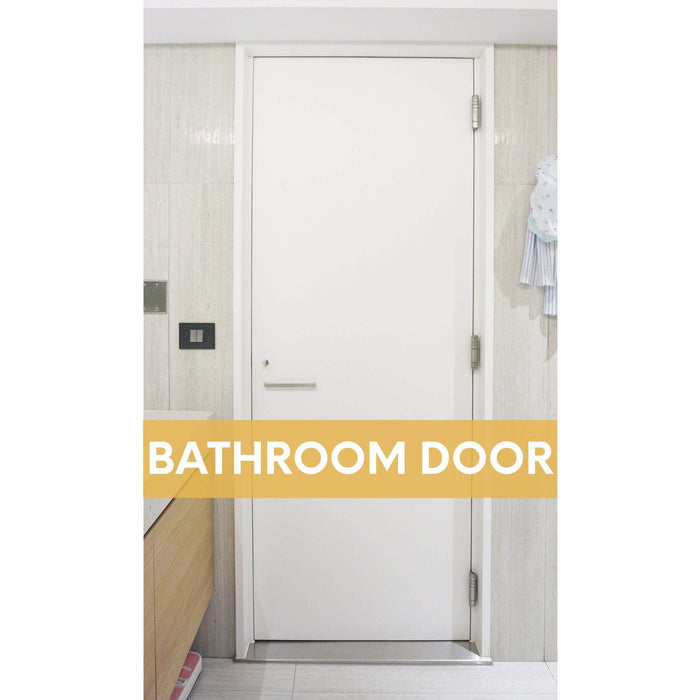

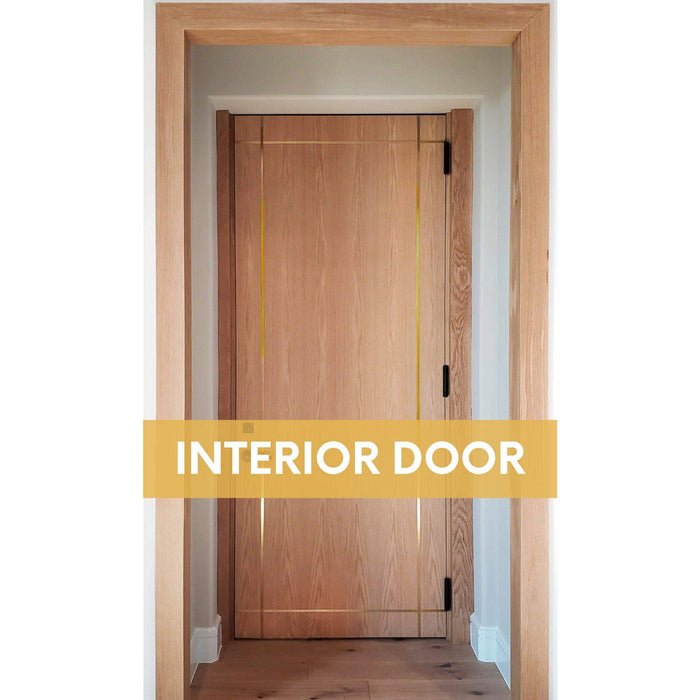

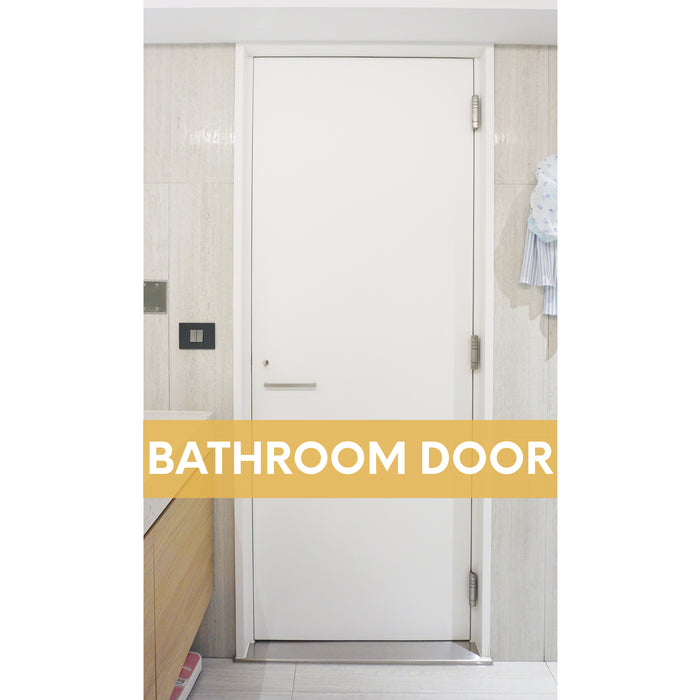

- Residential Applications
- Good to the Eye
- Easy Installation
- Replacement for the Traditional Door Closer
Product Description and Features
- Fully adjustable closing force and speed according to environment needs

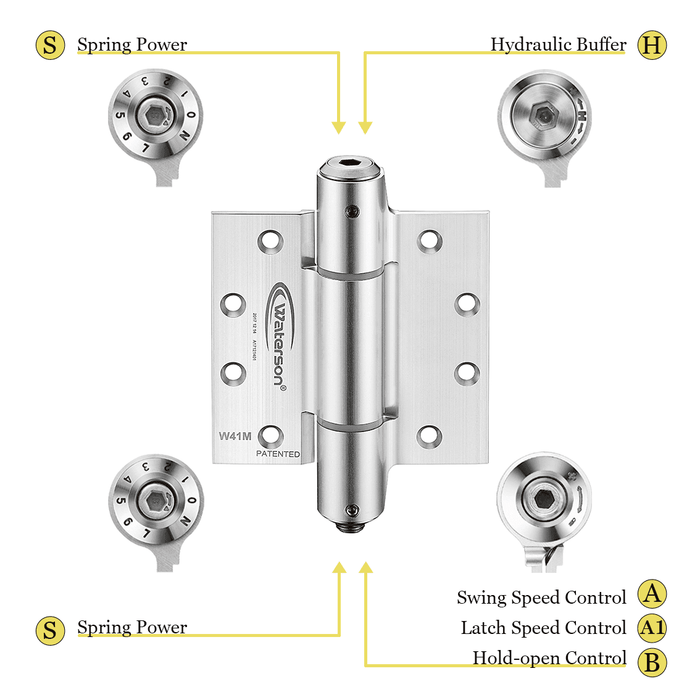

- Numerical adjustment panel on hinge end to set up precise tension
- Mechanical only mechanism supporting heavy duty and fully exterior
- Aesthetically pleasing compared to door closers -- without extrusive arms
- Ensures many years of low maintenance.
-

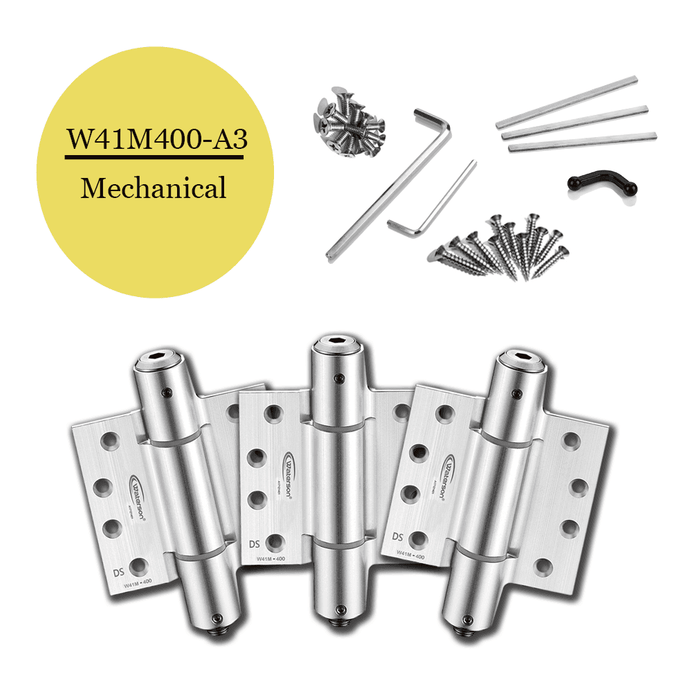

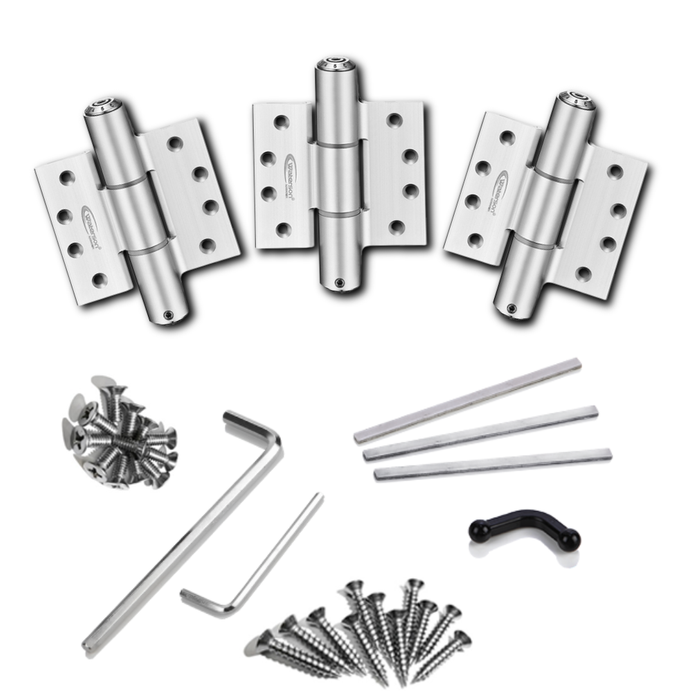

Installation Kits
- Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
- Three steel adhesive shims for gap adjustment between door and frame as needed
- Tension Crook: Keeps hinge open during installation
- 5mm & 3mm hex allen wrenches
Compliance Standards

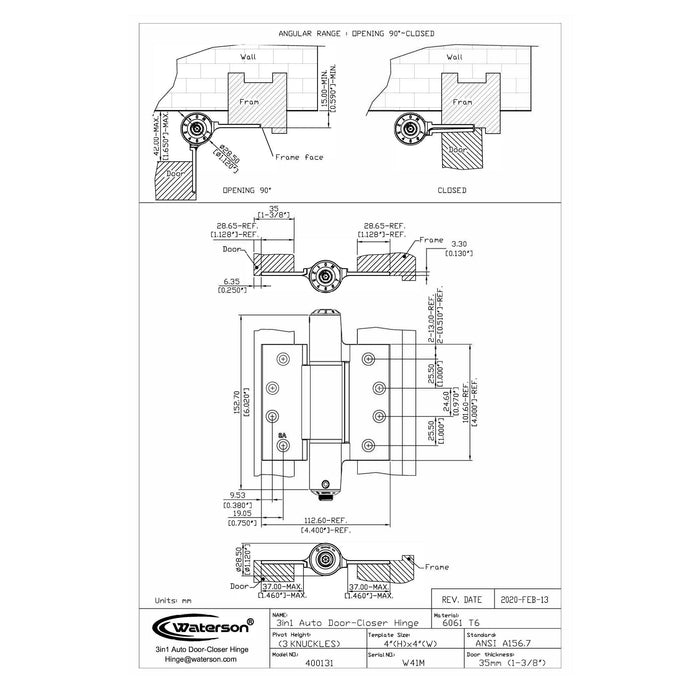

- ANSI A156.7 Template Hinge : 4" x 4"
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
- ADA Force : opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12°
- ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
-

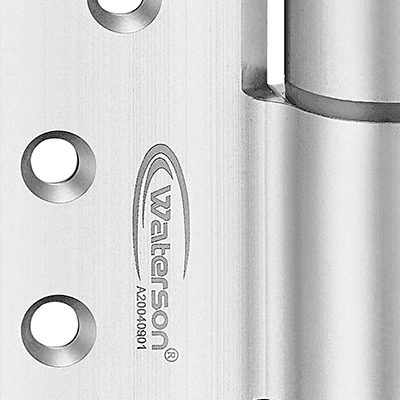

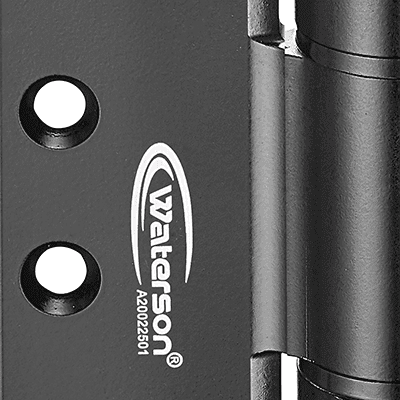

Product SKU W41M-400-A3 Hinge Type Full Mortise Hinge Material Aluminum Door Weight Up to 200lbs Approx Door Size 1150mm W x 2200mm H (4ft x 7ft) Door Thickness 1 ¾” (40-50 mm) Self-closing o Fluid Motion x Hold-open x Fixing Method Screw-On, only spot weld AFTER speed adjustment Color/Finish Anodized Clear,Black Combination/Quantity SA.SA.SA1,3 Pack -
