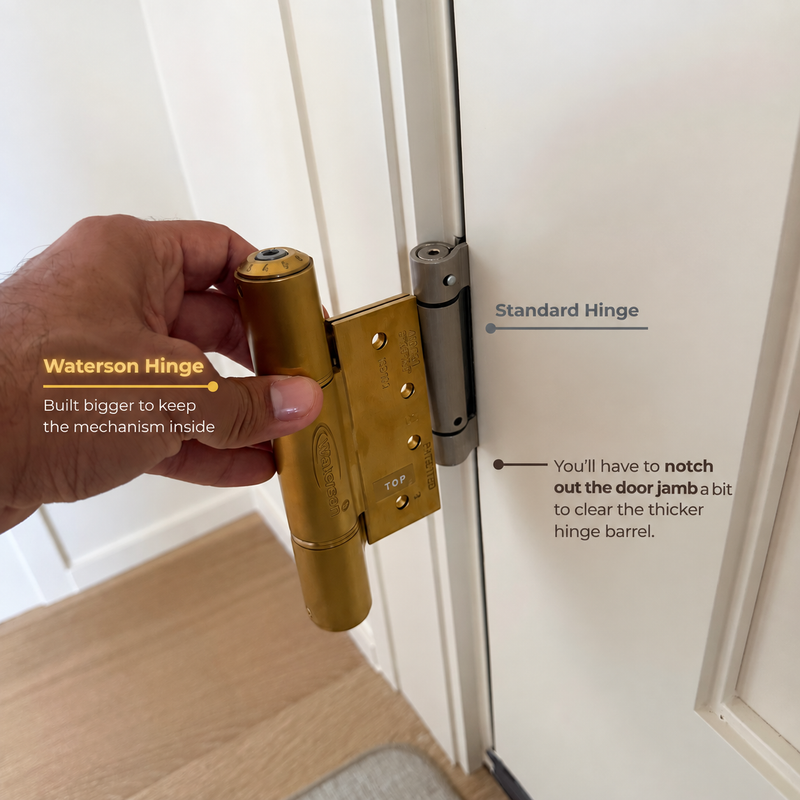

Residential Half Door Aluminum Mortise Hinge

2pcs Residential Half Door Aluminum Mortise Hinge | Hydraulic | 4x4 | 6ft | 150 lbs | 1 ¾” Thick | W41M-400-B2

by selfclosing
$184.66 - $184.66
$184.66
$184.66 - $184.66
$184.66

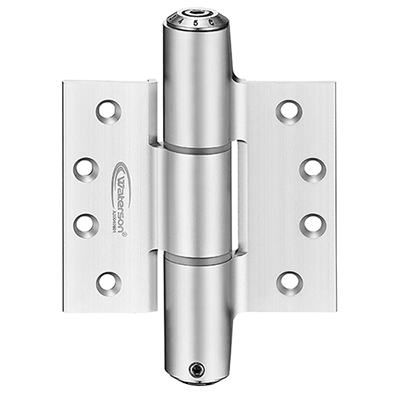

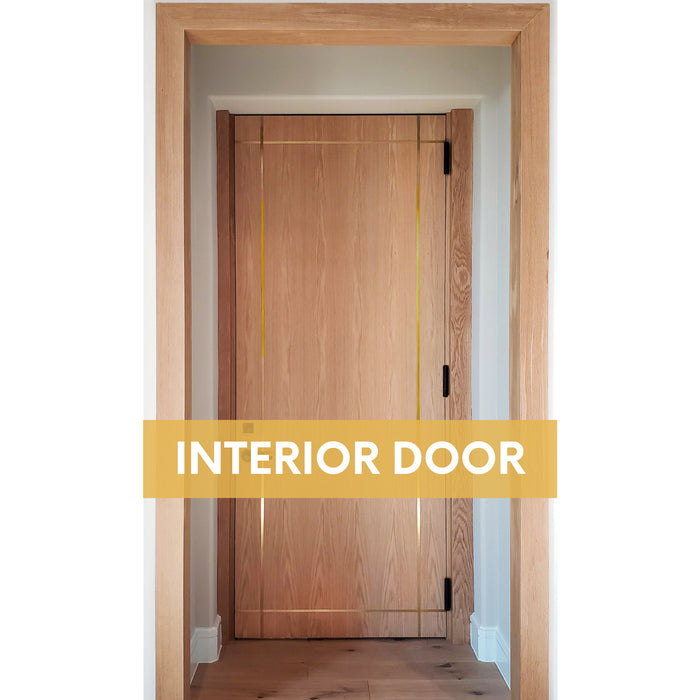

Residential Half Door Aluminum Mortise hinge provides a compact hydraulic self-closing system for interior half doors up to 6ft, using an aluminum full-mortise layout for clean installation.

Its adjustable tension lets you refine closing force and motion without additional hardware.

  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO

  • Applications

    • Non-Fire Rated
    • Soft Close Spring Hinge

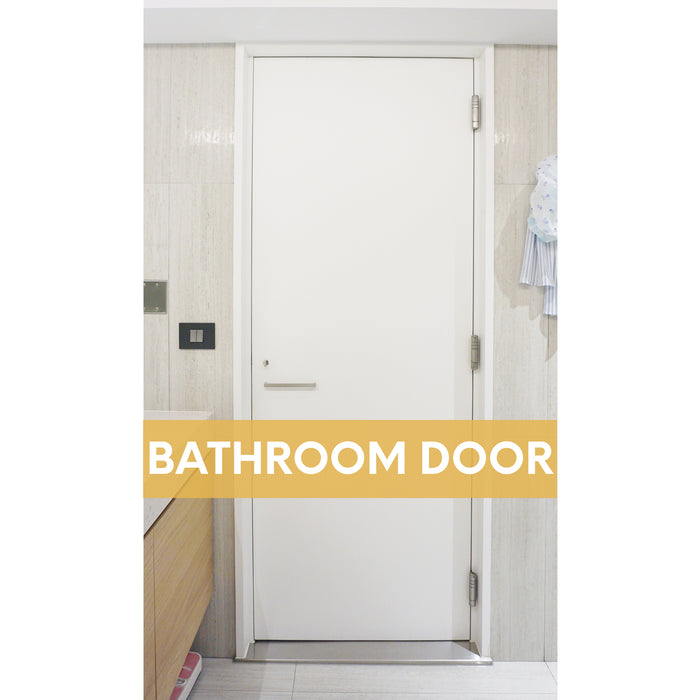

    • Residential Applications
    • Good to the Eye
    • Easy Installation
    • Replacement for the Traditional Door Closer

    Product Description and Features

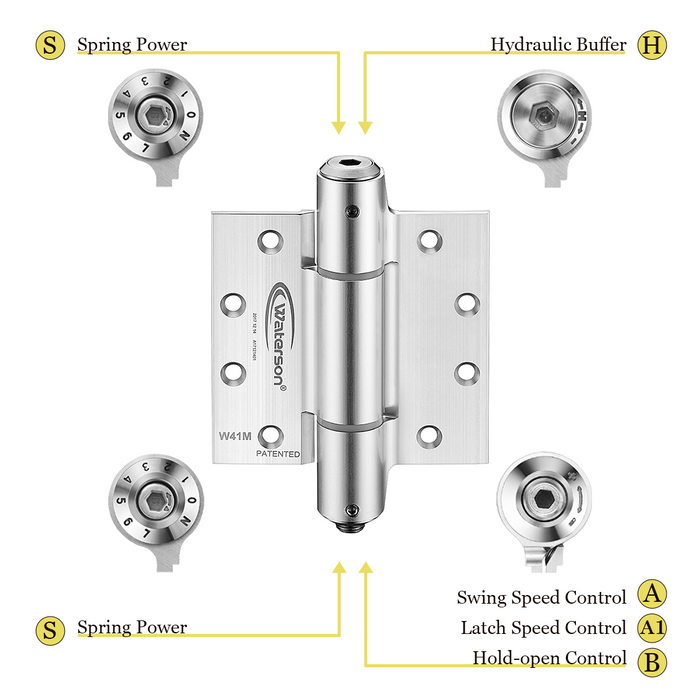

    • Fully adjustable closing force and speed according to environment needs

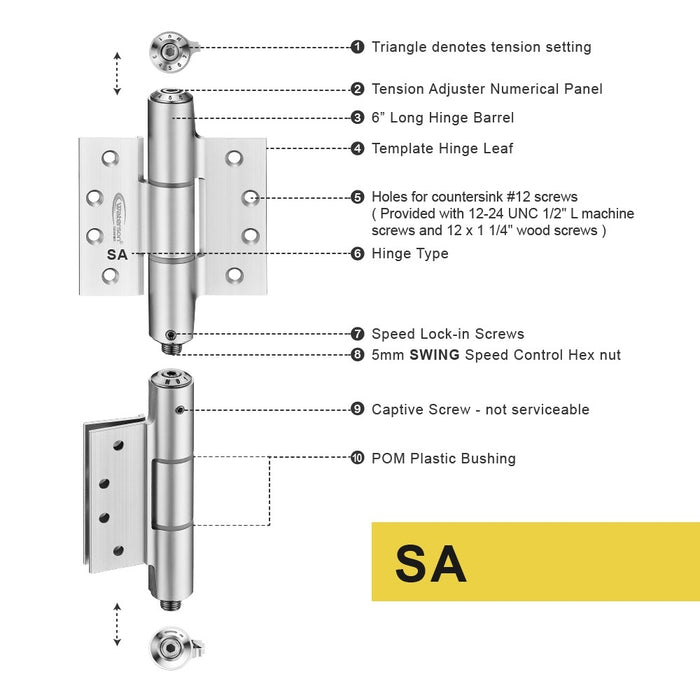

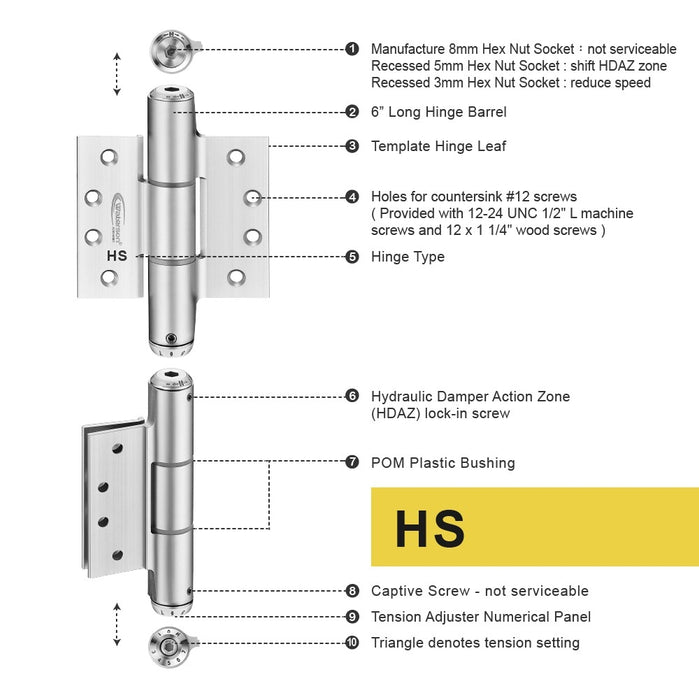

    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • Ensures many years of low maintenance.

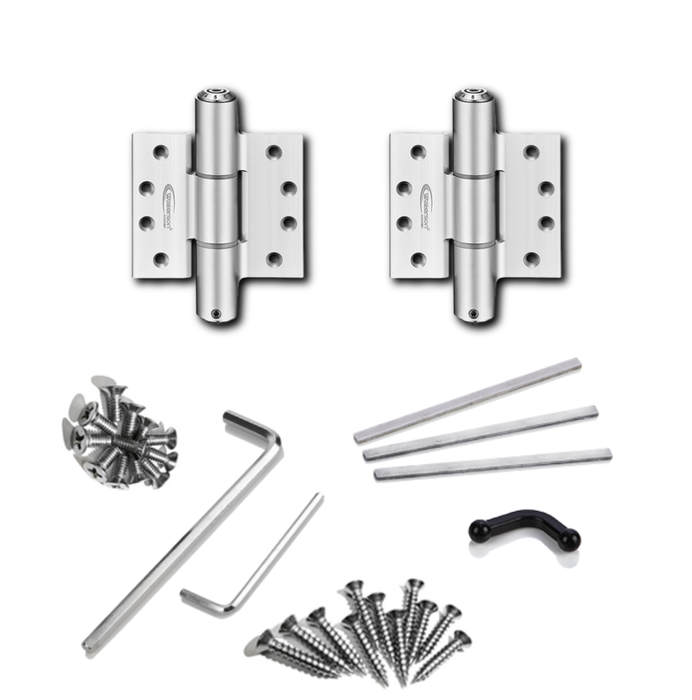

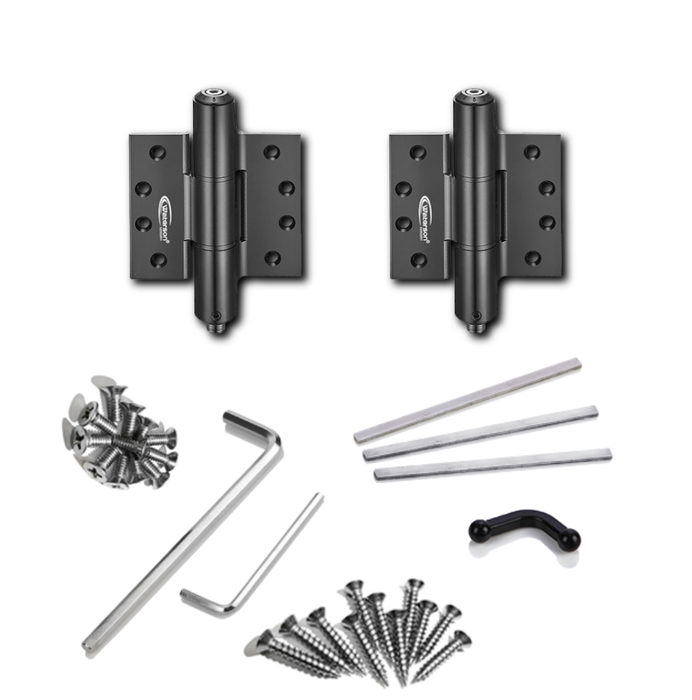

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

    Compliance Standards

    • ANSI A156.7 Template Hinge : 4" x 4"
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

  • Specifications

    Product SKU W41M-400-B2
    Hinge Type Full Mortise
    Hinge Material Aluminum
    Door Weight From 40lbs to 150lbs
    Approx Door Size 1150mm W x 1800mm H (4ft x 6ft)
    Door Thickness 1 ¾” (40-50 mm)
    Self-closing o
    Fluid Motion o
    Hold-open x
    Fixing Method Screw-On, only spot weld AFTER speed adjustment
    Color/Finish Anodized Clear,Black
    Combination/Quantity SA.HS,2 Pack





  • Product Video

Color: Anodized Clear-US28
