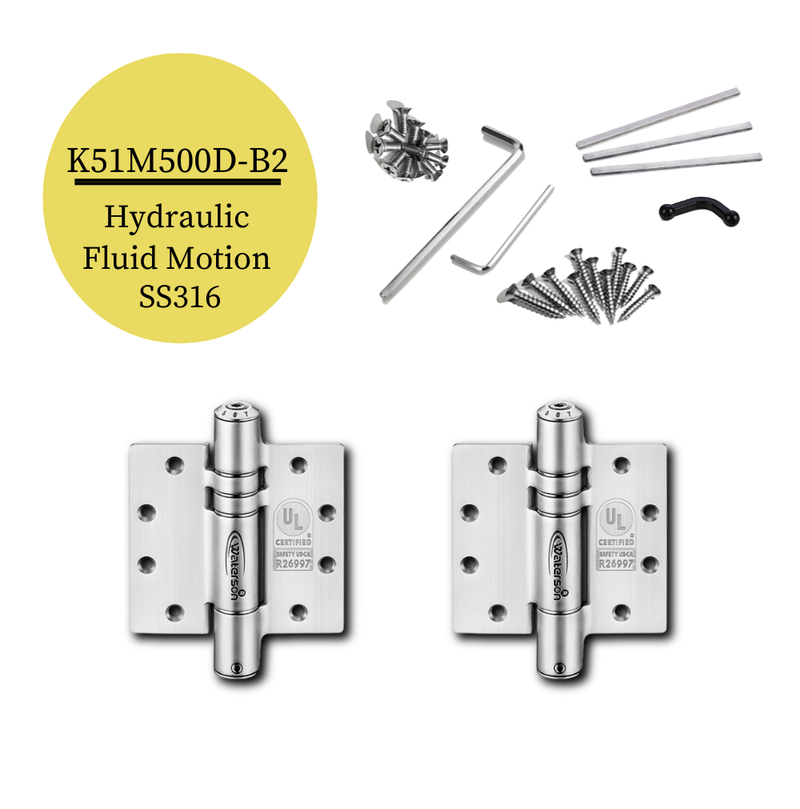

2pcs Stainless Marine Hinges | Soft Closing | 5x5 | 6ft | 150 lbs | 1 3/4" - 2 1/4" Thick | SS316 | K51M-500D-B2-316

A sea breeze loves to catch a beach house door and slam it, and salt air punishes cheap hardware for it.

Waterson 316 marine grade stainless steel can easily eases a 150 lbs coastal door to a soft, quiet stop no matter how the wind gusts off the water, and the marine grade build resists the rust that ruins ordinary hinges near the shore. All the soft close action stays inside the hinge, clean and protected from the elements. Satin, black, brass, bronze, fast ship. 3-year warranty.

Warning : Special finishes (US4) is non-refundable

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

  • 316 stainless steel
  • Interior & Exterior
  • Marine Grade
  • Pool Door/Gate

  • Metal Door/Gate

  • Wooden Door/Gate
  • Heavy Duty
  • Courtyard Style

  Product Description and Features

  • Apply for door open ≤ 120°
  • Fully adjustable closing force and speed according to environment needs
  • Numerical adjustment panel on hinge end to set up precise tension
  • Mechanical only mechanism supporting heavy duty and fully exterior
  • Aesthetically pleasing compared to door closers -- without extrusive arms
  • UL certified cycle testing ensures many years of low maintenance.

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

  • ANSI A156.17 Grade 1: one million cycle testing
  • ANSI A156.7 Template Hinge : 5" x 5"
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

• Specifications

  Product SKU	K51M-500D-B2-316
  Hinge Type	Full Mortise, 5 Inch x 5 Inch
  Hinge Material	Stainless Steel 316
  Door Weight	From 40lbs to 150lbs
  Approx Door Size	910mm W x 1830mm H (3ft x 6ft)
  Door Thickness	1 ¾” ~ 2 ¼ ” (45-57 mm)
  Self-closing	o
  Fluid Motion	o
  Hold-open	x
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment
  Color/Finish	Satin Brushed,Black,Gold,ORB
  Combination/Quantity	DS.HA, 2 Pack





• Product Video
