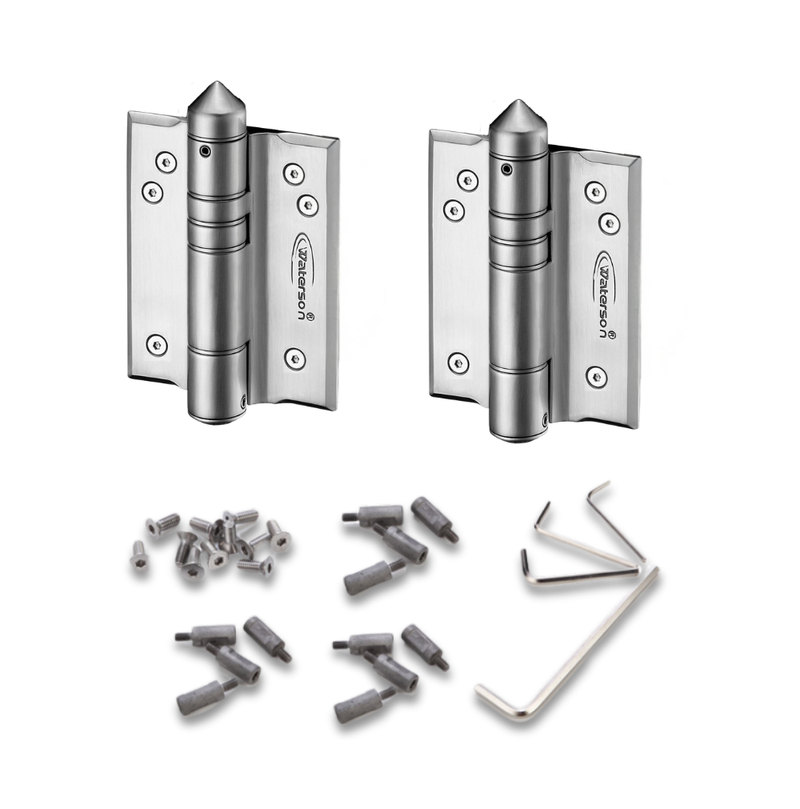

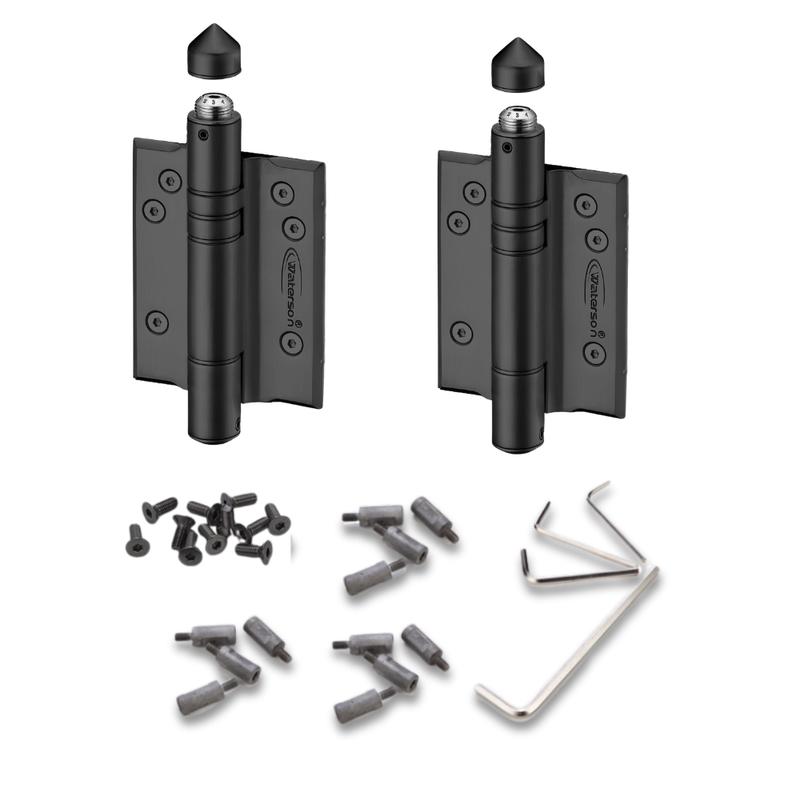

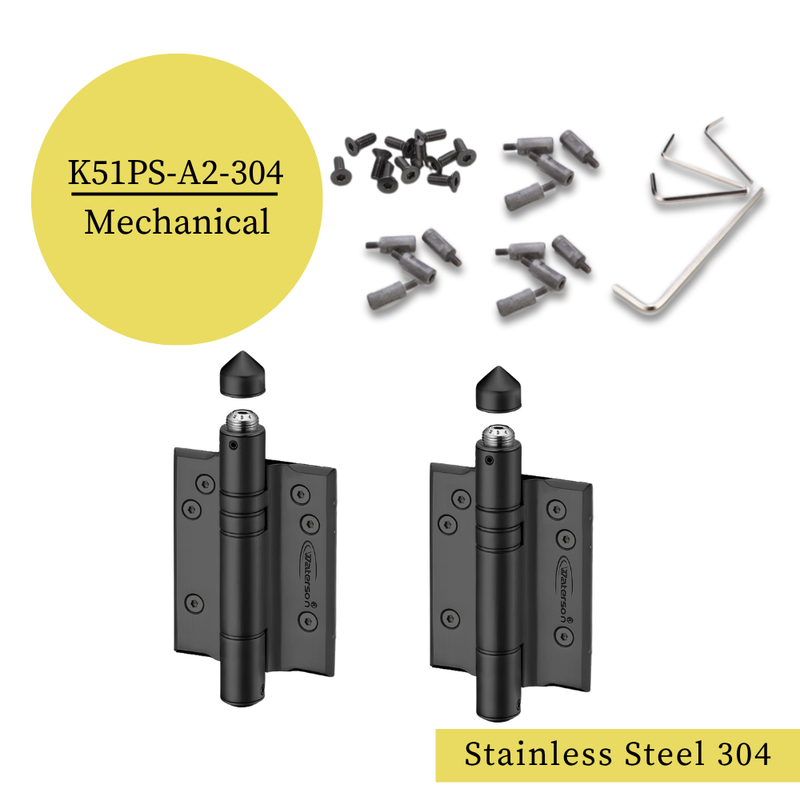

2pcs Stainless Steel Full Surface Gate Hinges | No Back Plate | Mechanical Self Closing | Weldable | 6ft | 150 lbs | 1" to 4" Thick | SS304 | K51PS-A2

Dragging gates, uneven closing, or inconsistent latch speed usually point back to hinge control; not the gate.

Waterson stainless steel self closing gate hinges provide numeric tension adjustment and stable mechanical closing for 120-lb exterior gates. 3 years warranty

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

TALK TO SALES FIRST - NON REFUNDABLE

Applications

• Gate Entry
• Pool Gate
• Interior & Exterior
• Courtyard Style
• Breezy environment
• Need Corrosion-Free, Marine-Grade Solutions? We got your back!


Product Description and Features

• • Fully adjustable closing force and speed according to environment needs
  • Numerical adjustment panel on hinge end to set up precise tension
  • Mechanical only mechanism supporting heavy duty and fully exterior
  • An aesthetically pleasing and sleek all-in-one component
  • One million cycle testing ensures low maintenance longevity

  • Get more insights of Waterson metal gate hinges and heavy duty gate hinges for wooden gates here.

• Installation Kits

  • 304 stainless steel Hex Drive Flat Head M6 x P1 x 0.630"L screws included -- eight (8) of each type per hinge.
  • 5mm & 4mm& 3mm& 2.5mm hex Allen wrenches
  • Sets include 1” extenders.
    * 2-hinge pack: 12 extenders
    * 3-hinge pack: 18 extenders
    * For 0.5” extenders, contact us. These are special order items and not available online.


  Compliance Standards

  • Hinge Leaf Size: 5” x 6”
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force: opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°

• Specifications

  Product SKU	K51PS-A2
  Hinge Type	Full Surface
  Hinge Material	Stainless Steel 304
  Door Weight	From 40lbs to 120lbs (55kg)
  Approx Door Size	910mm W x 1830mm H (3ft x 6ft)
  Posts Thickness	1” - 4"
  Self-closing	o
  Fluid Motion	x
  Hold-open	x
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment
  Color/Finish	Satin Brushed or Black
  Combination/Quantity	SA.SA1, 2 Pack
