2pcs Glass Shower Door with Hinges | Hydraulic | 6ft | 150 lbs | 5/16”-1/2” Thick | SS304 | K51GG-B2/D2

$347.99 - $347.99
$347.99
$347.99 - $347.99
$347.99
Color: Satin Stainless Steel-US32D
    • Material: Stainless Steel 304
    • Product Dimensions: 1150mm W x 1800mm H (4ft x 6ft)
    • Mounting Type: Glass-to-Glass Door Hinges
    • Door Size: 1150mm W x 1800mm H (4ft x 6ft)
    • Door Weight: Min 40 lbs - Max 150 lbs
    • Door Thickness:   5/16″-1/2″ (8-12.7 mm)
    • Unit: 2 pieces
    • Warranty: 3 years

    TALK TO SALES FIRST - NON REFUNDABLE

    • FEATURES
    • APPLICATIONS
    • DETAILS
    • SPECIFICATIONS
    • ADJUSTMENT

    • Product Description and Features

      • Fully adjustable closing force and speed according to environment needs
      • Numerical adjustment panel on hinge end to set up precise tension
      • Mechanical-only mechanism supporting heavy duty and fully exterior
      • Aesthetically pleasing compared to door closers -- without extrusive arms
      • UL-certified cycle testing ensures many years of low maintenance.

    • Applications

      • Office & Commercial Door
      • Hotel Bathroom Shower Doors
      • Glass Steam Room Doors
      • Corner Glass Shower Units
      • Spa & Wellness Center Showers
      • Soft Closing
      • Hold Open
      • In Swing Function
      • Non Handed Design
      • Easy Installation
      • Heavy Duty

    • Installation Kits

      • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
      • Three steel adhesive shims for gap adjustment between door and frame as needed
      • Tension Crook: Keeps hinge open during installation
      • 5mm & 3mm hex allen wrenches

    • Specifications

      Compliance Standards

      • ANSI A156.17 Grade 1 : one million cycle testing
      • ANSI A156.7 Template Hinge : 6” x 6”
      • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
      • ADA Force : opening force no more than 5 lbs
      • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
      • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

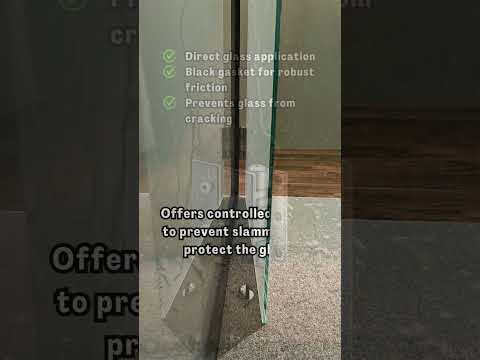

    • Adjustment Video

      Check the Full Adjustment Guidance here:
      English Version
      Spanish Version

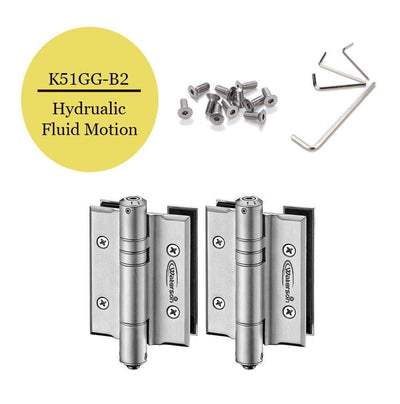

frameless glass door hinge 2pcs Frameless Glass Door Hinge | Hydraulic | 6ft | 150 lbs | 5/16”-1/2” Thick | SS304 | K51GG-B2
$347.99

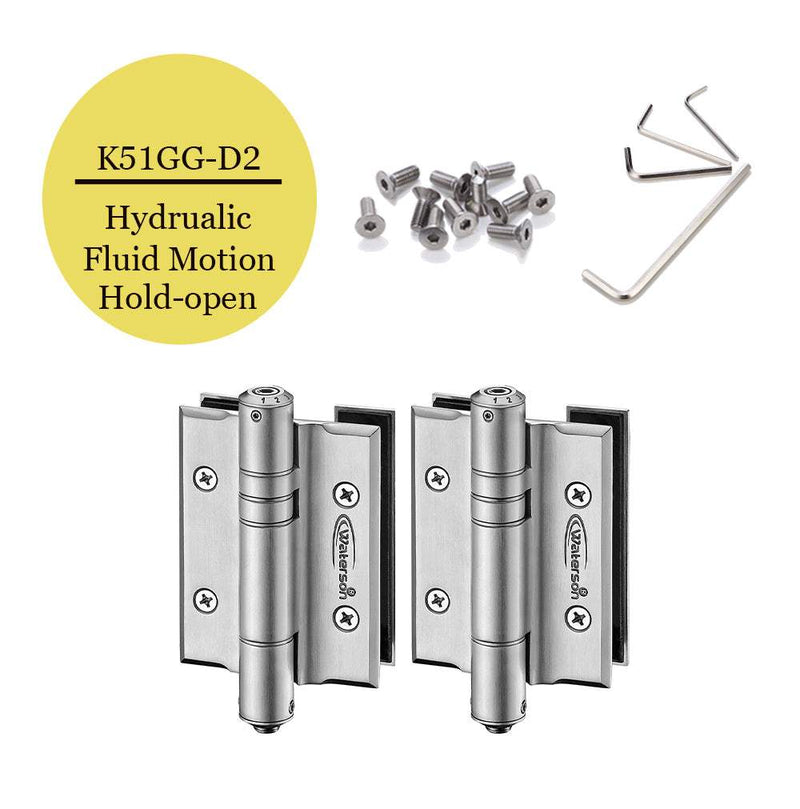

glass to glass pool gate hinge 2pcs Glass to Glass Door Hinge | Hydraulic | Hold Open | 6ft | 150 lbs | 5/16”-1/2” Thick | SS304 | K51GG-D2
$347.99
Key Difference soft closing soft closing with hold open
Qty of Hinge 2 hinges/door (HS.SA) 2 hinges/door (HS.SB)
Dimension Glass To Glass up to 1/2″; 6"(H) x 4"(W) Glass To Glass up to 1/2″; 6"(H) x 4"(W)
Self Closing o o
Fluid Motion o o
Hold Open x o
