$353.00 - $432.00
$353.00
$353.00 - $432.00
$353.00
Closing Types: Self Closing (A2)
Color: Flat Black-US19
stainless steel: SS304

gatMaterial: Stainless Steel 304

  • Product Dimensions: 5"H × 4"W
  • Mounting Type: Door Mount – Full Mortise
  • Door Size: 910mm W x 1830mm H (3ft x 6ft)
  • Door Weight: Min 40 lbs - Max 260 lbs
  • Door Thickness:  1” - 4”
  • Unit: 2 pieces
  • Warranty: 3 years

TALK TO SALES FIRST - NON REFUNDABLE

  • FEATURES
  • APPLICATIONS
  • DETAILS
  • SPECIFICATIONS
  • ADJUSTMENT

  • Product Description and Features

    • Fully adjustable closing force and speed according to environment needs
    • Numerical adjustment panel on hinge end to set up precise tension
    • Hydraulic fluid mechanism supporting precise speed and closing force adjustment
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • UL-certified cycle testing ensures many years of low maintenance.

  • Applications

    • Driveway wood gate hinges
    • Backyard wood gate hinges
    • Community wood pool gate hinges
    • Residential wood pool safety gate hinges
    • Garden wood gate hinges
    • Courtyard wood gate hinges
    • Marina wood gate hinges
    • High-wind area wood gate hinges
    • Durability
    • Heavy duty
    • Exterior use
    • Standard screw pattern

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

  • Specifications

    Compliance Standards

    • ANSI A156.17 Grade 1 : one million cycle testing
    • ANSI A156.7 Template Hinge : 6” x 6”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers



  • Adjustment Video

    Check the Full Adjustment Guidance here:
    English Version
    Spanish Version

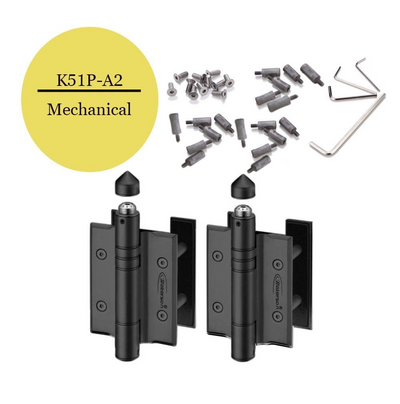

stainless steel self closing gate hinges 2pcs Stainless Steel Self Closing Gate Hinges | Mechanical | Weldable | 6ft | 150 lbs | 1” to 4” Thick | SS304 | K51P-A2
$353.00

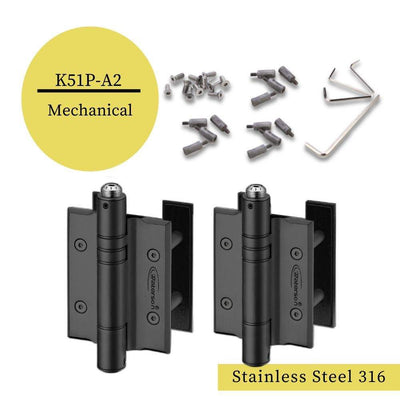

stainless steel marine hinges 2pcs Stainless Steel Marine Hinges | Mechanical | Weldable | 6ft | 150 lbs | 1” to 4” Thick | SS316 | K51P-A2-316
$391.00

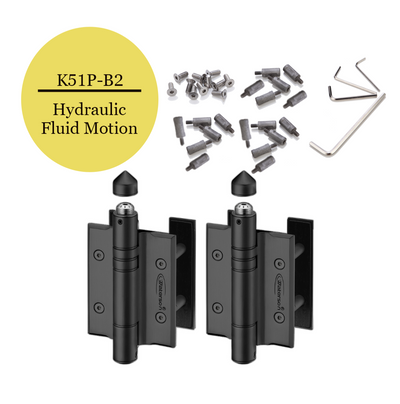

hydraulic gate hinges 2pcs Gate Hinges Soft Closing | Hydraulic | Weldable | 6ft | 150 lbs | 1” to 4” Thick | SS304 | K51P-B2
$394.00
Key Difference Self Closing, Stainless Steel 304 Self Closing, Stainless Steel 316 Marine Grade Soft Closing, Stainless Steel 304
Qty of Hinge 2 hinges/gate (SA.SA1) 2 hinges/gate (SA.SA1) 2 hinges/gate (DS.HA)
Dimension Door Weight ≤ 150 lbs; Door WxH: < 6ft x 3ft Door Weight ≤ 150 lbs; Door WxH: < 6ft x 3ft Door Weight ≤ 150 lbs; Door WxH: < 6ft x 3ft
Self Closing o o o
Fluid Motion x x o
Hold Open x x x
