Product Description and Features

• Easy to adjust the closing force and speed
• Wind resistance to prevent negative pressure created when patio doors or windows are open.

• Anti-slamming with soft close function. Prevents doors from slamming shut

• Ensure child safety with no slammed fingers and minimize injury risk.

• Aesthetically pleasing compared to door closers -- without extrusive arms

Applications

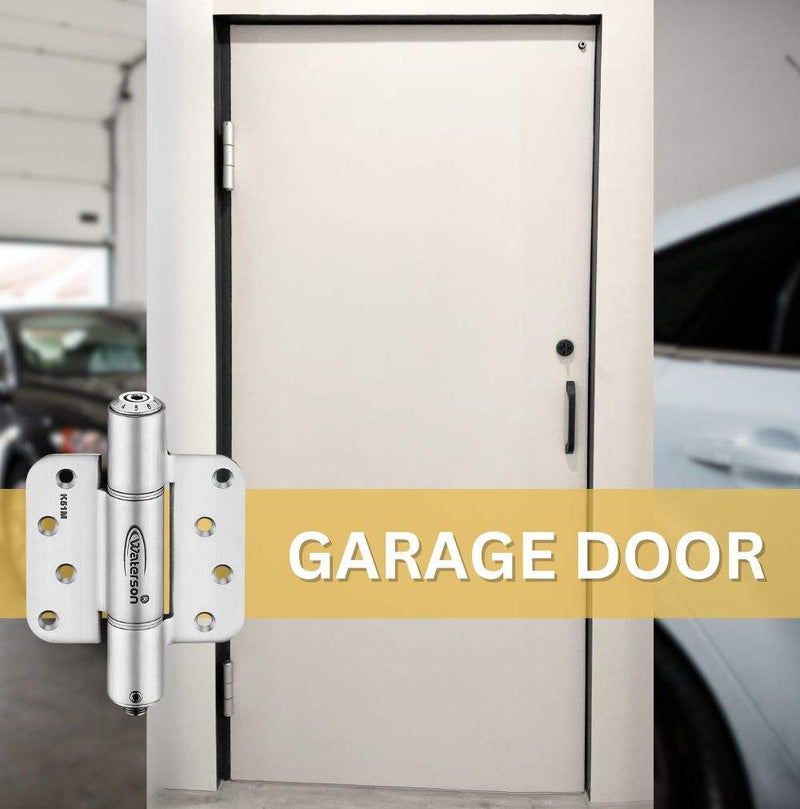

• Garage Door

• Fire-Rated Door

• Soft-Closing Door

• Self-Closing Door

• Durability

• Residential Door

• Interior Use

• Standard Screw Pattern
• Zigzag Screw Pattern

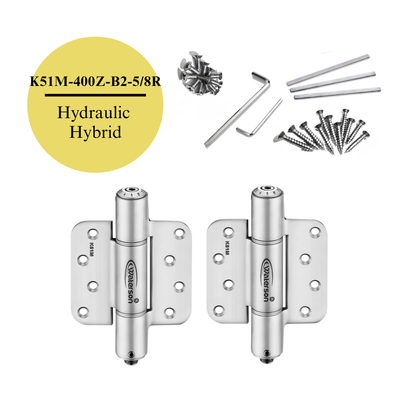

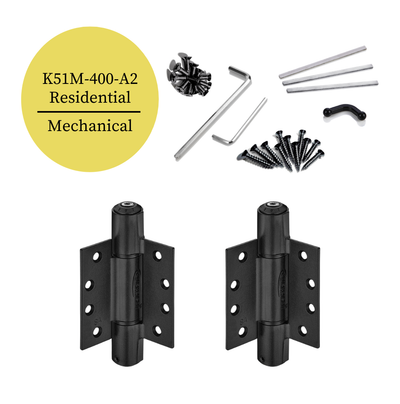

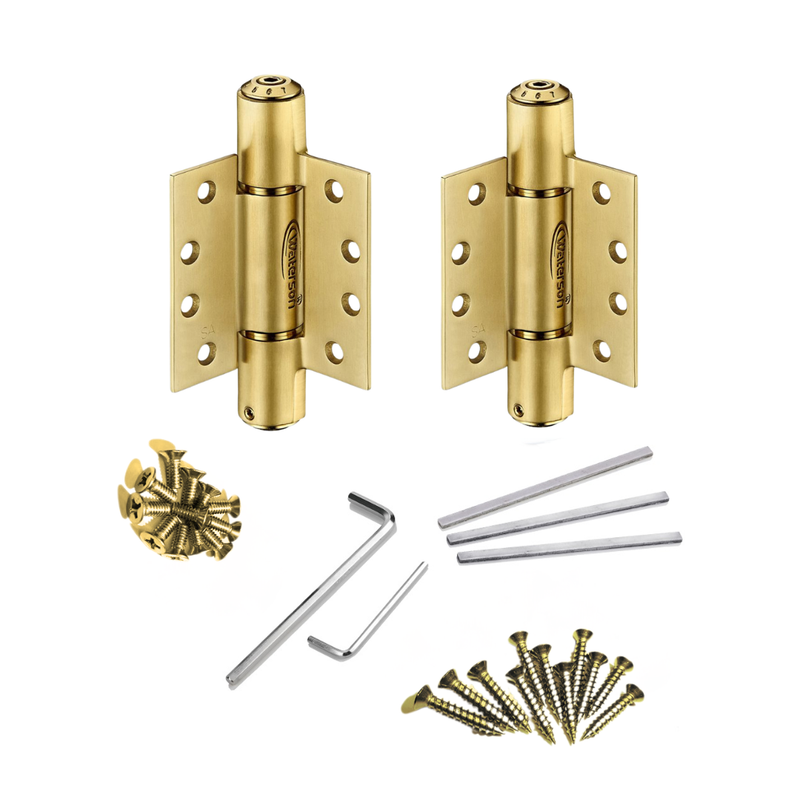

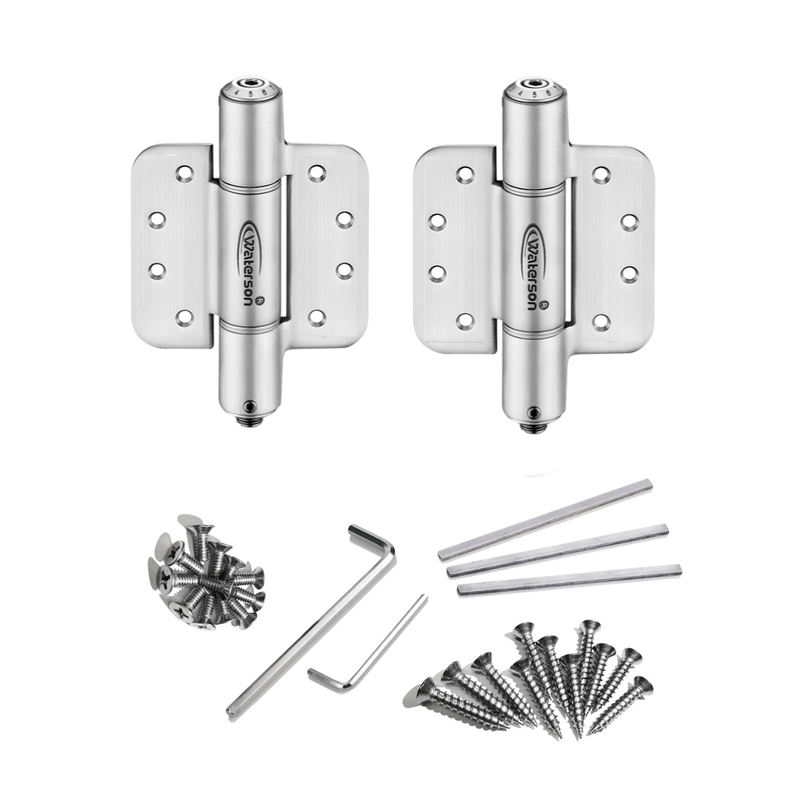

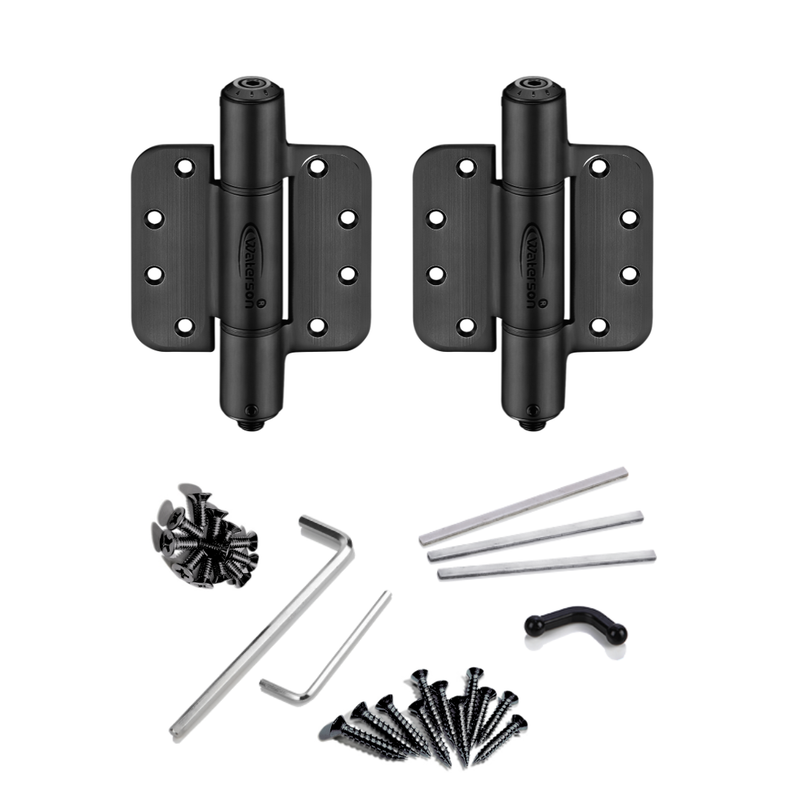

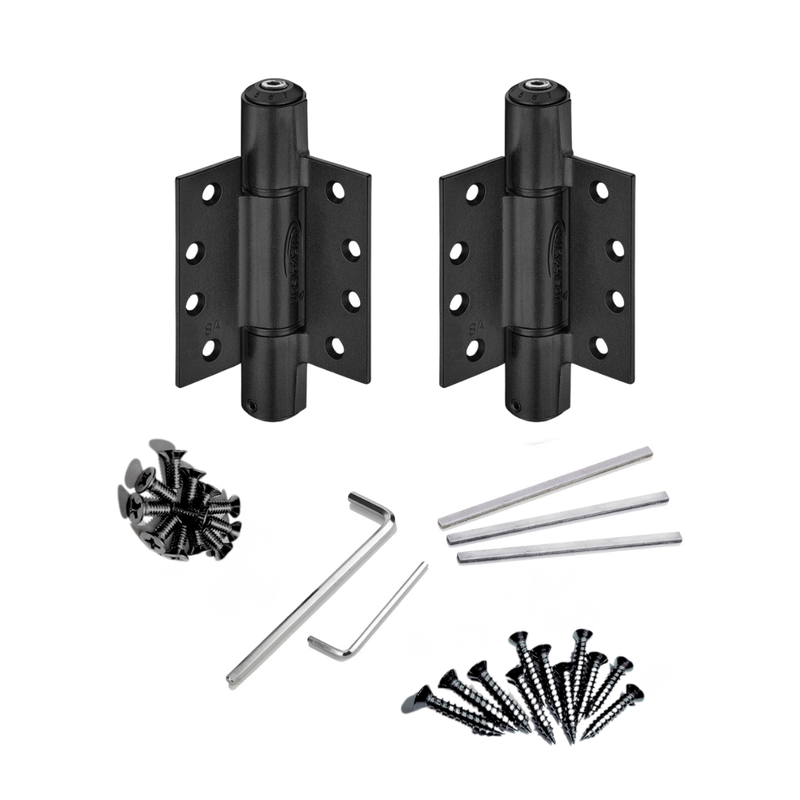

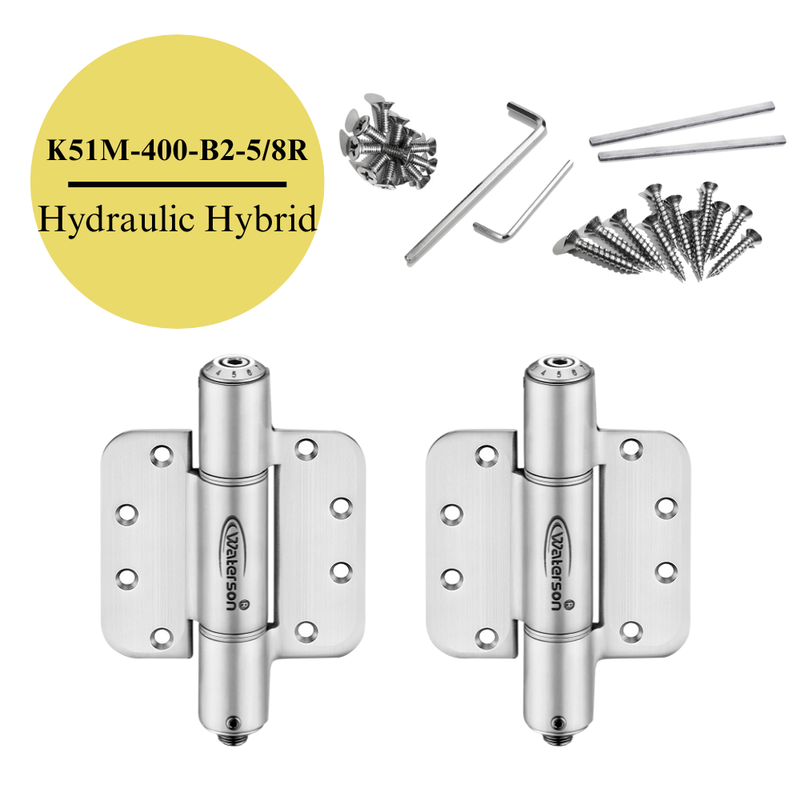

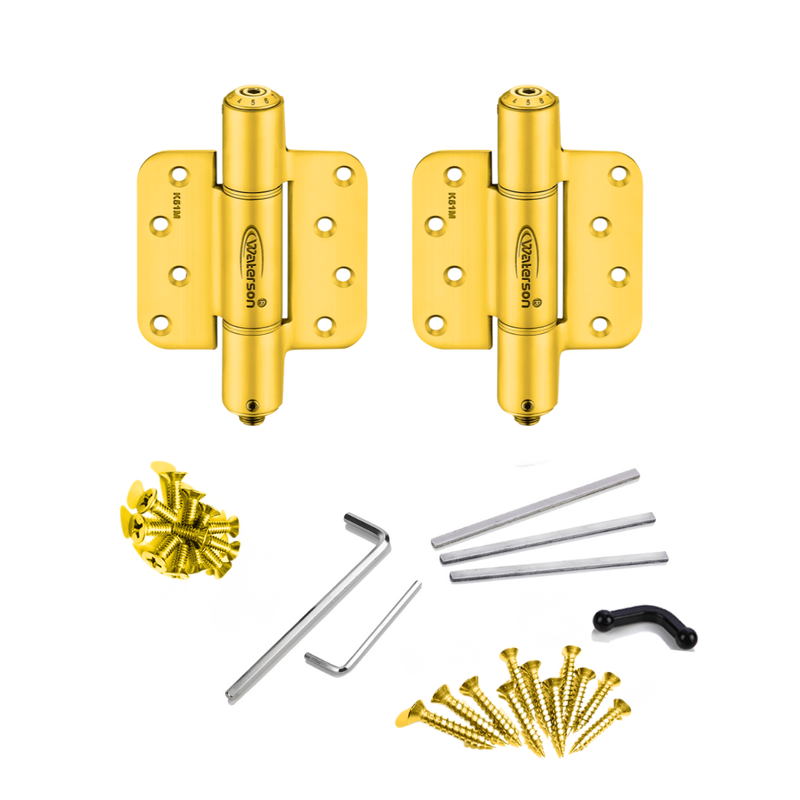

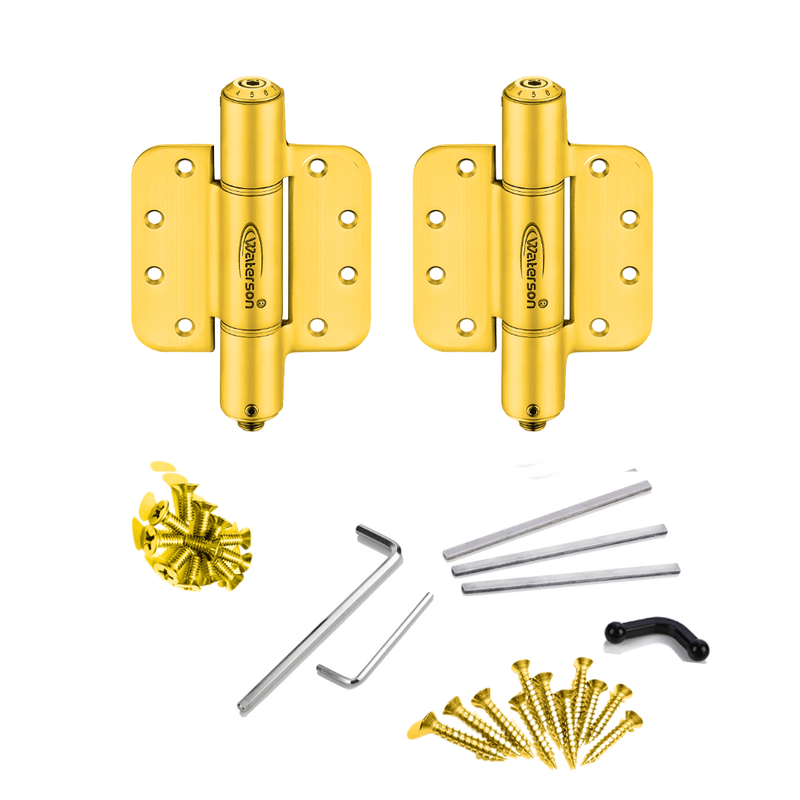

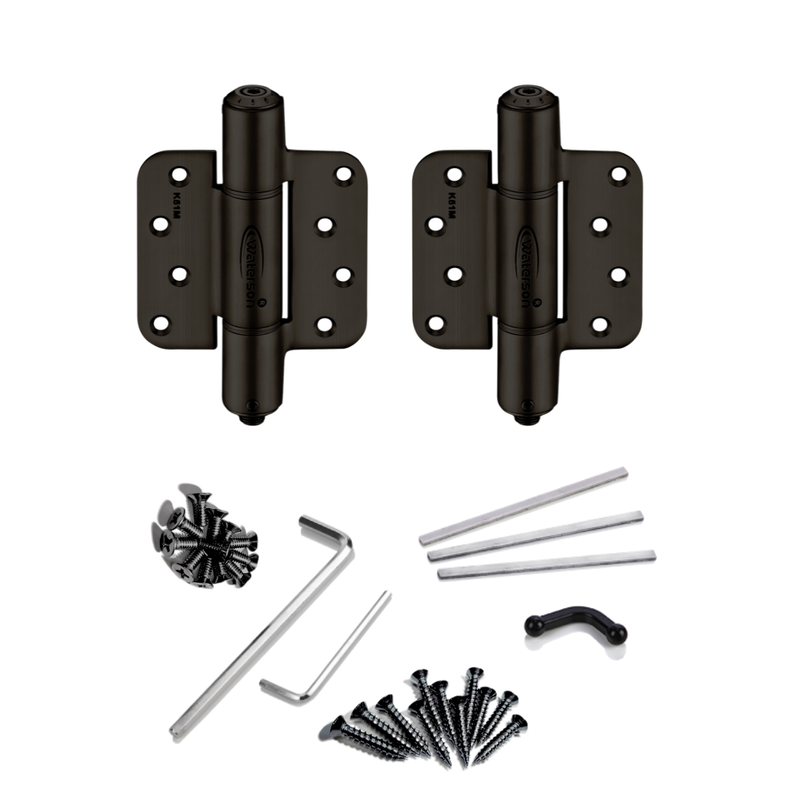

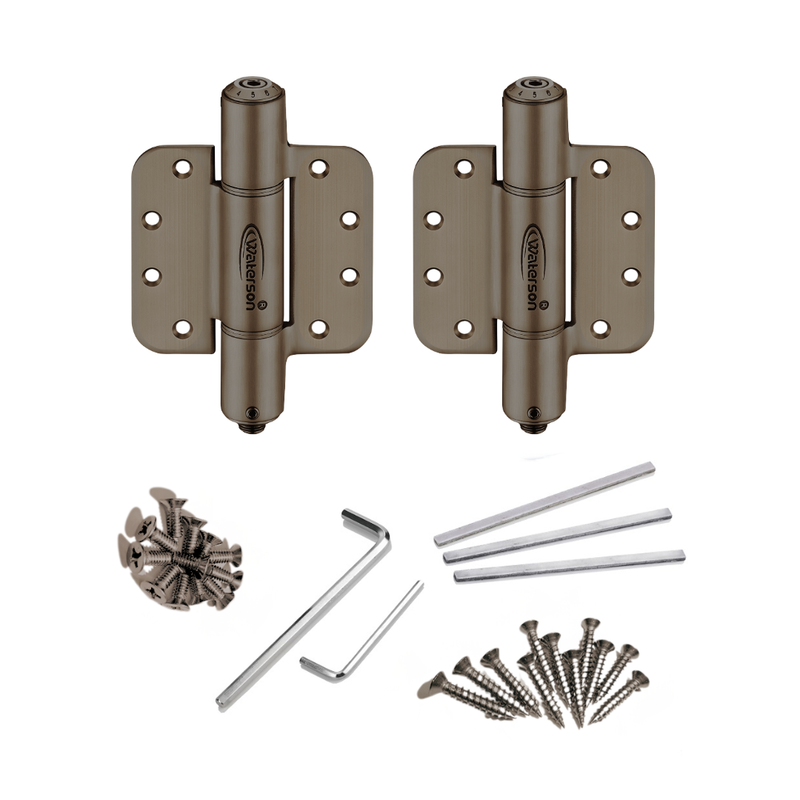

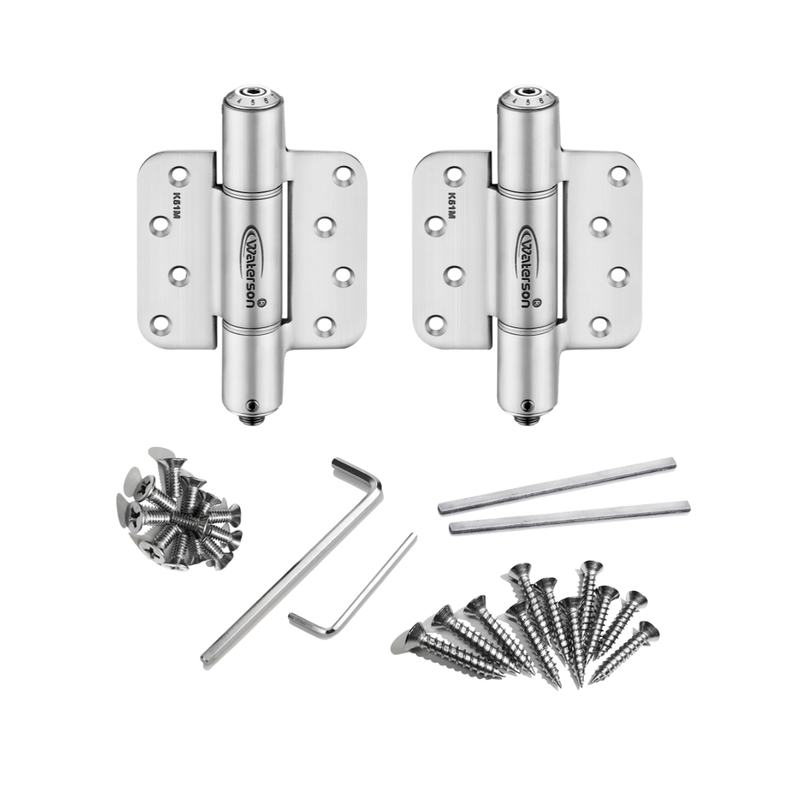

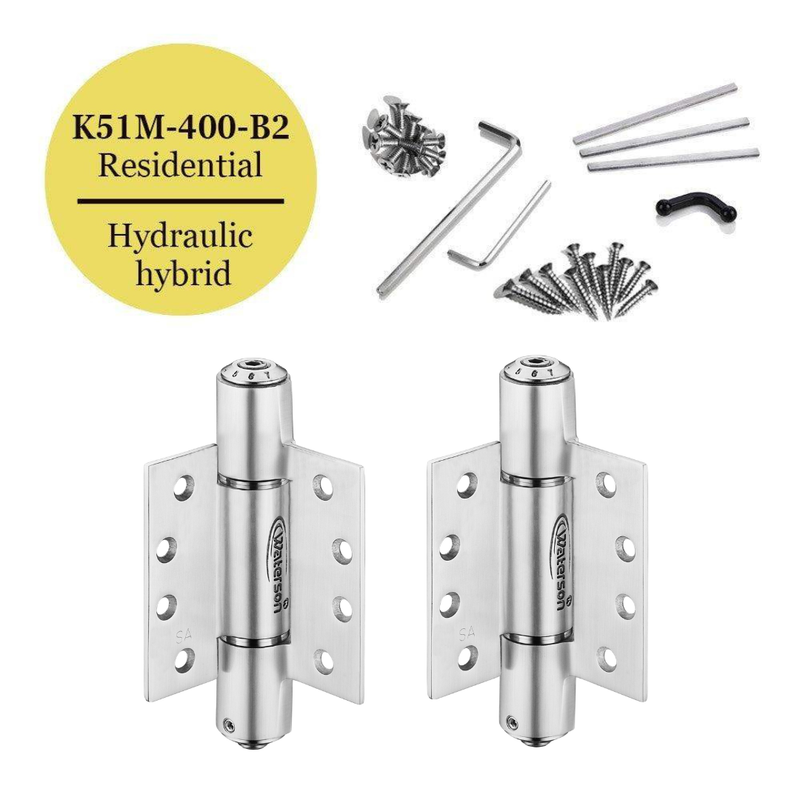

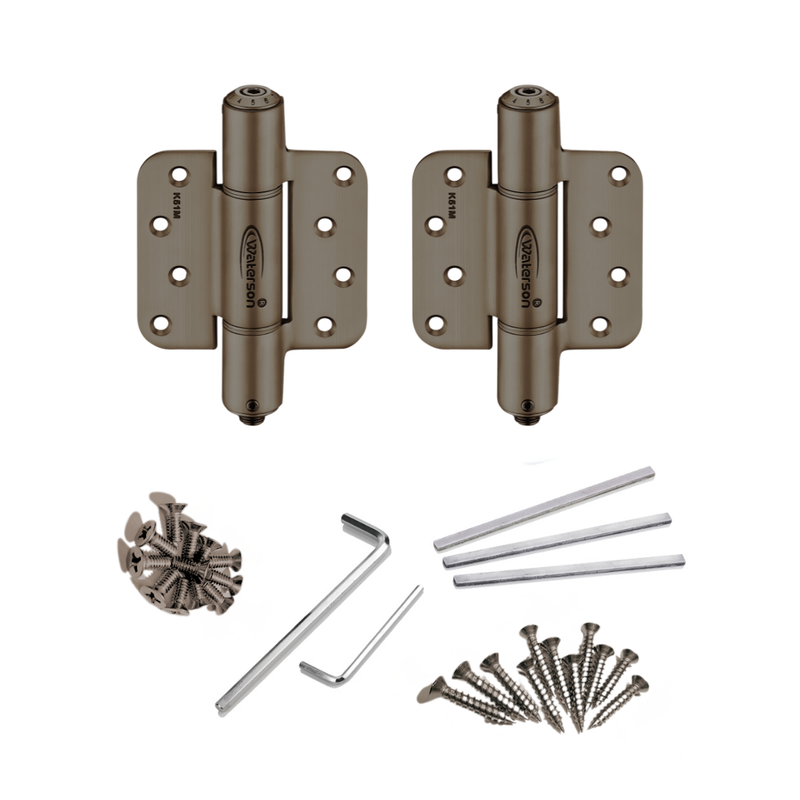

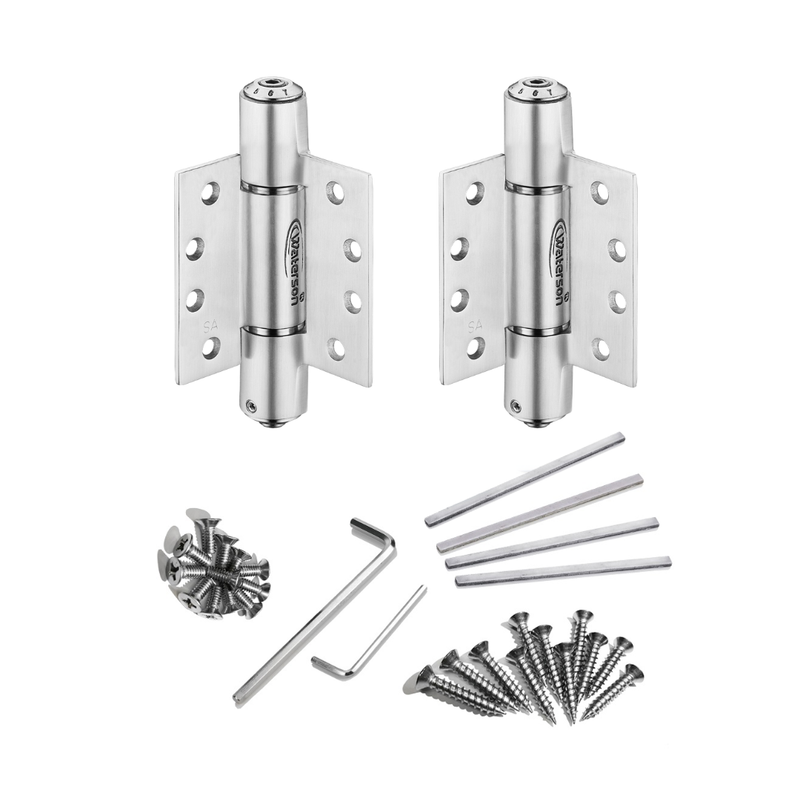

Installation Kits

• Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
• Three steel adhesive shims for gap adjustment between door and frame as needed
• Tension Crook: Keeps hinge open during installation
• 5mm & 3mm hex allen wrenches

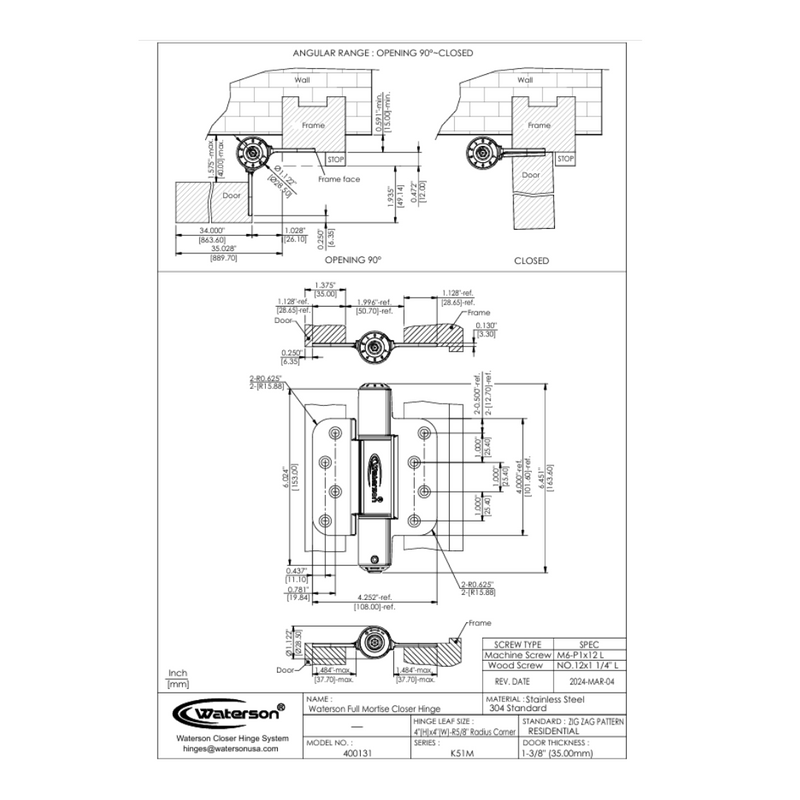

Specifications

Compliance Standards

• ANSI A156.17 Grade 1: one million cycle testing
• ANSI A156.7 Template Hinge : 4” x 4”
• CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
• ADA Force: opening force no more than 5 lbs
• ADA Closing Speed: at least 5 sec to move from m 90° to 12°
• ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

Code note:

Fire-rated doors cannot use hold-open features.

Waterson fire-rated soft-close garage door hinges are designed without hold-open, fully compliant with building and fire safety codes.
