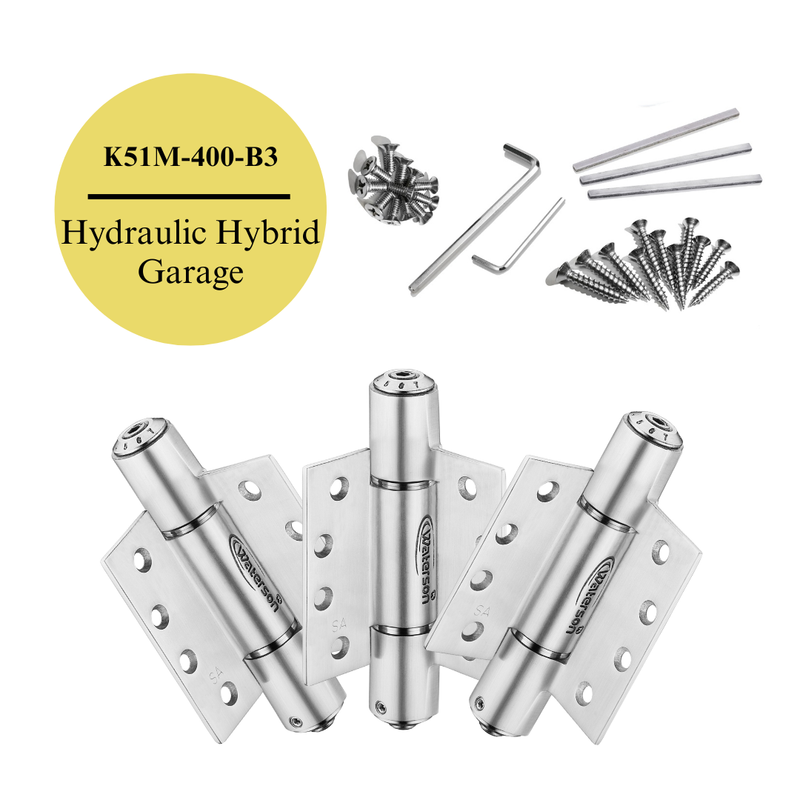

3pcs Garage Door Hinges Fire Rated Soft Closing | 4x4 | 7ft | 260 lbs | 1 3/8” - 1 3/4” Thick | SS304 | K51M-400-B3

$440.59 - $554.59
$440.59
$440.59 - $554.59
$440.59
Color: Satin Stainless Steel-US32D
  • Material: Stainless Steel 304
  • Product Dimensions: 4"H × 4"W
  • Mounting Type: Door Mount – Full Mortise
  • Door Size: 1150mm W x 2200mm H (4ft x 7ft)
  • Door Weight: Min 40 lbs - Max 260 lbs
  • Door Thickness: 1 3/8” - 1 3/4”
  • Unit: 3 pieces
  • Warranty: 3 years

TALK TO SALES FIRST - NON REFUNDABLE

  • FEATURES
  • APPLICATIONS
  • DETAILS
  • SPECIFICATIONS
  • ADJUSTMENT

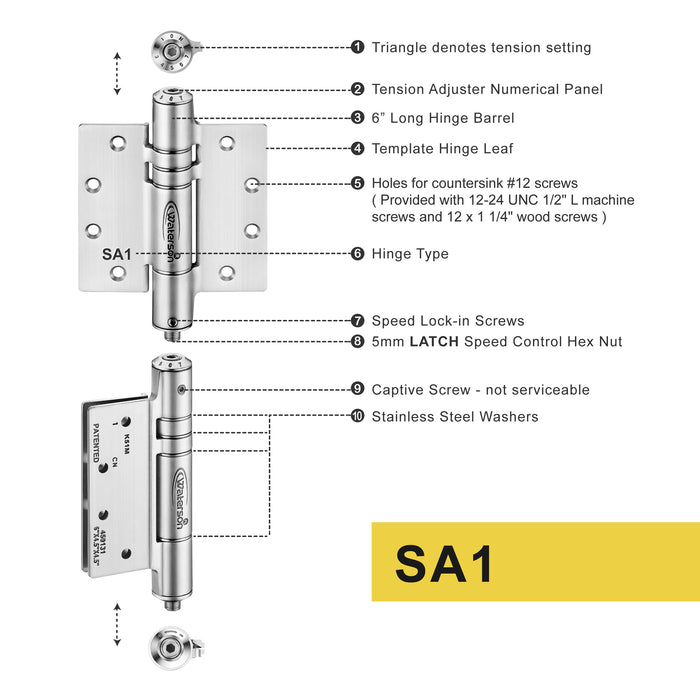

  • Product Description and Features

    • Fully adjustable closing force and speed according to environment needs
    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical-only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • UL-certified cycle testing ensures many years of low maintenance.

  • Applications

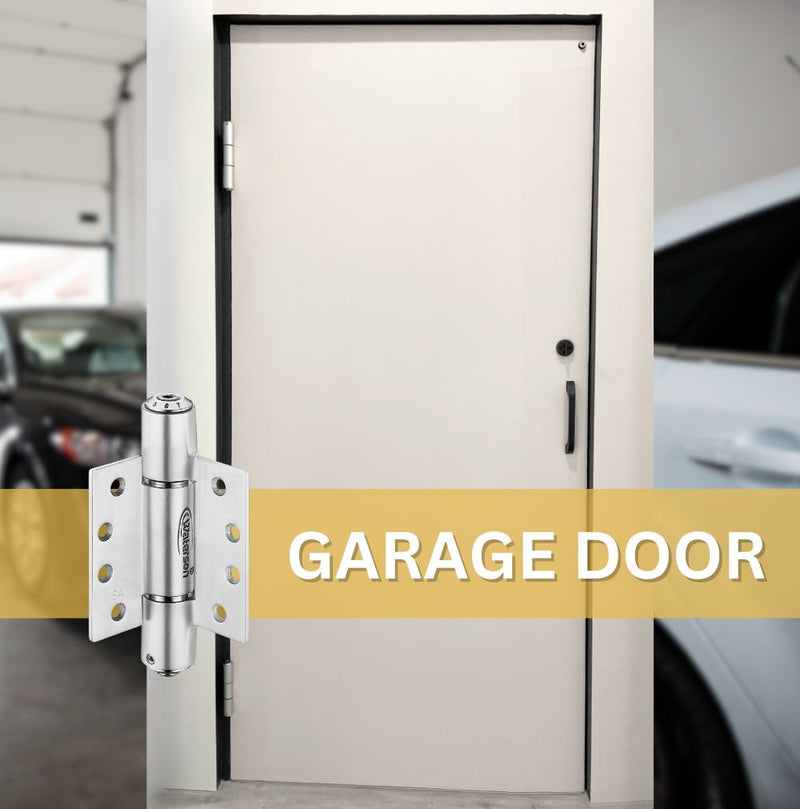

    • Garage Door
    • Fire-Rated Door
    • Soft-Closing Door
    • Self-Closing Door
    • Durability
    • Residential Door
    • Interior Use
    • Standard Screw Pattern
    • Zigzag Screw Pattern

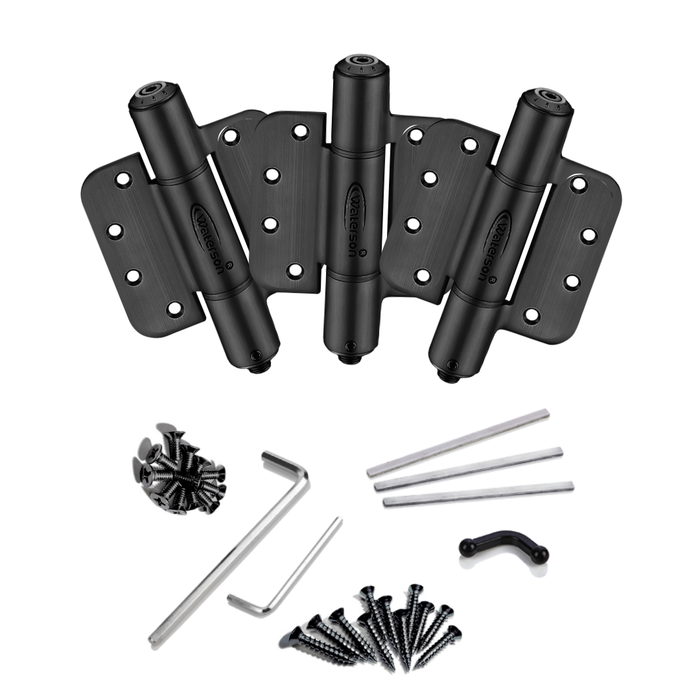

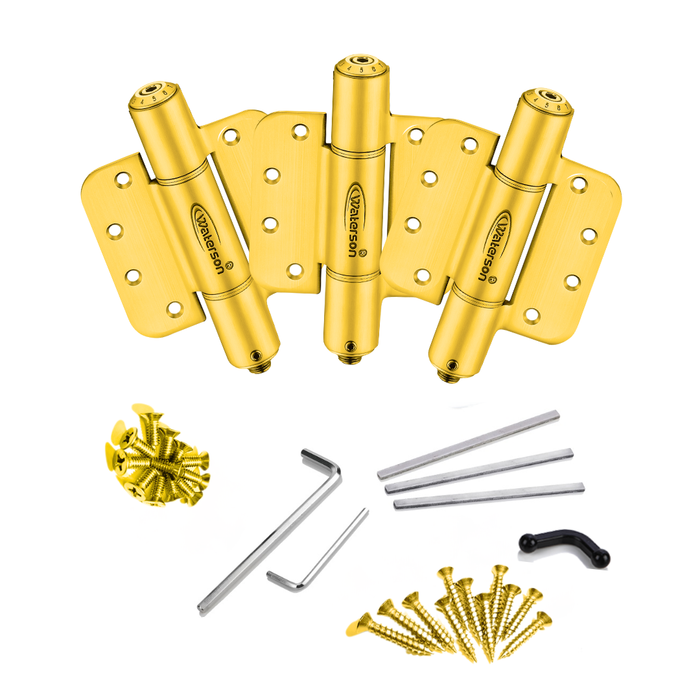

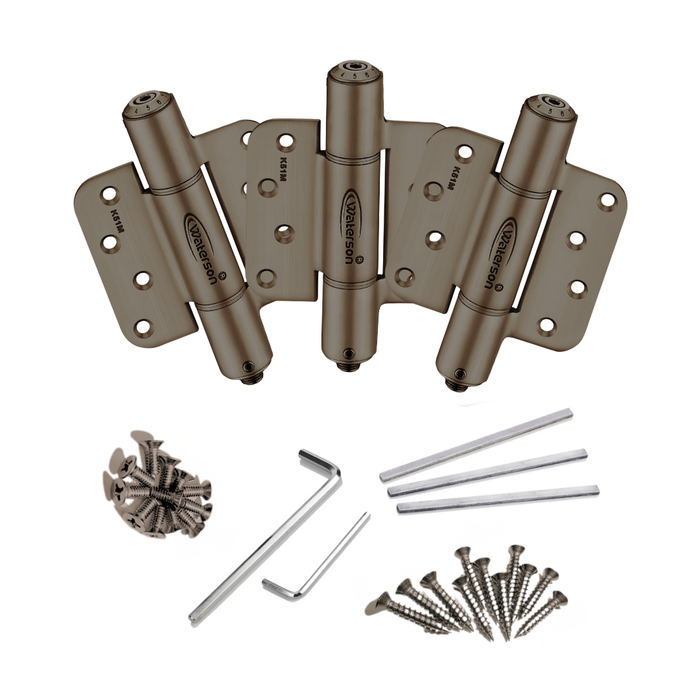

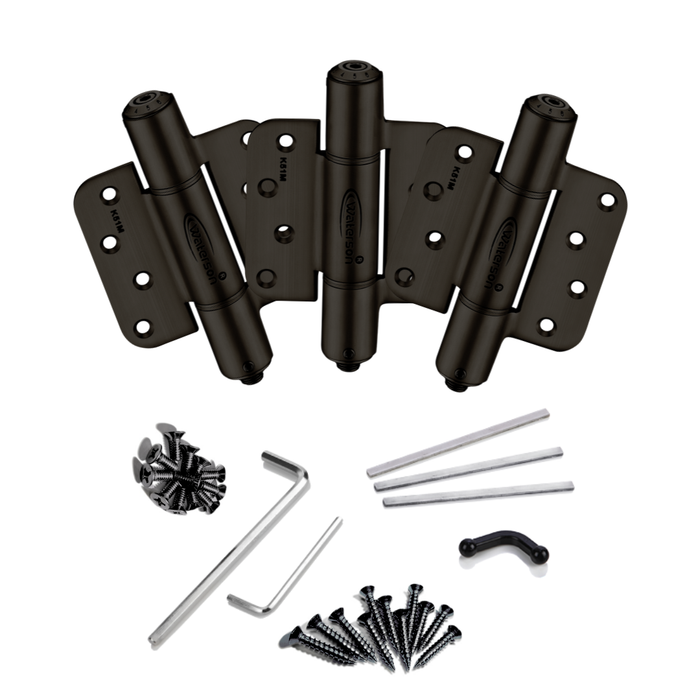

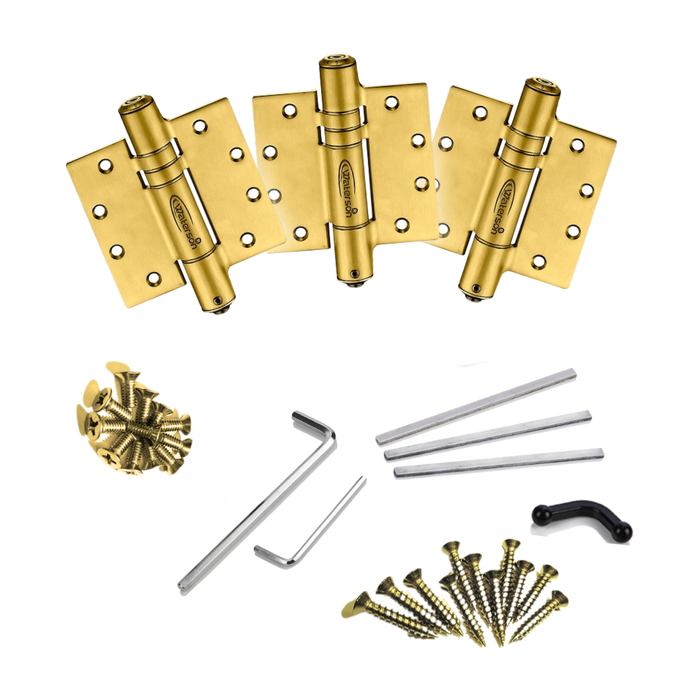

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

  • Specifications

    Compliance Standards

    • ANSI A156.17 Grade 1 : one million cycle testing
    • ANSI A156.7 Template Hinge : 6” x 6”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

    Code note:

    Fire-rated doors cannot use hold-open features.

    Waterson fire-rated soft-close garage door hinges are designed without hold-open, fully compliant with building and fire safety codes.

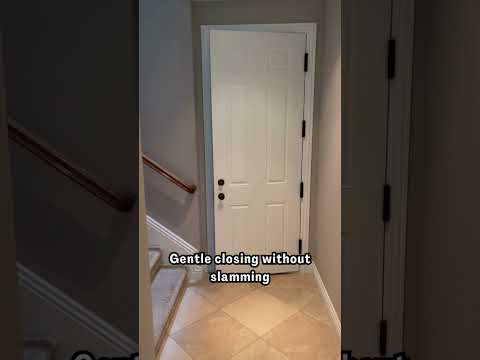

  • Adjustment Vide

    Check the Full Adjustment Guidance here:
    English Version
    Spanish Version

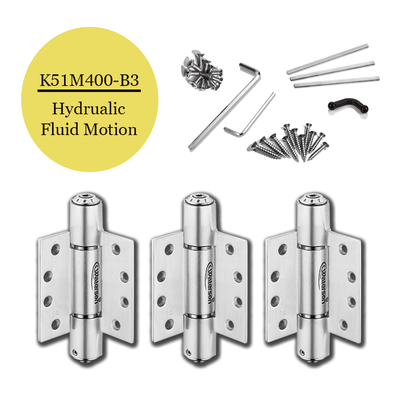

self closing bathroom stall hinges 3pcs Soft Closing Door Hinges | Hydraulic | Fire Rated | 4x4 | 7ft | 260 lbs | 1 ⅜ or 1 ¾” Thick | SS304 | K51M-400-B3
$440.59

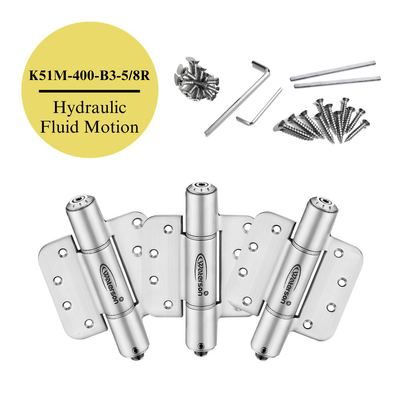

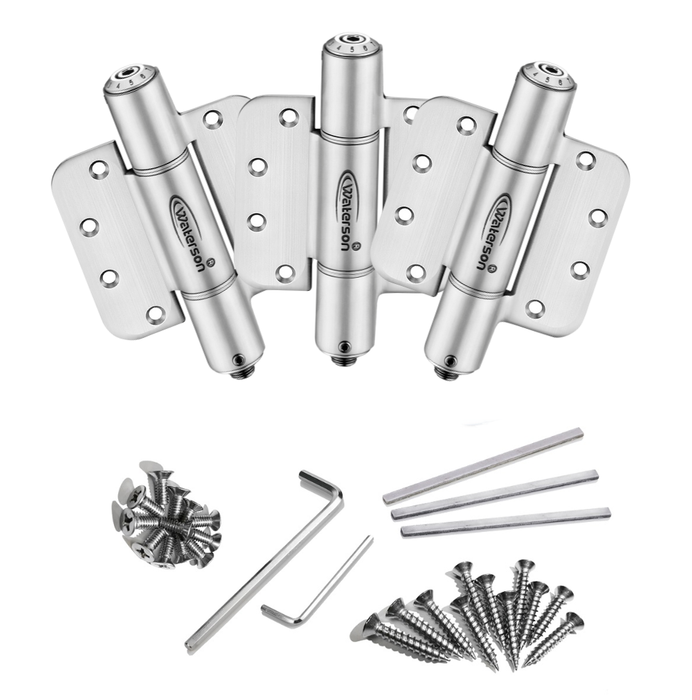

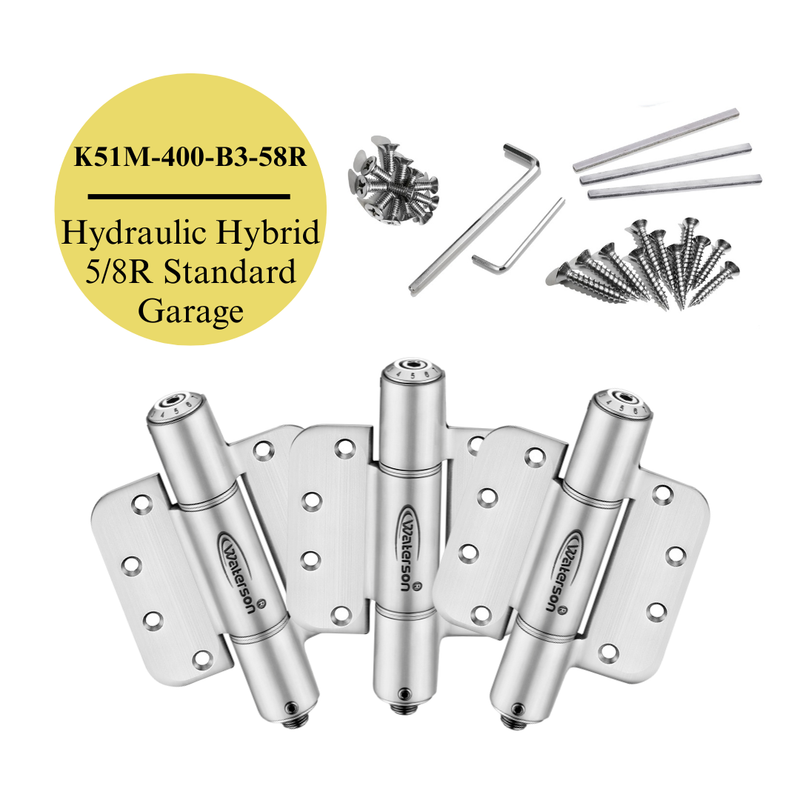

3pcs Hydraulic 4" Door Hinge 5/8" Radius Corner | Soft Closing | Fire Rated | 4x4 | 7ft | 260 lbs | 1 3/8” - 1 3/4” Thick | SS304 | K51M-400-B3-58R 3pcs Hydraulic 4" Door Hinge 5/8" Radius Corner | Soft Closing | Fire Rated | 4x4 | 7ft | 260 lbs | 1 3/8” - 1 3/4” Thick | SS304 | K51M-400-B3-58R
$440.59

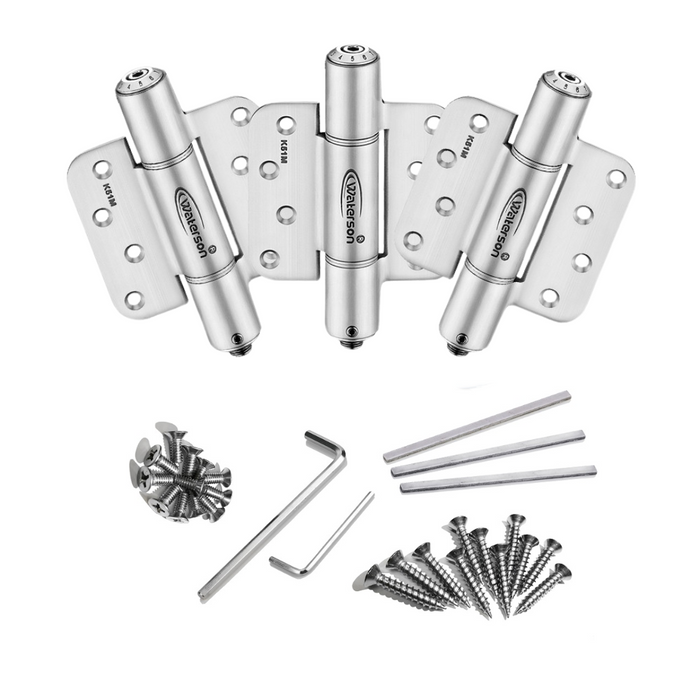

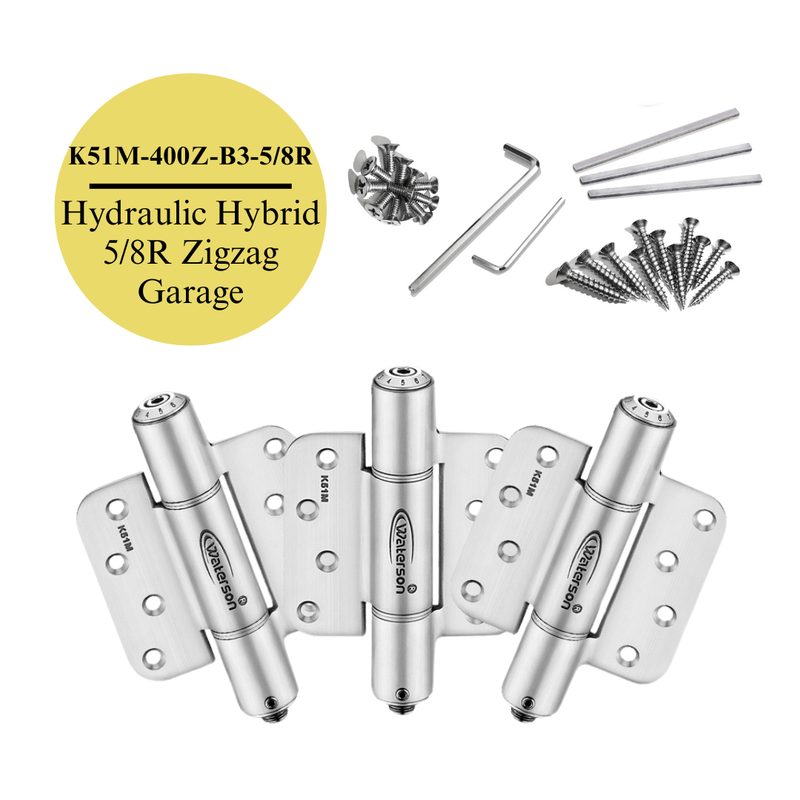

3pcs Hydraulic 4" Door Hinge 5/8" Radius Corner | Soft Closing | Fire Rated | 4x4 | 7ft | 260 lbs | 1 3/4” Thick | SS304 | Zigzag | K51M-400Z-B3-58R 3pcs Hydraulic 4" Door Hinge 5/8" Radius Corner | Soft Closing | Fire Rated | 4x4 | 7ft | 260 lbs | 1 3/4” Thick | SS304 | Zigzag | K51M-400Z-B3-58R
$497.59
Key Difference Square corner; Standard screw pattern 5/8 radius corner; Standard screw pattern 5/8 radius corner; Zigzag screw pattern
Qty of Hinge 3 hinges/door (DS.HA.SA) 3 hinges/door (DS.HA.SA) 3 hinges/door (DS.HA.SA)
Dimension 4"(H) x 4"(W) 4"(H) x 4"(W) 4"(H) x 4"(W)
Self Closing o o o
Fluid Motion o o o
Hold Open x x x
