4pcs 316 Stainless Door Hinges | Soft Closing Hold Open | 4x4 | 8ft | 260 lbs | 1 3/4" Thick | SS316 | K51M-400-D4-316

If you need anti slam exterior door hinges that control closing speed, eliminate hard impact, and hold the door open when you need hands-free access, this hydraulic hinge delivers adjustable tension and hold open in one unit, with no overhead hardware.

Waterson 316 stainless steel soft close door hinges use a hydraulic damper with on-hinge tension and speed adjustment, giving you controlled closing and long service life without adding any overhead hardware. 3 years warranty

Warning : Special finishes (US4) is non-refundable

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

  • 316 stainless steel
  • Interior & Exterior
  • Marine Grade
  • Pool Door

  • Arch Top
  • Heavy Duty
  • Courtyard Style

  Product Description and Features

  • Apply for door open ≤ 120°
  • Fully adjustable closing force and speed according to environment needs
  • Numerical adjustment panel on hinge end to set up precise tension
  • Mechanical only mechanism supporting heavy duty and fully exterior
  • Aesthetically pleasing compared to door closers -- without extrusive arms
  • UL certified cycle testing ensures many years of low maintenance.

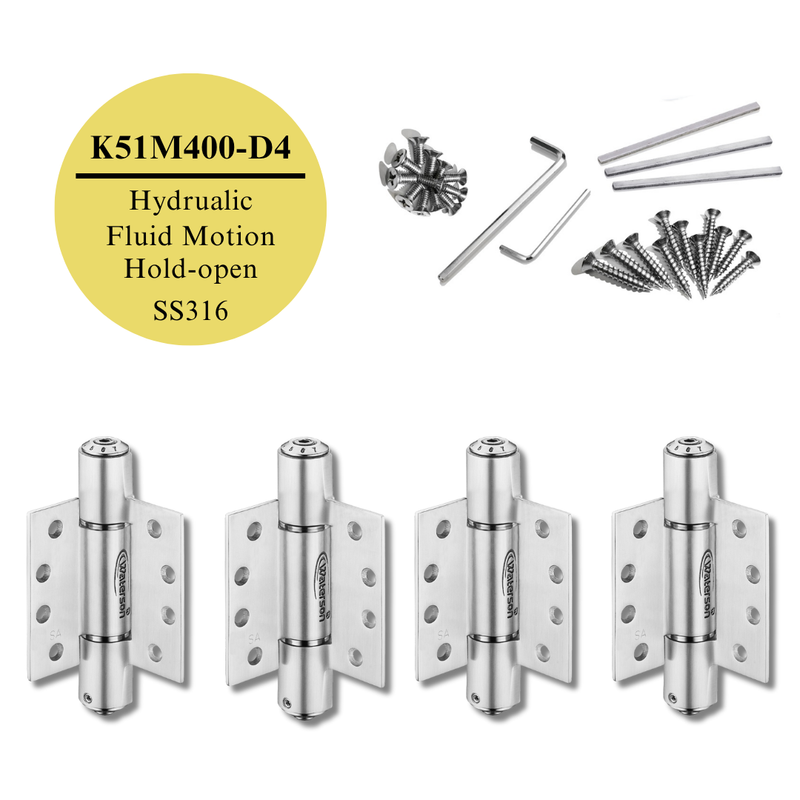

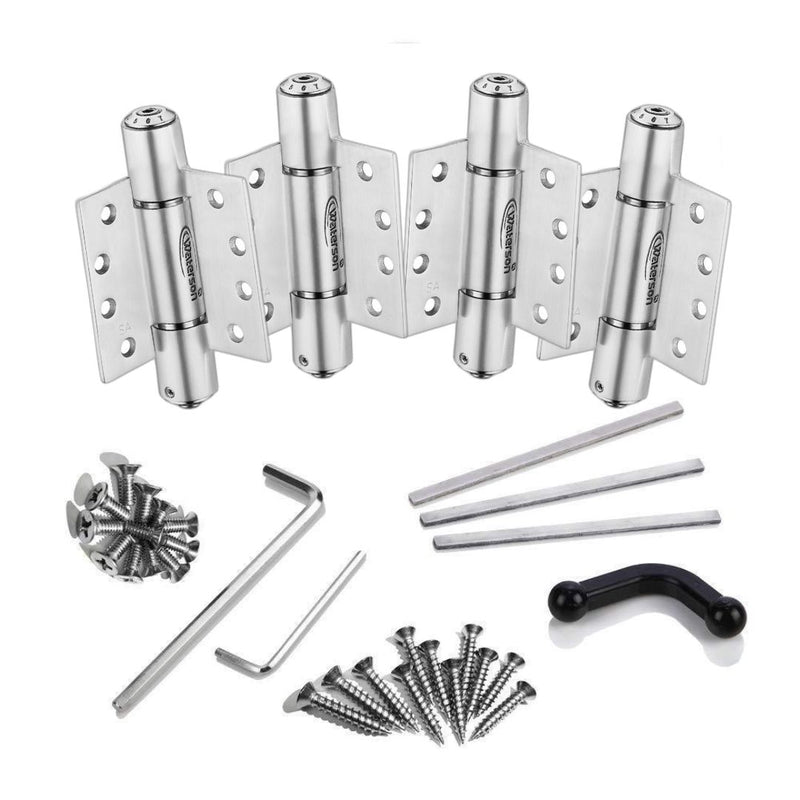

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

  • ANSI A156.17 Grade 1: one million cycle testing
  • ANSI A156.7 Template Hinge : 4” x 4”
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

• Specifications

  Product SKU	K51M-400-D4-316
  Hinge Type	Full Mortise, 4 Inch x 4 Inch
  Hinge Material	Stainless Steel 316
  Door Weight	From 40lbs to 260lbs
  Approx Door Size	1150mm W x 2200mm H (4ft x 8ft)
  Door Thickness	1 ¾” (40-50 mm)
  Self-closing	o
  Fluid Motion	o
  Hold-open	o
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment

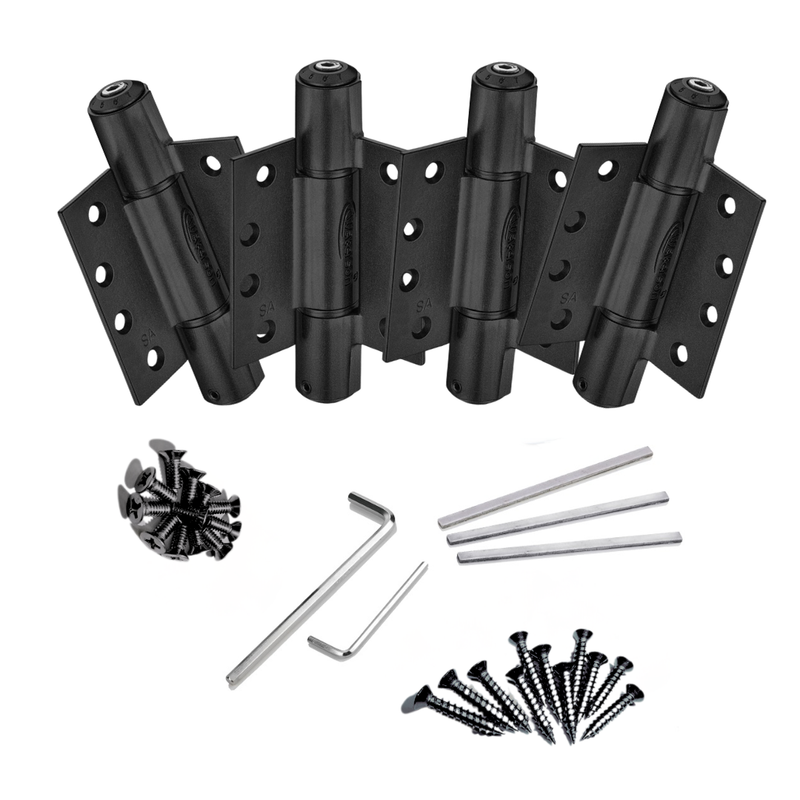

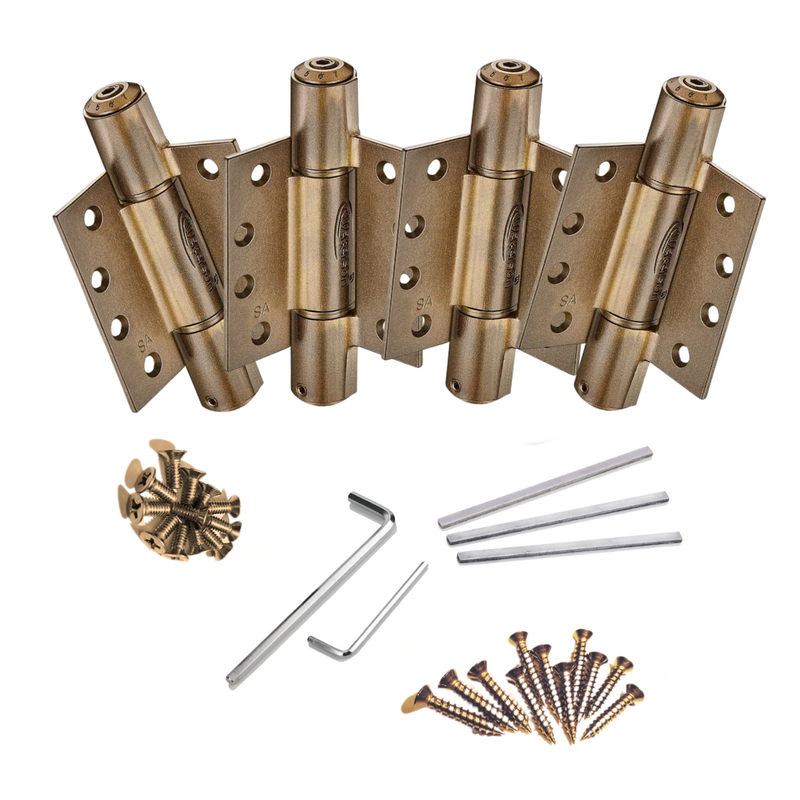

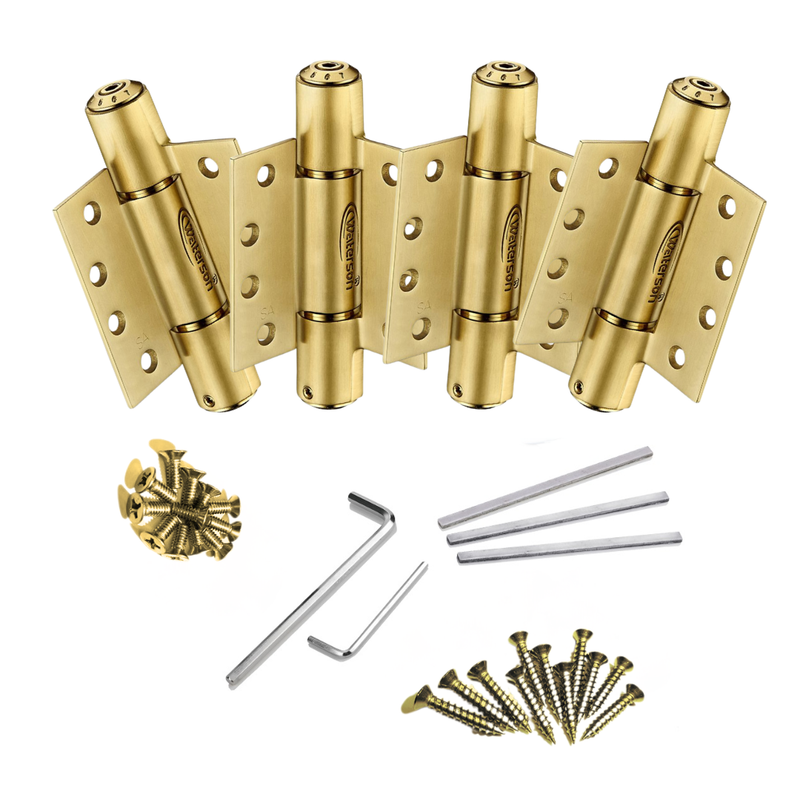

  Color/Finish	Satin Brushed,Black,Gold,ORB
  Combination/Quantity	DS.SA.HA.SB, 4 Pack
