Hydraulic Hinges Heavy Duty

4pcs Front Door Hinges | Self Closing | Soft Closing | Fire Rated | 4.5x4.5 | 8ft | 330 lbs | 1 ¾” Thick | SS304 | K51M-450-A4/B4

$532.80 - $608.80
$532.80
$532.80 - $608.80
$532.80
Color: Satin Stainless Steel-US32D
  • Material: Stainless Steel 304
  • Product Dimensions: 4.5"H × 4.5"W
  • Mounting Type: Door Mount – Full Mortise
  • Door Size: 1150mm W x 2440mm H (4ft x 8ft)
  • Door Weight: Min 40 lbs - Max 330 lbs
  • Door Thickness: 1 3/8” - 1 3/4”
  • Unit: 3 pieces
  • Warranty: 3-10 years

TALK TO SALES FIRST - NON REFUNDABLE

  • FEATURES
  • APPLICATIONS
  • DETAILS
  • SPECIFICATIONS
  • ADJUSTMENT

  • Product Description and Features

    • Fully adjustable closing force and speed according to environment needs
    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical-only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • UL-certified cycle testing ensures many years of low maintenance.

  • Applications

    • Hotel Rooms
    • Front Door
    • Commercial Entry Door
    • Residential Entry Door
    • Entrance Door
    • Exterior Entry Door
    • Exterior Wood Door
    • Steel Entry Door
    • Arch Top Front Door
    • 8ft Door
    • Heavy Duty
    • Interior & Exterior

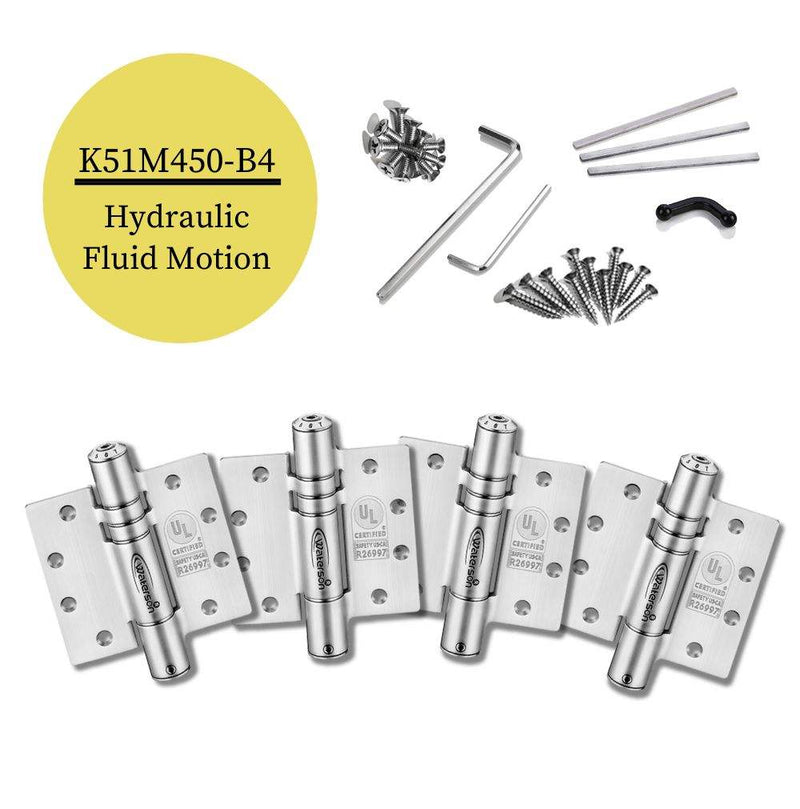

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

  • Specifications

    Compliance Standards

    • ANSI A156.17 Grade 1 : one million cycle testing
    • ANSI A156.7 Template Hinge : 6” x 6”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

    Code note:

    Fire-rated doors cannot use hold-open features.

    Waterson fire-rated soft-close garage door hinges are designed without hold-open, fully compliant with building and fire safety codes.

  • Adjustment Video

    Check the Full Adjustment Guidance here:
    English Version
    Spanish Version
adjustable self closing door hinges 4pcs Adjustable Self Closing Door inges | Mechanical | Fire Rated | 4.5x4.5 | 8ft | 330 lbs | 1 ¾” Thick | SS304 | K51M-450-A4
$532.80
soft close hinges for doors 4pcs Soft Close Hinges for Doors | Hydraulic | Fire Rated | 4.5x4.5 | 8ft | 330 lbs | 1 ¾” Thick | SS304 | K51M-450-B4
$573.80
Key Difference Mechanical self-closing Hydraulic hybrid soft-closing
Qty of Hinge 4 hinges/door (DS.SA.SA.SA1) 4 hinges/door (DS.SA.HA.SA)
Dimension 4.5"(H) x 4.5"(W) 4.5"(H) x 4.5"(W)
Self Closing o o
Fluid Motion x o
Hold Open x x
