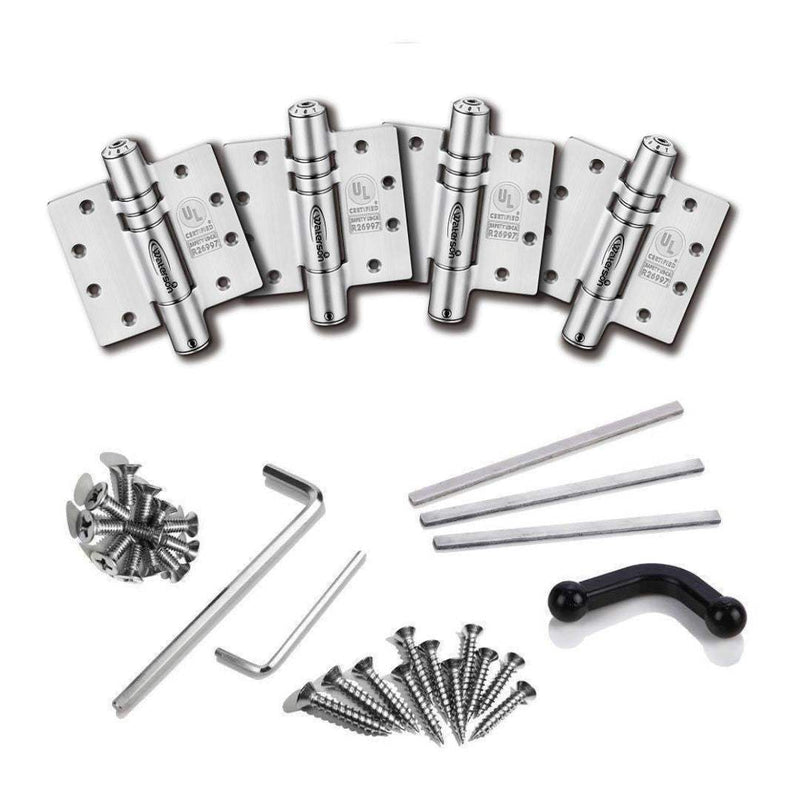

4pcs Soft Closing Door Closer for Arch Door | Hydraulic | Fire Rated | 8ft | 330 lbs | 1 ⅜” ~ 2 ¼″ Thick | SS304 | K51M-B4

4pcs Soft Closing Door Closer for Arch Door | Hydraulic | Fire Rated | 8ft | 330 lbs | 1 ⅜” ~ 2 ¼″ Thick | SS304 | K51M-B4

$573.80 - $725.80
$573.80
$573.80 - $725.80
$573.80

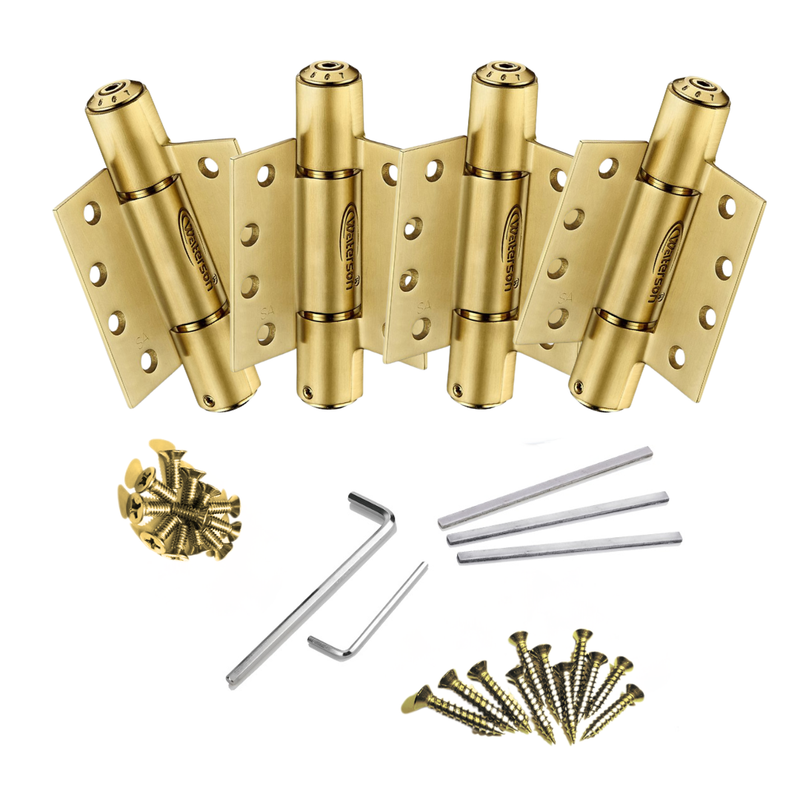

Color: Satin Stainless Steel-US32D
  • Material: Stainless Steel 304
  • Product Dimensions:
    • 400" 4"x4"
    • 450: 4.5"H × 4.5"W
    • 500D: 5"H × 5"W
  • Mounting Type: Door Mount – Full Mortise
  • Door Size: 1150mm W x 2440mm H (4ft x 8ft)
  • Door Weight: Min 40 lbs - Max 330 lbs
  • Door Thickness: 1 ⅜” ~ 2 ¼” (35mm ~ 57mm)
  • Warranty: 3 years

TALK TO SALES FIRST - NON REFUNDABLE

  • FEATURES
  • APPLICATIONS
  • DETAILS
  • SPECIFICATIONS
  • ADJUSTMENT

  • Product Description and Features

    • Fully adjustable closing force and speed according to environment needs
    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical-only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • UL-certified cycle testing ensures many years of low maintenance.

  • Applications

    • Arched Top Door
    • Fire-Rated Door
    • Soft-Closing Door
    • Self-Closing Door
    • Commercial Door
    • Office Door
    • Residential Door
    • Church Door
    • Interior & Exterior Use
    • Standard Screw Pattern

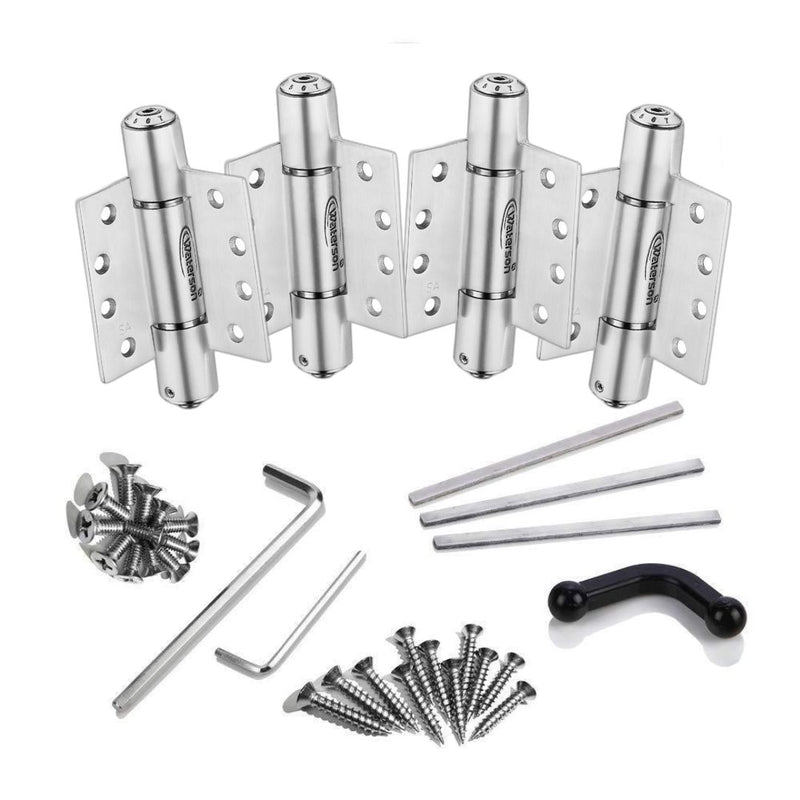

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

  • Specifications

    Compliance Standards

    • ANSI A156.17 Grade 1 : one million cycle testing
    • ANSI A156.7 Template Hinge : 6” x 6”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

    Code note:

    Fire-rated doors cannot use hold-open features.

    Waterson fire-rated soft-close arched door closers are designed without hold-open, fully compliant with building and fire safety codes.

  • Adjustment Video

    Check the Full Adjustment Guidance here:
    English Version
    Spanish Version

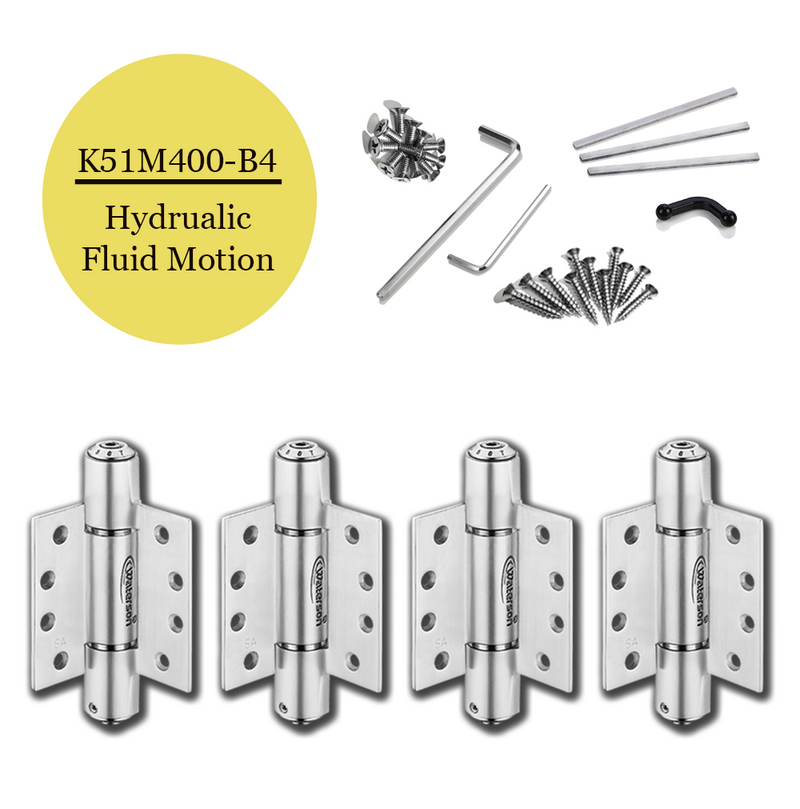

heavy duty garage door hinges 4pcs Anti Slam Door Hinges | Hydraulic | Fire Rated | 4x4 | 8ft | 330 lbs | 1 ⅜ or 1 ¾” Thick | SS304 | K51M-400-B4
$573.80

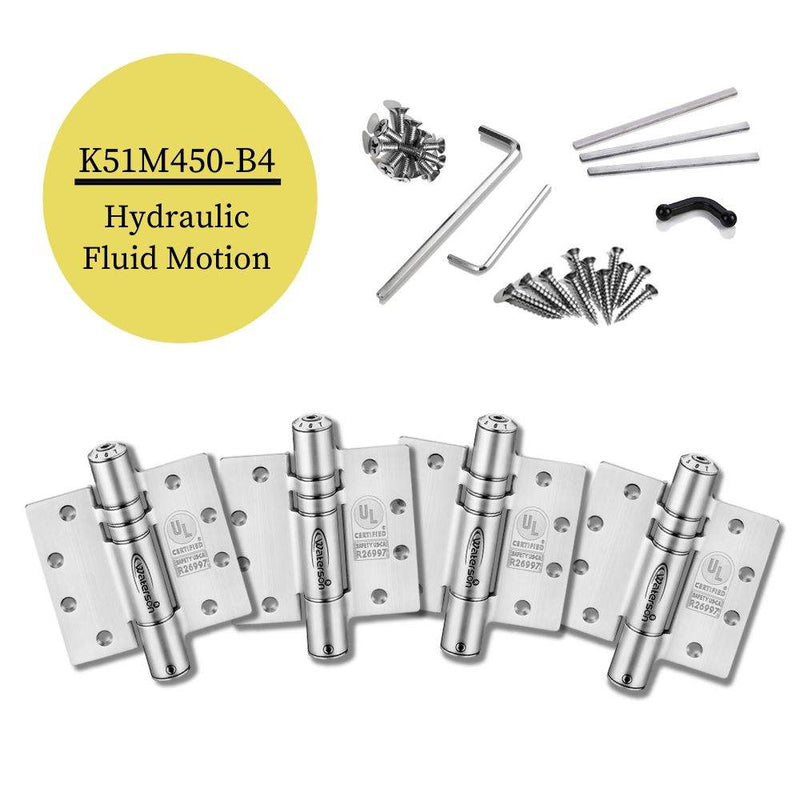

soft close hinges for doors 4pcs Soft Close Hinges for Doors | Hydraulic | Fire Rated | 4.5x4.5 | 8ft | 330 lbs | 1 ¾” Thick | SS304 | K51M-450-B4
$573.80

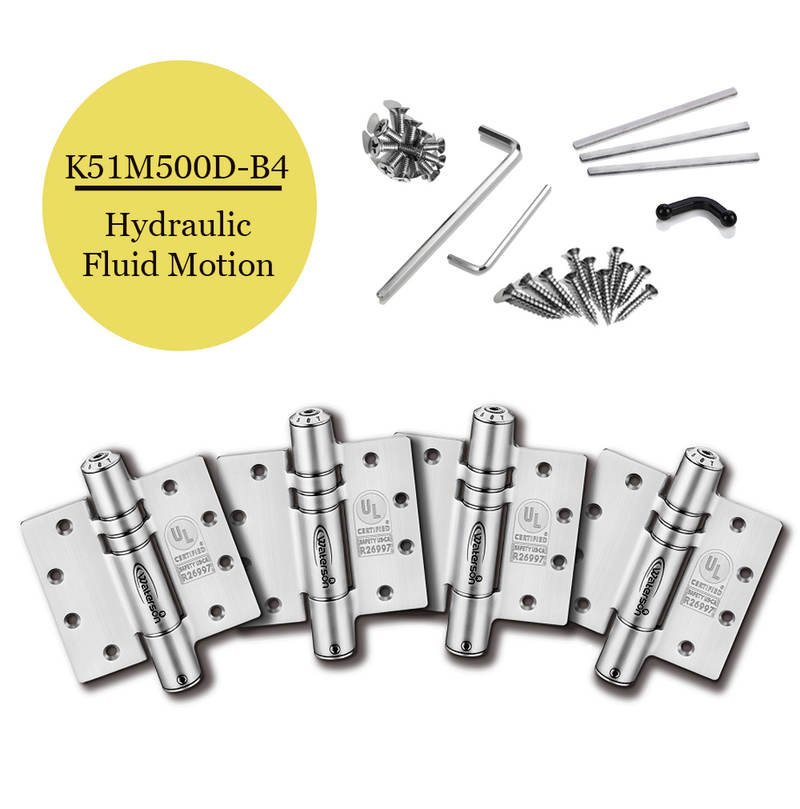

Soft Closing Fire Door Hinges 4pcs Soft Closing Fire Door Hinges | Hydraulic | Fire Rated | 5x5 | 8ft | 330 lbs | 1 ¾” to 2 ¼” Thick | SS304 | K51M-500D-B4
$649.80
Key Difference For doors 1-3/8″ to 1-3/4″ thick For doors up to 1-3/4″ thick For doors 1-3/4″ to 2-1/4″ thick
Qty of Hinge 4 hinges/door (DS.SA.HA.SA) 4 hinges/door (DS.SA.HA.SA) 4 hinges/door (DS.SA.HA.SA)
Dimension 4"(H) x 4"(W) 4.5"(H) x 4.5"(W) 5"(H) x 5"(W)
Self Closing o o o
Fluid Motion o o o
Hold Open x x x
