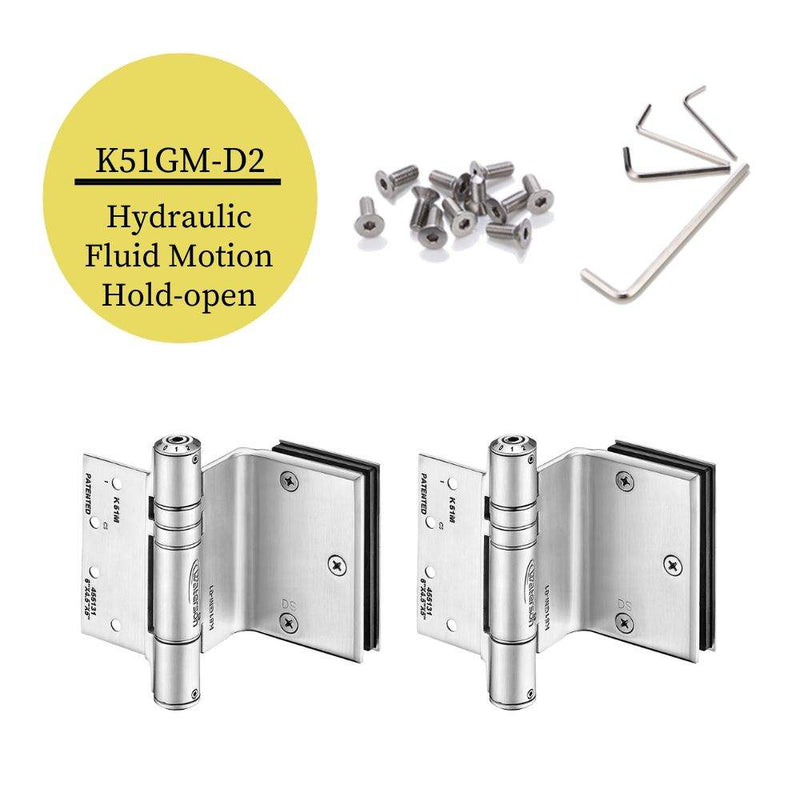

2pcs Heavy Duty Glass Door Hinges | Hydraulic | Hold Open | 6ft | 150 lbs | 5/16”-1/2” Thick | SS304 | K51GM-D2

Looking for heavy duty glass hinges that support self-closing, hydraulic speed control, and a reliable 90° hold-open?

All closing force and speed adjustments are built through the numerical dials on each hinge, giving you full control without adding separate closer hardware. 3 years warranty

TALK TO SALES FIRST - NON REFUNDABLE

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

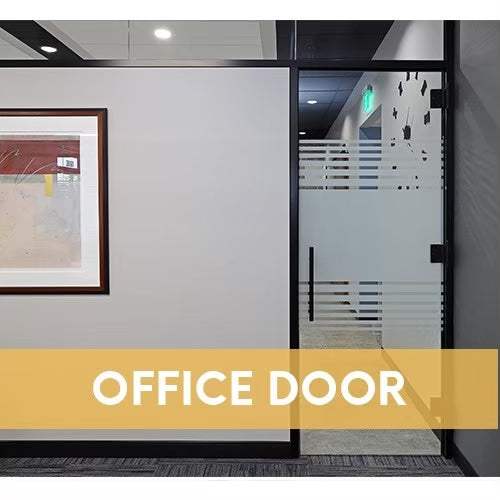

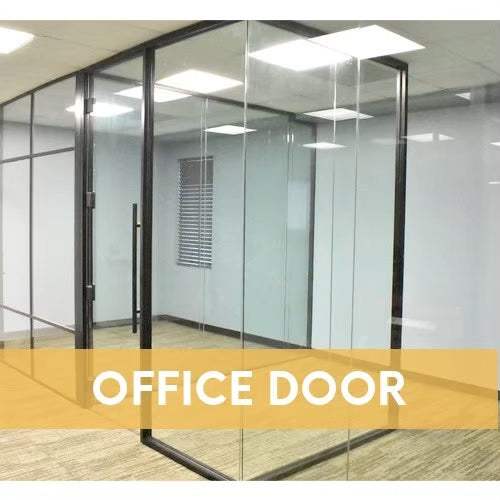

  • Office & Commercial Door

  • Soft Closing

  • Speed Control
  • Interior & Exterior
  • In Swing Function
  • Non Handed Design
  • Easy Installation
  • Heavy Duty

  Product Description and Features

  • Apply for door open ≤ 120° and environment temperature > 32°F (0°C)
  • Fully adjustable closing force and speed according to environment needs

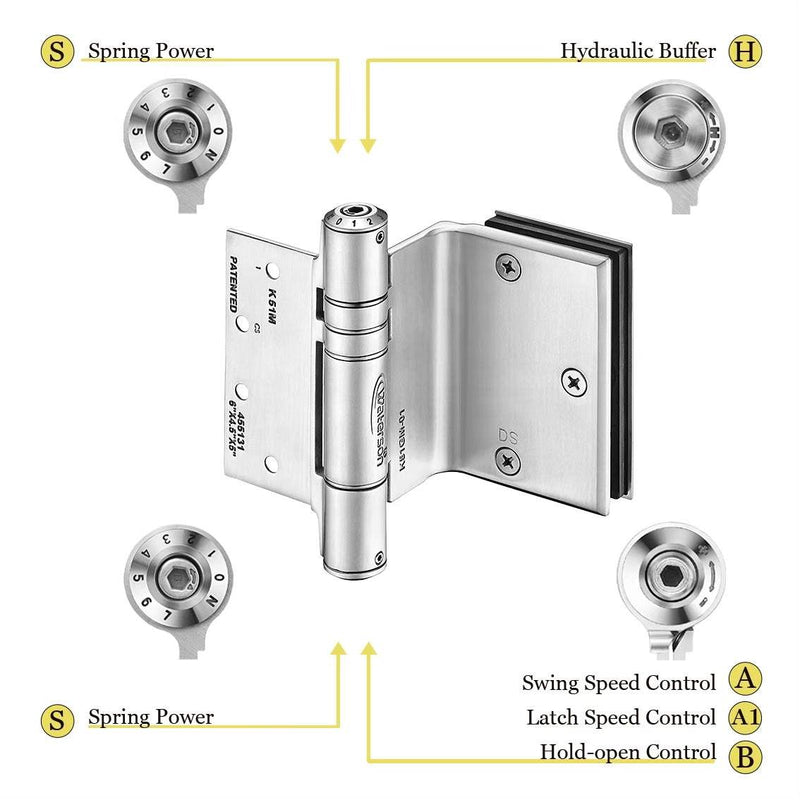

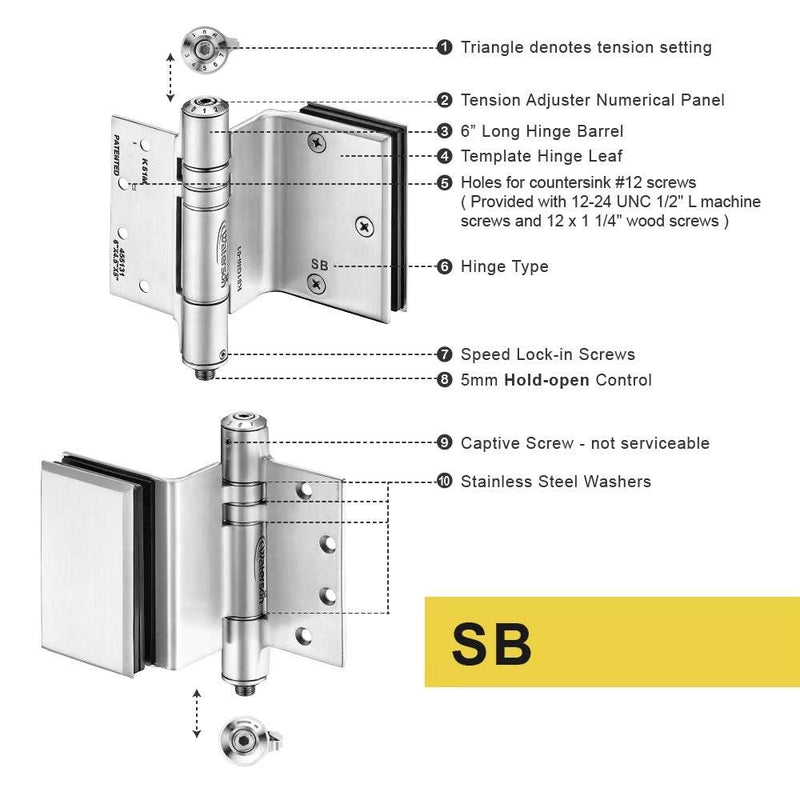

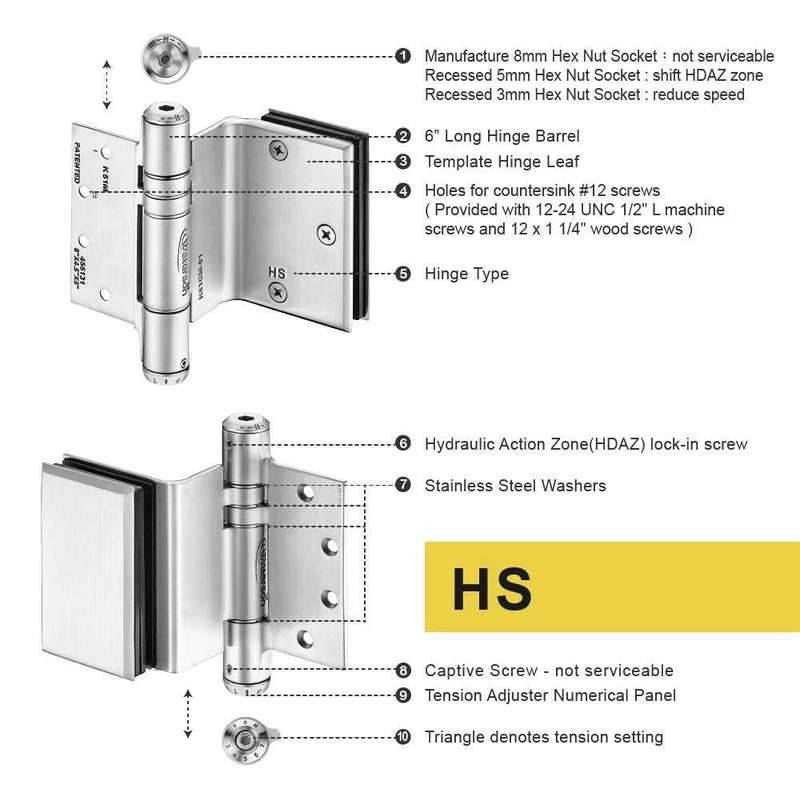

  • Numerical adjustment panel on hinge end to set up precise tension
  • Include both mechanical and hydraulic mechanism supporting quiet close needs
  • Aesthetically pleasing compared to floor closers for glass doors

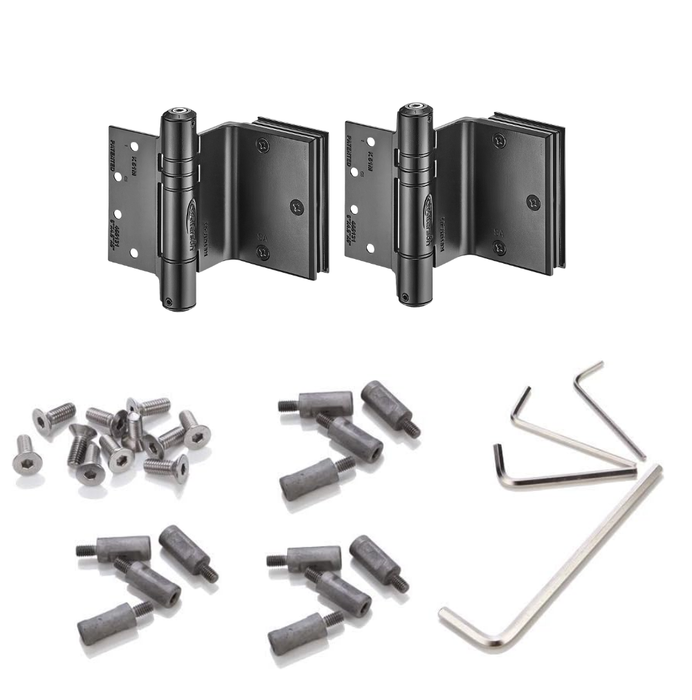

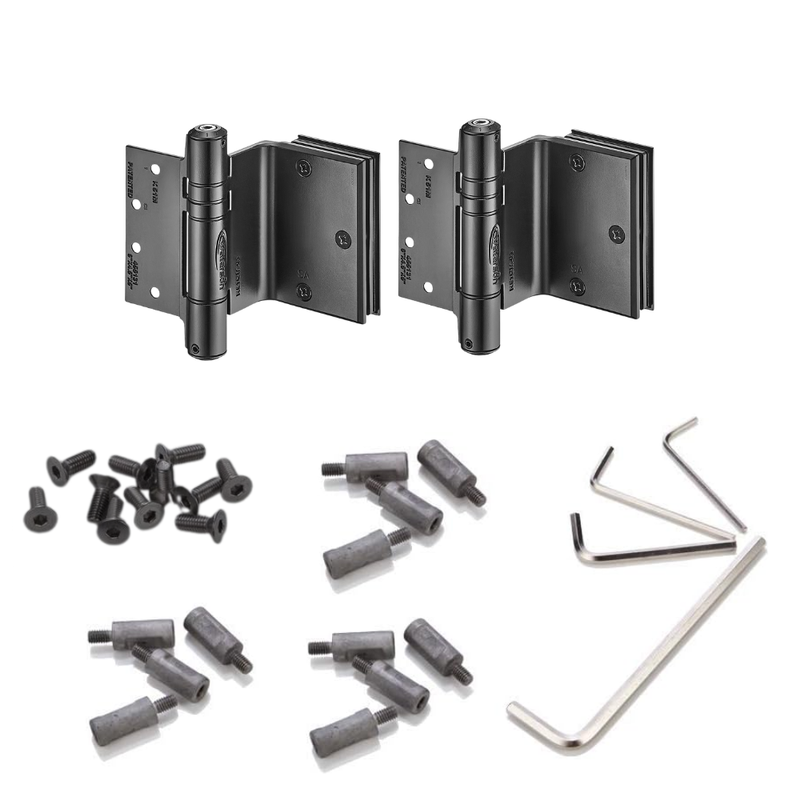

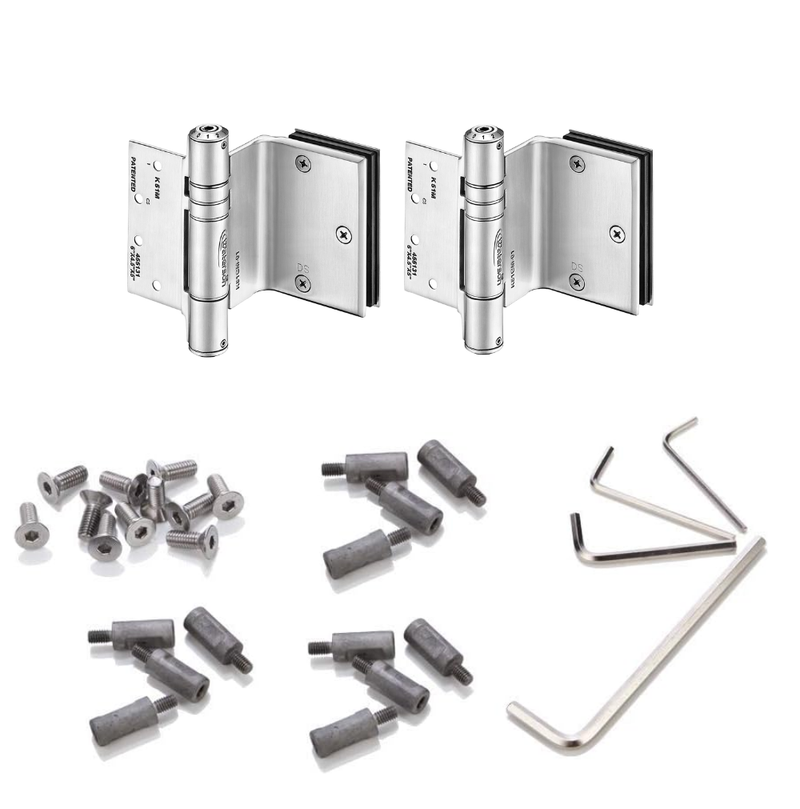

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

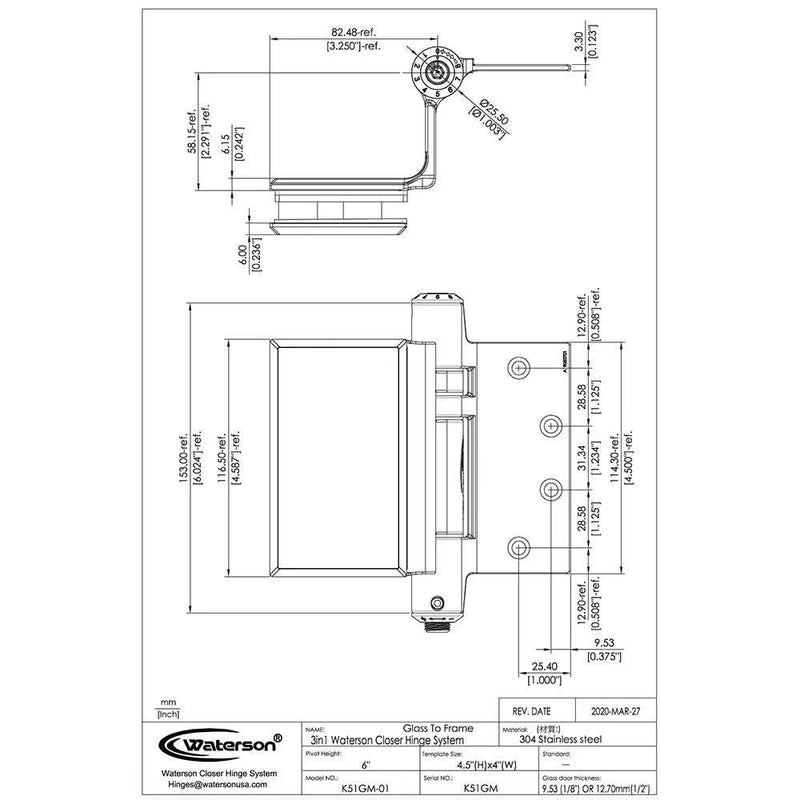

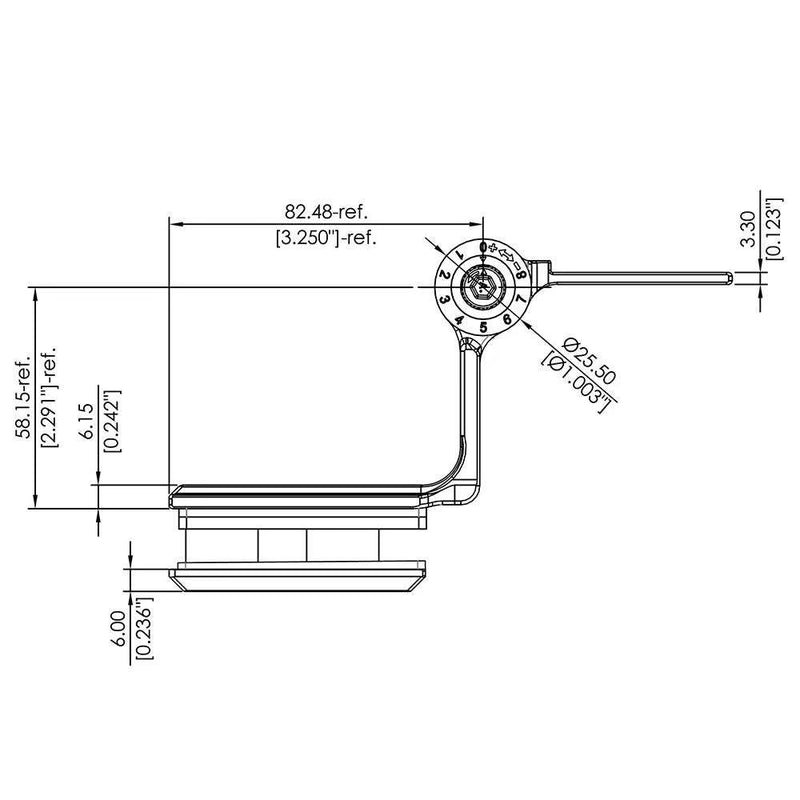

  • ANSI A156.7 Template Hinge : 4 ½ x 4 ½
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

• Specifications

  Product SKU	K51GM-D2
  Hinge Type	Glass to Frame
  Hinge Material	Stainless Steel
  Door Weight	From 40lbs to 150lbs
  Approx Door Size	1150mm W x 1800mm H (4ft x 6ft)
  Door Thickness	1 ¾” (40-50 mm)
  Self-closing	o
  Fluid Motion	o
  Hold-open	o
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment

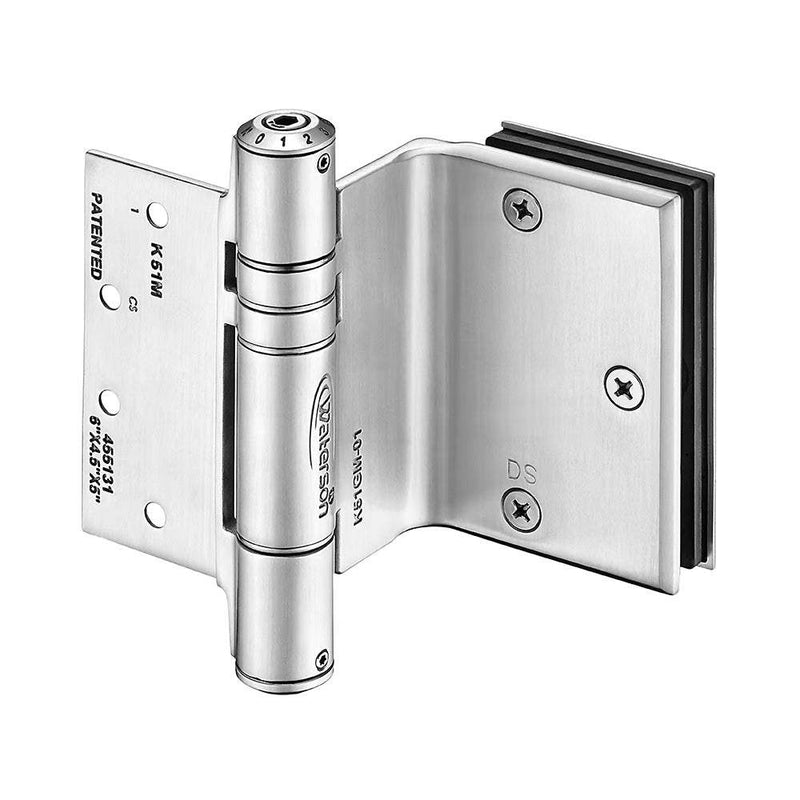

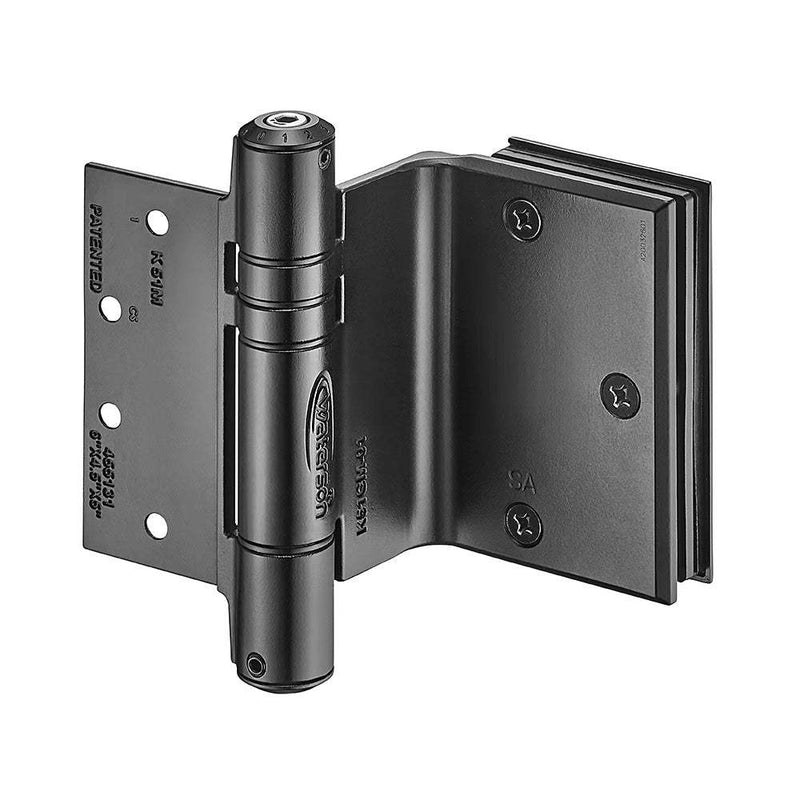

  Color/Finish	Satin Brushed,Black
  Combination/Quantity	HS.SB,2 Pack
