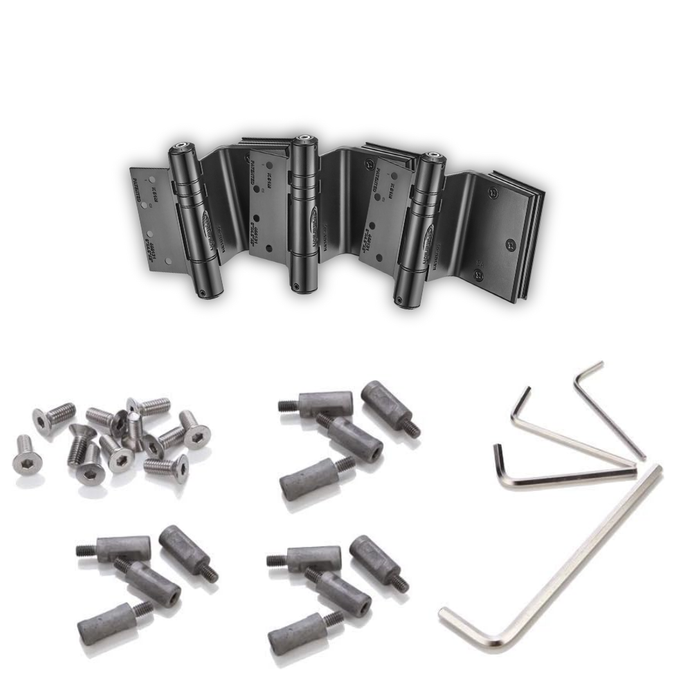

3pcs Commercial Glass Door Hinges Heavy Duty | Hydraulic | Hold Open | 7ft | 260 lbs | 5/16”-1/2” Thick | SS304 | K51GM-D3

If you need hinges that actually handle the load, you’re looking for self-closing, controlled swing, and a dependable 90° hold-open in one system.

Waterson commercial glass door hinges heavy duty deliver all three through adjustable speed tension and hydraulic speed control built into the top and bottom hinge dials. No extra hardware needed. 3 years warranty

TALK TO SALES FIRST - NON REFUNDABLE

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

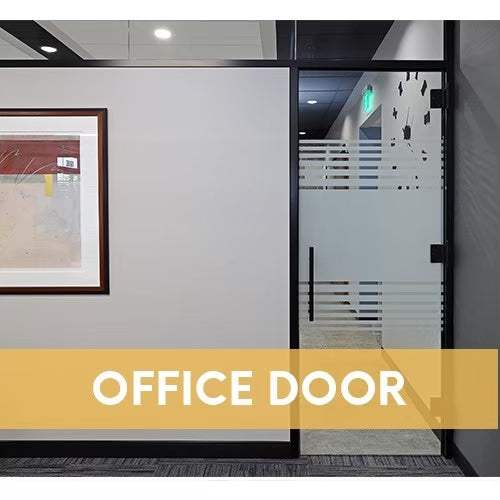

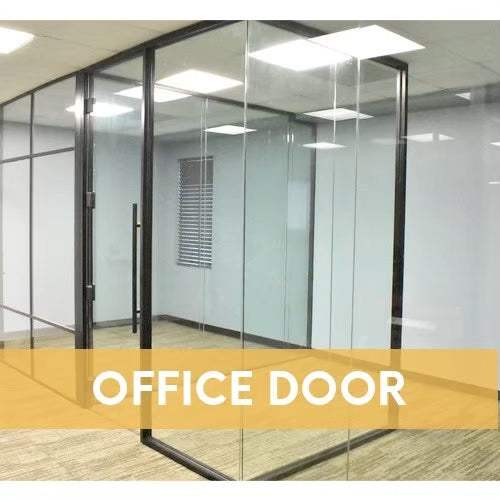

  • Office & Commercial Door

  • Soft Closing

  • Speed Control
  • Interior & Exterior
  • In Swing Function
  • Non Handed Design
  • Easy Installation
  • Heavy Duty

  Product Description and Features

  • Apply for door open ≤ 120° and environment temperature > 32°F (0°C)
  • Fully adjustable closing force and speed according to environment needs

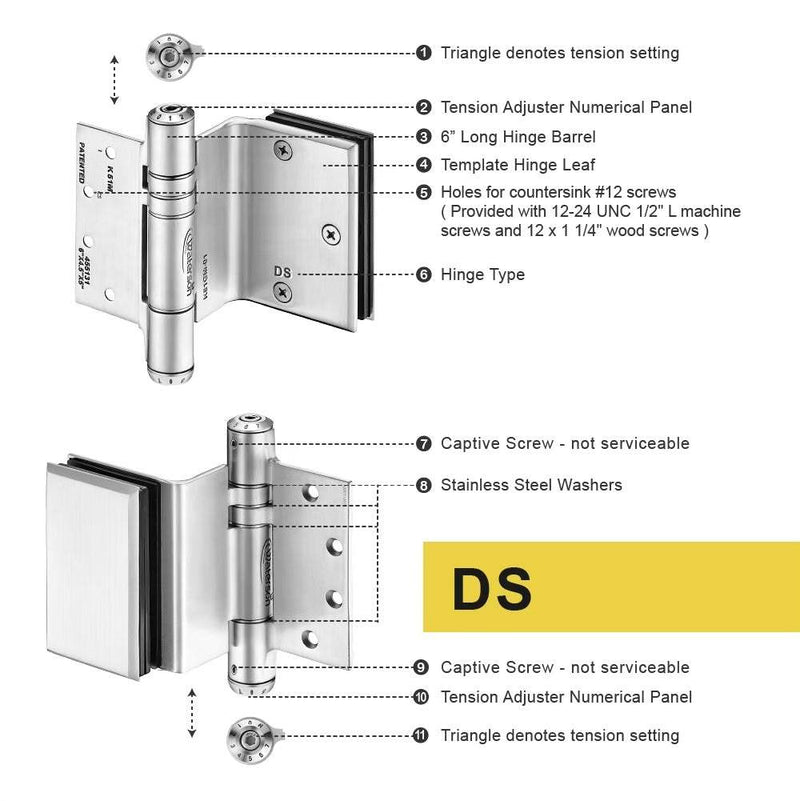

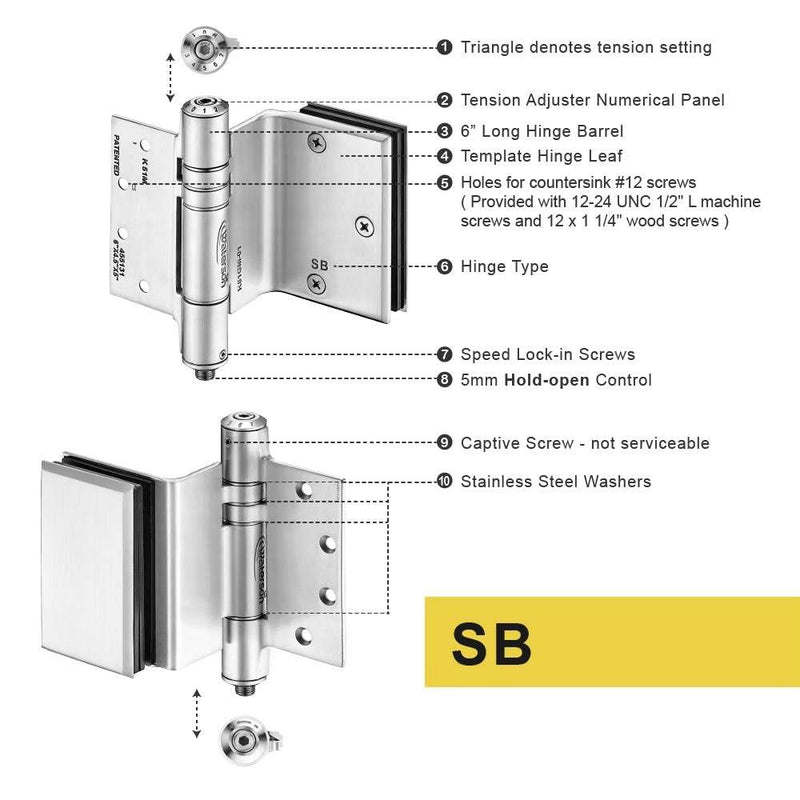

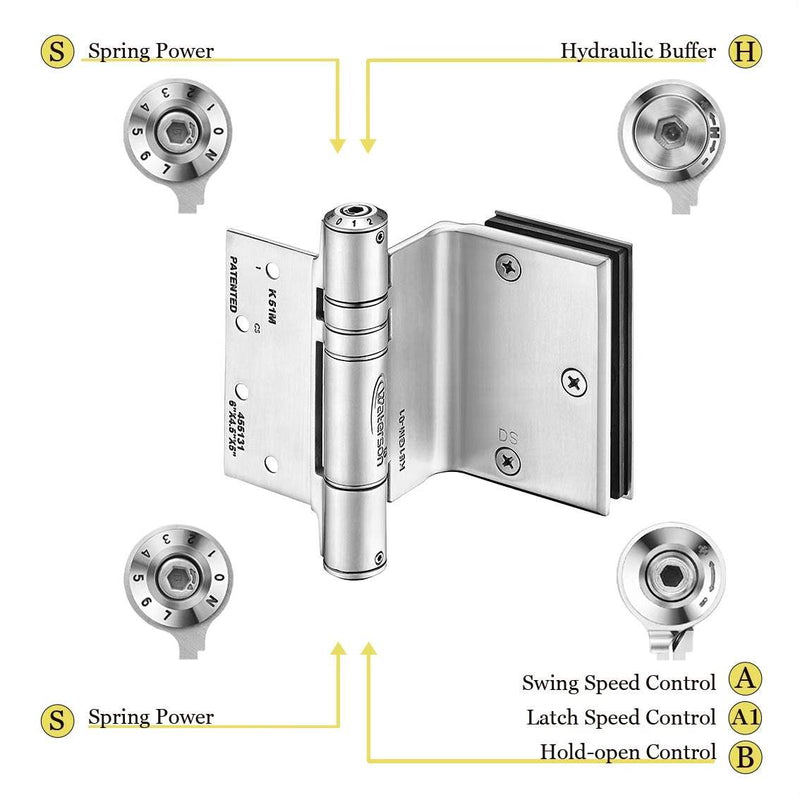

  • Numerical adjustment panel on hinge end to set up precise tension
  • Include both mechanical and hydraulic mechanism supporting quiet close needs
  • Aesthetically pleasing compared to floor closers for glass doors

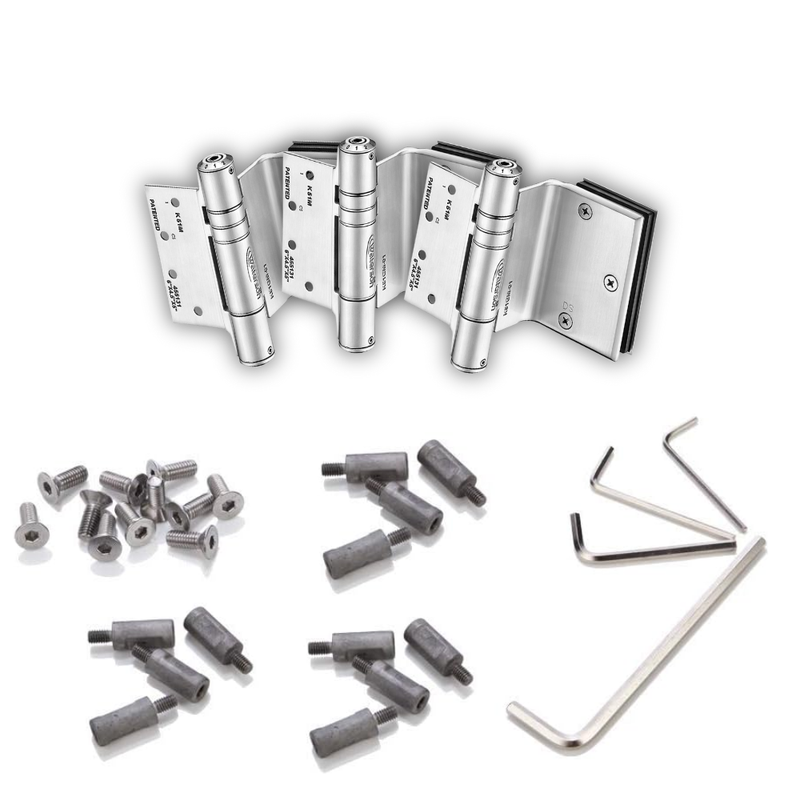

• Installation Kits

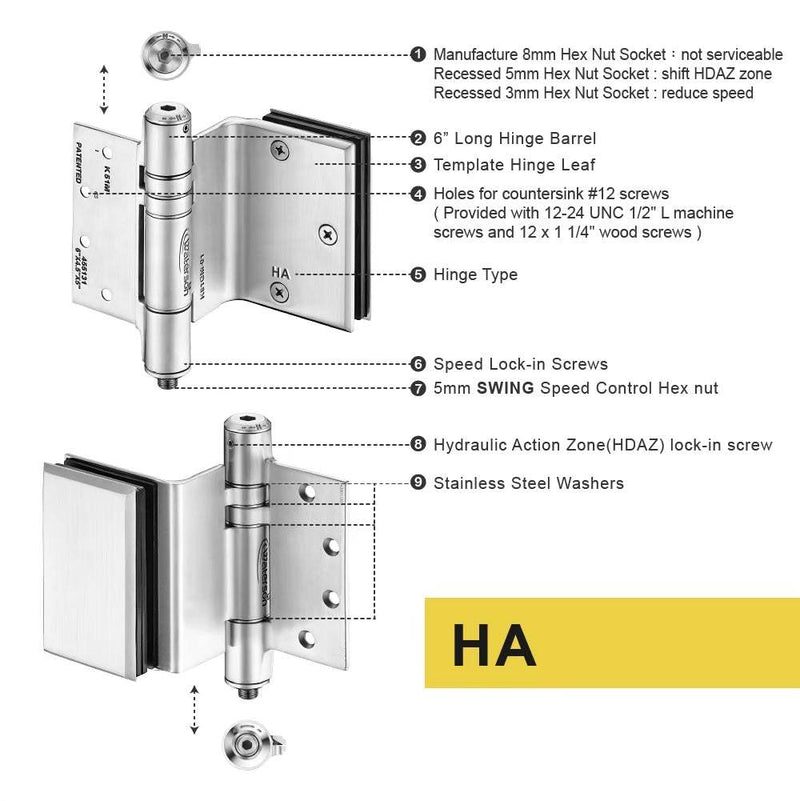

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

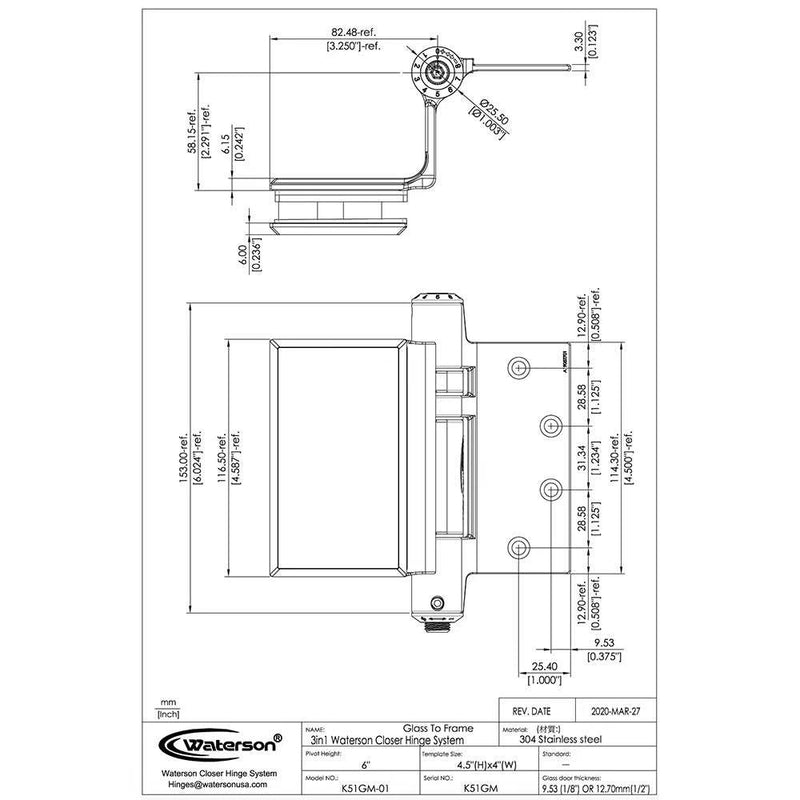

  • ANSI A156.7 Template Hinge : 4 ½ x 4 ½
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

• Specifications

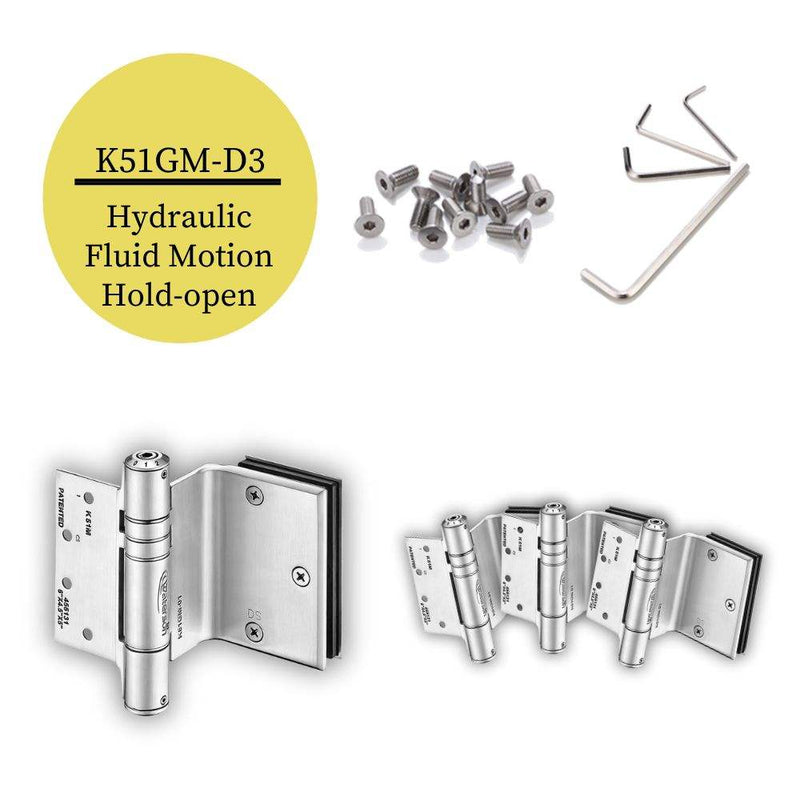

  Product SKU	K51GM-D3
  Hinge Type	Glass to Frame
  Hinge Material	Stainless Steel
  Door Weight	From 40lbs to 260lbs
  Approx Door Size	1150mm W x 2200mm H (4ft x 7ft)
  Door Thickness	1 ¾” (40-50 mm)
  Self-closing	o
  Fluid Motion	o
  Hold-open	o
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment

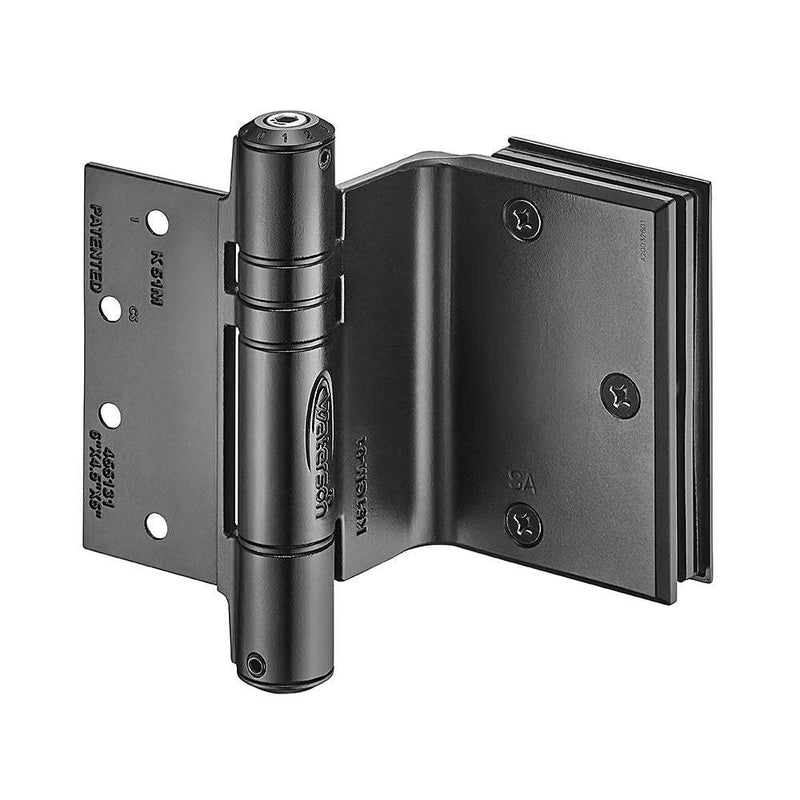

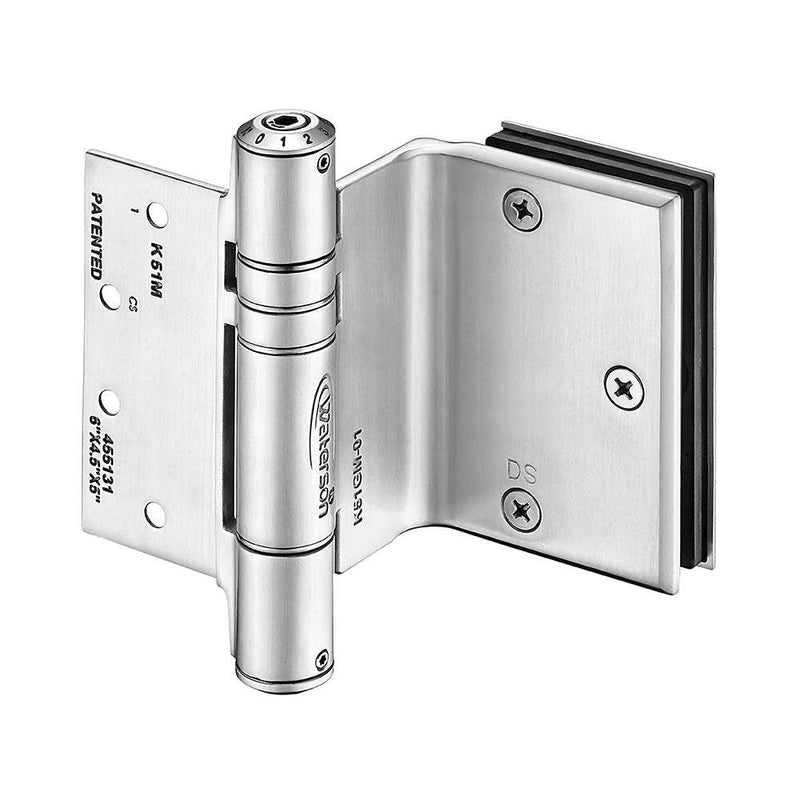

  Color/Finish	Satin Brushed,Black
  Combination/Quantity	DS.HA.SB,3 Pack
