2pcs Stainless Steel Glass Door Hinges | Hydraulic | 6ft | 150 lbs | 5/16”-1/2” Thick | SS304 | K51GWL-B2

Stainless steel glass door hinges are often chosen when you need self-closing, speed control, and a stable swing path without relying on floor closers.

Our setup gives you numeric tension and hydraulic speed adjustment at the hinge ends, giving you precise control for most stainless steel glass door cases. 3 years warranty

TALK TO SALES FIRST - NON REFUNDABLE

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

  • Office & Commercial Door

  • Soft Closing

  • Speed Control
  • Interior & Exterior
  • Hold Open
  • In Swing Function
  • Non Handed Design
  • Easy Installation
  • Heavy Duty

  Product Description and Features

  • Fully adjustable closing force and speed according to environment needs
  • Numerical adjustment panel on hinge end to set up precise tension
  • Mechanical only mechanism supporting heavy duty and fully exterior
  • Aesthetically pleasing compared to floor closers for glass doors
  • UL certified cycle testing ensures many years of low maintenance.

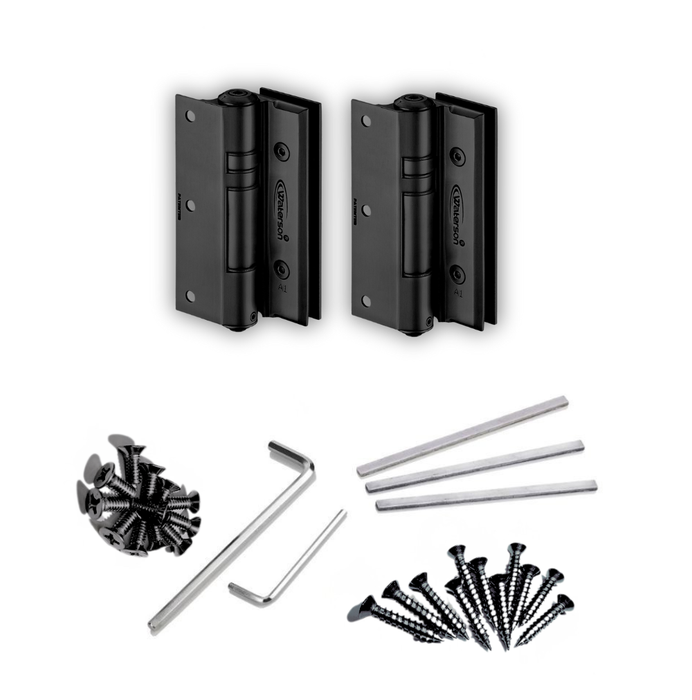

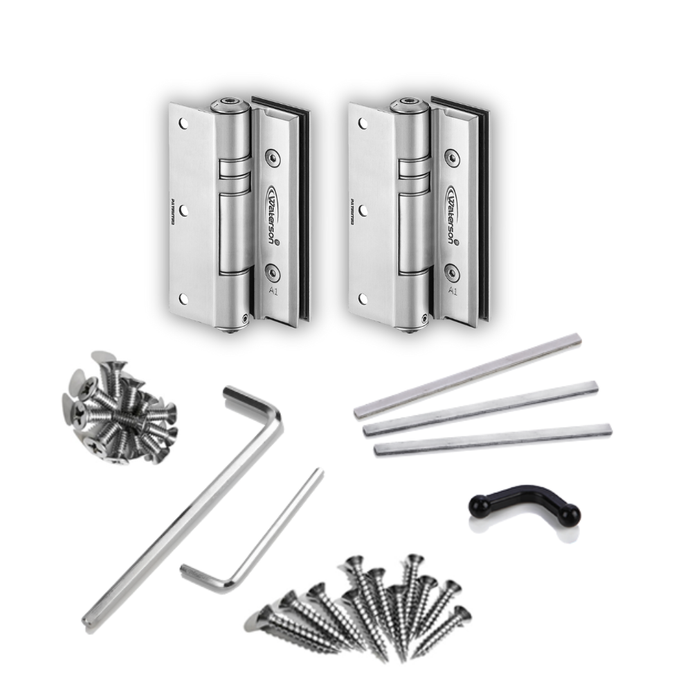

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

  • ANSI A156.17 Grade 1 : one million cycle testing
  • ANSI A156.7 Template Hinge : 4 ½ x 4 ½
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

• Specifications

  Product SKU	K51GWL-B2
  Hinge Type	Glass to Wall
  Hinge Material	Stainless Steel
  Door Weight	From 40lbs to 150lbs
  Approx Door Size	1150mm W x 1800mm H (4ft x 6ft)
  Door Thickness	5/16″-1/2″ (8-12.7 mm)
  Self-closing	o
  Fluid Motion	o
  Hold-open	x
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment
  Color/Finish	Satin Brushed,Black
  Combination/Quantity	HS.SA ,2 Pack
