Glass Wall Office Door Hinge - Glass to Wall | SST304 | K51GWL-D2 | 2 Pack

TALK TO SALES FIRST

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

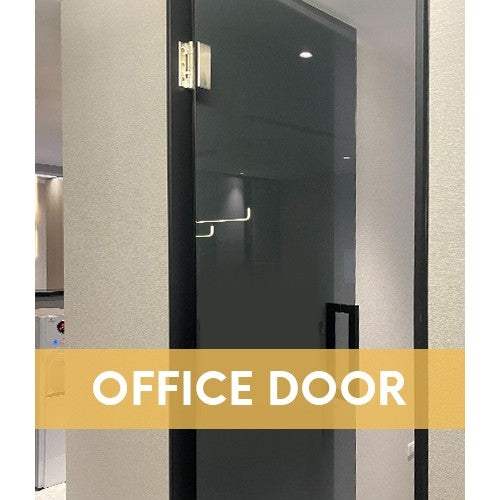

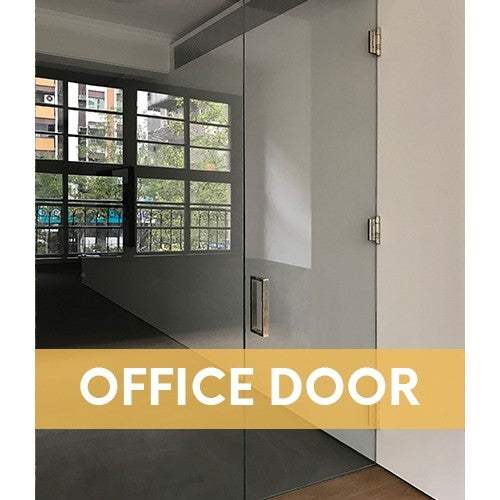

  • Office & Commercial Door

  • Soft Closing

  • Speed Control
  • Fully Interior
  • Hold Open
  • In Swing Function
  • Non Handed Design
  • Easy Installation
  • Heavy Duty

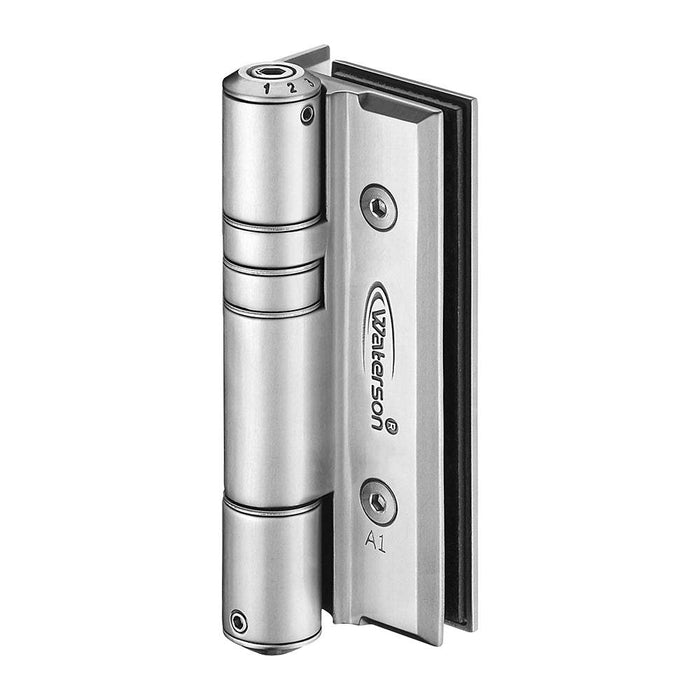

  Product Description and Features

  • Apply for door open ≤ 120° and environment temperature > 32°F (0°C)

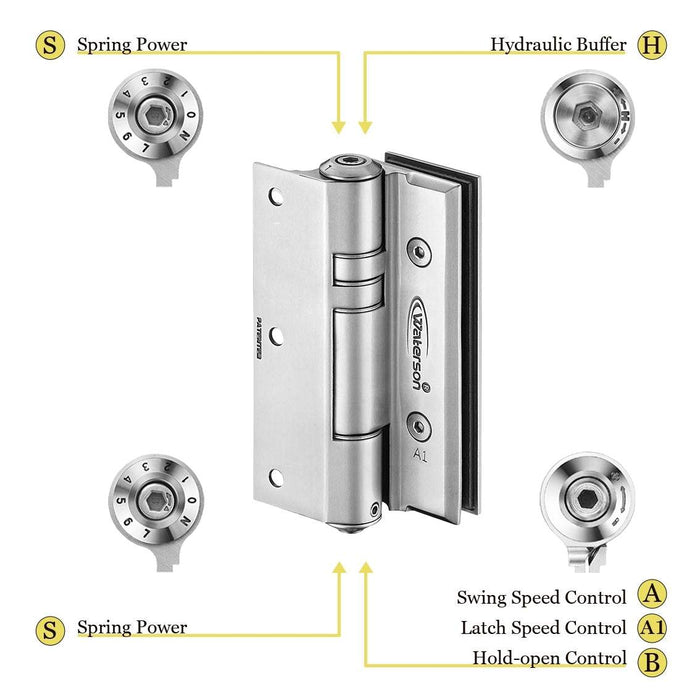

  • Fully adjustable closing force and speed according to environment needs

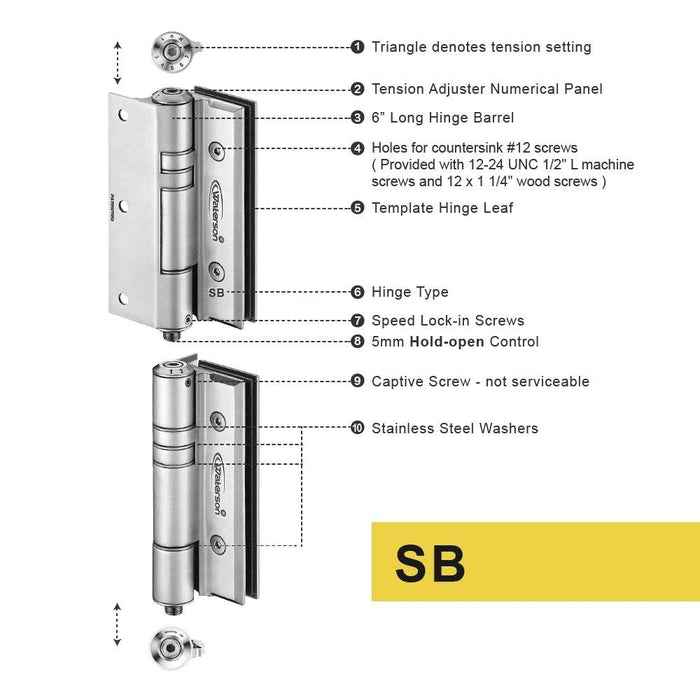

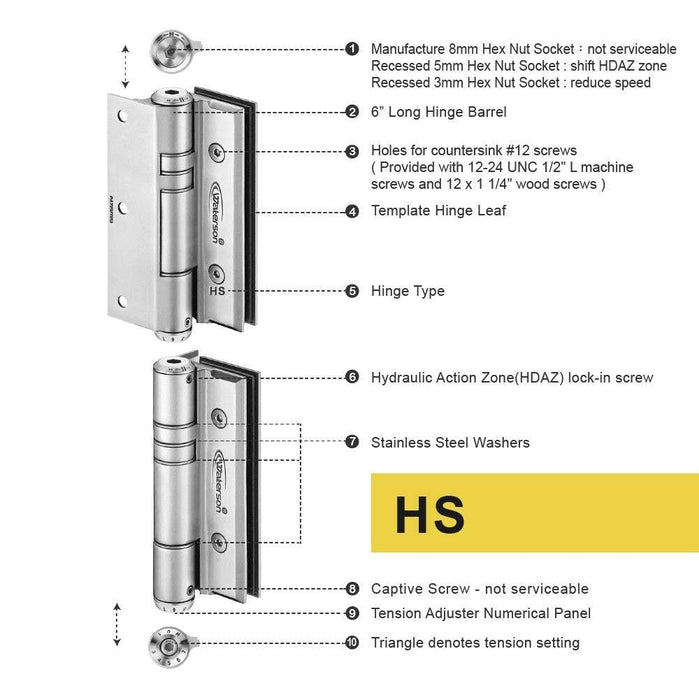

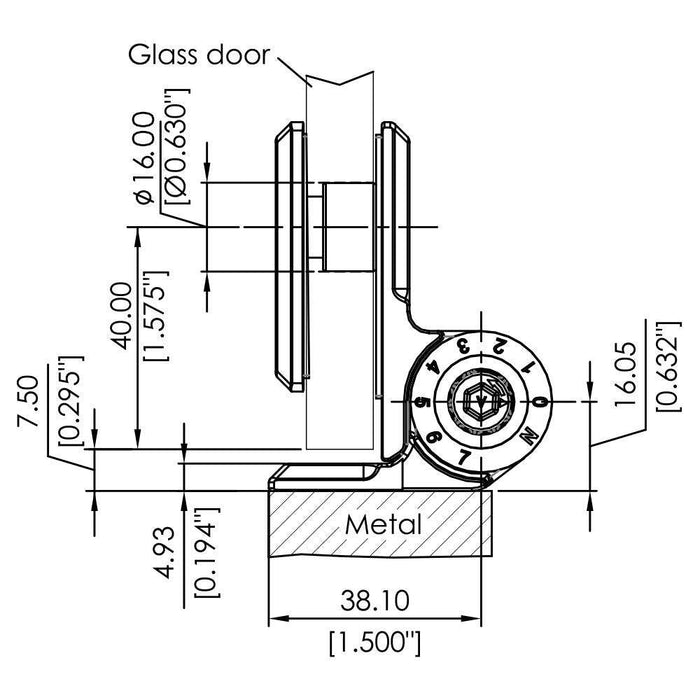

  • Numerical adjustment panel on hinge end to set up precise tension
  • Include both mechanical and hydraulic mechanism supporting quiet close needs
  • Aesthetically pleasing compared to door closers -- without obtrusive arm

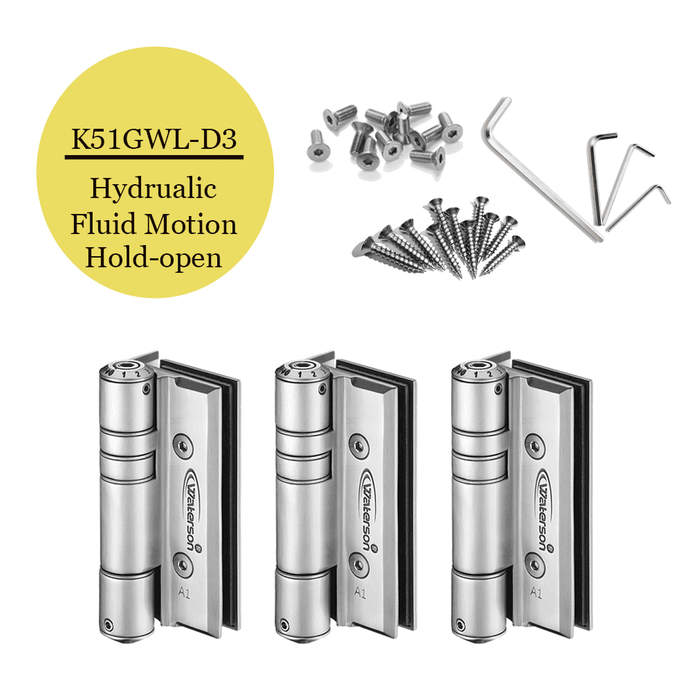

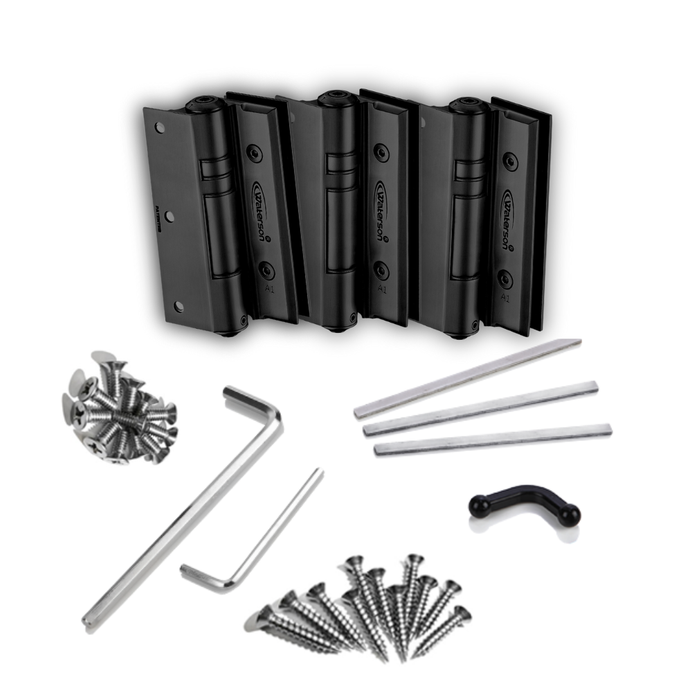

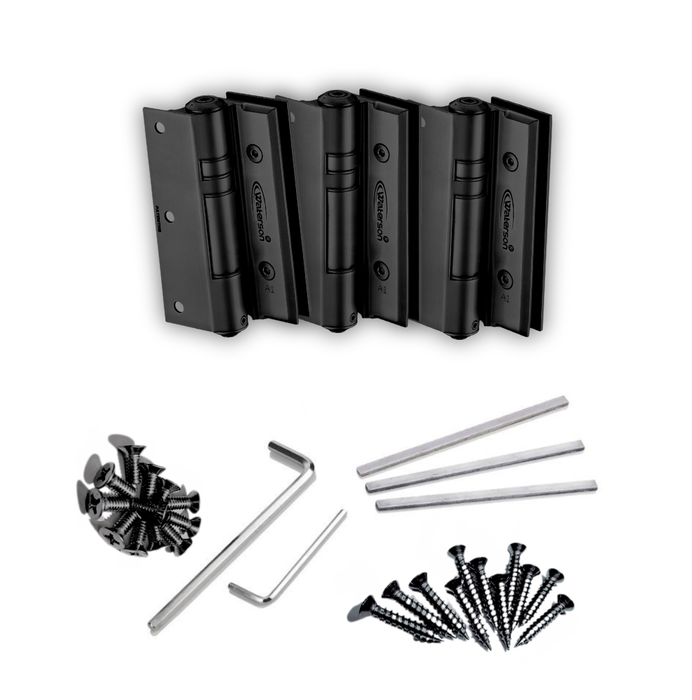

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

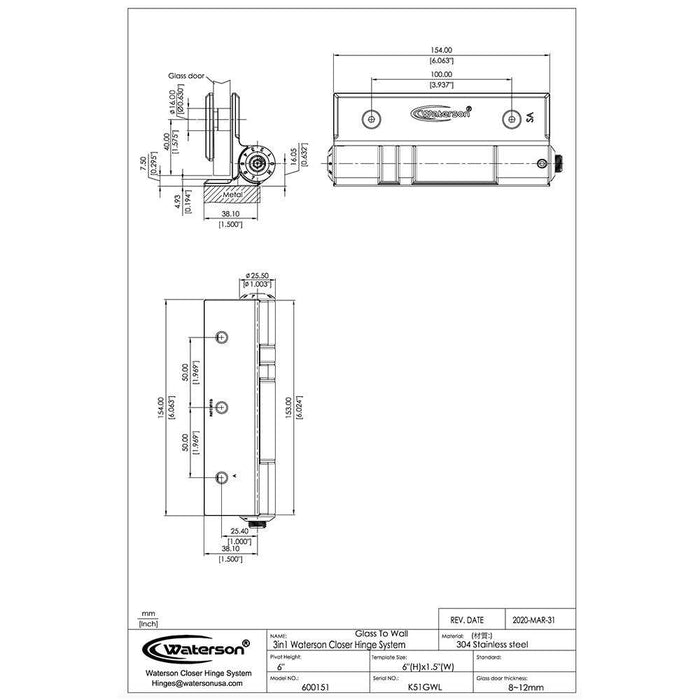

  • ANSI A156.7 Template Hinge : 4 ½ x 4 ½
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

•

  Product SKU	K51GWL-D2

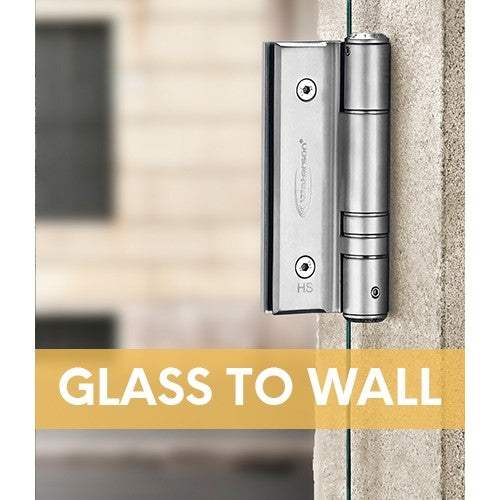

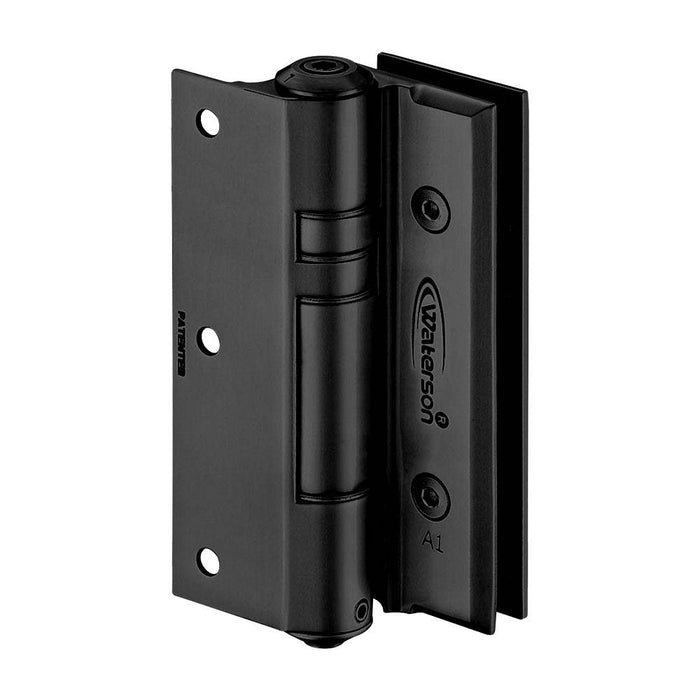

  Hinge Type	Glass to Wall
  Hinge Material	Stainless Steel
  Door Weight	Up to 260lbs (75kg)
  Approx Door Size	1150mm W x 2200mm H (4ft x 7ft)
  Door Thickness	1 ¾” (40-50 mm)
  Self-closing	o
  Fluid Motion	o
  Hold-open	o
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment
  Color/Finish	Satin Brushed,Black
  Combination/Quantity	HS,SB ,2 Pack
