4pcs Swing Clear Offset Door Hinge | Mechanical | Hold Open | 8ft | 260 lbs | 1 ¾” Thick | SS304 | K51L-SWRH-450-C4

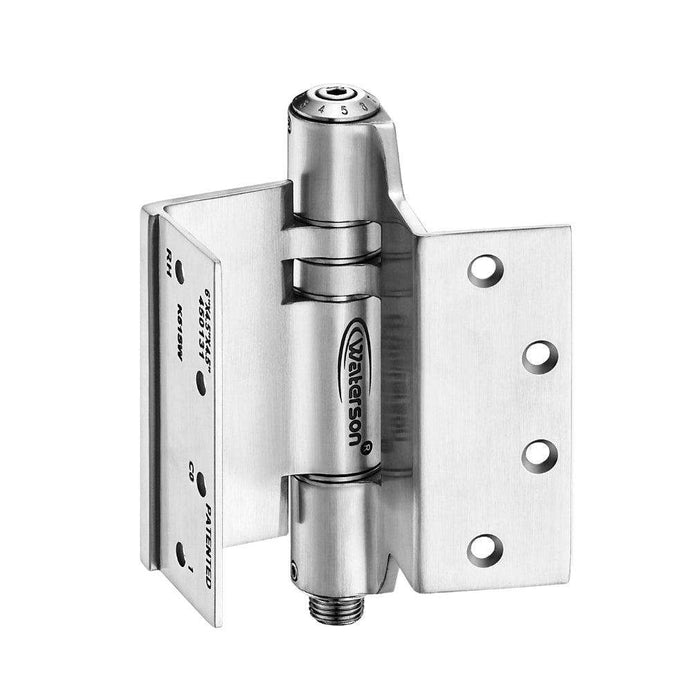

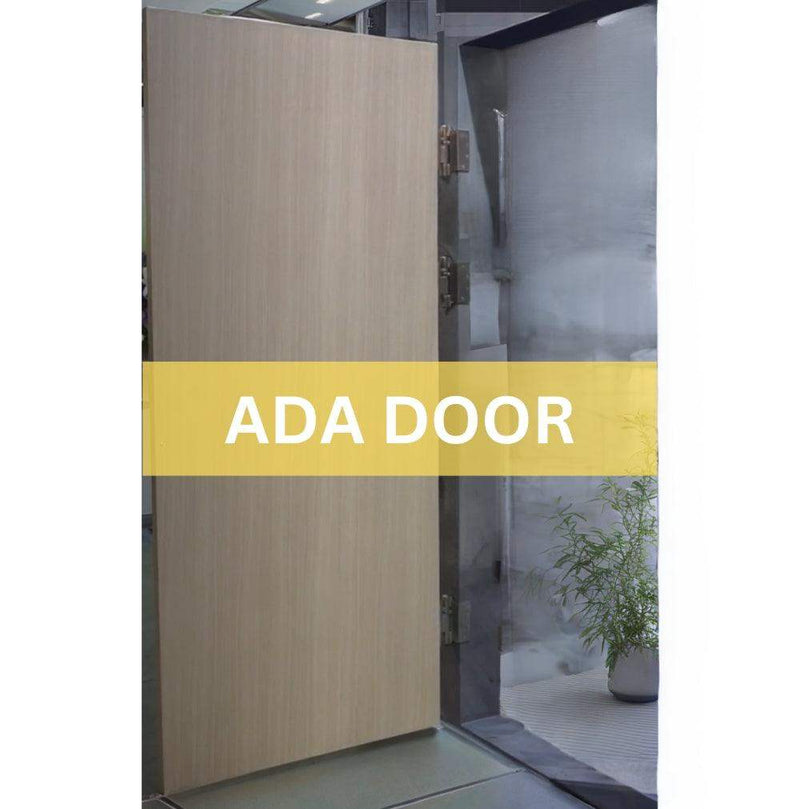

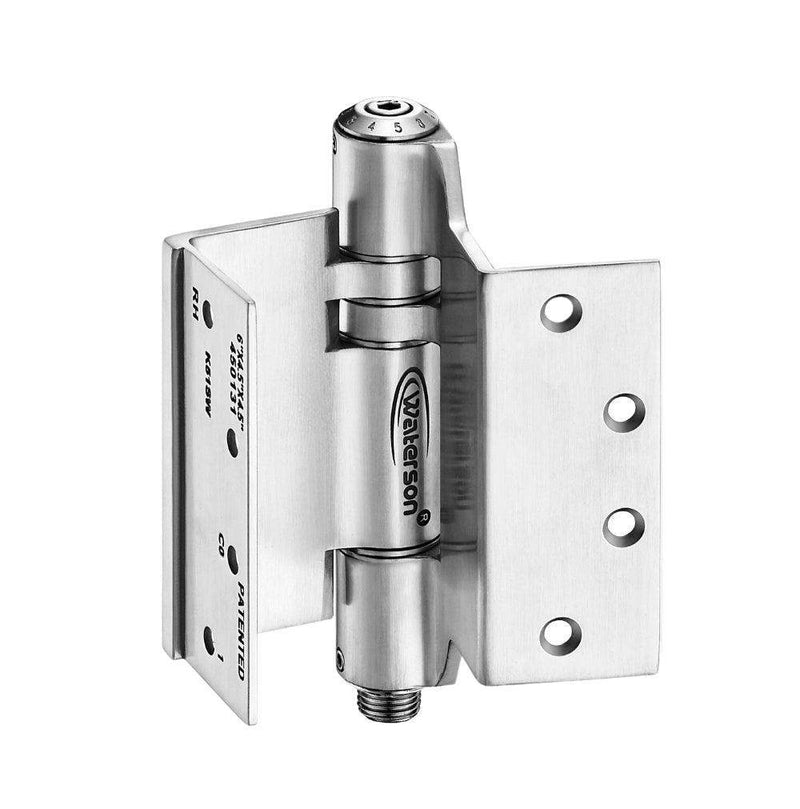

Waterson Swing Clear Offset Door Hinge shifts the hinge line completely out of the opening, providing full-width ADA clearance while supporting 8-ft doors up to 260 lbs.

These swing clear door hinges also combine self-closing action with a 90° hold-open position to handle commercial openings that need unobstructed access and consistent closing control. 10 years warranty

TALK TO SALES FIRST - NON REFUNDABLE

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

  • Hotel Rooms
  • Interior & Exterior
  • Arch Top
  • Heavy Duty
  • Courtyard Style
  • 8ft Door

  Product Description and Features

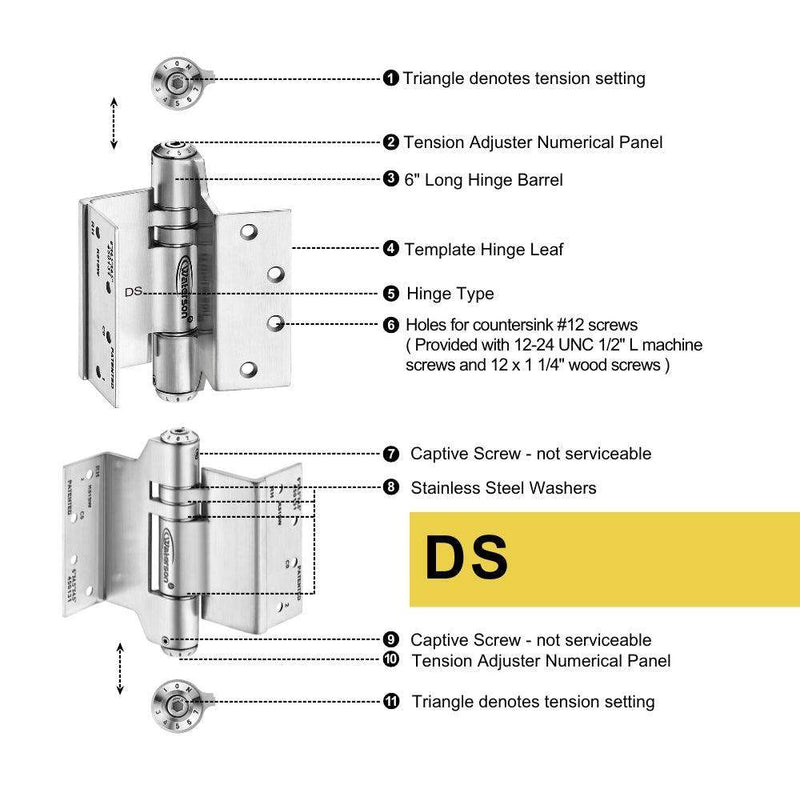

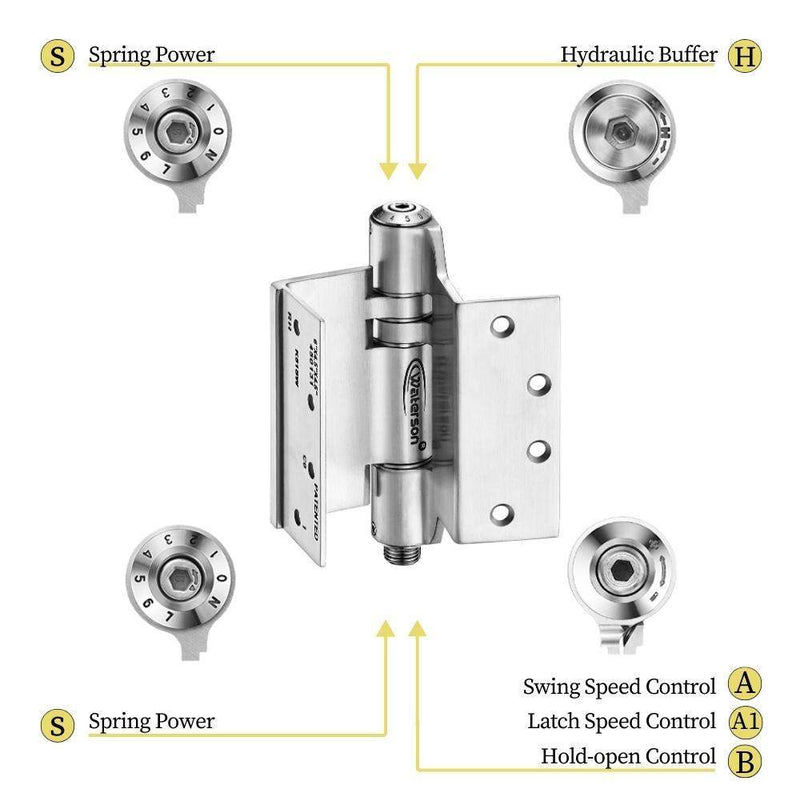

  • Fully adjustable closing force and speed according to environment needs

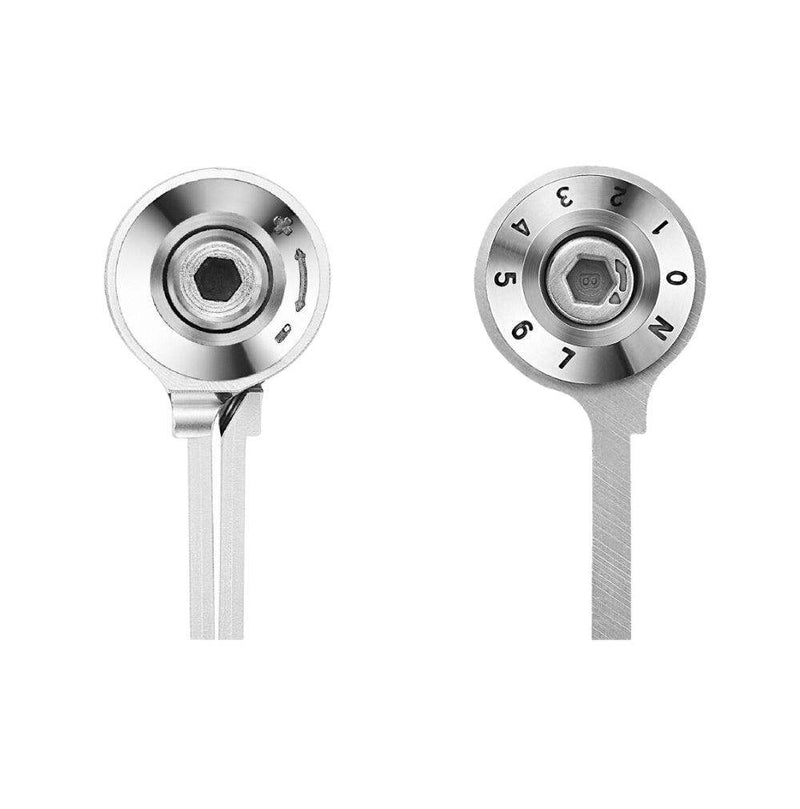

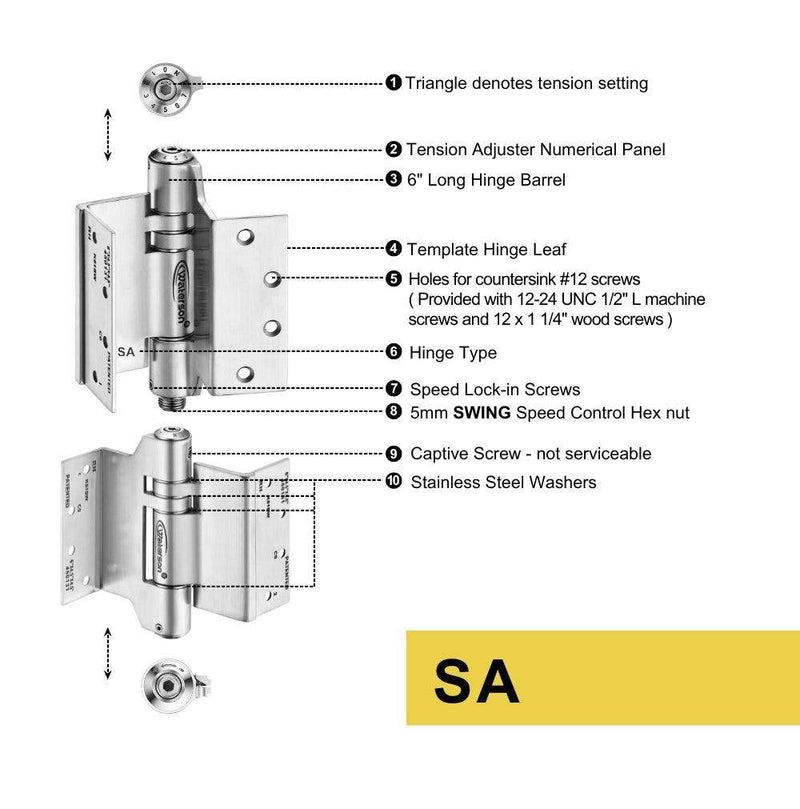

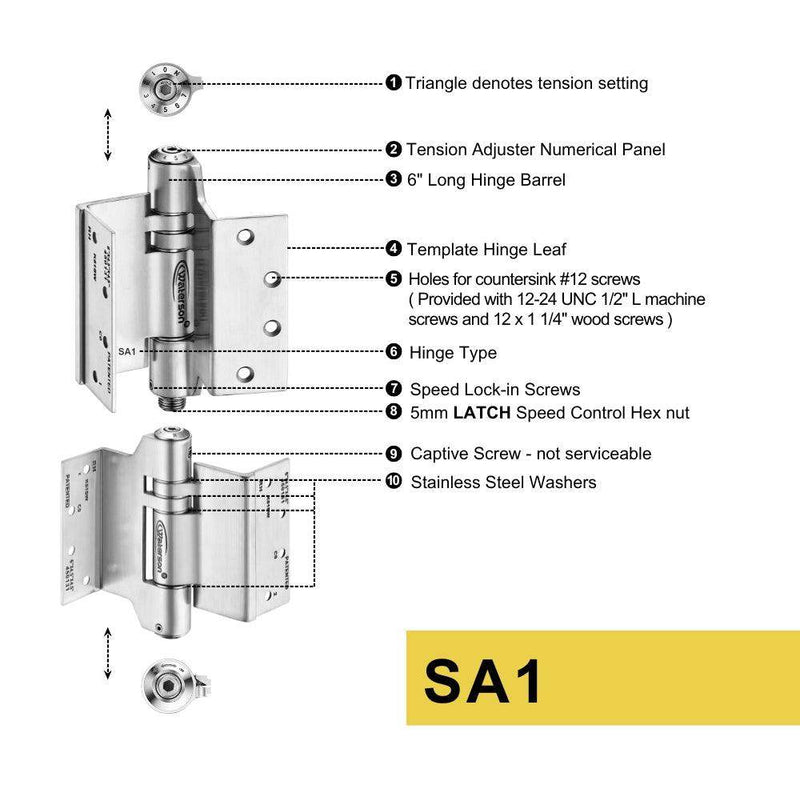

  • Numerical adjustment panel on hinge end to set up precise tension
  • Mechanical only mechanism supporting heavy duty and fully exterior
  • Aesthetically pleasing compared to door closers -- without extrusive arms
  • UL certified cycle testing ensures many years of low maintenance.

• Installation Kits

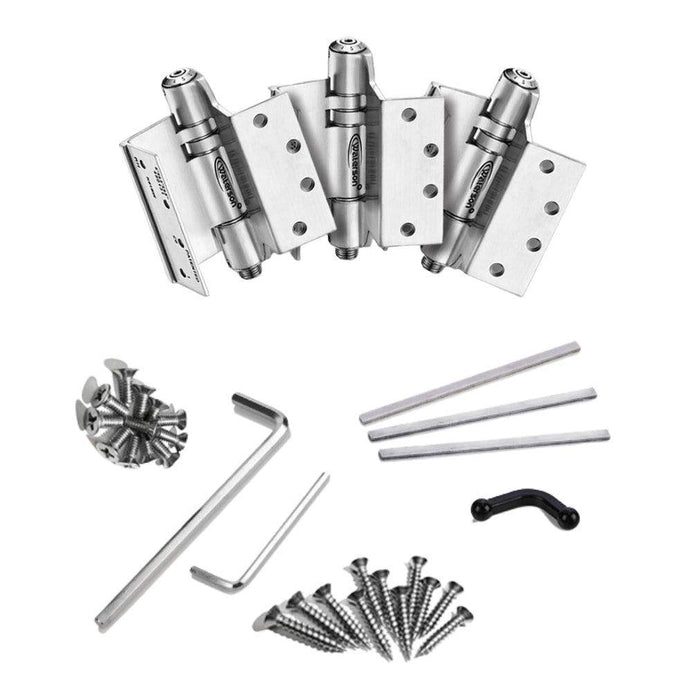

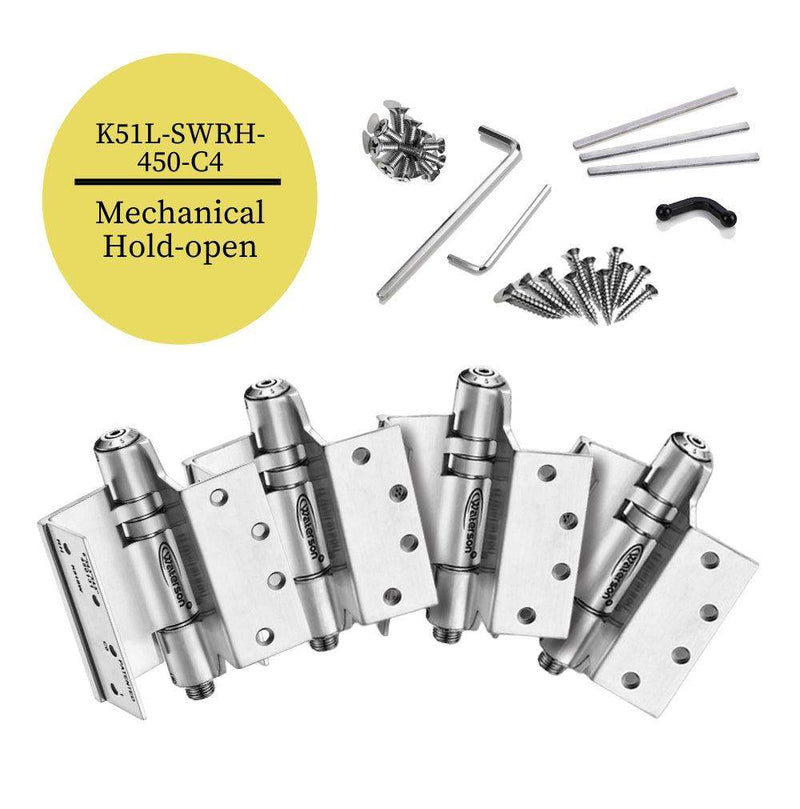

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Four steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

  • ANSI A156.17 Grade 1 : one million cycle testing

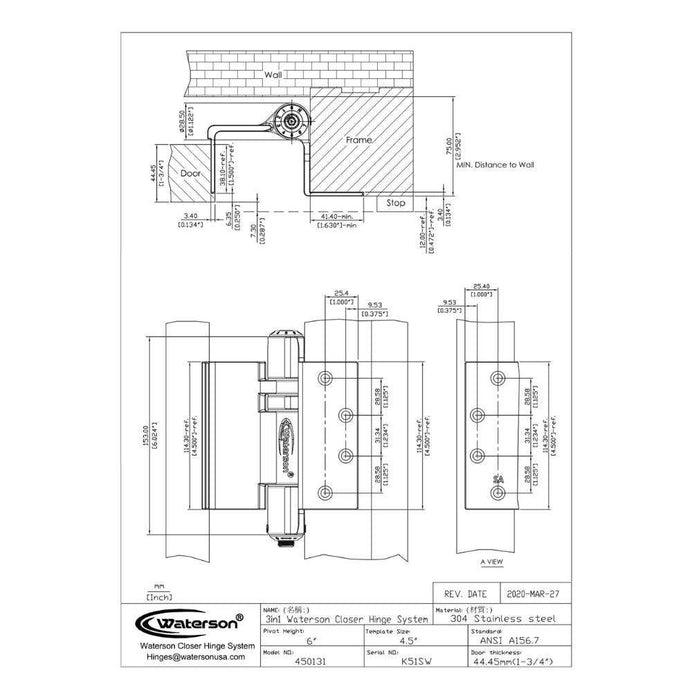

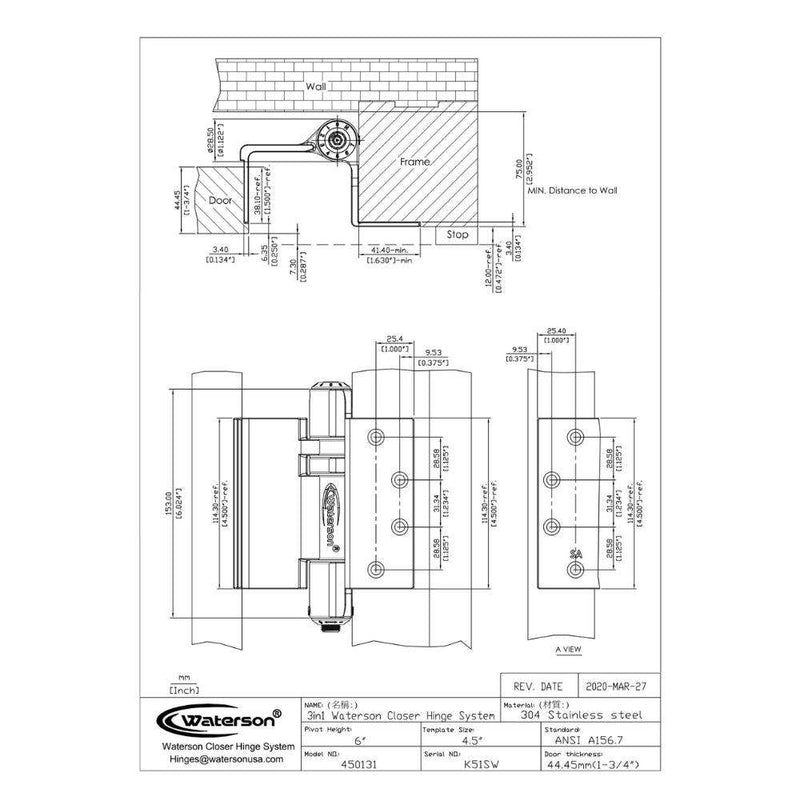

  • ANSI A156.7 Template Hinge : 4.5” x 4.5”
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

• Specifications

  Product SKU	K51L-SWRH-450-C4
  Hinge Type	Full Mortise,  4 1/2 Inch x 4 1/2 Inch
  Hinge Material	Stainless Steel
  Door Weight	From 40lbs to 260lbs
  Approx Door Size	1150mm W x 2200mm H (4ft x 7ft)
  Door Thickness	1 ¾” (40-50 mm)
  Self-closing	o
  Fluid Motion	x
  Hold-open	o
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment
  Color/Finish	Satin Brushed
  Combination/Quantity	DS.SA.SB.SA1, 4 Pack
