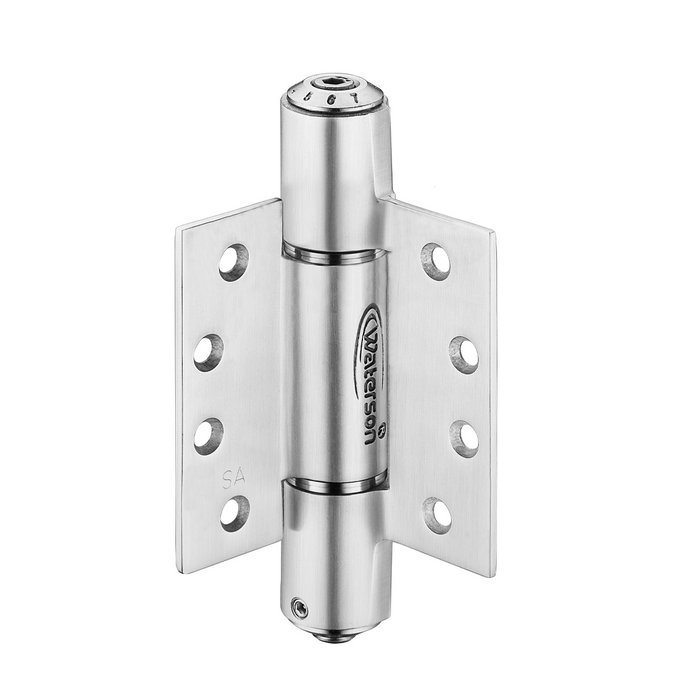

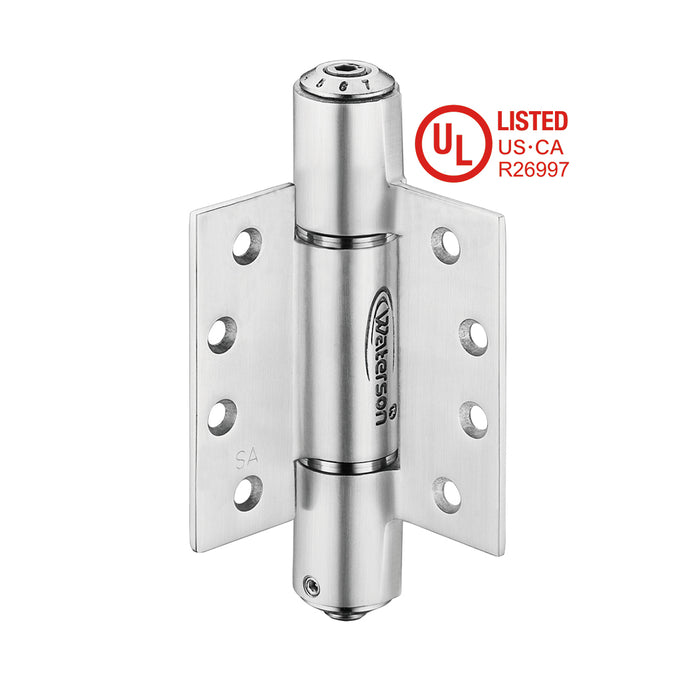

3pcs Soft Close Stall Door Hinges Heavy Duty | Hydraulic | Hold Open | 4x4 Oversized Barrel | 7ft | 260 lbs | 1 ⅜ or 1 ¾” Thick | SS304 | K51M-400-D3

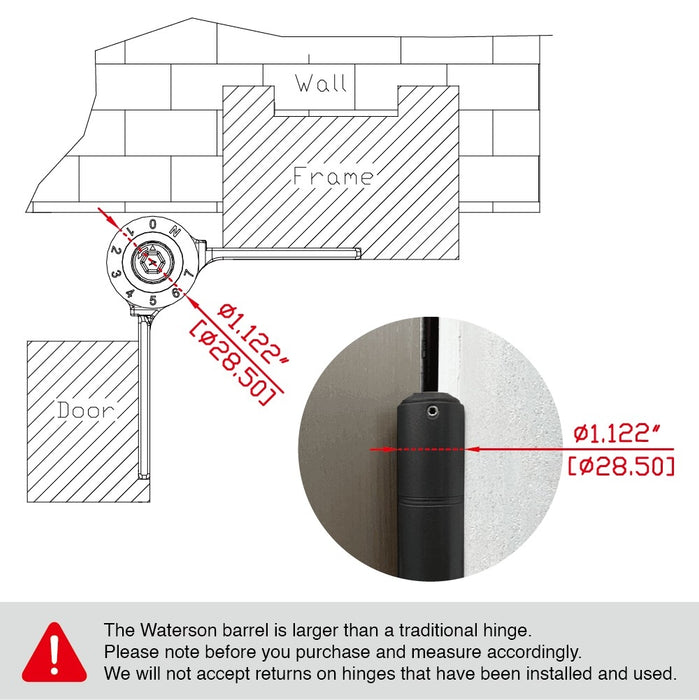

IMPORTANT: Please Check Barrel Size Before Ordering
The barrel is larger than a traditional hinge because it houses the self-closing mechanism inside.
- Barrel diameter: Ø1.122" (28.50 mm)
Installation may require notching the door jamb to clear the larger barrel. Please measure your door and frame and see the comparison images before ordering.
Returns are not accepted for hinges that have been installed or used, or for fit issues related to barrel size.
Waterson stall door hinges heavy duty provides hydraulic soft-close, numeric tension tuning, and a reliable 90° hold-open when required. 3 years warranty
• Need the door stop at 90°? Choose WP01
• Need the door stop at 120°? Choose WP02
For this 3-hinge set, you'll need 2 door stops. Match the finish to your hinges (US32D, US19, US4, 695).
Attention: Special finishes (US4) and 695 are non-refundable
- DESCRIPTION
- DETAILS
- SPECIFICATIONS
- VIDEO
-
Applications

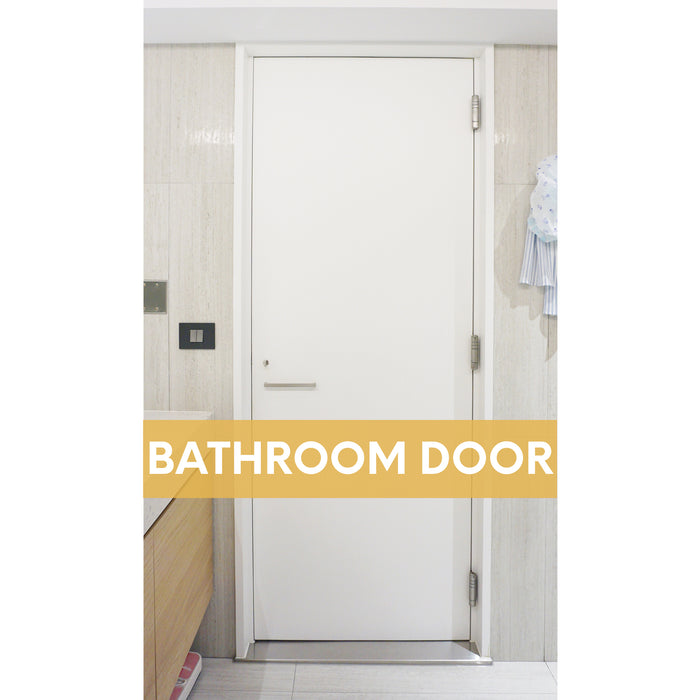

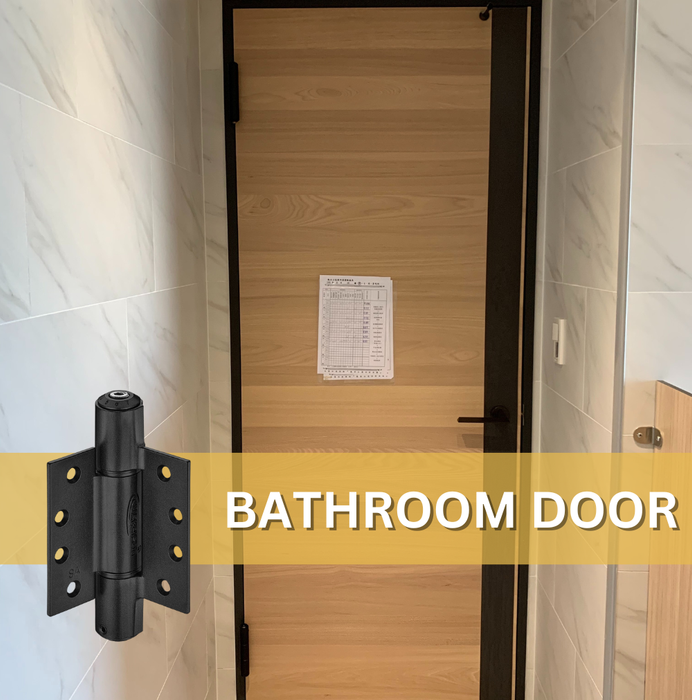

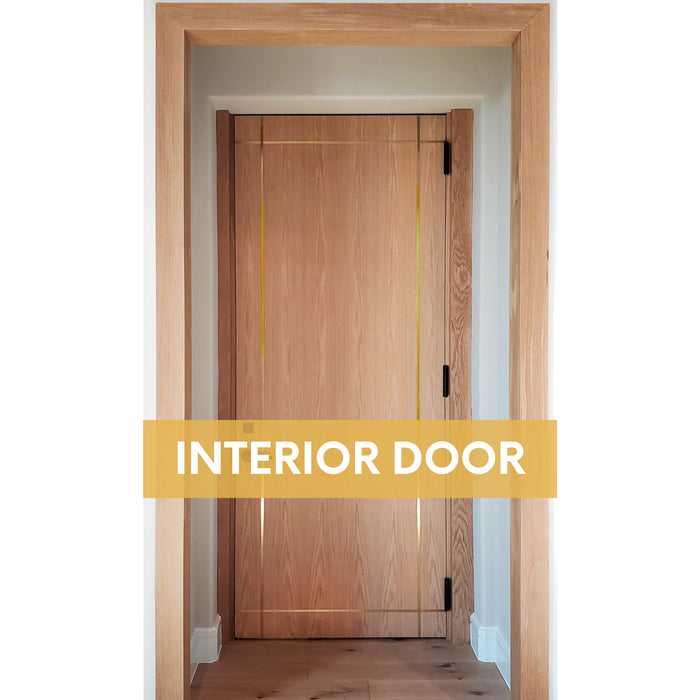

- Office, Hotel Rooms, and Highrise Building
- Interior & Exterior
- French Style Door
- Quiet Area
- Breezy Environments
Product Description and Features
- Apply for door open ≤ 120°

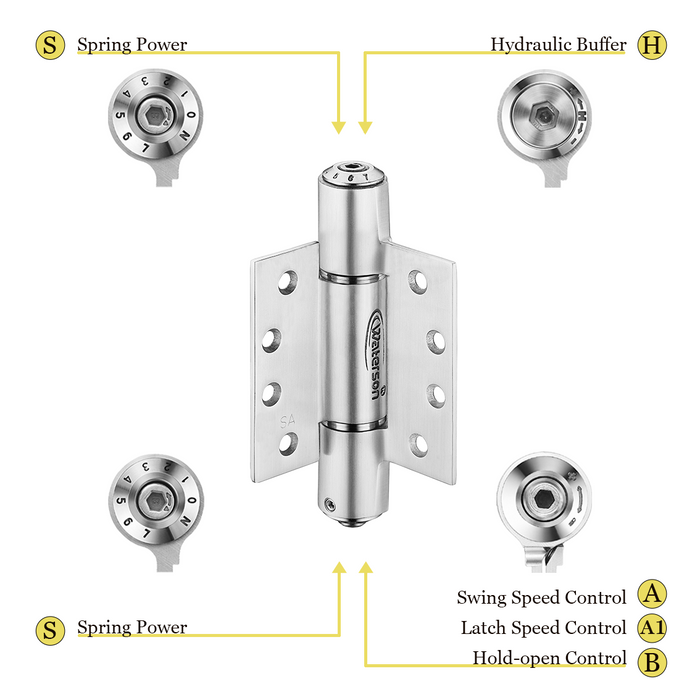

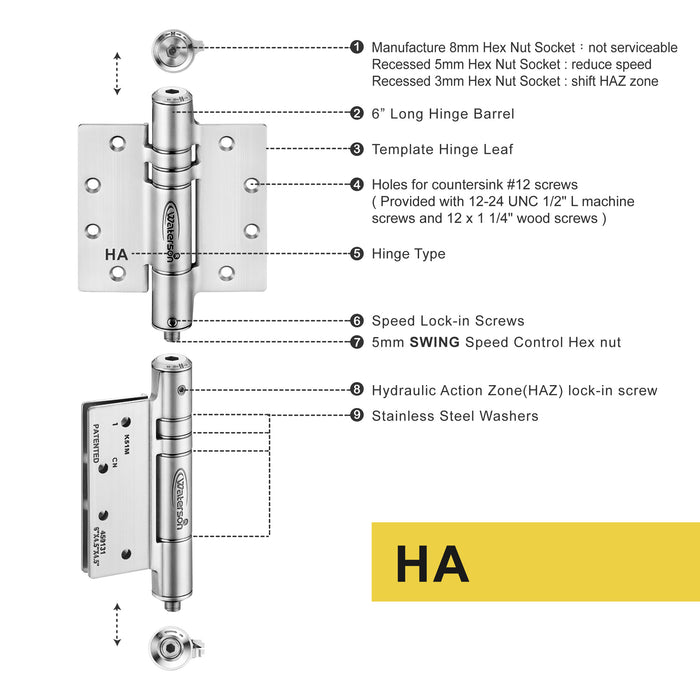

- Fully adjustable closing force and speed according to environment needs

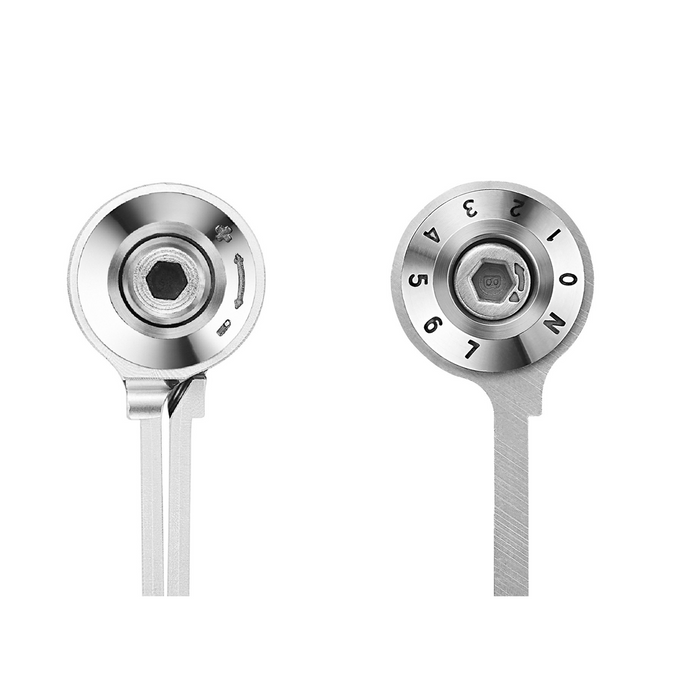

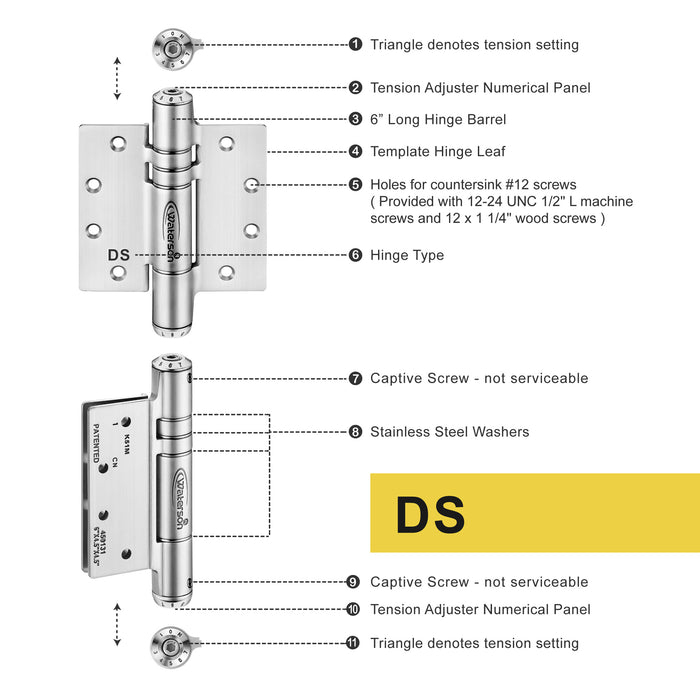

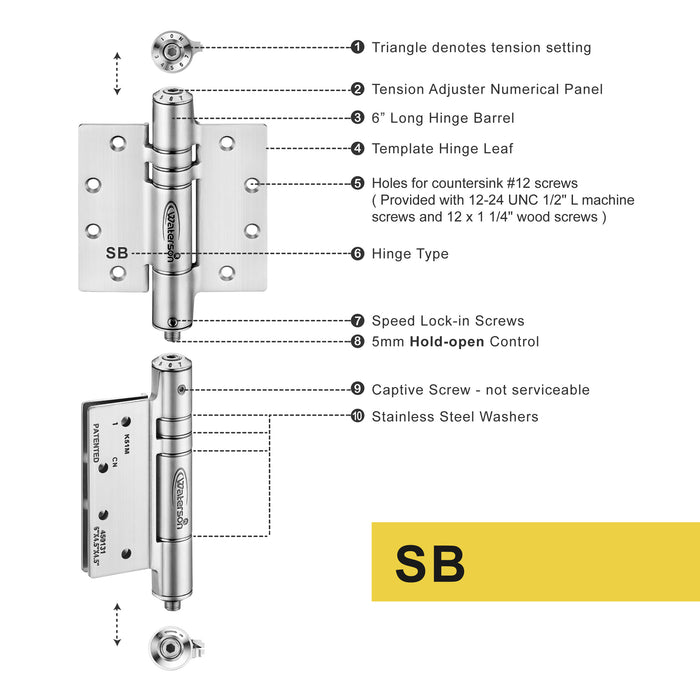

- Numerical adjustment panel on hinge end to set up precise tension
- Include both mechanical and hydraulic mechanisms supporting quiet close needs
- Aesthetically pleasing compared to door closers -- without obtrusive arm
- Hold-open feature to keep door stay open at 90°
-

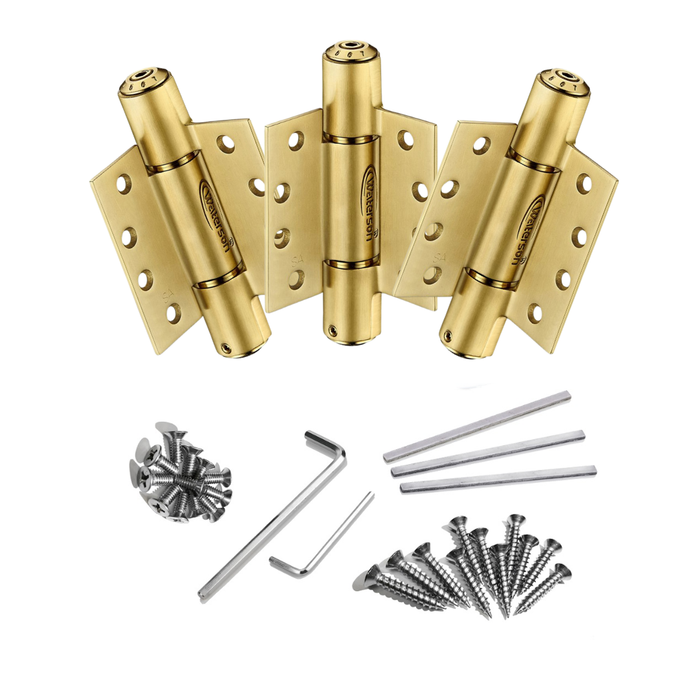

Installation Kits

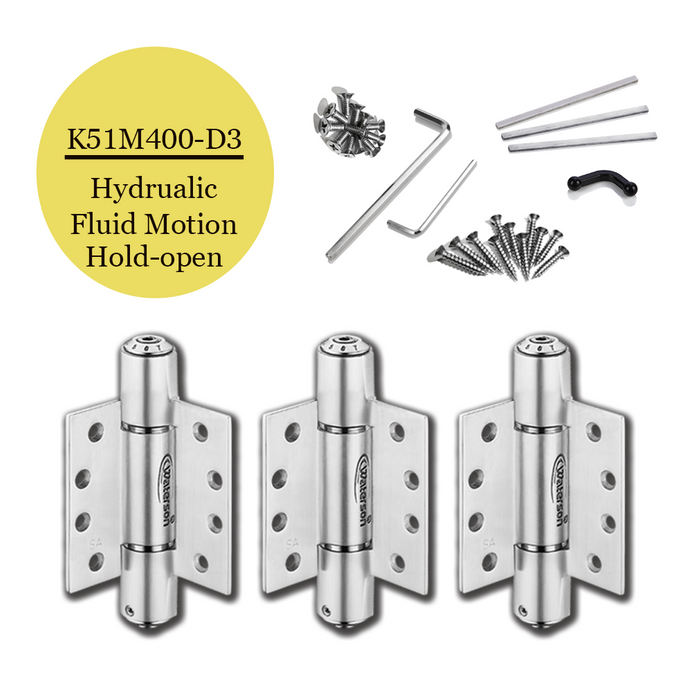

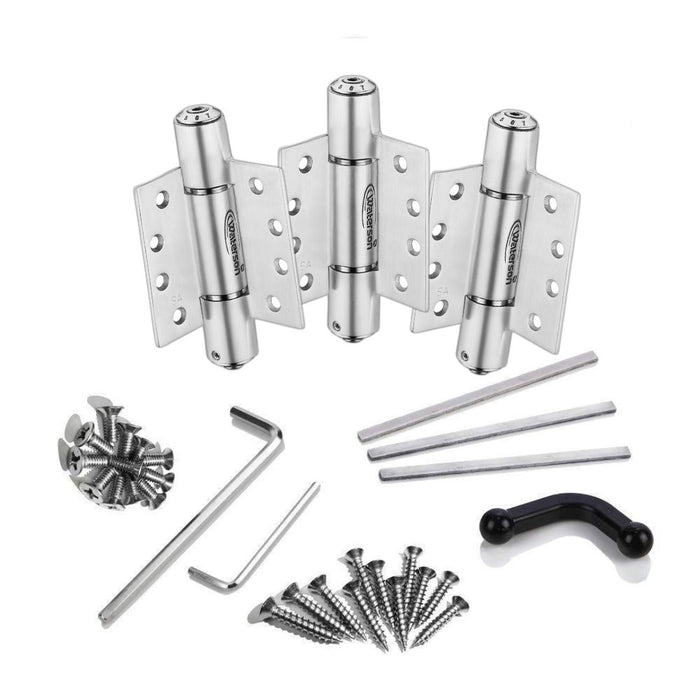

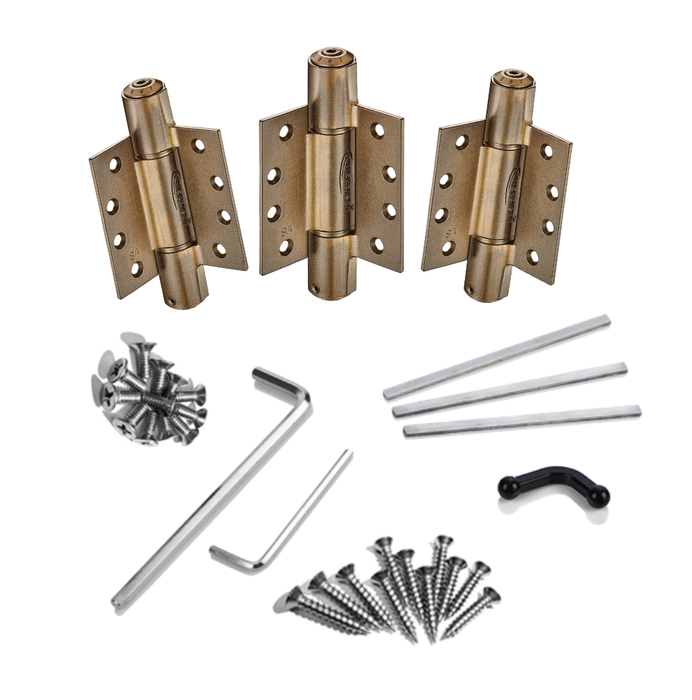

- Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
- Three steel adhesive shims for gap adjustment between door and frame as needed
- Tension Crook: Keeps hinge open during installation
- 5mm & 3mm hex wrenches
Compliance Standards
- ANSI A156.17 Grade 1: one million cycle testing

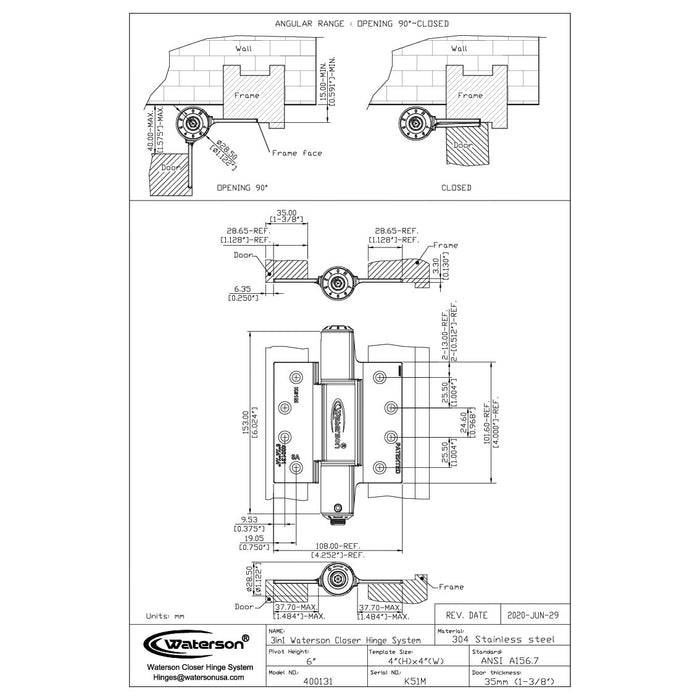

- ANSI A156.7 Template Hinge : 4” x 4”
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
- ADA Force: opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12°
- ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
-
Specifications

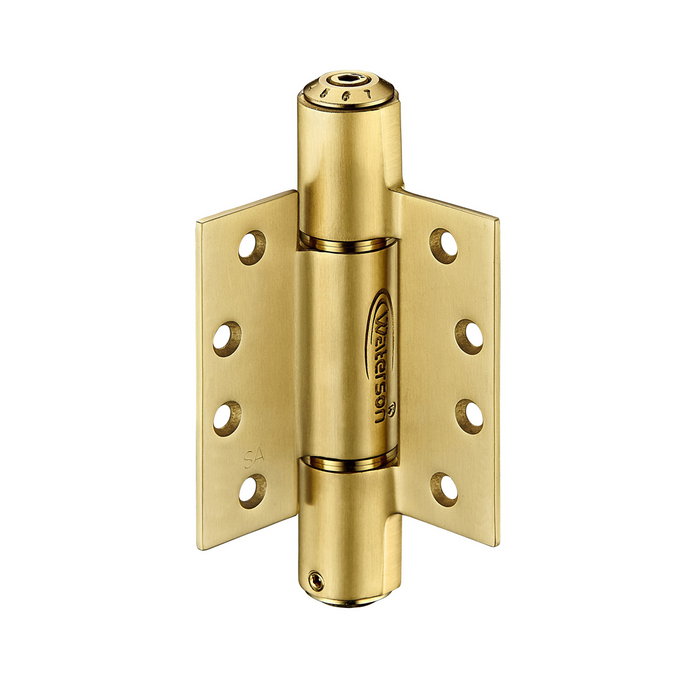

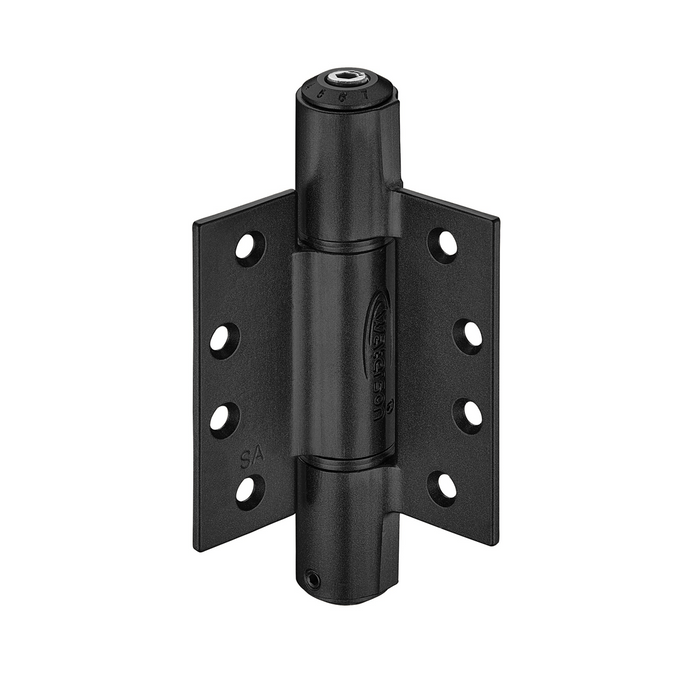

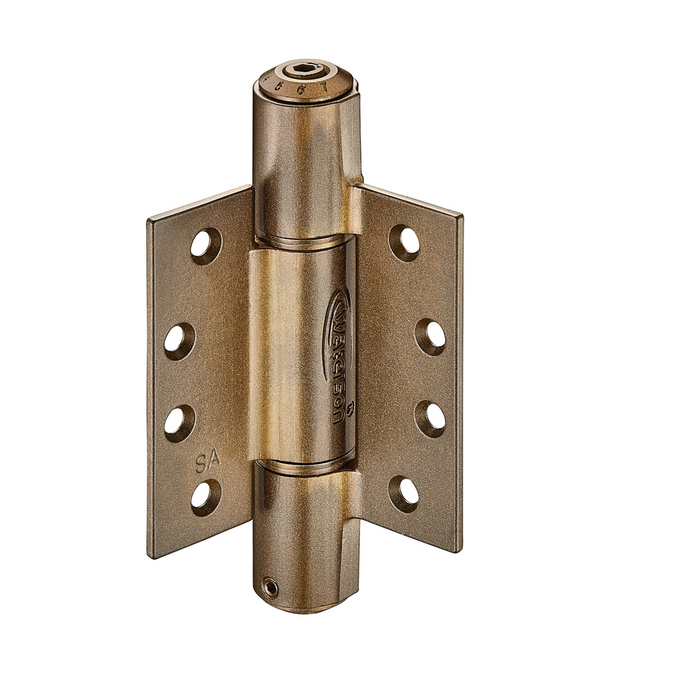

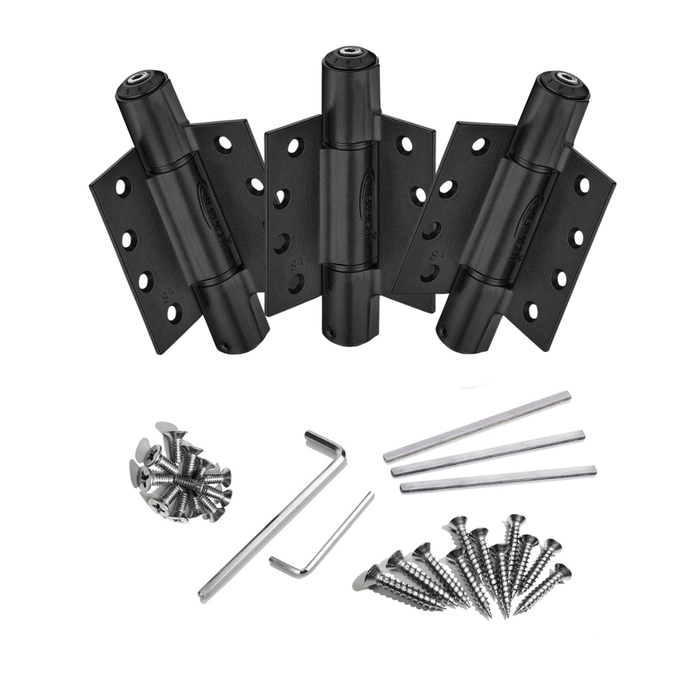

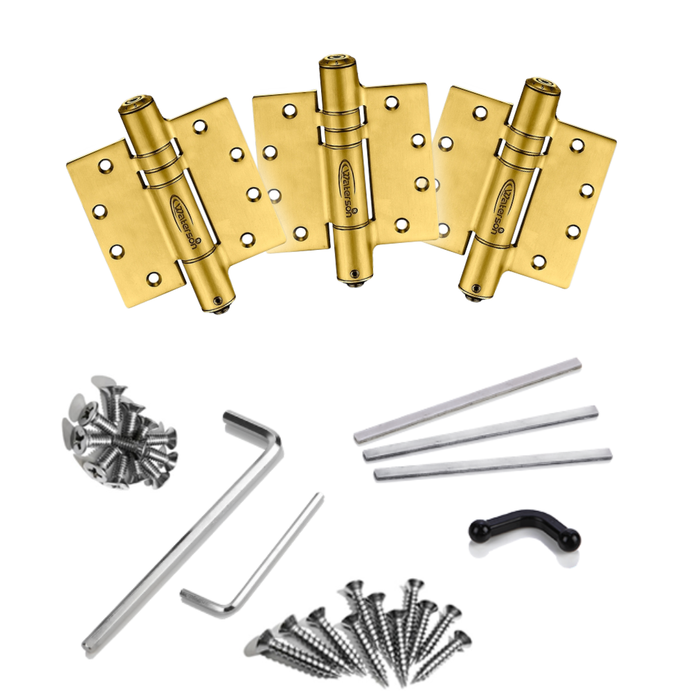

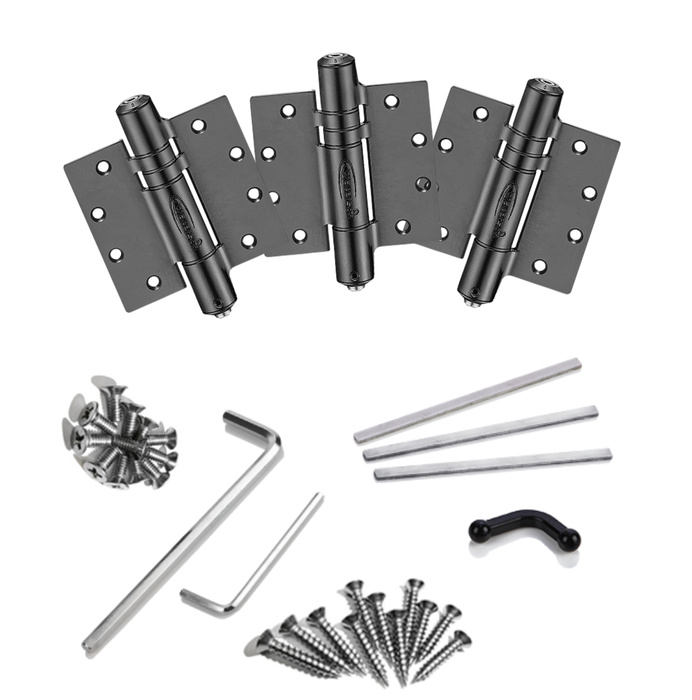

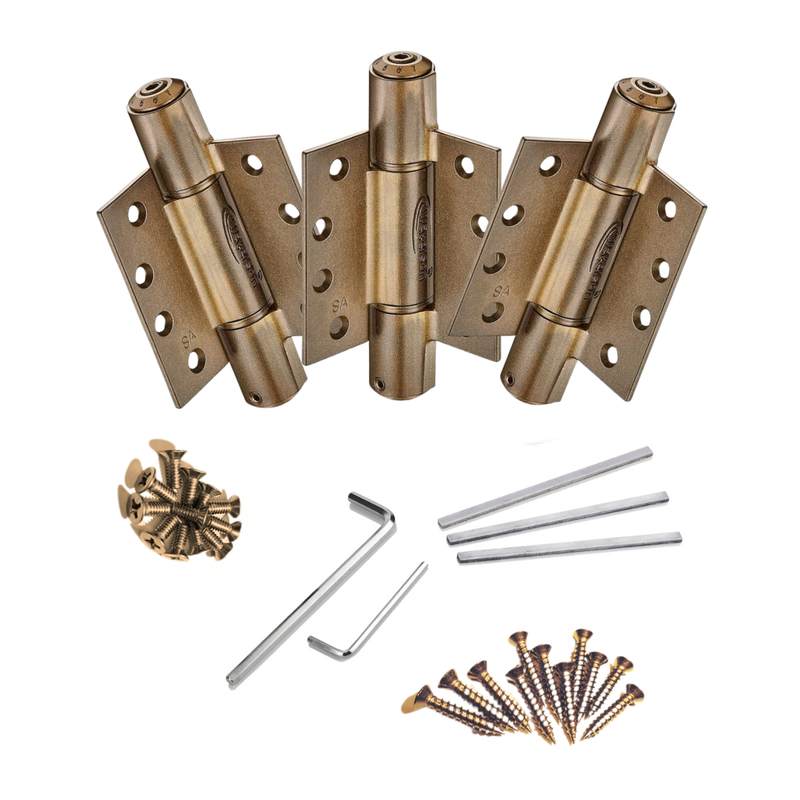

Product SKU K51M-400-D3 Hinge Type Full Mortise, 4 Inch x 4 Inch Hinge Material Stainless Steel Door Weight From 40lbs to 260lbs Approx Door Size 1150mm W x 2200mm H (4ft x 7ft) Door Thickness 1 ¾” (40-50 mm) Barrel Diameter Ø1.122" (28.50 mm) Barrel Length 6" (152 mm) Installation Note Door jamb notching may be required Self-closing o Fluid Motion o Hold-open o Fixing Method Screw-On, only spot weld AFTER speed adjustment Color/Finish Satin Brushed,Black, Gold,ORB Combination/Quantity DS.HA.SB,3 Pack -
