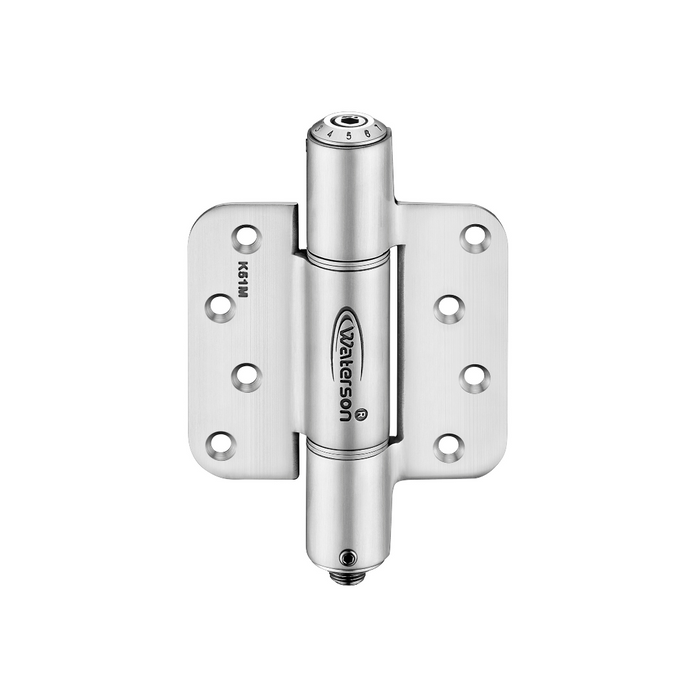

4pcs Hydraulic 5/8 Radius Hinges Soft Closing | Hold Open | 4x4 | 8ft | 260 lbs | 1 3/8” - 1 3/4” Thick | SS304 | K51M-400-D4-58R

TALK TO SALES FIRST - NON REFUNDABLE

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

  • Bedroom Door

  • Bathroom Door

  • Front Door

  • Garage Door

  • Residential Door

  • Interior Use


  Product Description and Features

  • Apply for door open ≤ 120°

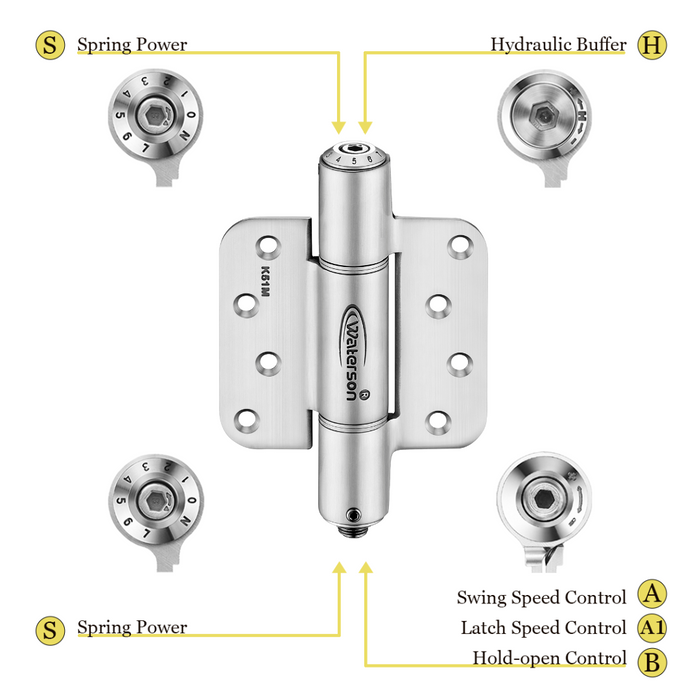

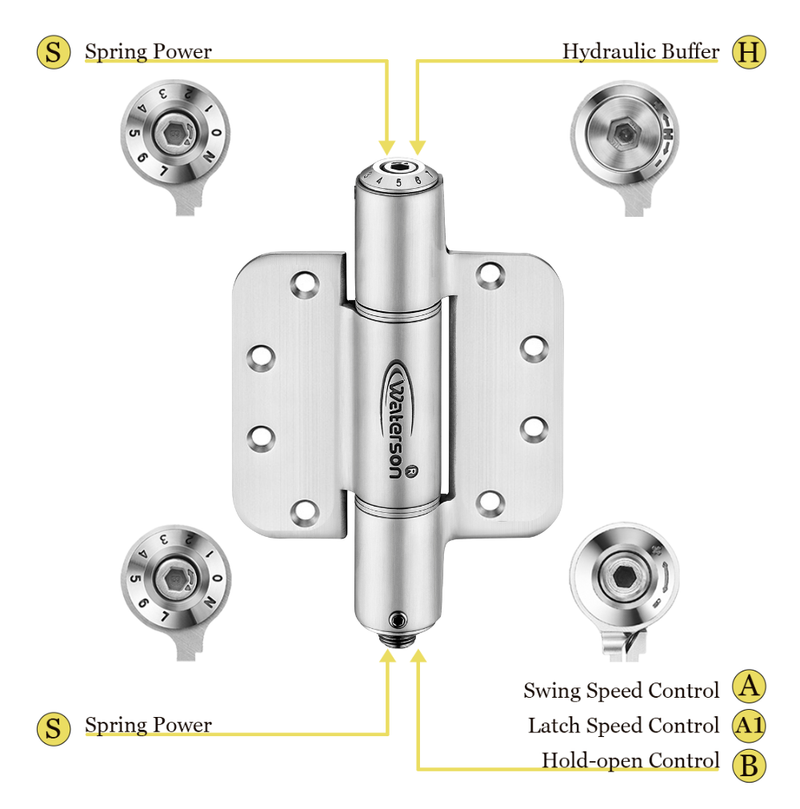

  • Fully adjustable closing force and speed according to environment needs

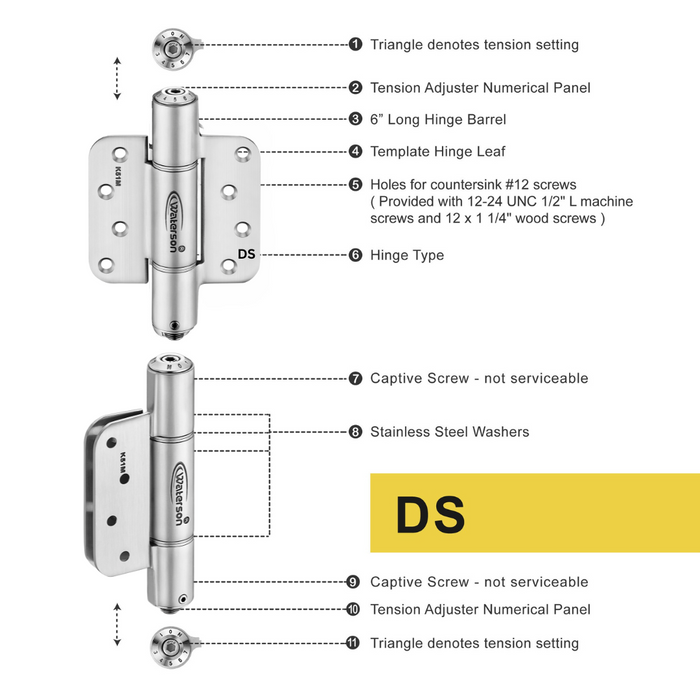

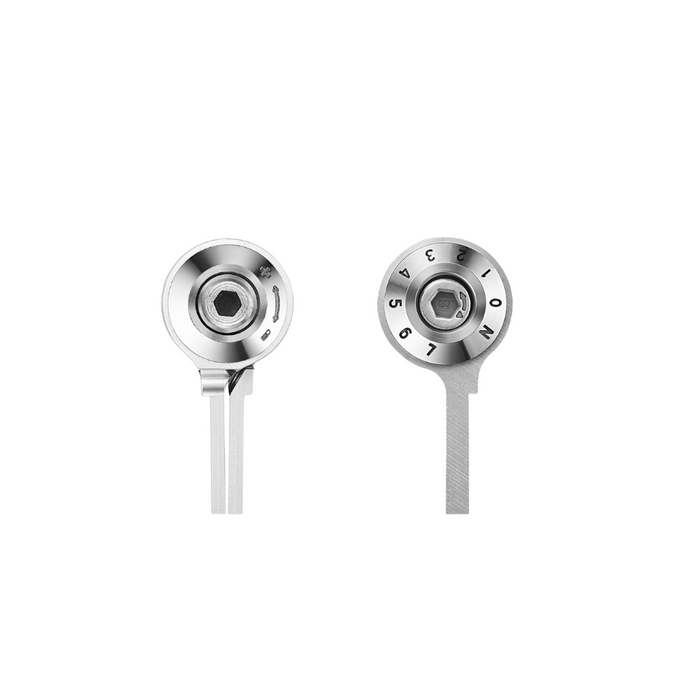

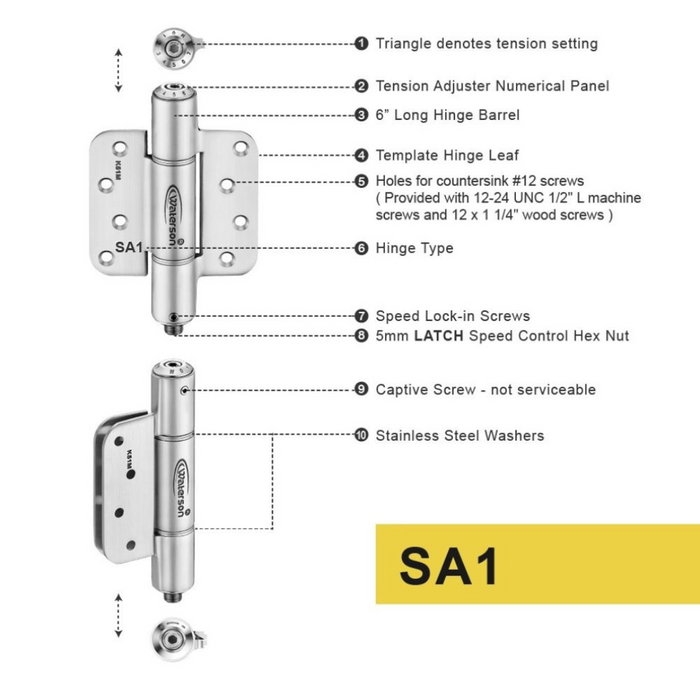

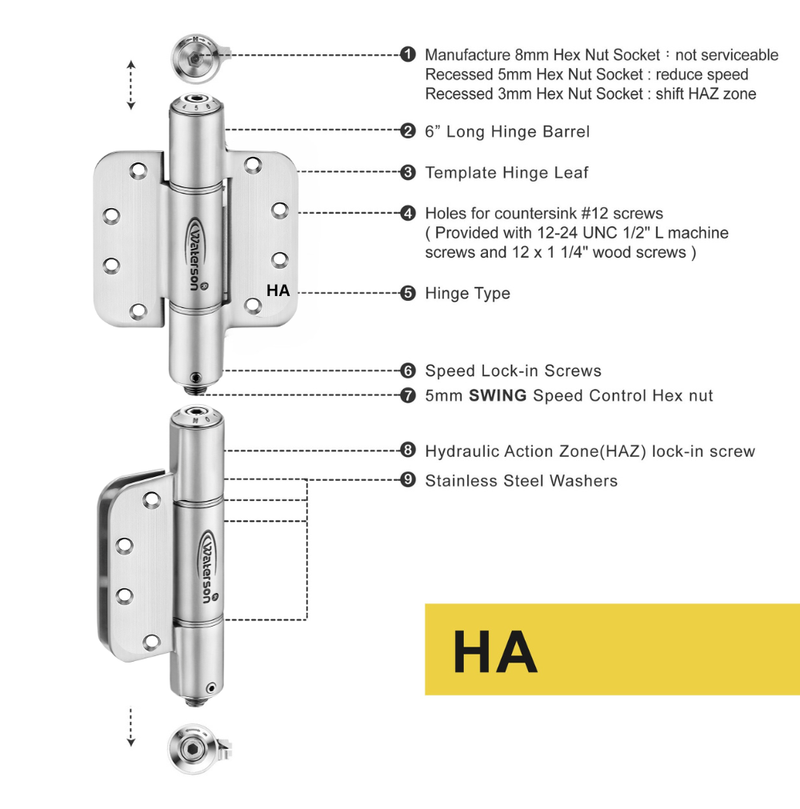

  • Numerical adjustment panel on hinge end to set up precise tension
  • Include both mechanical and hydraulic mechanism supporting quiet close needs
  • Aesthetically pleasing compared to door closers -- without obtrusive arm
  • Hold-open feature to keep door stay open at 90°

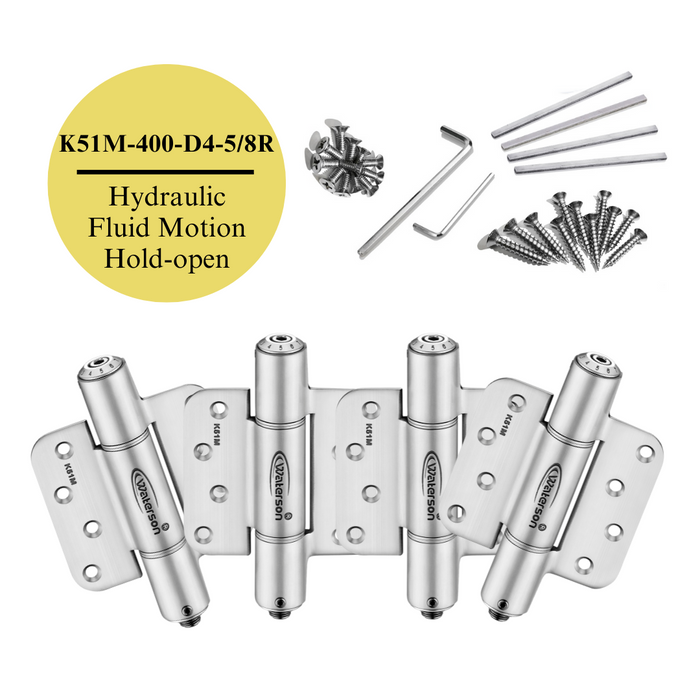

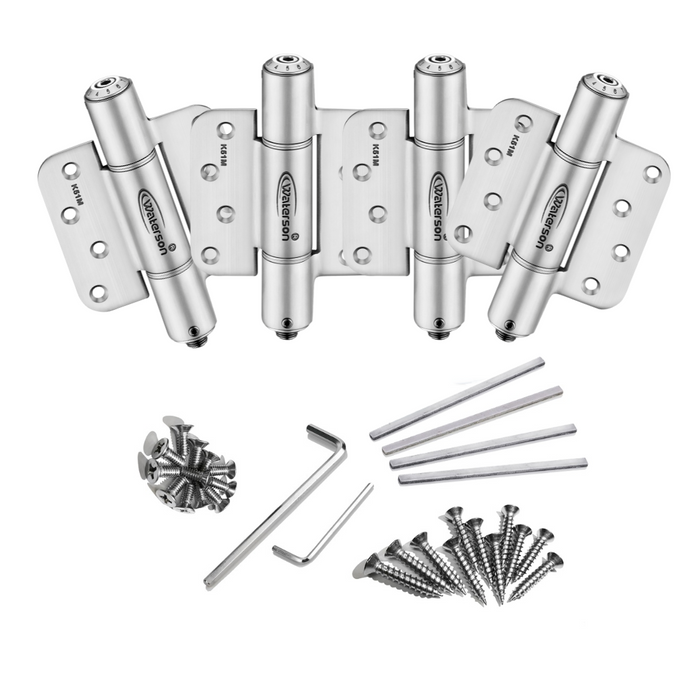

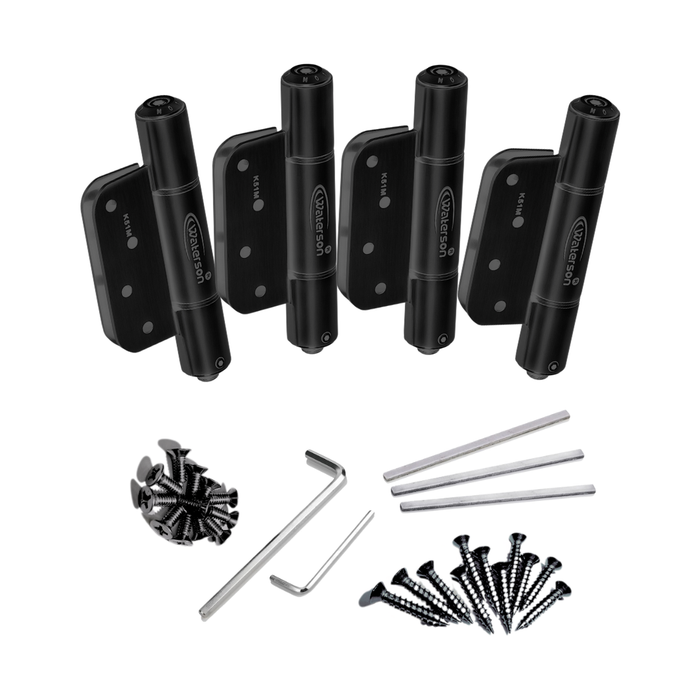

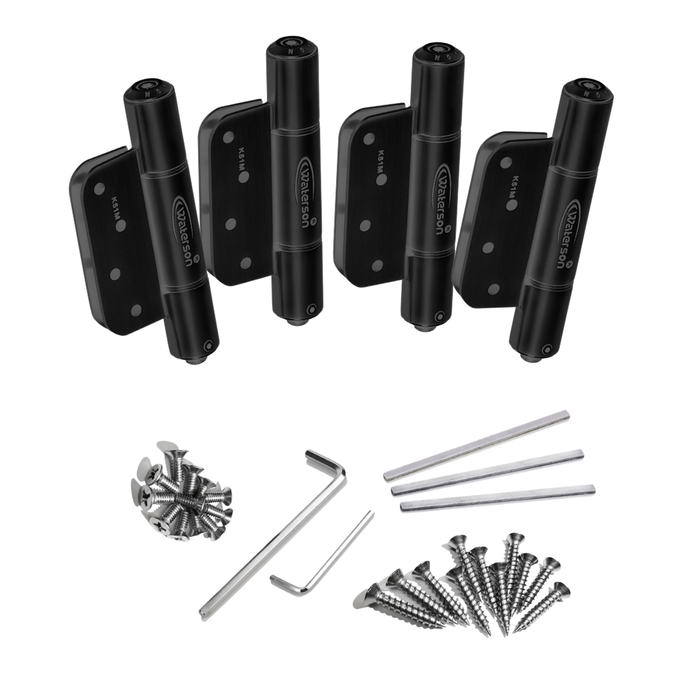

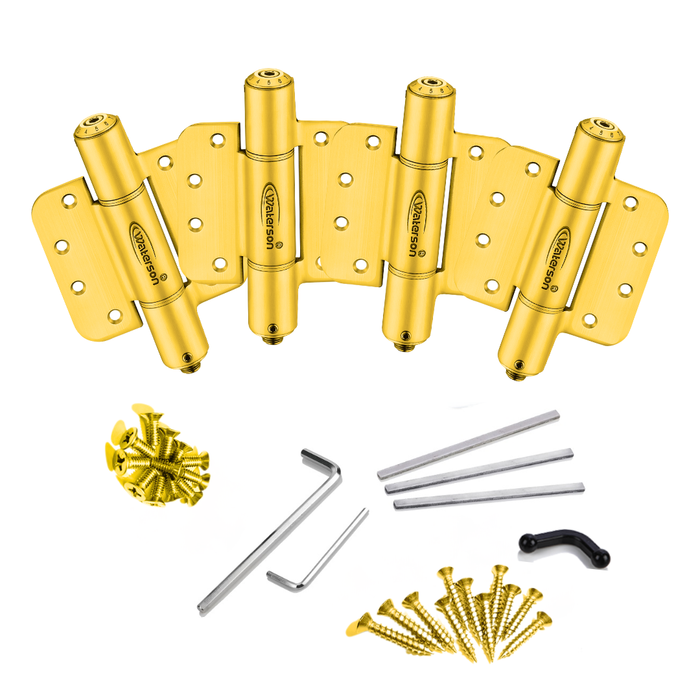

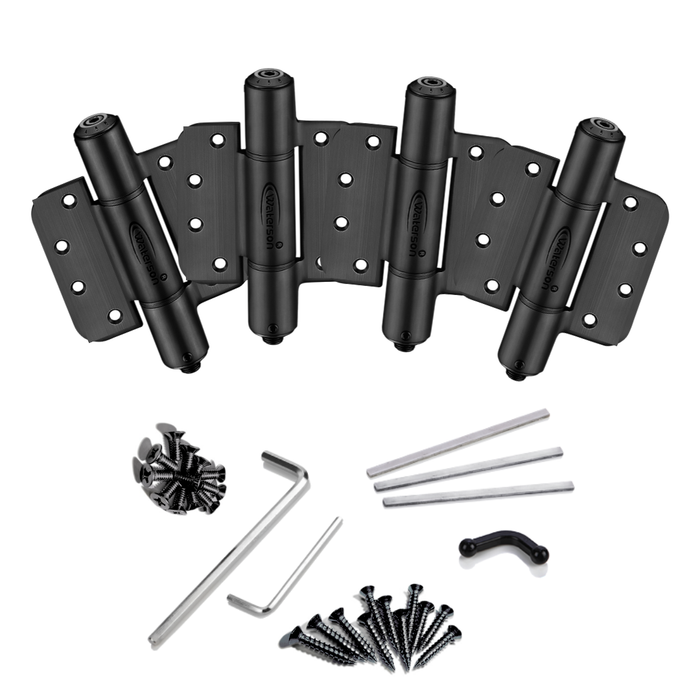

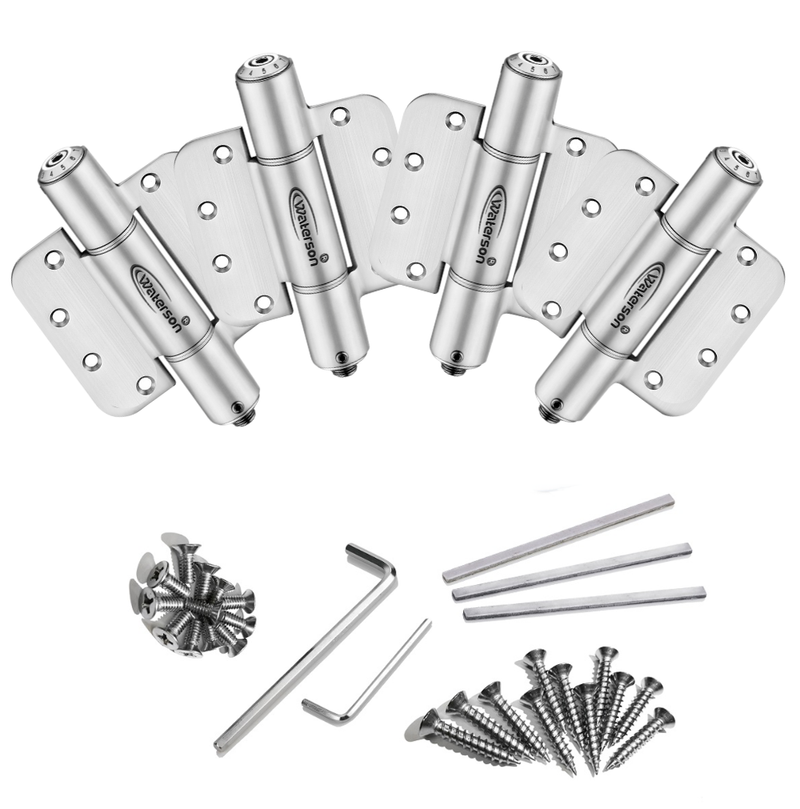

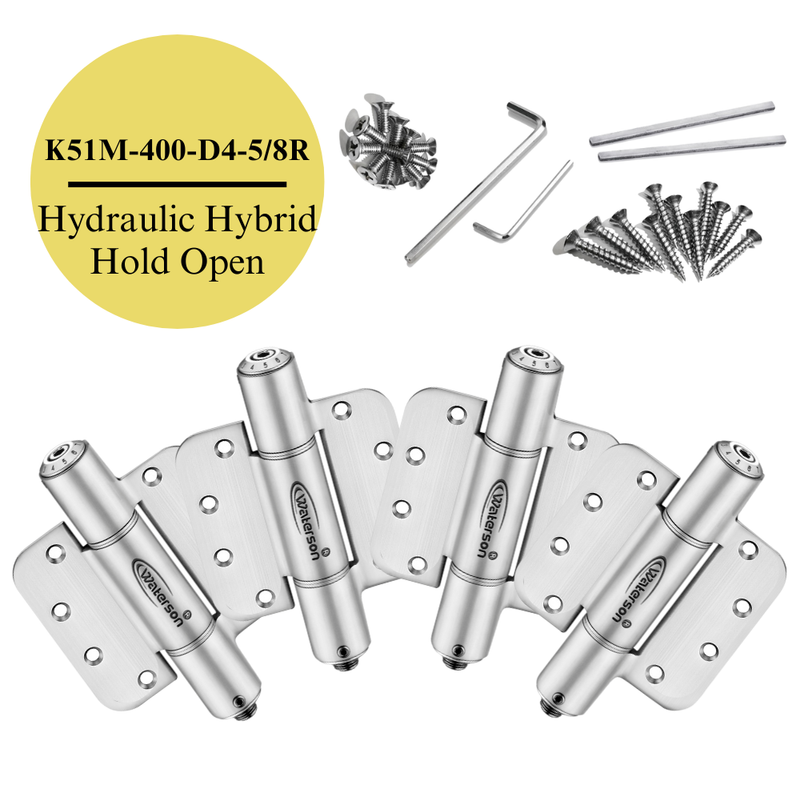

• Installation Kits

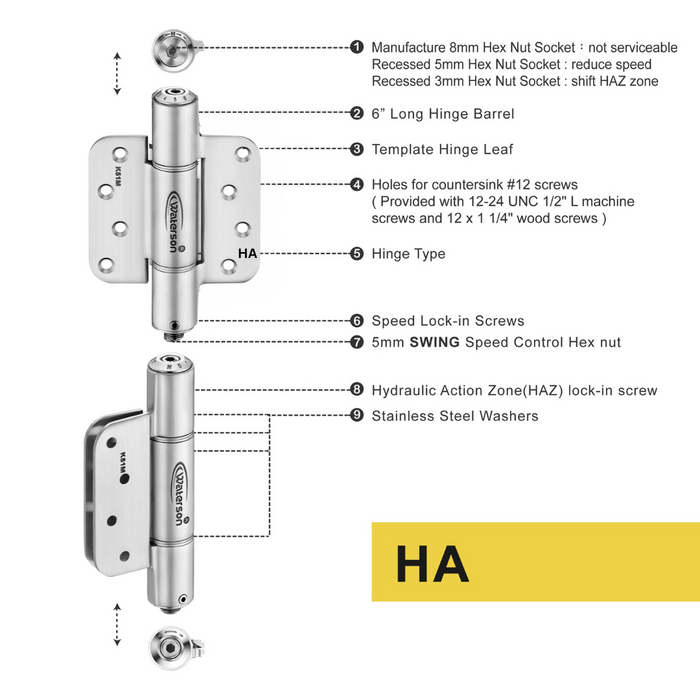

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed

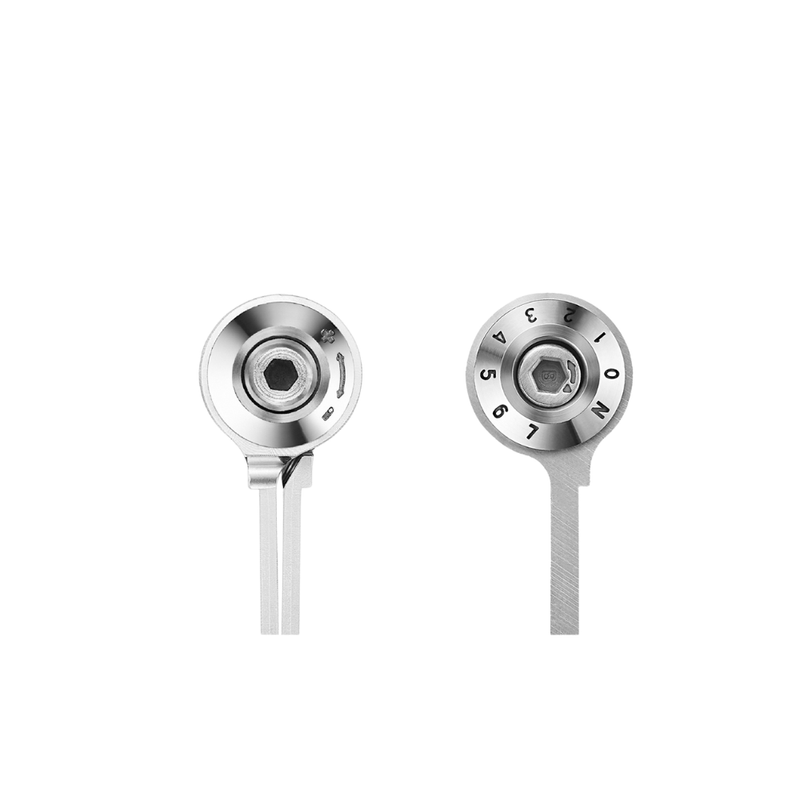

  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

  • ANSI A156.17 Grade 1: one million cycle testing

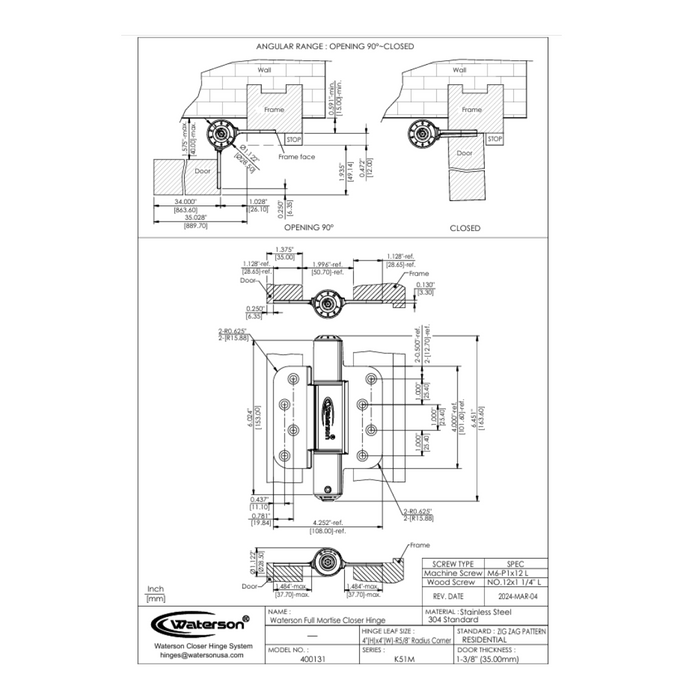

  • ANSI A156.7 Template Hinge : 4” x 4”
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

•

  Product SKU	K51M-400-D4-5/8R
  Hinge Type	Full Mortise, 4 Inch x 4 Inch
  Hinge Material	Stainless Steel
  Door Weight	Up to 260lbs
  Approx Door Size	1150mm W x 2200mm H (4ft x 8ft)
  Door Thickness	1 3/8"
  Self-closing	o
  Fluid Motion	o
  Hold-open	o
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment

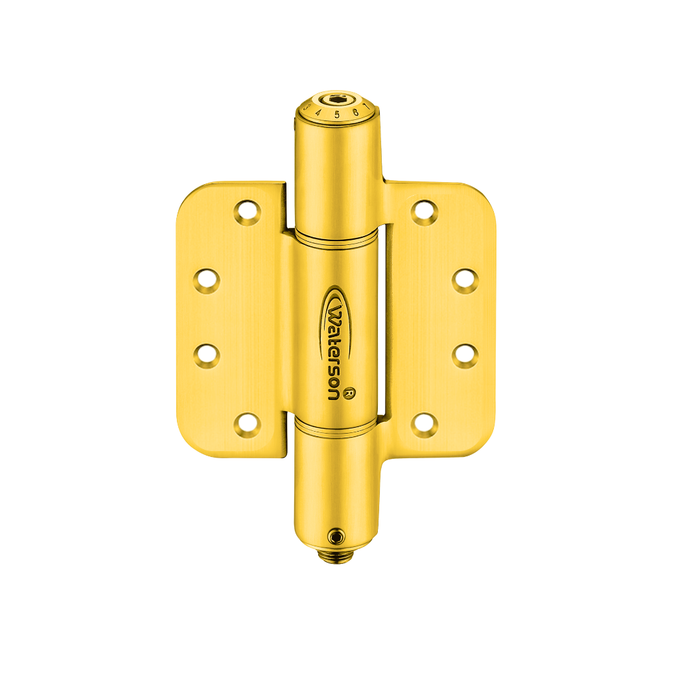

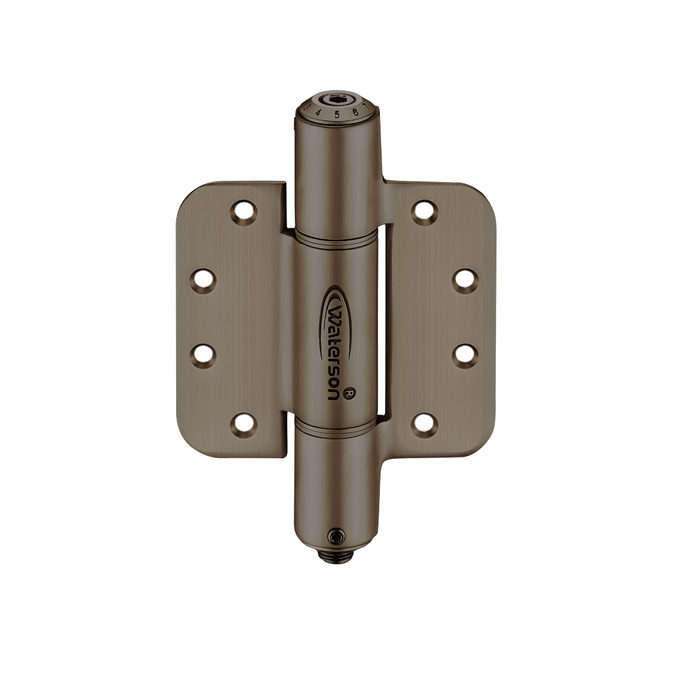

  Color/Finish	Satin Brushed,Black,Gold,ORB
  Combination/Quantity	DS.HA.SB.SA1,4 Pack
  Hinge Gauge	0.130"
