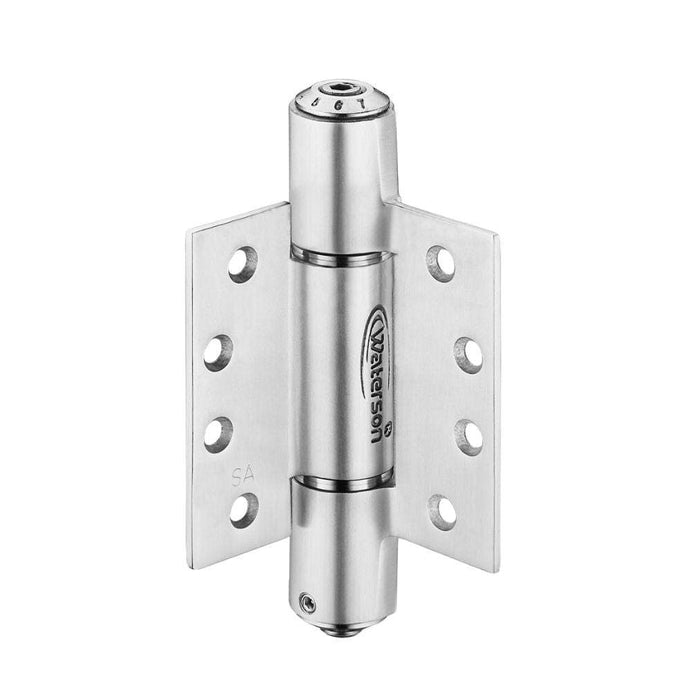

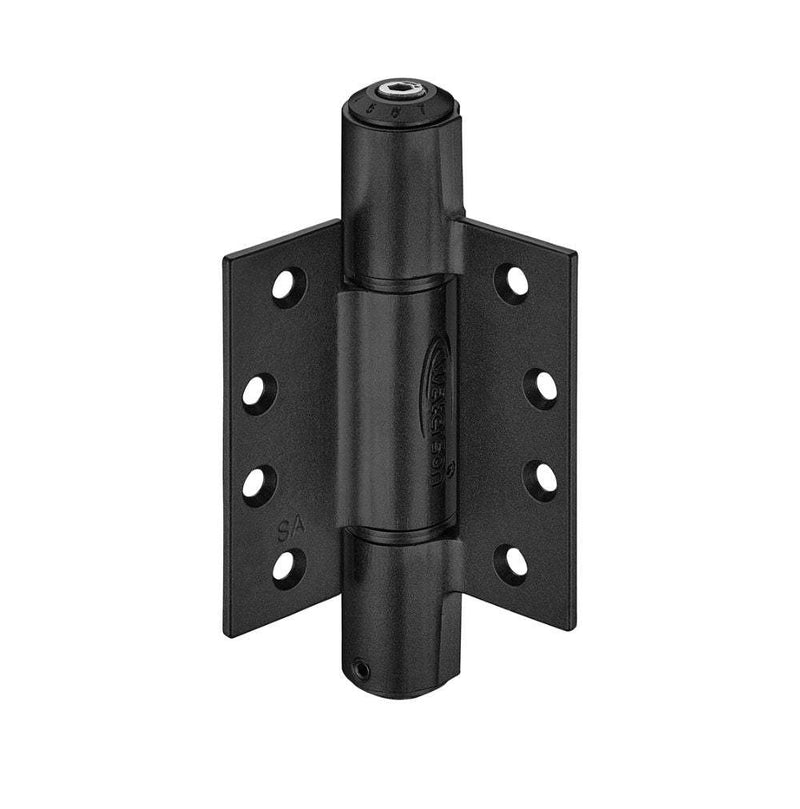

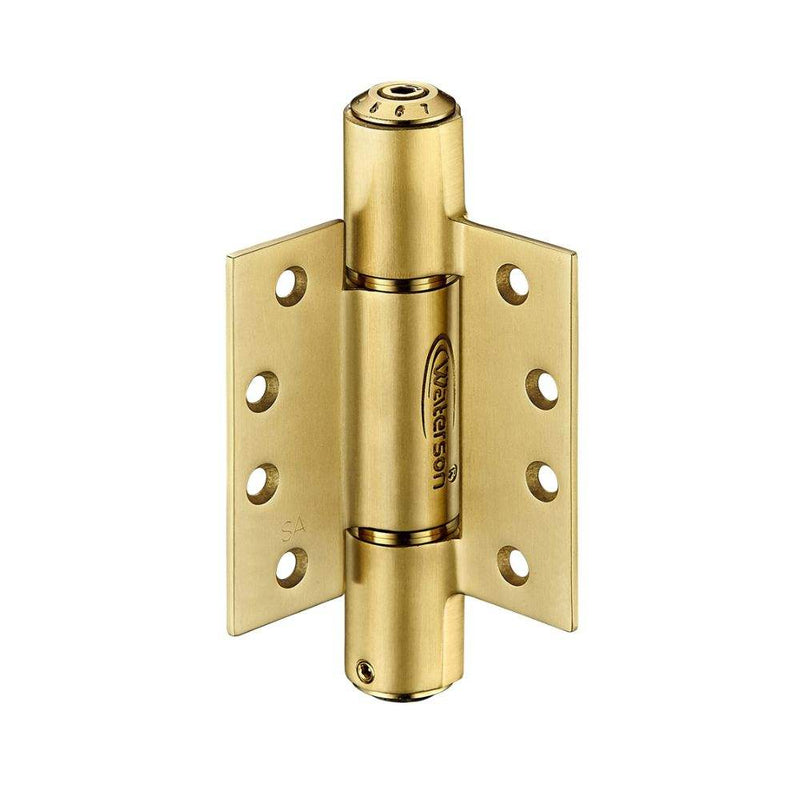

2pcs Swinging Cafe Door Hinges | Hydraulic | 4x4 | 6ft | 150 lbs | 1 ¾” Thick | SS304 | K51M-400-Residential-B2

Heavy duty cafe door hinges built on a hydraulic system allow precise tension and closing speed control for 150-lb commercial or residential cafe doors.

A 4"×4" cafe door hinges heavy duty design with stainless-steel components aligns with ANSI/ADA requirements and long-cycle durability expectations for high-traffic openings. 3 years warranty

Attention: Special finishes (US4) is non-refundable

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

  • Interior & Exterior
  • Arch Top
  • Cafe Door
  • Home Bar Door
  • Pantry Door
  • Kitchen Pass-Through Door
  • Courtyard Style

  Product Description and Features

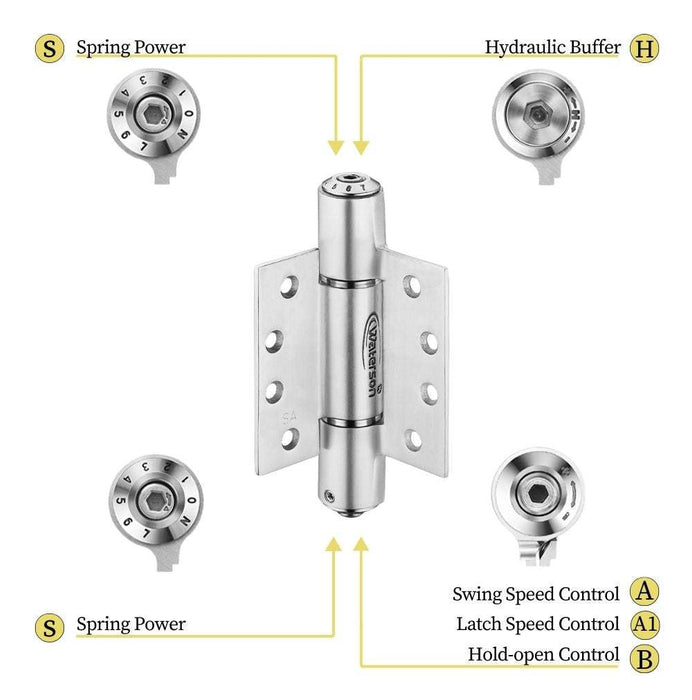

  • Fully adjustable closing force and speed according to environment needs

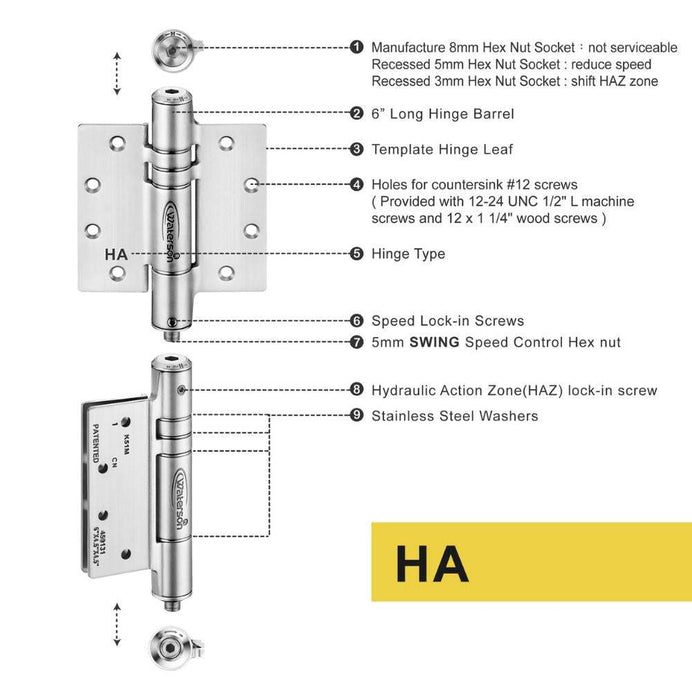

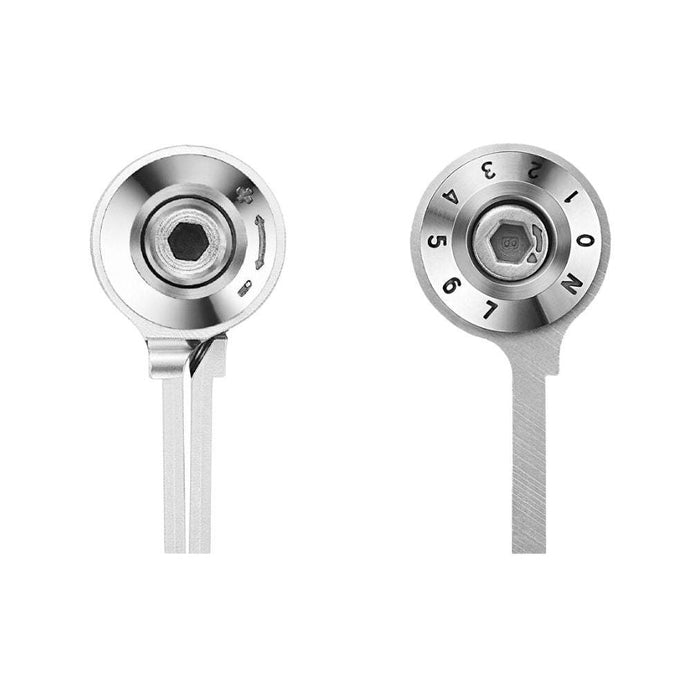

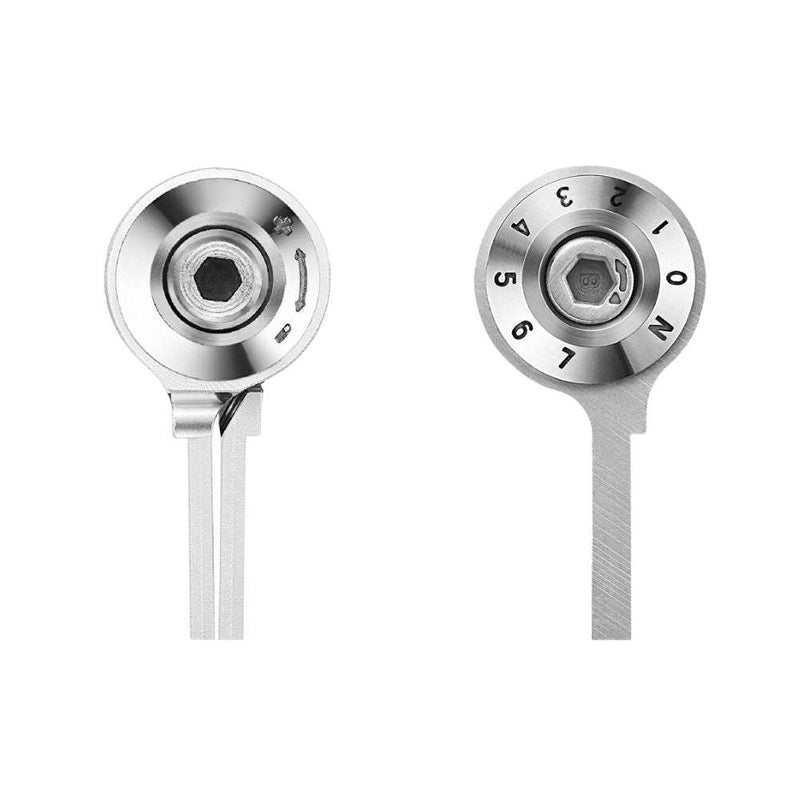

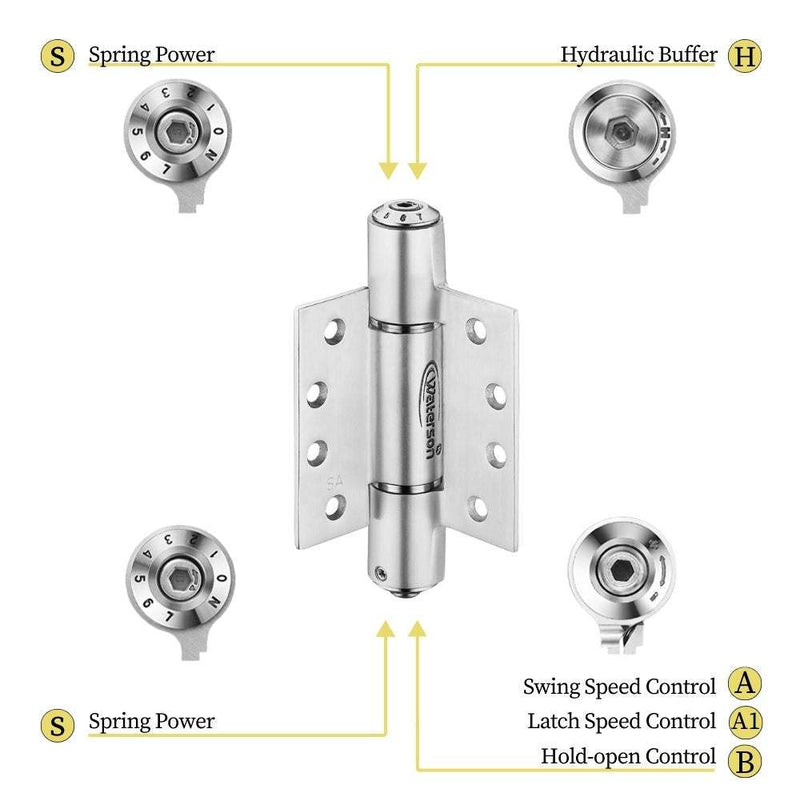

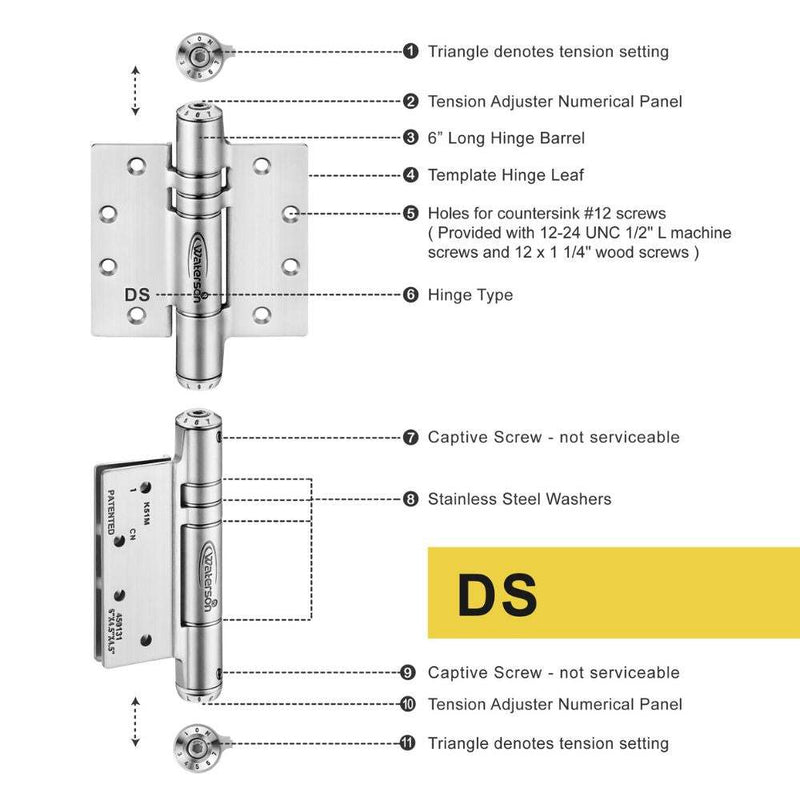

  • Numerical adjustment panel on hinge end to set up precise tension
  • Mechanical only mechanism supporting heavy duty and fully exterior
  • Aesthetically pleasing compared to door closers -- without extrusive arms
  • UL certified cycle testing ensures many years of low maintenance.

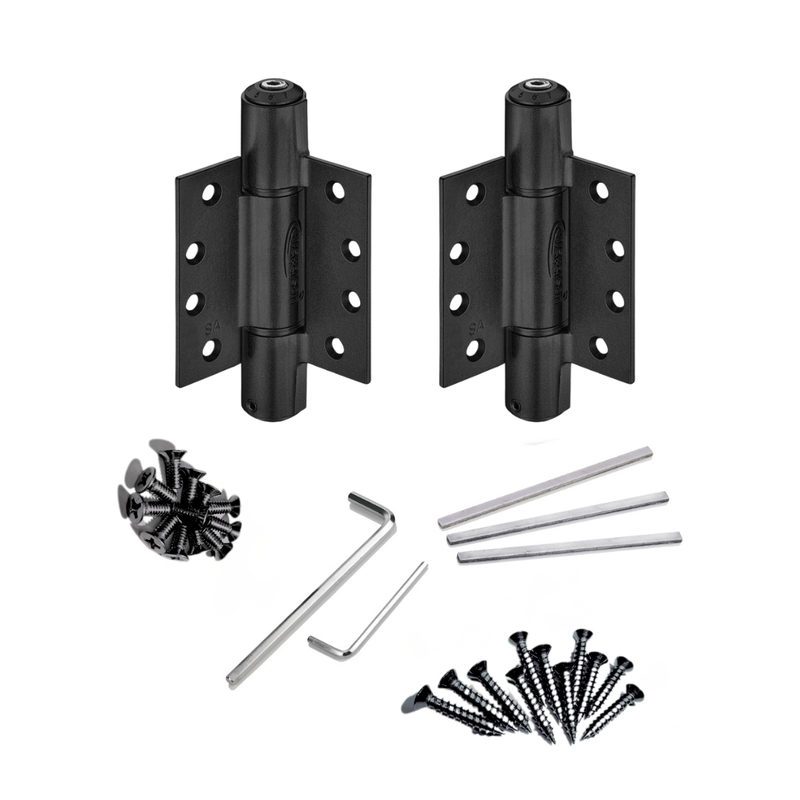

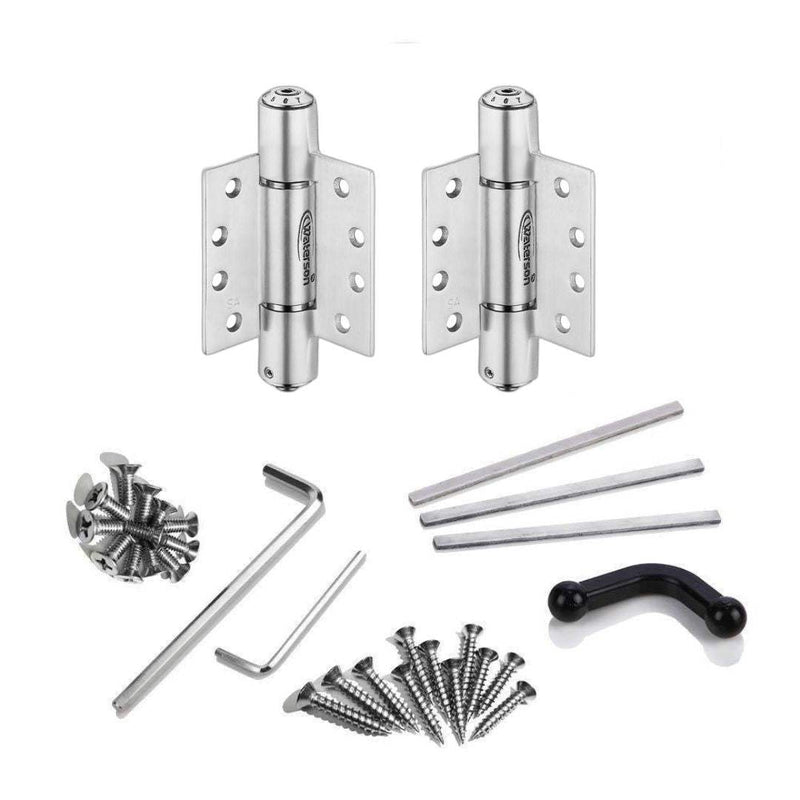

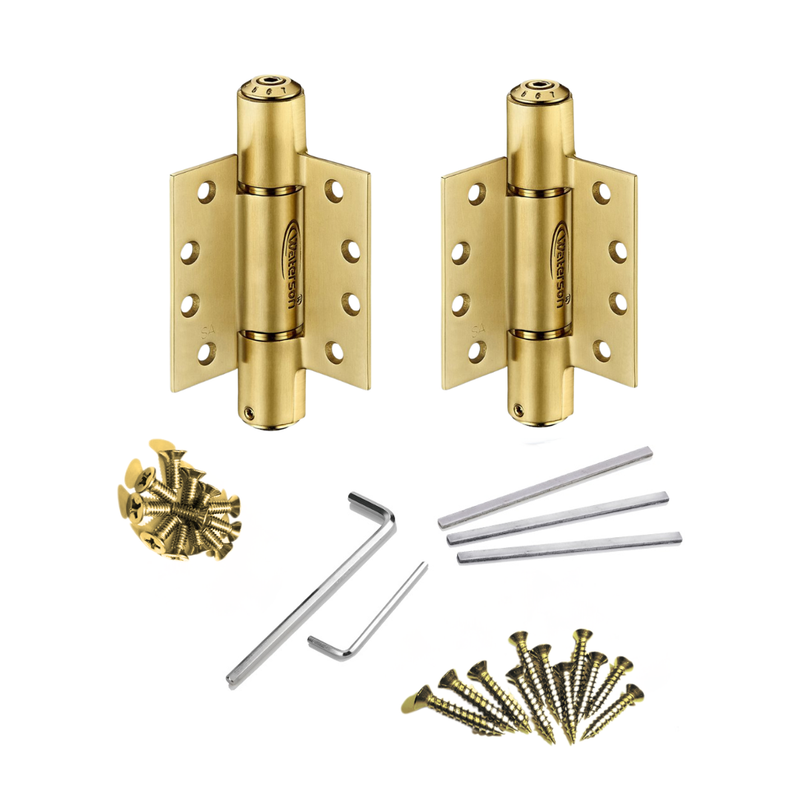

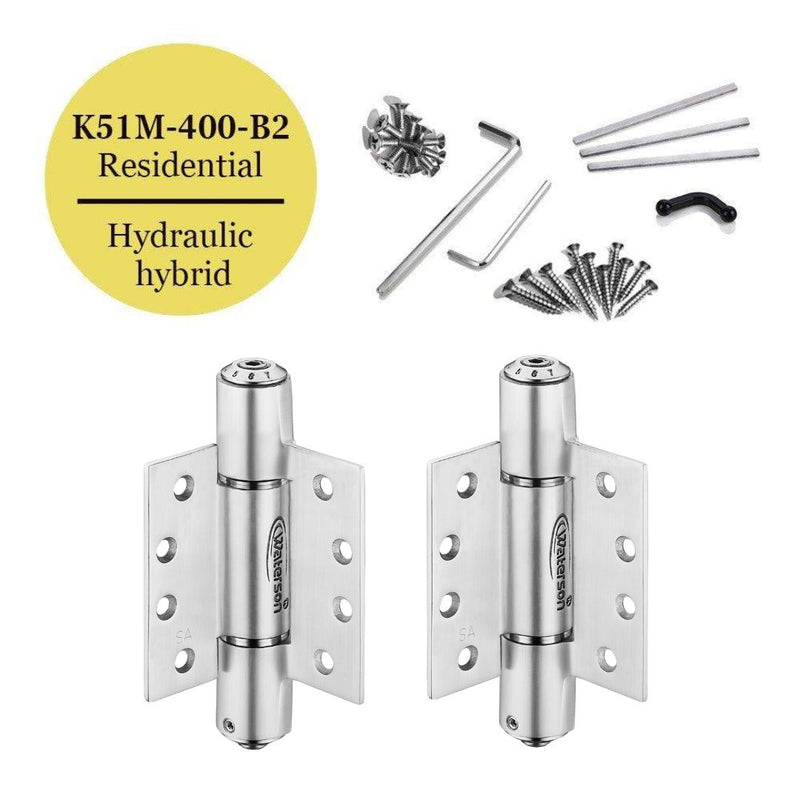

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

  • ANSI A156.17 Grade 1 : one million cycle testing

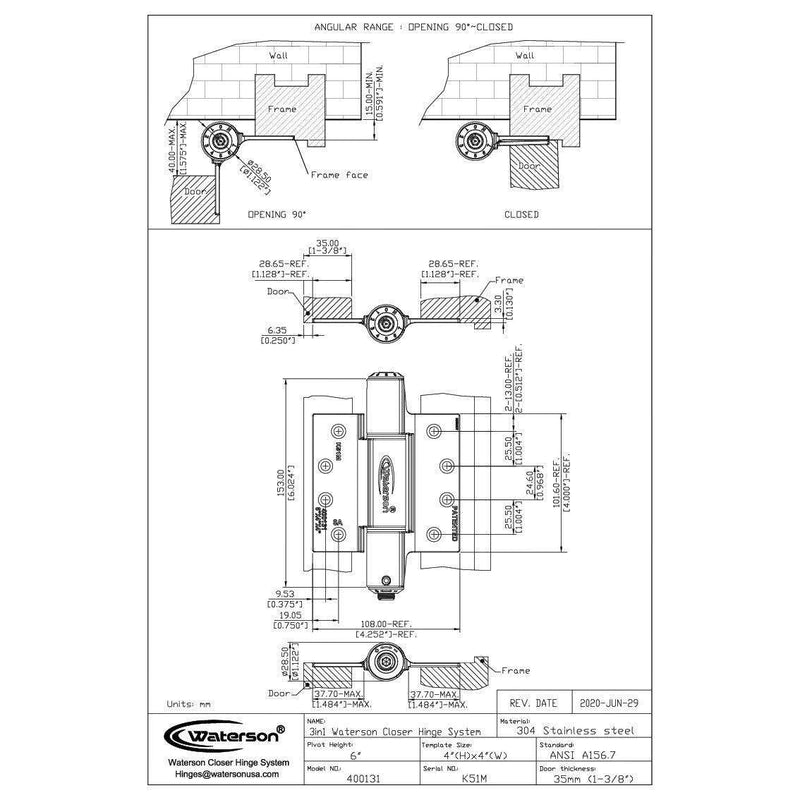

  • ANSI A156.7 Template Hinge : 4” x 4”
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

• Specifications

  Product SKU	K51M-400-Residential-B2
  Hinge Type	Full Mortise, 4 Inch x 4 Inch
  Hinge Material	Stainless Steel
  Door Weight	From 40lbs to 150lbs
  Approx Door Size	1150mm W x 2200mm H (4ft x 7ft)
  Door Thickness	1 ¾” (40-50 mm)

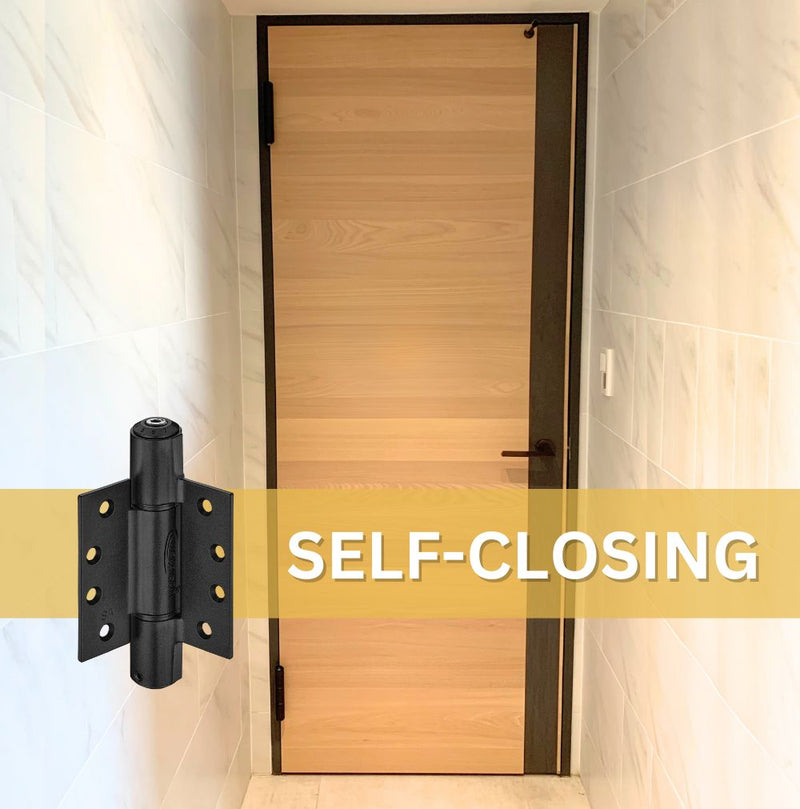

  Self-closing	o
  Fluid Motion	o
  Hold-open	x
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment

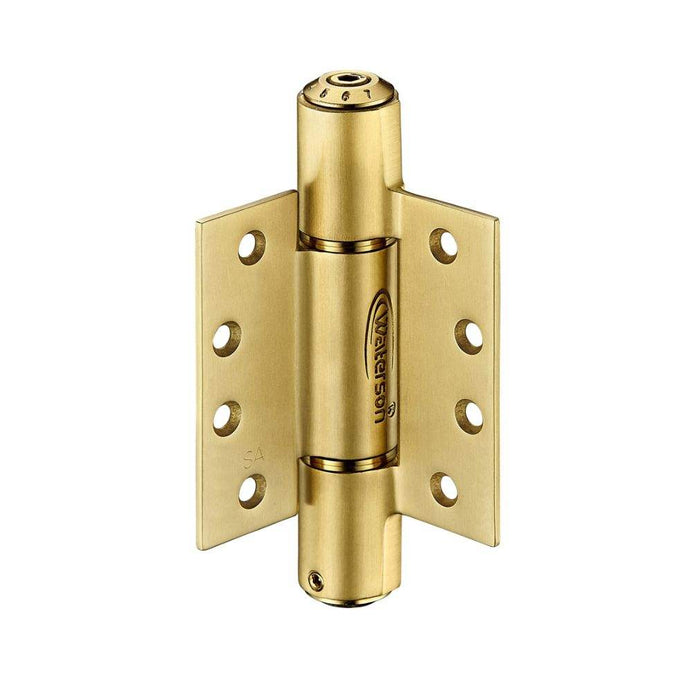

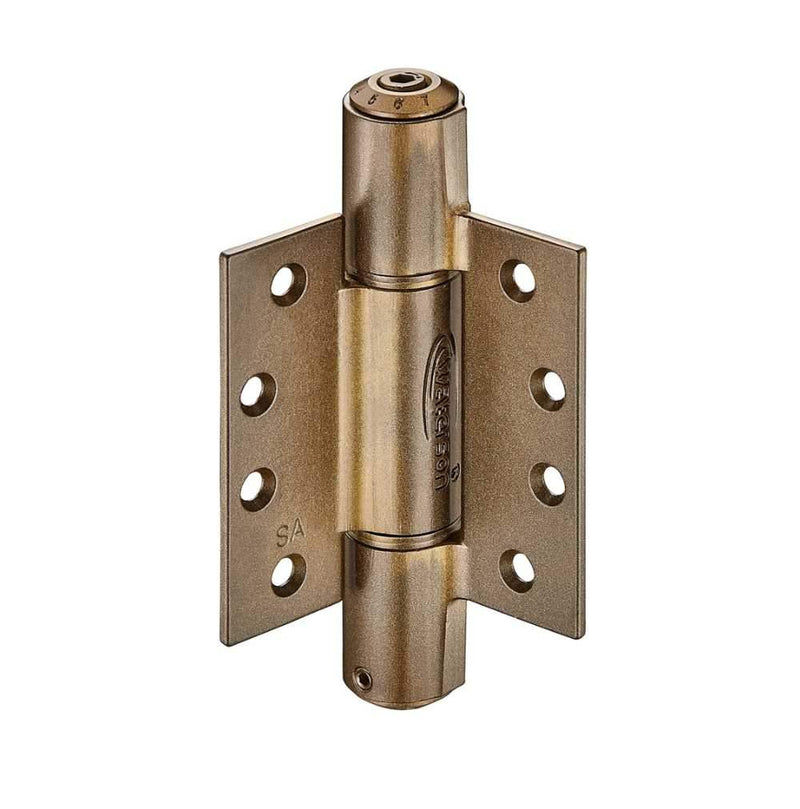

  Color/Finish	Satin Brushed,Black,Gold,ORB
  Combination/Quantity	DS.HA,2 Pack
