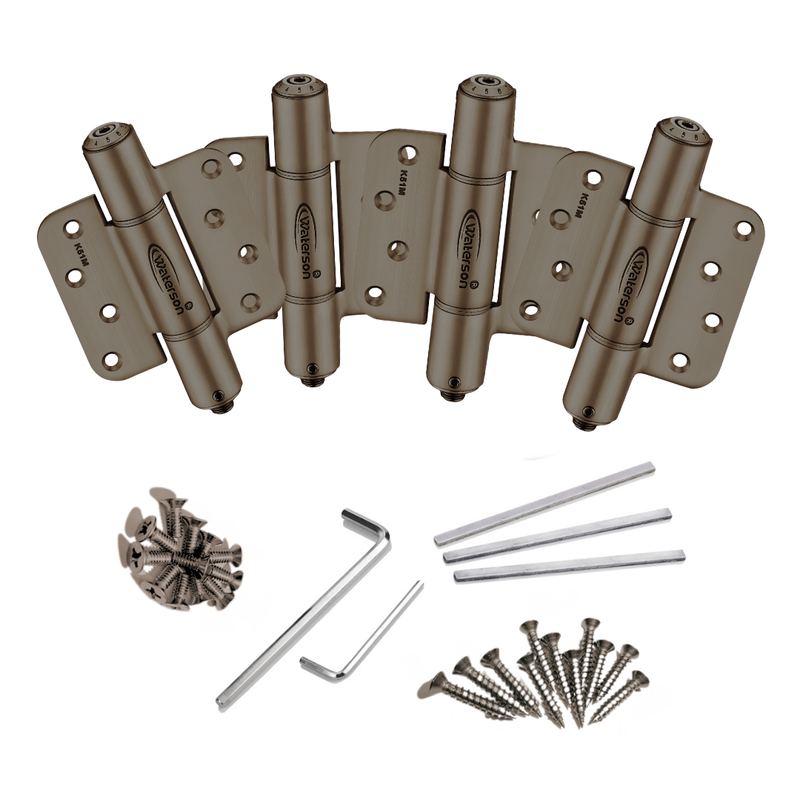

4pcs Hydraulic 5/8 Radius Interior Door Hinges | Fire Rated | 4x4 | 8ft | 330 lbs | 1 3/8” - 1 3/4” Thick | SS304 | Zigzag | K51M-400Z-B4-58R

If you need anti slam door hinges that control speed, eliminate hard impact, and stay compliant under daily commercial use, these hydraulic hinges for doors gives you the adjutable tension and no overhead hardware.

Waterson anti slam hinges function as door closure hinges with a hydraulic damper, giving you predictable closing performance for interior 4x4 full-mortise doors up to 330 lbs.

TALK TO SALES FIRST - NON REFUNDABLE

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

  • Bedroom Door

  • Bathroom Door

  • Front Door

  • Garage Door

  • Residential Door

  • Interior Use

  • Zigzag Screw Pattern

  Product Description and Features

  • Apply for door open ≤ 120°

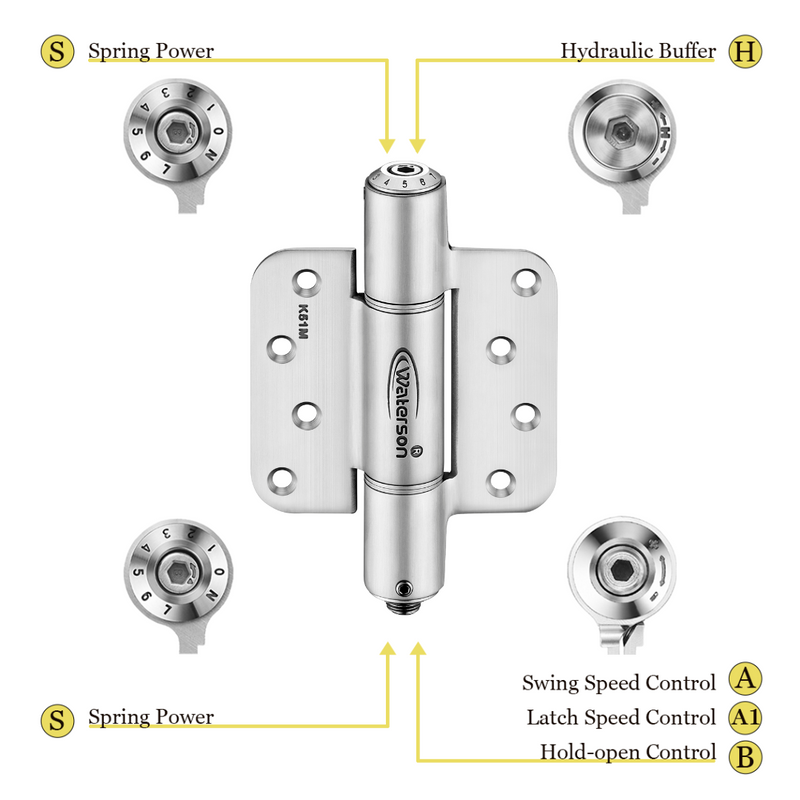

  • Fully adjustable closing force and speed according to environment needs

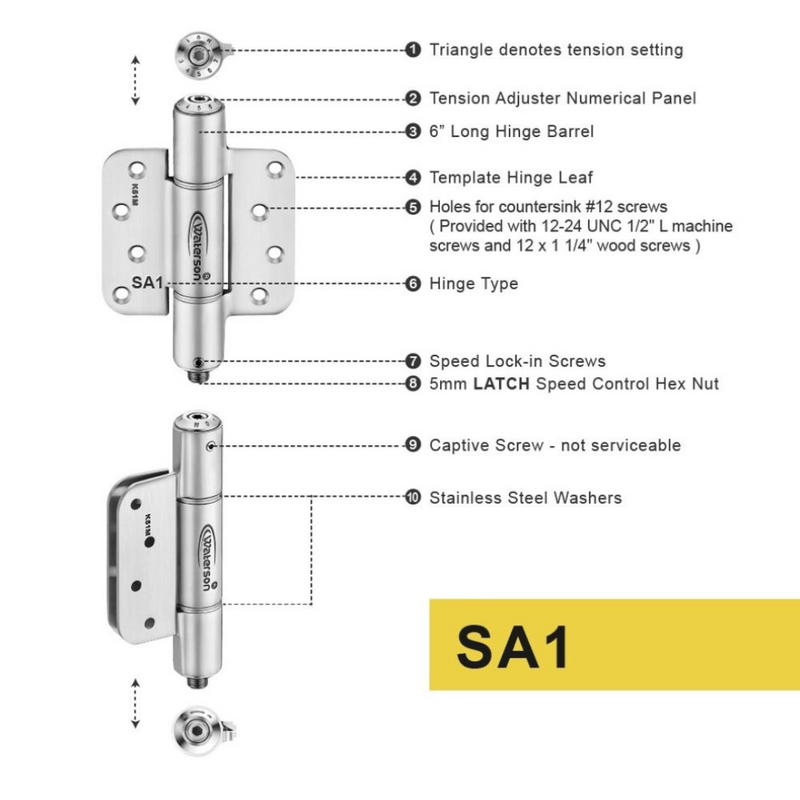

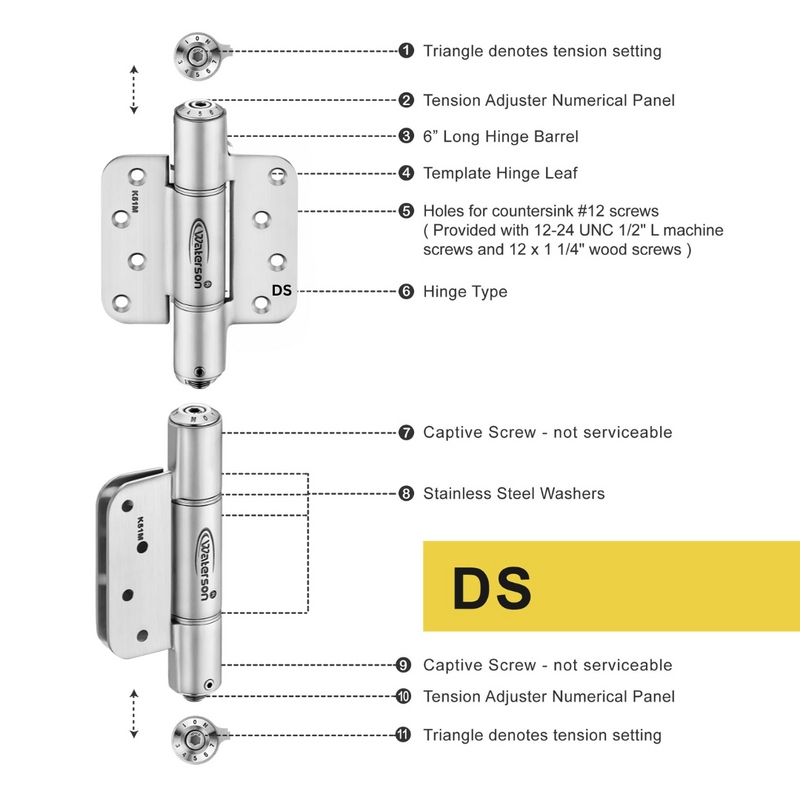

  • Numerical adjustment panel on hinge end to set up precise tension
  • Include both mechanical and hydraulic mechanism supporting quiet close needs
  • Aesthetically pleasing compared to door closers -- without obtrusive arm

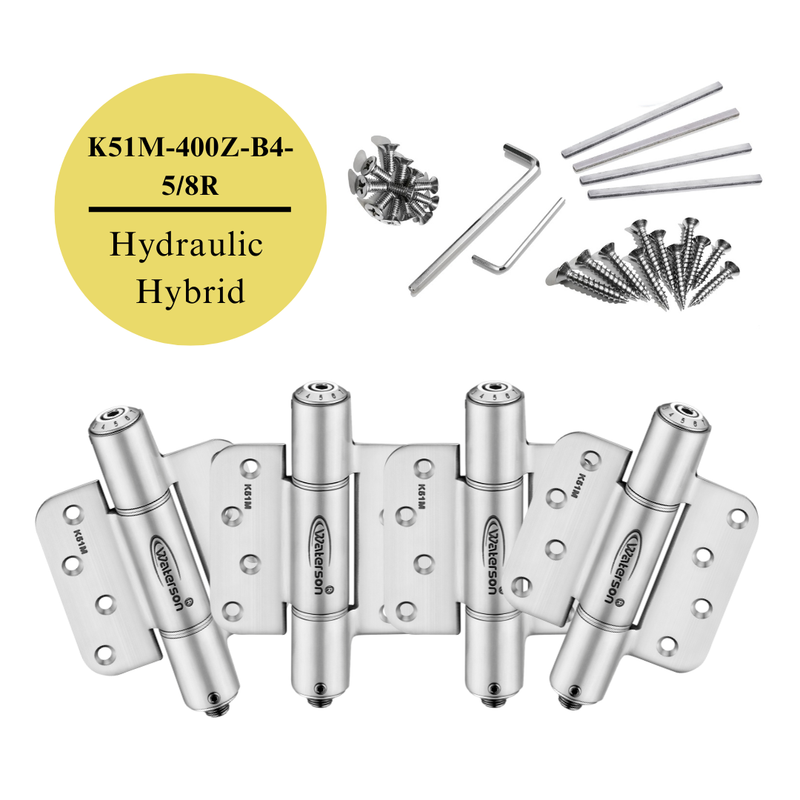

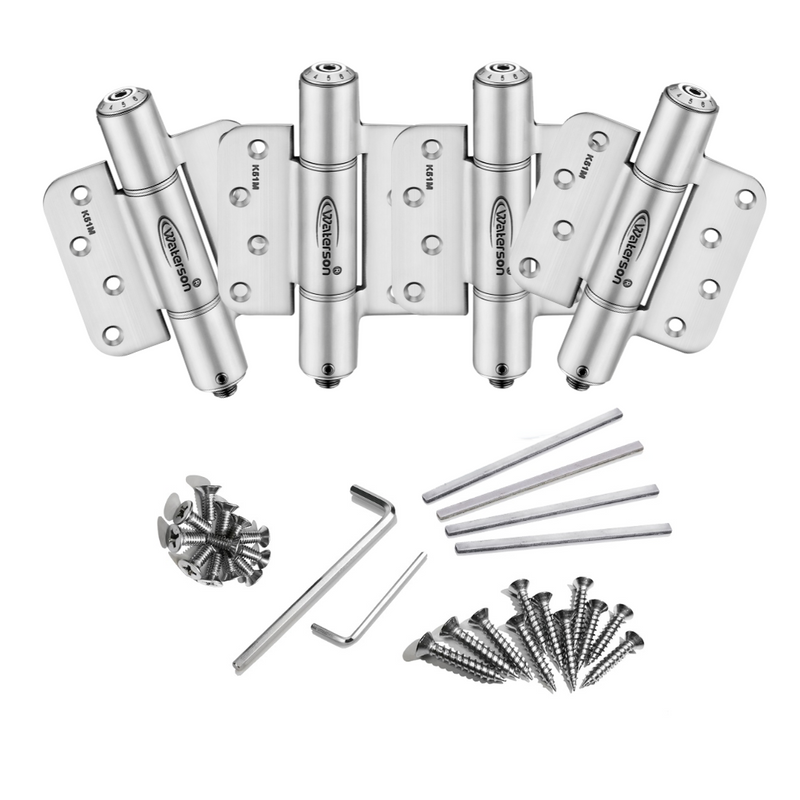

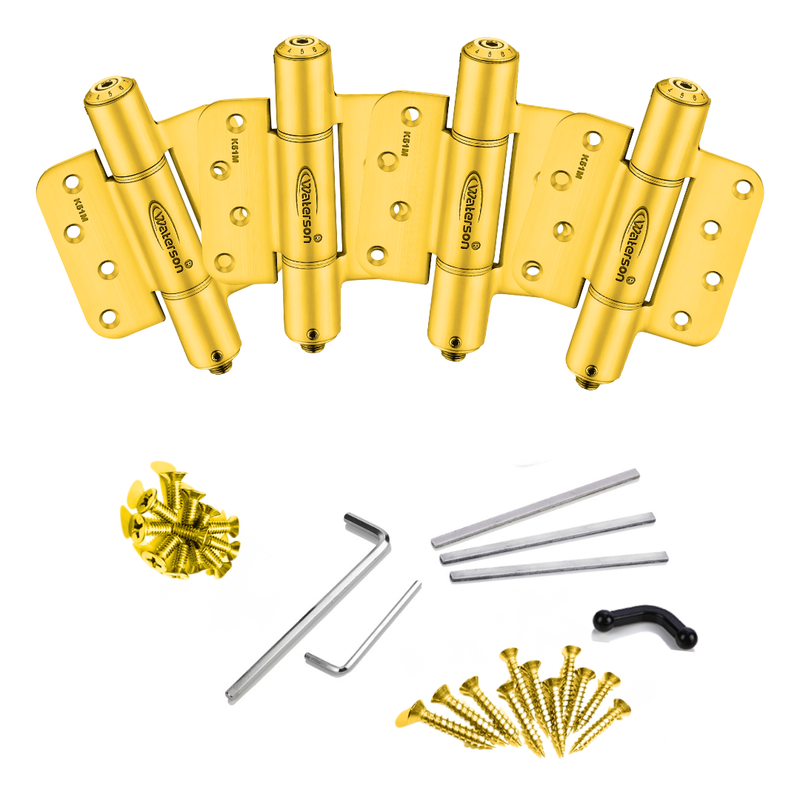

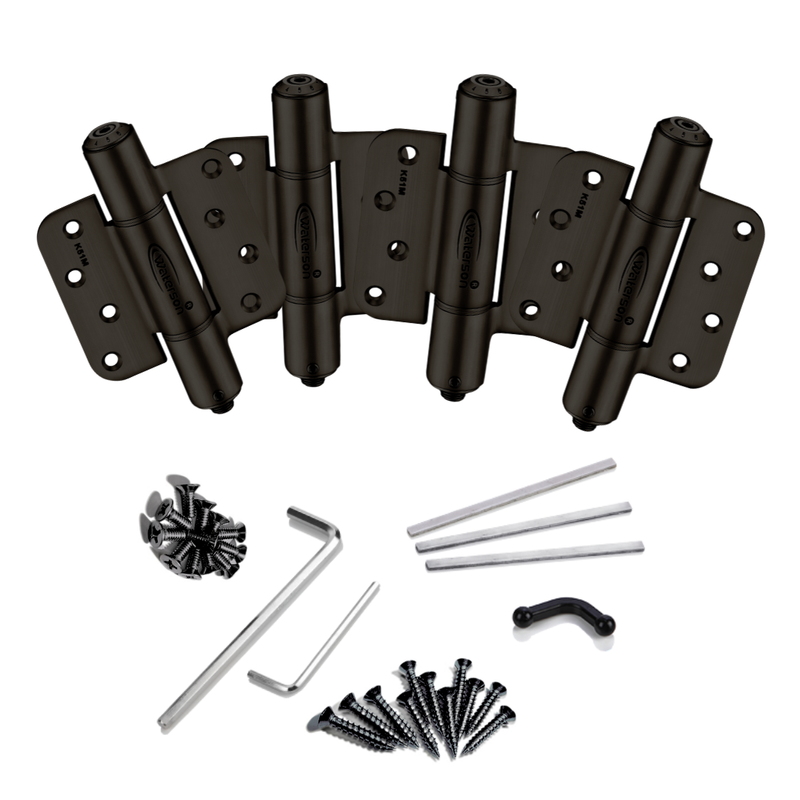

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed

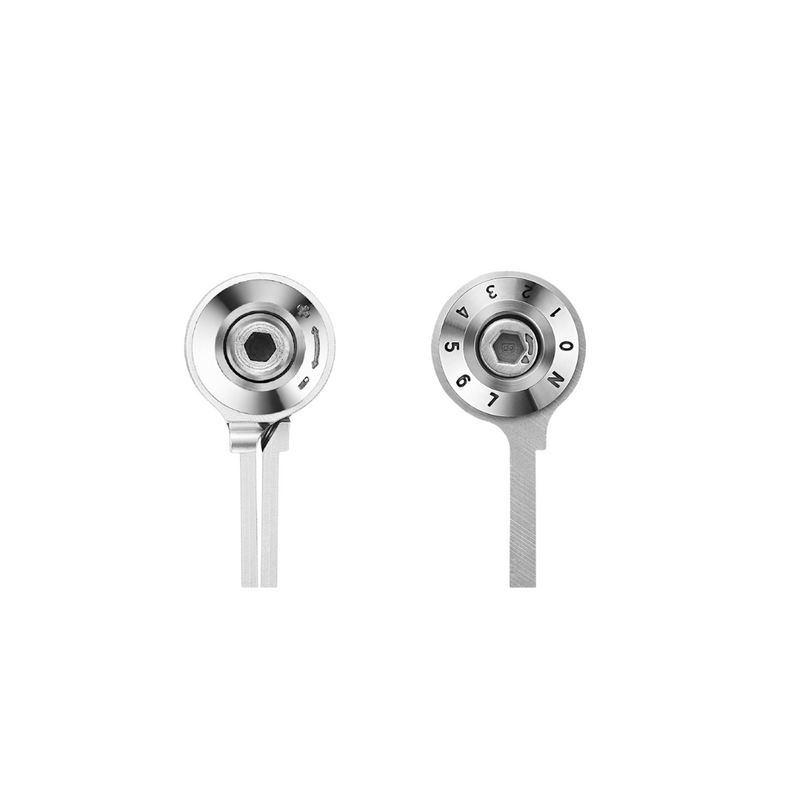

  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

  • ANSI A156.17 Grade 1: one million cycle testing
  • ANSI A156.7 Template Hinge : 4” x 4”
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

•

  Product SKU	K51M-400Z-B4-5/8R
  Hinge Type	Full Mortise, 4 Inch x 4 Inch
  Hinge Material	Stainless Steel
  Door Weight	Up to 330lbs
  Approx Door Size	1150mm W x 2200mm H (4ft x 8ft)
  Door Thickness	1 3/8"
  Self-closing	o
  Fluid Motion	o
  Hold-open	x
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment

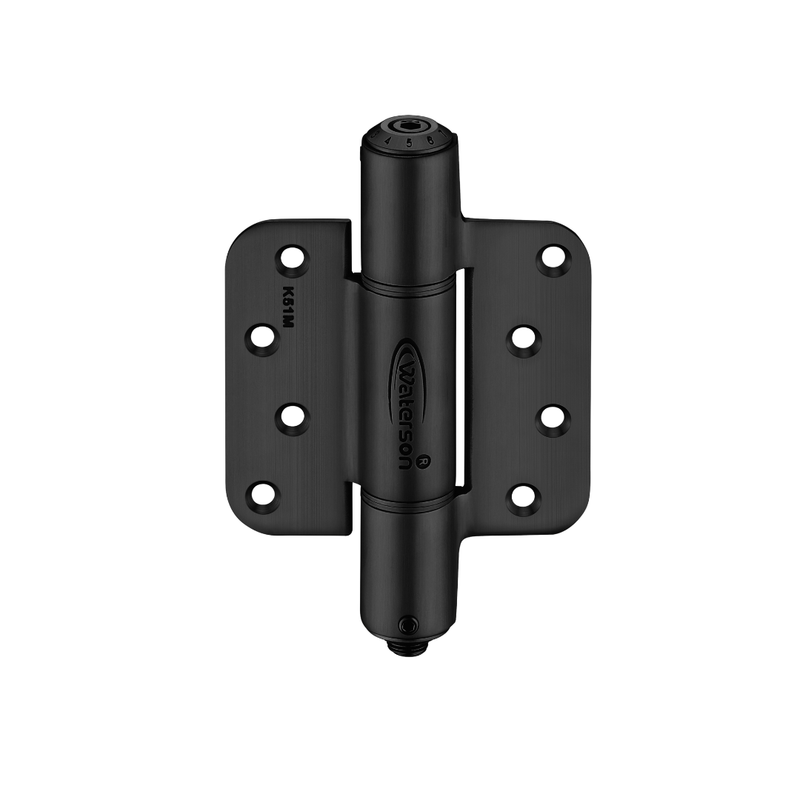

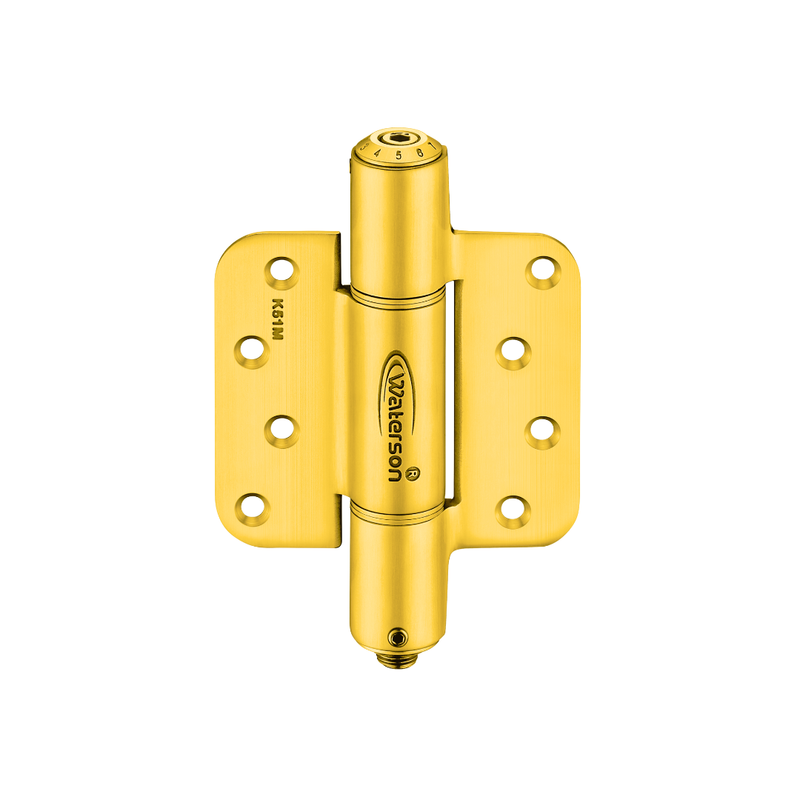

  Color/Finish	Satin Brushed,Black,Gold,ORB
  Combination/Quantity	DS.HA.SA.SA1,3 Pack
  Hinge Gauge	0.130"
