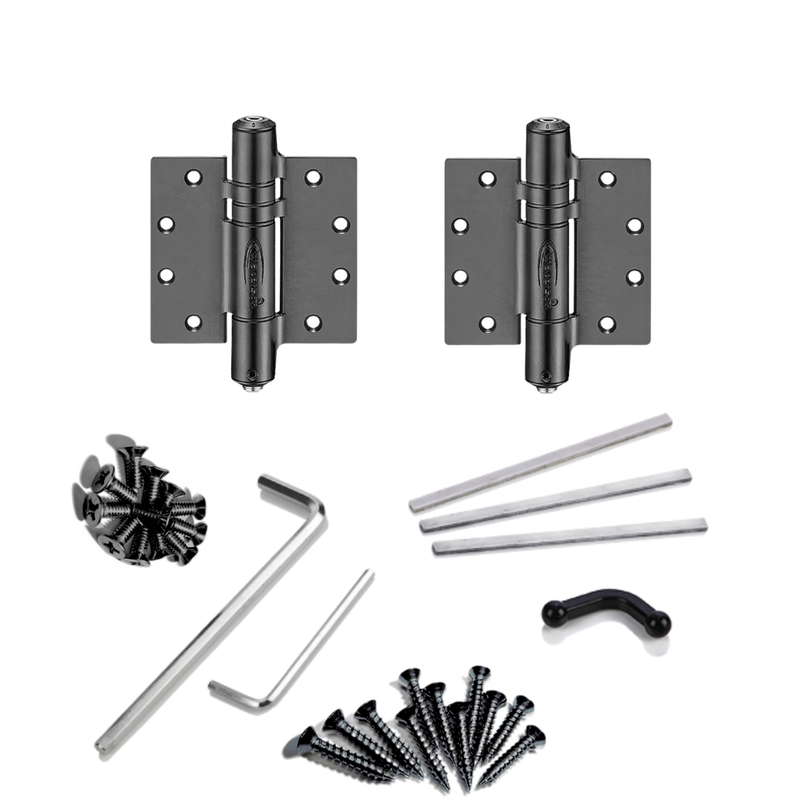

K51M-450-A2 | Mechanical Adjustable Gate Closer Hinges | 4.5” x 4.5” | Heavy Duty Stainless Steel | 2 Pack
Original price $266.39 - Original price $304.39
$266.39 - $304.39
Current price $266.39
Attention: Special finishes (US4) is non-refundable
- Court Rooms

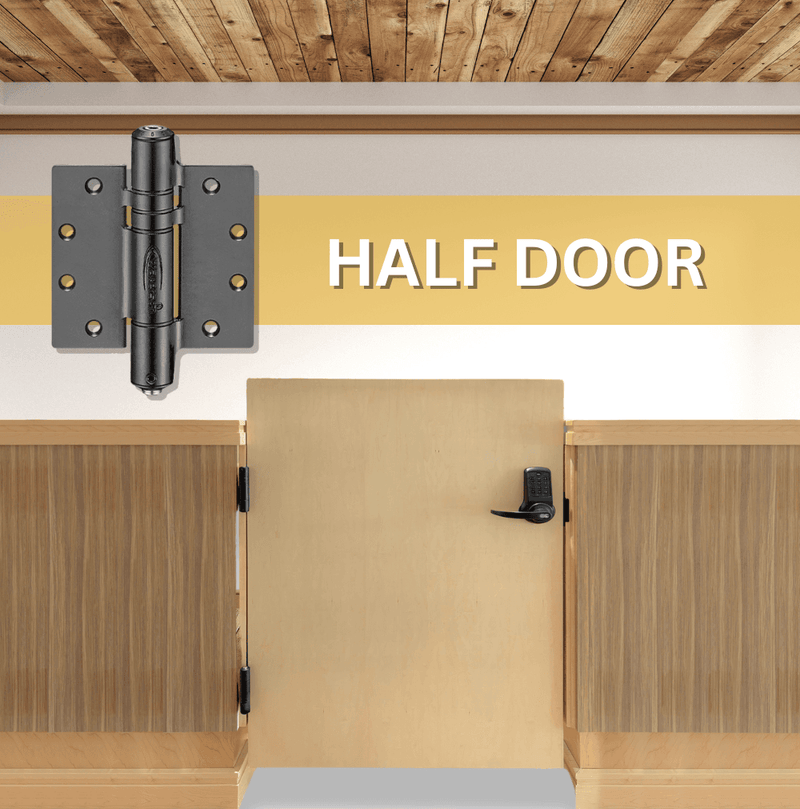

- Half Door
- Cafe Door
- Heavy Duty
- Office Door

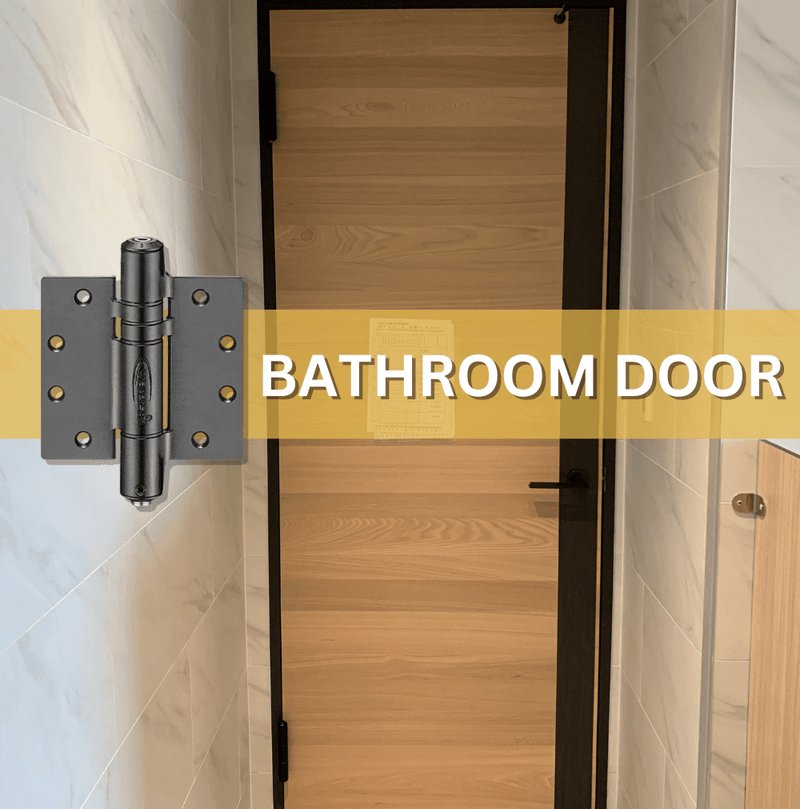

- Interior door
- Exterior door
Product Description and Features
- Fully adjustable closing force and speed according to environment needs

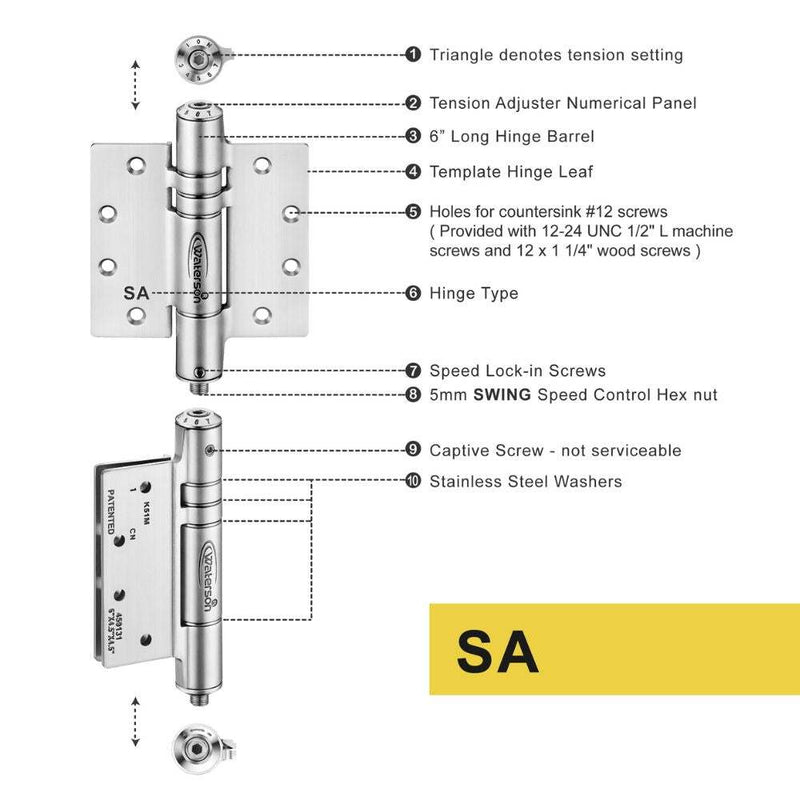

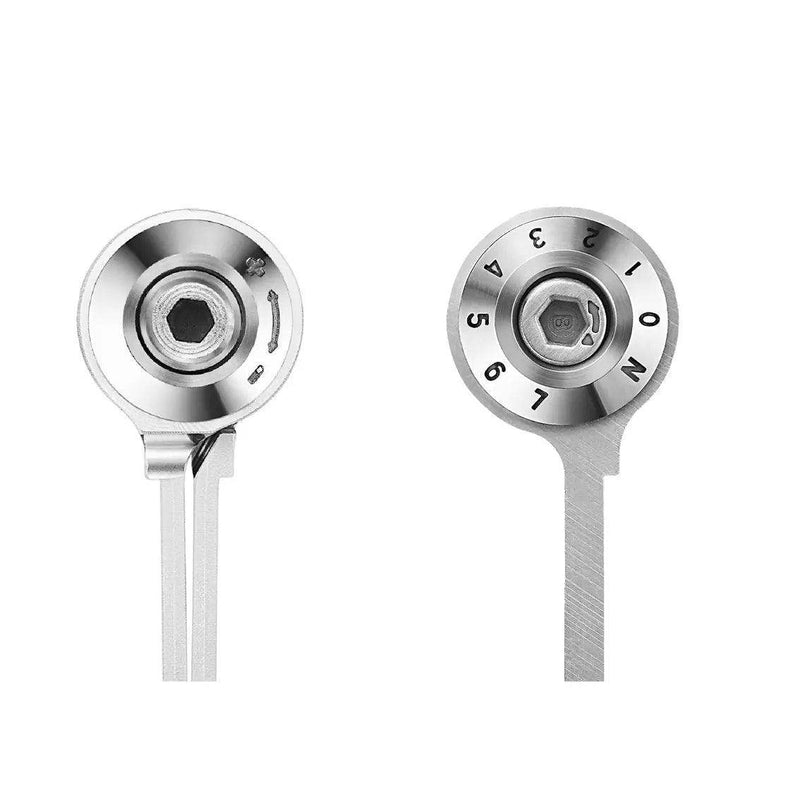

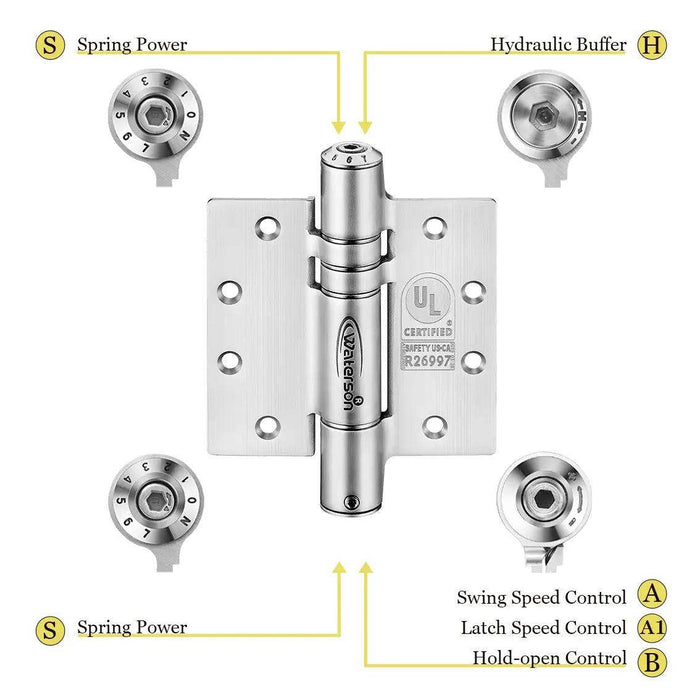

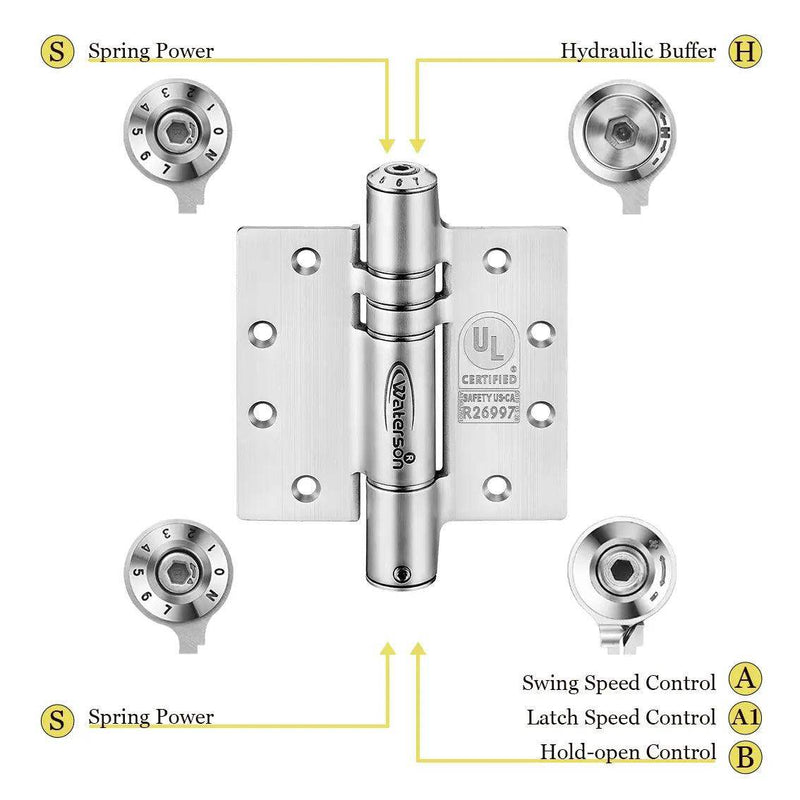

- Numerical adjustment panel on hinge end to set up precise tension
- Mechanical-only mechanism supporting heavy duty and fully exterior
- Aesthetically pleasing compared to door closers -- without extrusive arms
- UL-certified cycle testing ensures many years of low maintenance.

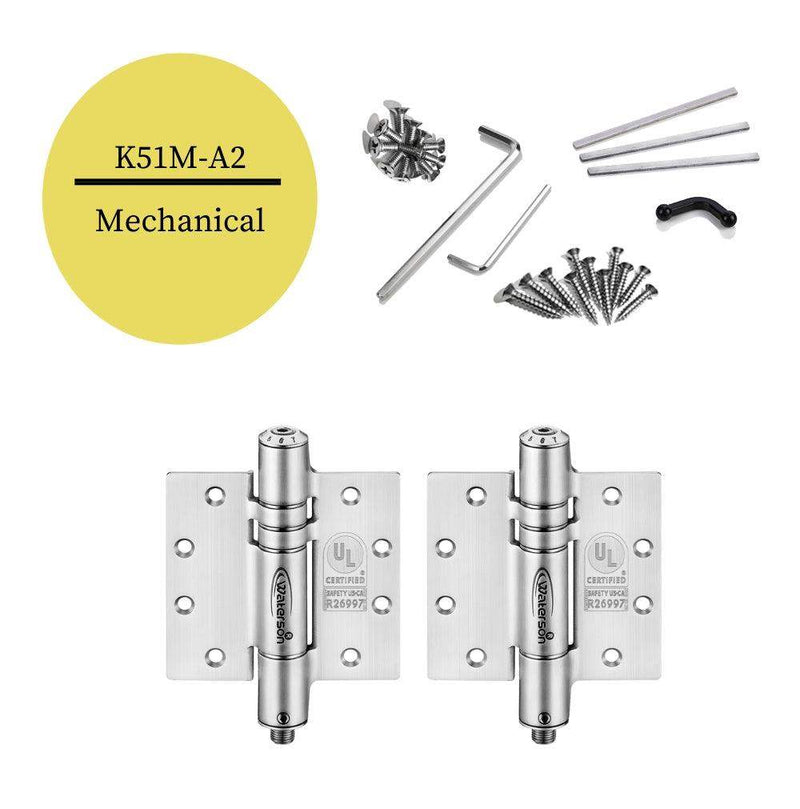

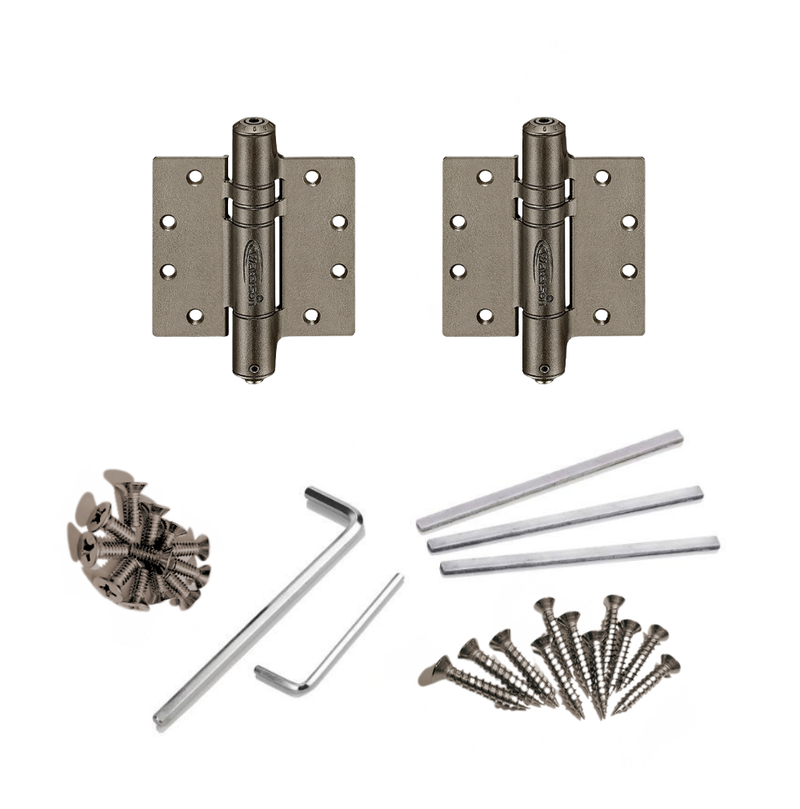

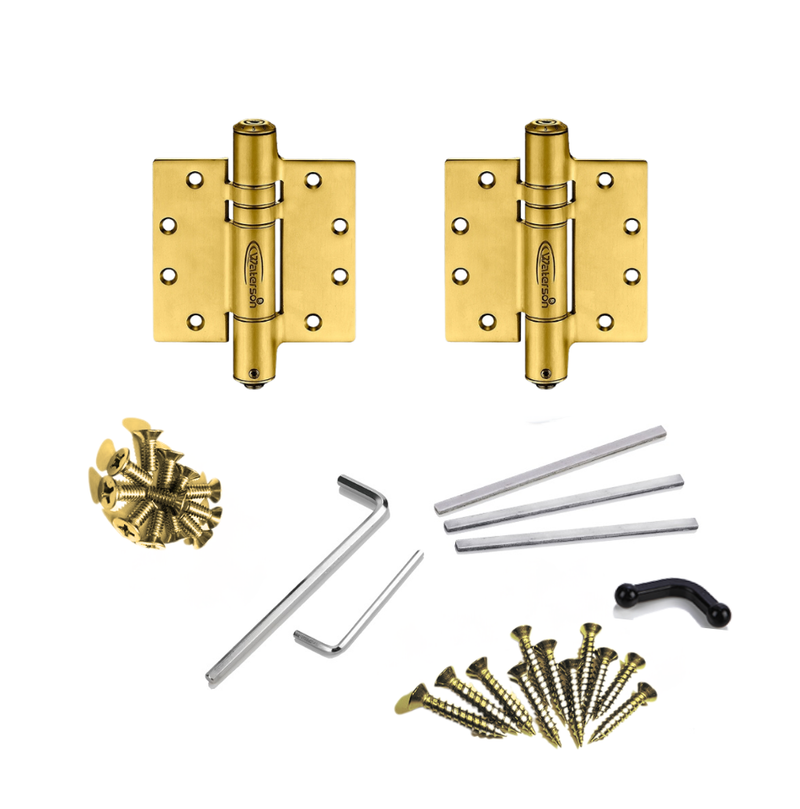

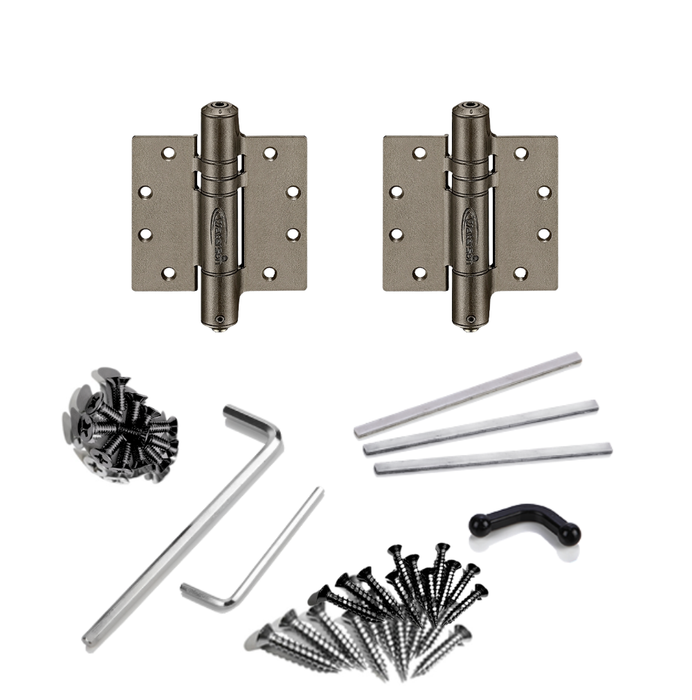

- Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. The pack contains five (5) spares as well.
- Two steel adhesive shims for gap adjustment between door and frame as needed
- Tension Crook: Keeps hinge open during installation
- 5mm & 3mm hex allen wrenches
- ANSI A156.17 Grade 1 : one million cycle testing

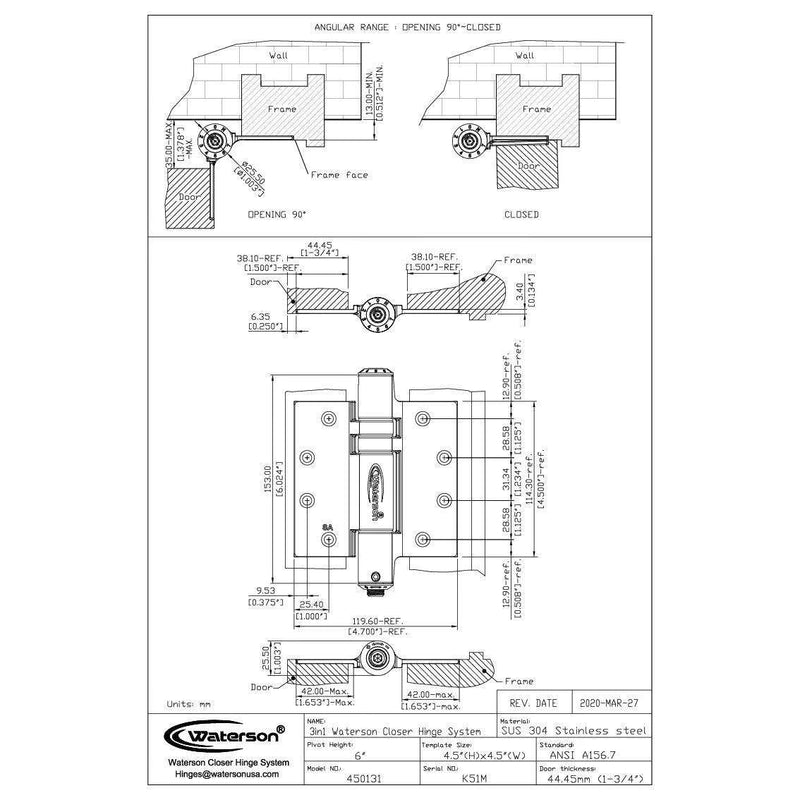

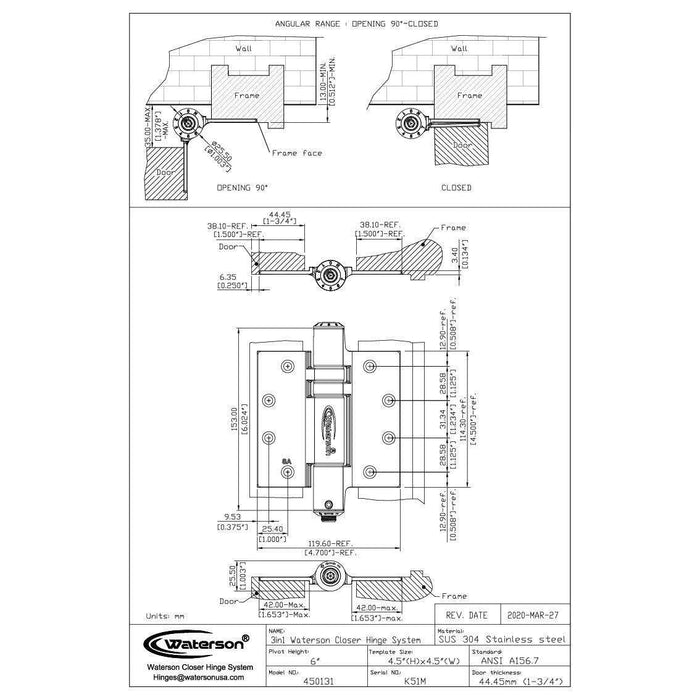

- ANSI A156.7 Template Hinge : 4.5" x 4.5"
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
- ADA Force : opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12'
- ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

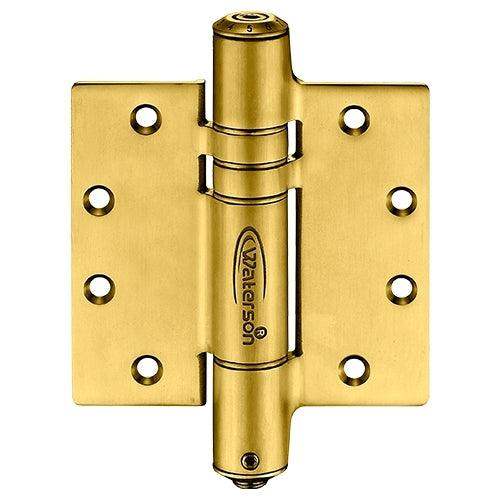

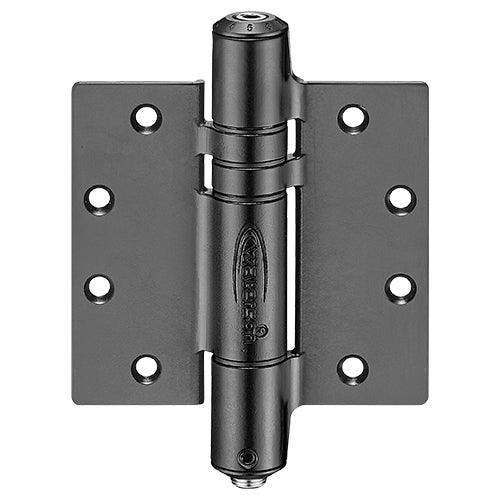

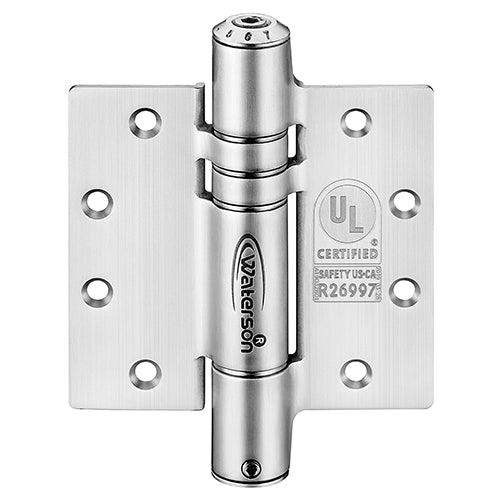

Product SKU K51M-450-A2 Hinge Type Full Mortise, 4 1/2″ Inch x 4 1/2″ Inch Hinge Material Stainless Steel Door Weight Up to 150lbs Approx Door Size 4ft x 6ft Door Thickness 1 ¾” (40-50 mm) Self-closing o Fluid Motion x Hold-open x Fixing Method Screw-On, only spot weld AFTER speed adjustment Color/Finish Satin Brushed,Black,Gold,ORB Combination/Quantity SA.SA1, 2 Pack
