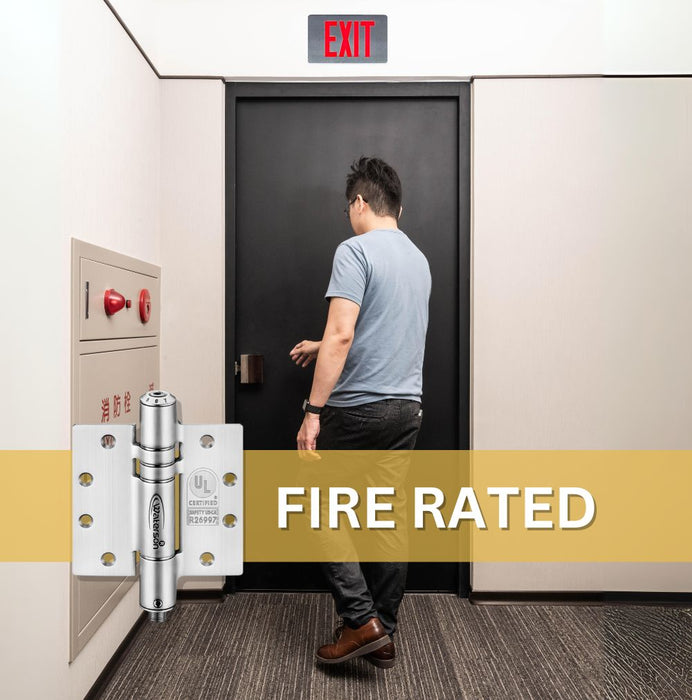

K51M-450-A3 | Mechanical Adjustable Gate Door Hinges | 4.5” x 4.5” | Fire-rated Stainless Steel | 3 Pack - Waterson Multi-function Closer Hinge

No Slam Hinges | Fire Rated | Self Closing | SS304 | 7ft | K51M-450-A3 | 3 Pack

by selfclosing

$399.59 - $456.59
$399.59
$399.59 - $456.59
$399.59
Attention: Special finishes (US4) is non-refundable
  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO

  • Applications

    • Hotel Rooms
    • 3Hr Fire-rated
    • Fully Exterior
    • Arch Top
    • Heavy Duty
    • Courtyard Style

    Product Description and Features

    • Fully adjustable closing force and speed according to environment needs
    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • UL certified cycle testing ensures many years of low maintenance.

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

    Compliance Standards

    • ANSI A156.17 Grade 1 : one million cycle testing
    • ANSI A156.7 Template Hinge : 4.5" x 4.5"
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

  •

    Product SKU K51M-450-A3
    Hinge Type Full Mortise, 4 1/2″ Inch x 4 1/2″ Inch
    Hinge Material Stainless Steel
    Door Weight Up to 260lbs (75kg)
    Approx Door Size 1150mm W x 2200mm H (4ft x 7ft)
    Door Thickness 1 ¾” (40-50 mm)
    Self-closing o
    Fluid Motion x
    Hold-open x
    Fixing Method Screw-On, only spot weld AFTER speed adjustment
    Color/Finish Satin Brushed,Black,Gold,ORB
    Combination/Quantity SA.SA.SA1,3 Pack
