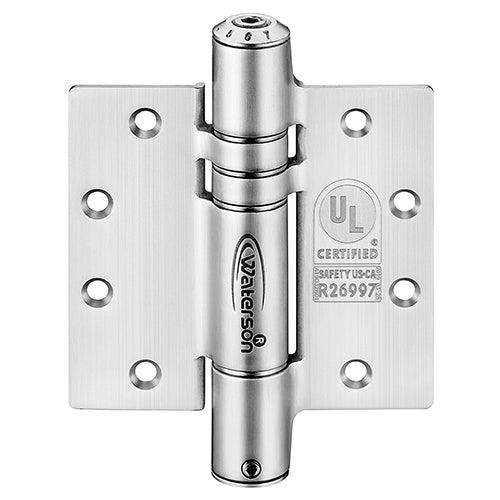

K51M-450-D3 | Heavy Duty Hydraulic Hybrid Self Closing Hinge with Hold Open | 4.5” x 4.5” | 304 Stainless Steel | 3 Pack
by selfclosing
Original price
$440.59
-
Original price
$497.59
Original price
$440.59
$440.59
-
$497.59
Current price
$440.59
Get the best of all worlds with our Waterson K51M-450-D3 self-closing hinge. It's in stock right now and offers superior speed control, adjustable power, and tension settings, as well as a hydraulic function and hold-open feature
Note: We currently have stock available! Simply send us a request!
- DESCRIPTION
- DETAILS
- SPECIFICATIONS
- VIDEO
-
Applications
- Offices
- Interior Use Only
- Frameless Glass Door

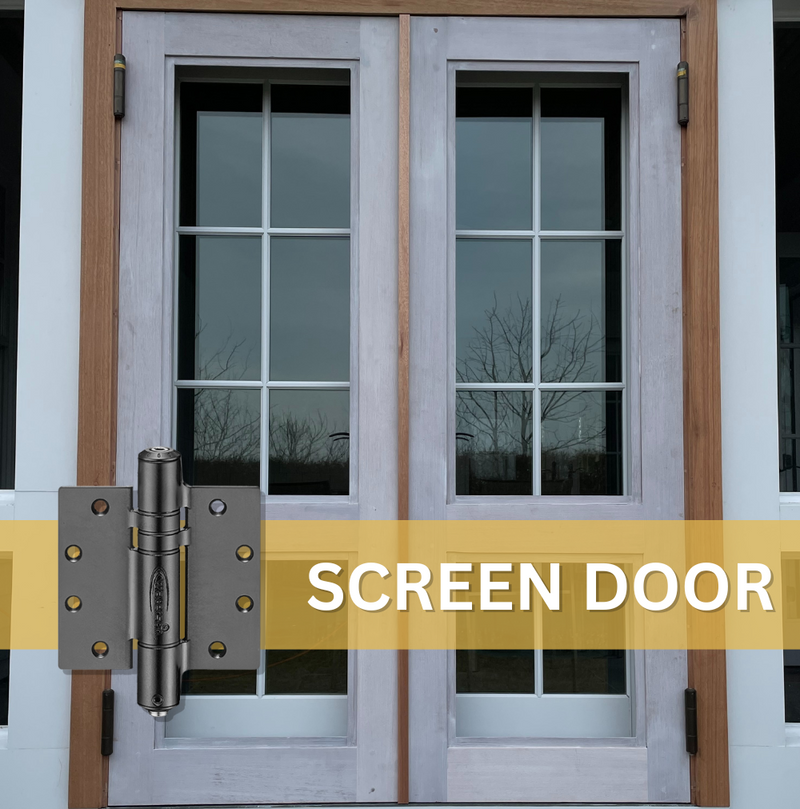

- French Style
- Quiet area
- Breezy environments
Product Description and Features
- Apply for door open ≤ 120°

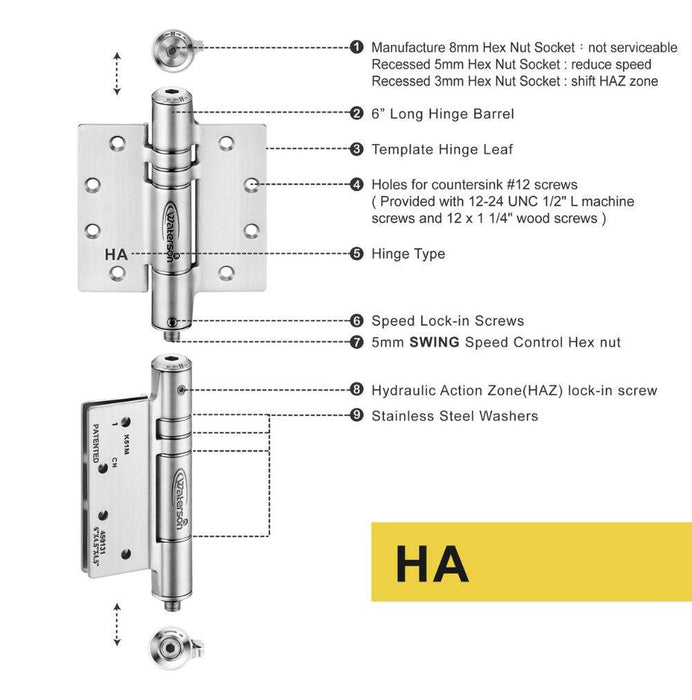

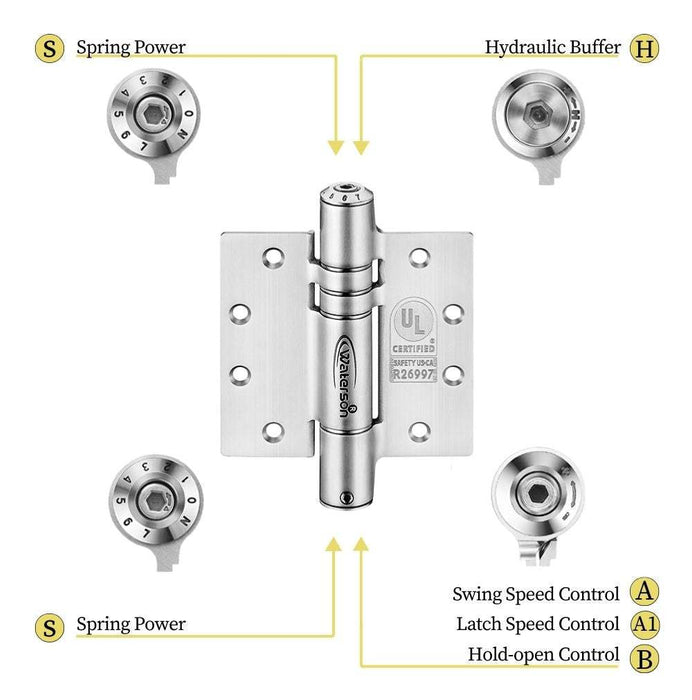

- Fully adjustable closing force and speed according to environment needs

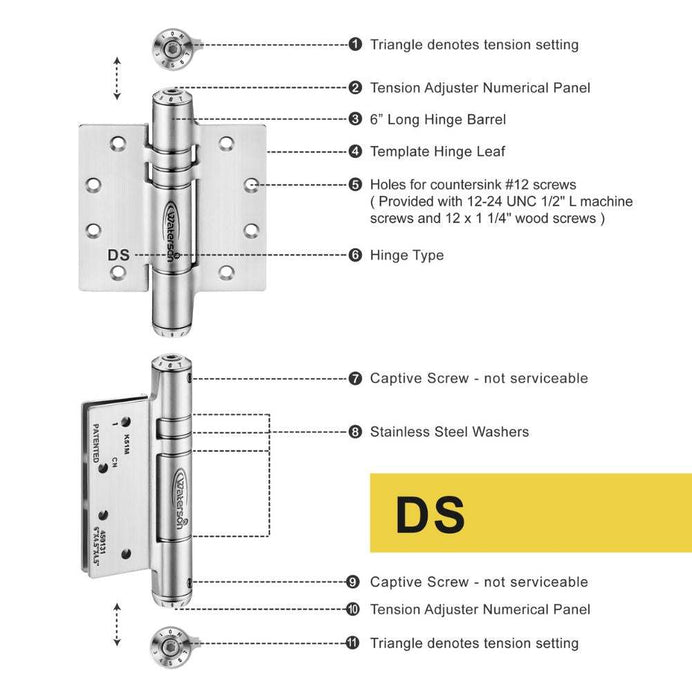

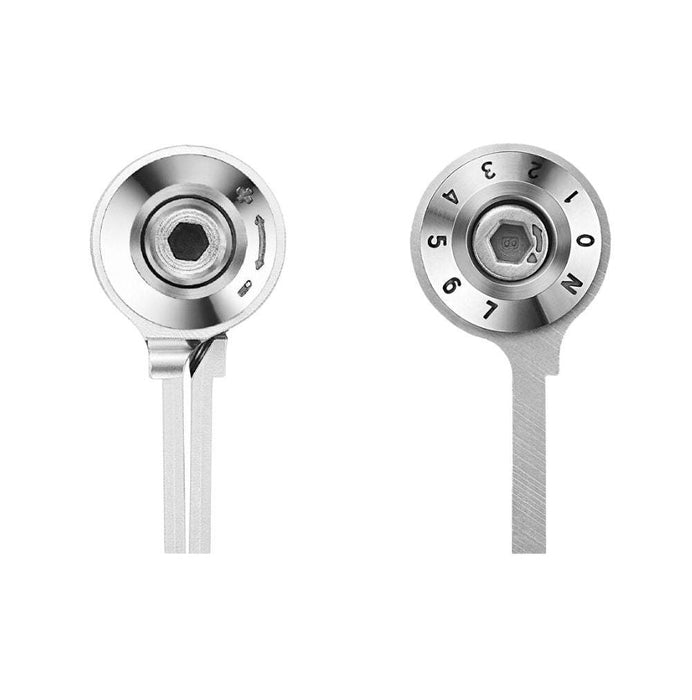

- Numerical adjustment panel on hinge end to set up precise tension
- Include both mechanical and hydraulic mechanism supporting quiet close needs
- Aesthetically pleasing compared to door closers -- without obtrusive arm
- Hold-open feature to keep door stay open at 90°
-

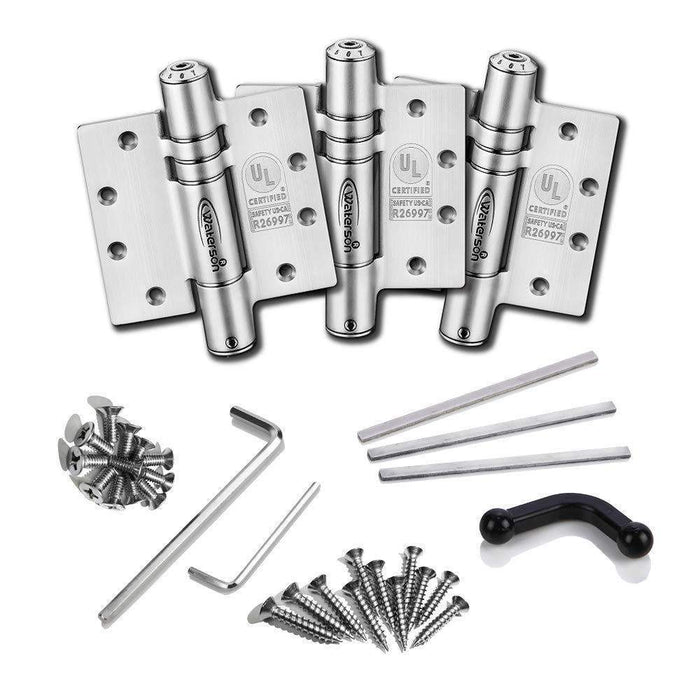

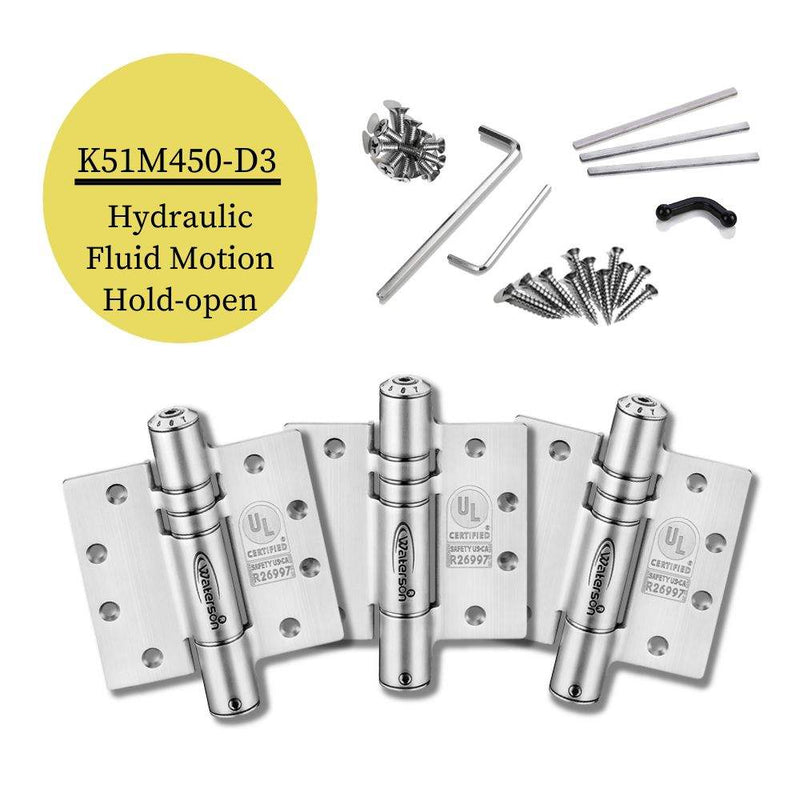

Installation Kits
- Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
- Three steel adhesive shims for gap adjustment between door and frame as needed
- Tension Crook: Keeps hinge open during installation
- 5mm & 3mm hex allen wrenches
Compliance Standards

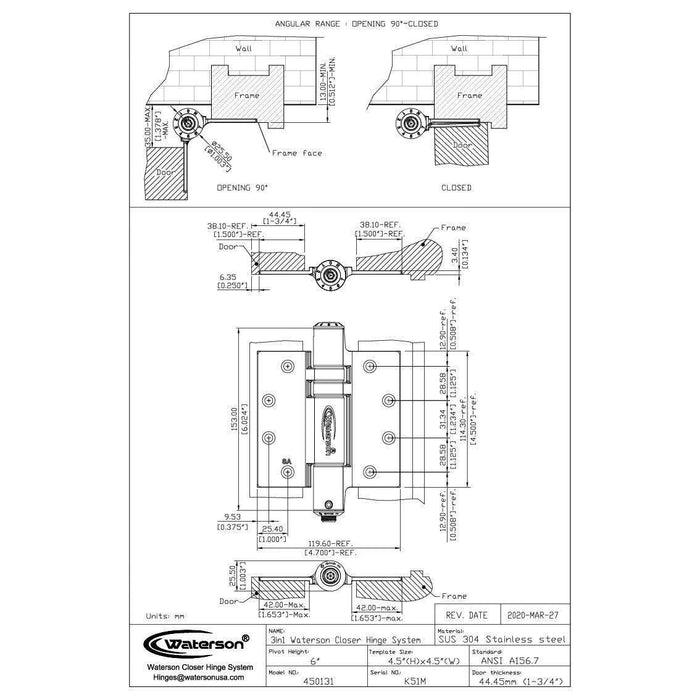

- ANSI A156.7 Template Hinge : 4.5” x 4.5”
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
- ADA Force : opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12°
- ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
-

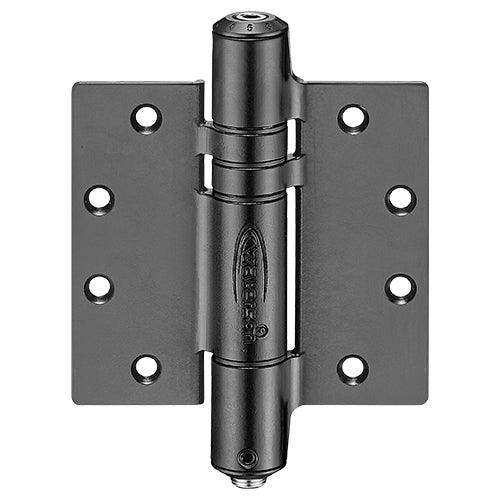

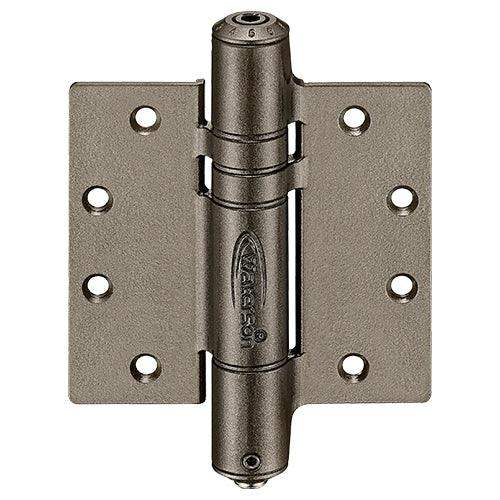

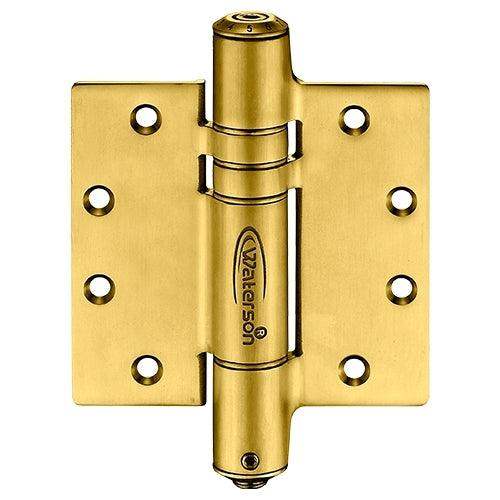

Product SKU K51M-450-D3 Hinge Type Full Mortise, 4 1/2Inch x 4 1/2Inch Hinge Material Stainless Steel Door Weight Up to 260lbs Approx Door Size 1150mm W x 2200mm H (4ft x 7ft) Door Thickness 1 ¾” (40-50 mm) Self-closing o Fluid Motion o Hold-open o Fixing Method Screw-On, only spot weld AFTER speed adjustment Color/Finish Satin Brushed,Black,Gold,ORB Combination/Quantity DS.HA.SB,3 Pack -
