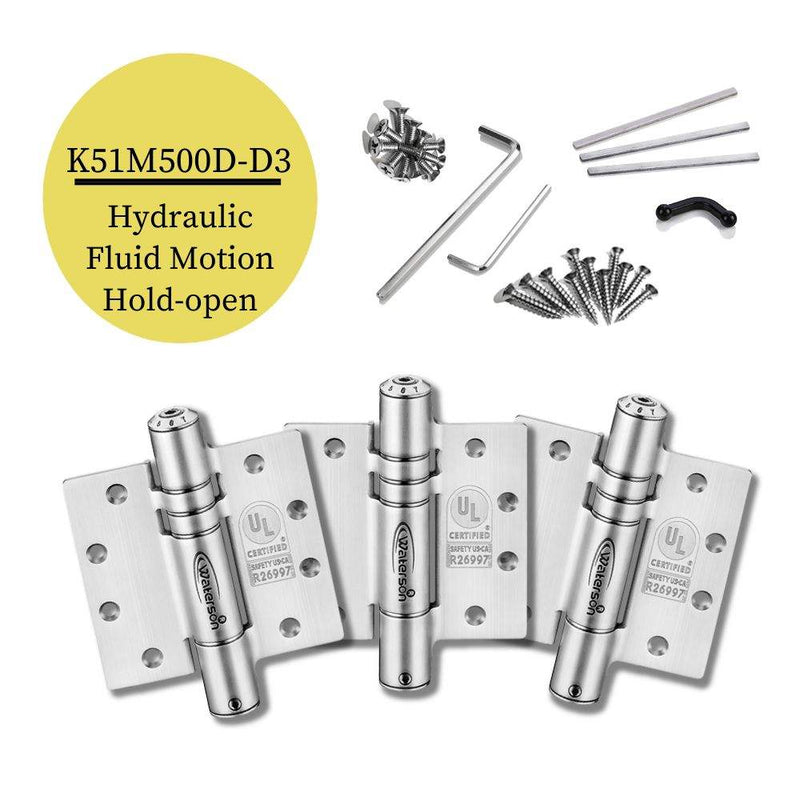

K51M-500D-D3 | Heavy Duty Hydraulic Hybrid Self Closing Hinge with Hold Open | 5” x 5” | Stainless Steel | 3 Pack

Original price $497.59 - Original price $554.59
Original price
$497.59
$497.59 - $554.59
Current price $497.59

Get the best of all worlds with our Waterson K51M-450-D3 self-closing hinge. It's in stock right now and offers superior speed control, adjustable power, and tension settings, as well as a hydraulic function and hold-open feature

Note: We currently have stock available! Simply send us a request!

Talk to Sales
  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO
  • Applications

    • Hotel Rooms
    • Interior Use Only
    • Fully Exterior
    • Arch Top
    • Heavy Duty
    • Courtyard Style

    Product Description and Features

    • Apply for door open ≤ 120°

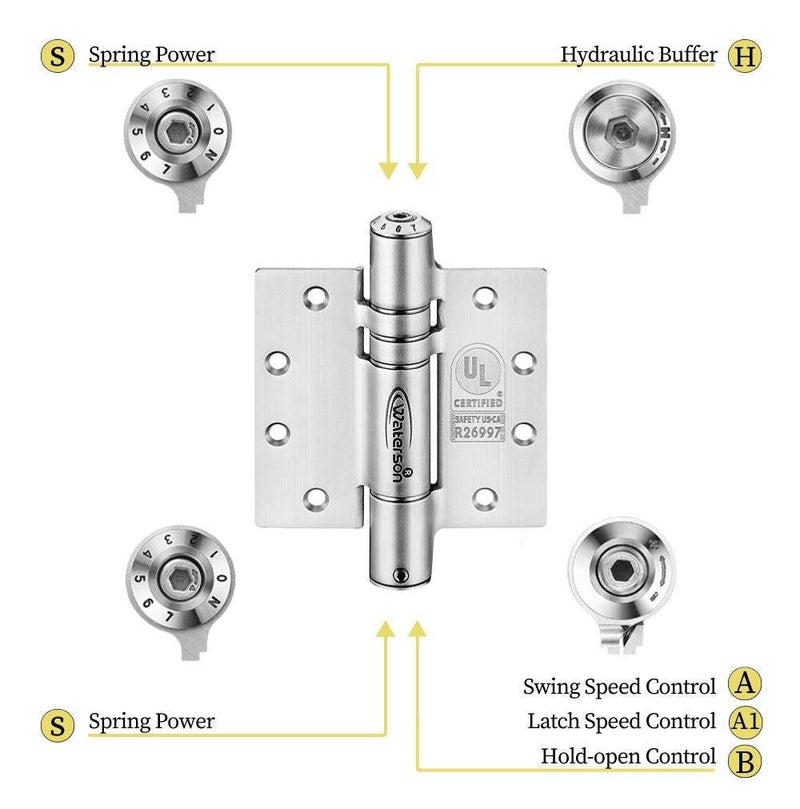

    • Fully adjustable closing force and speed according to environment needs

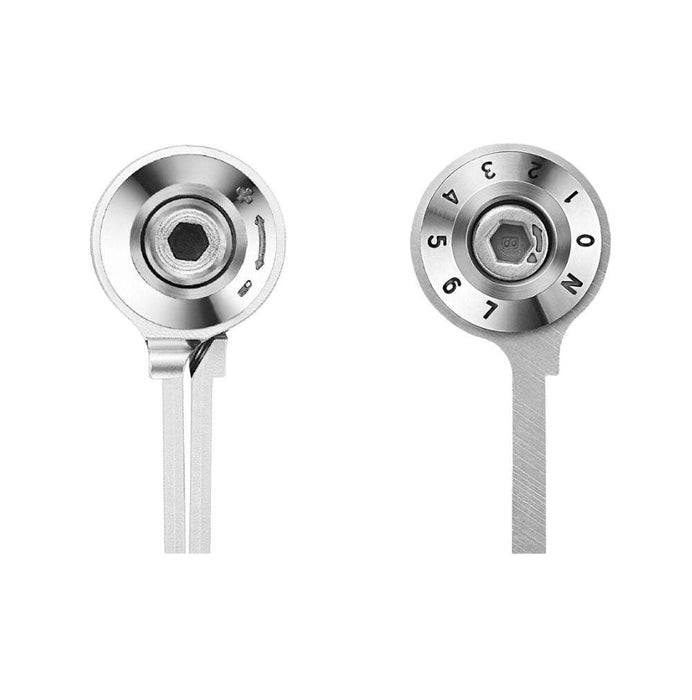

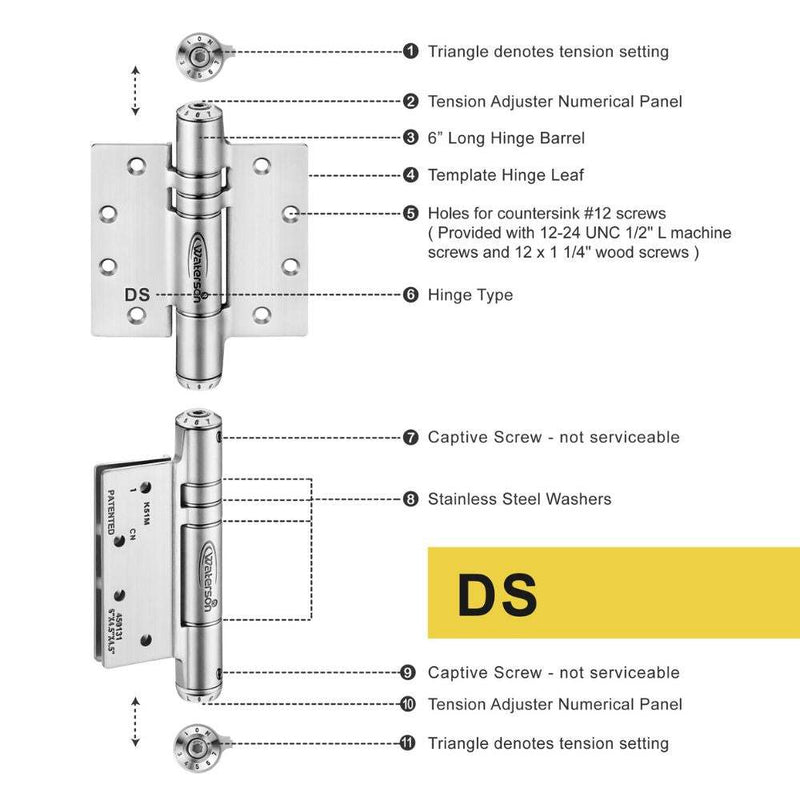

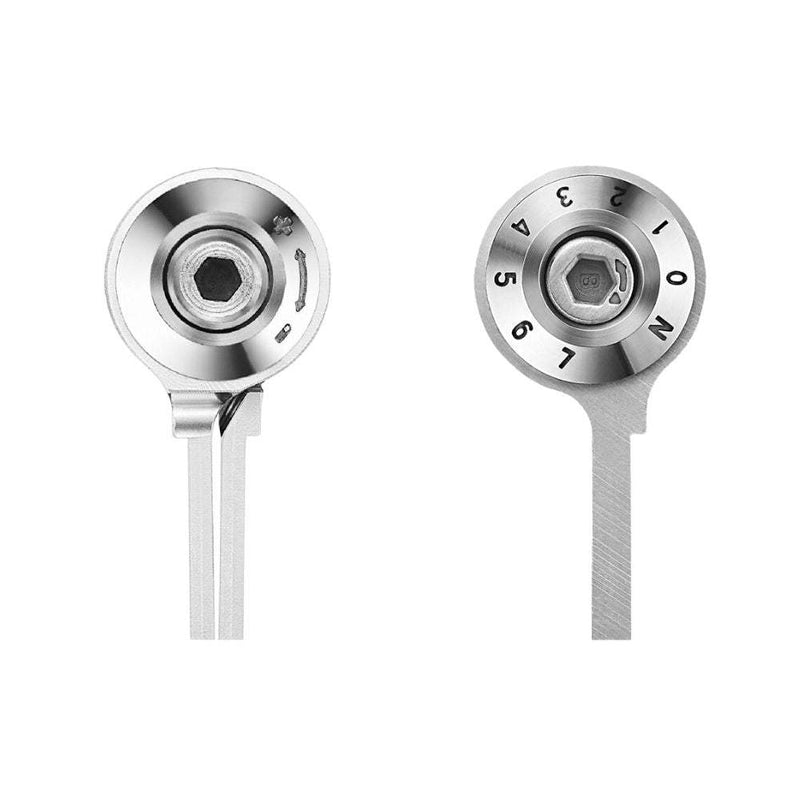

    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • UL certified cycle testing ensures many years of low maintenance.

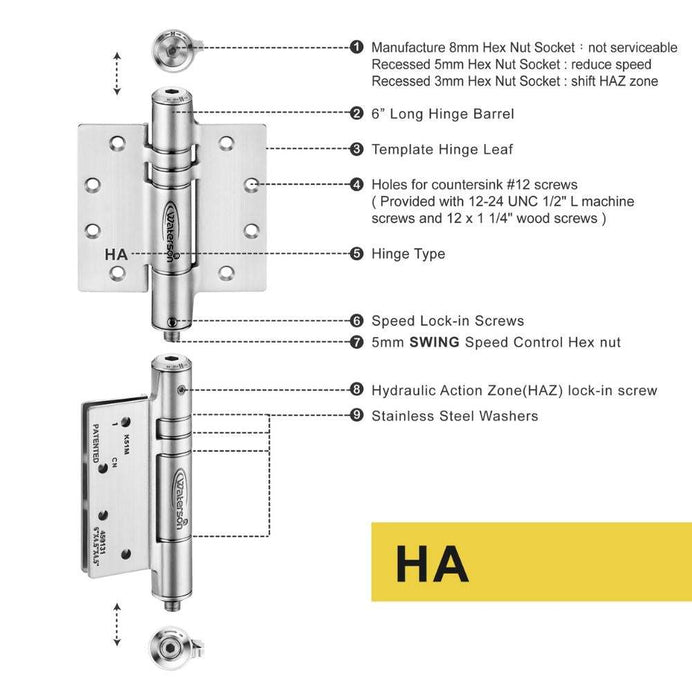

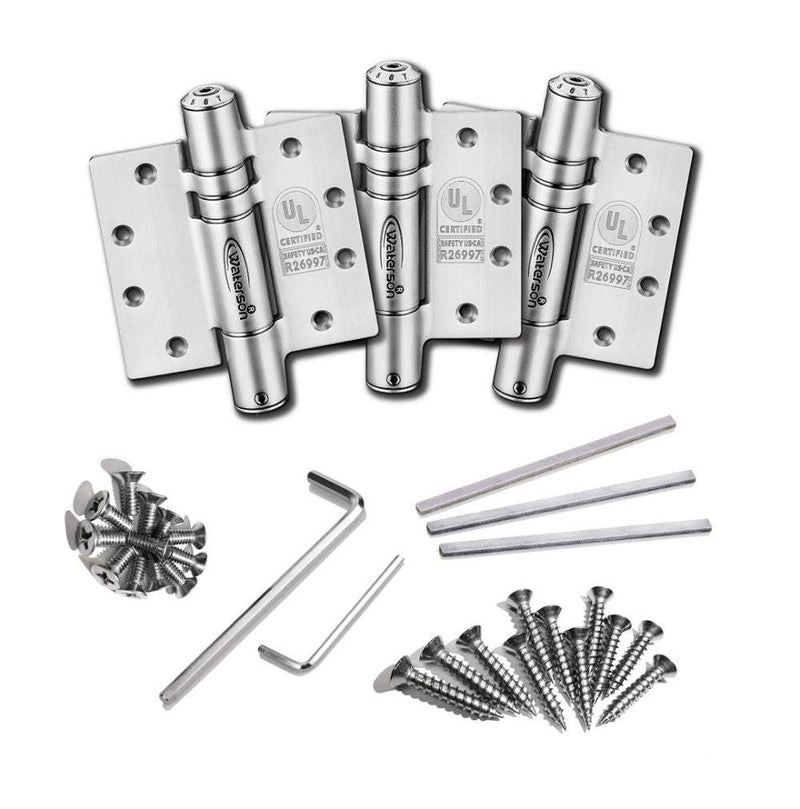

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

    Compliance Standards

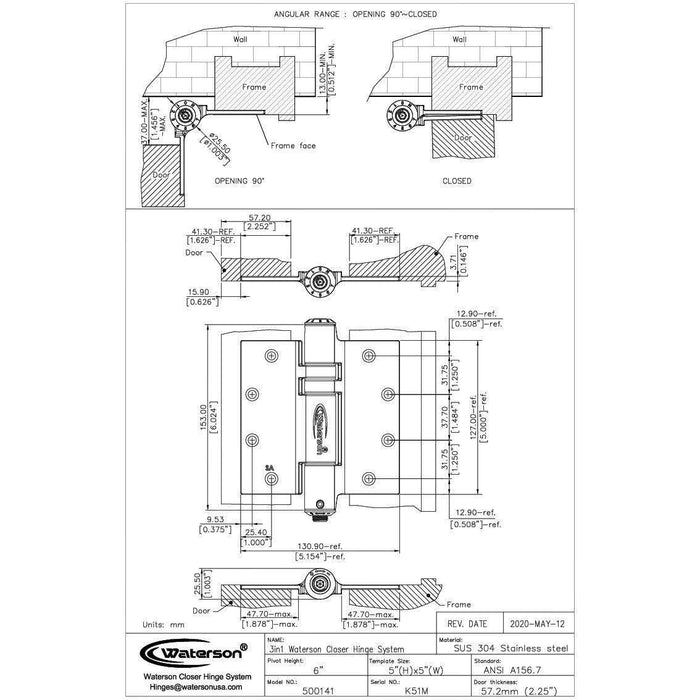

    • ANSI A156.7 Template Hinge : 5” x 5”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
  •

    Product SKU K51M-500D-D3
    Hinge Type Full Mortise, 5 Inch x 5 Inch
    Hinge Material Stainless Steel
    Door Weight Up to 260lbs
    Approx Door Size 1150mm W x 2200mm H (4ft x 7ft)
    Door Thickness 1 ¾” ~ 2 ½” (45-65 mm)
    Self-closing o
    Fluid Motion o
    Hold-open o
    Fixing Method Screw-On, only spot weld AFTER speed adjustment

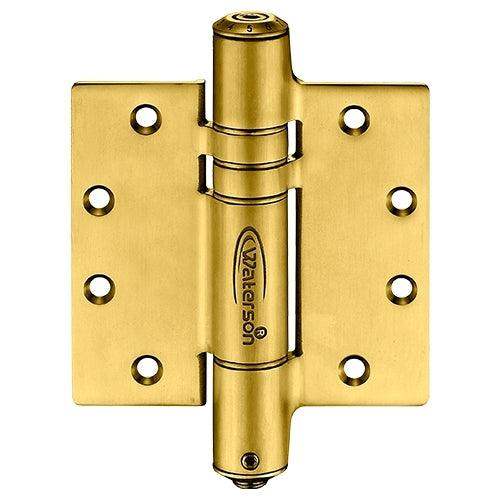

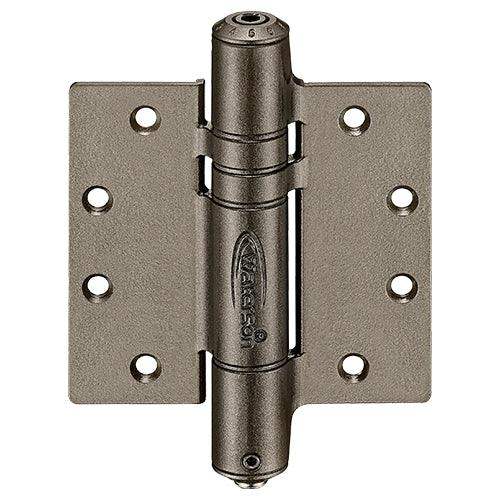

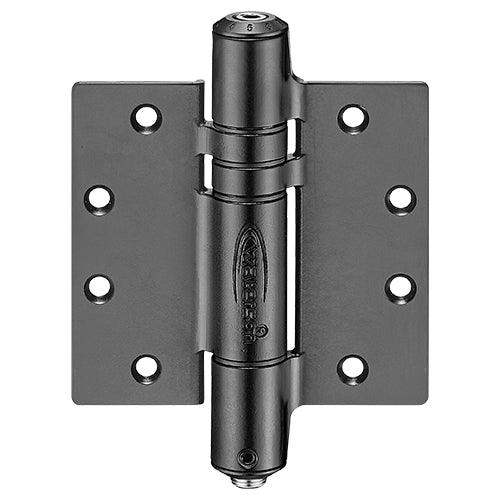

    Color/Finish Satin Brushed,Black,Gold,ORB
    Combination/Quantity DS.HA.SB,3 Pack





  • Youtube

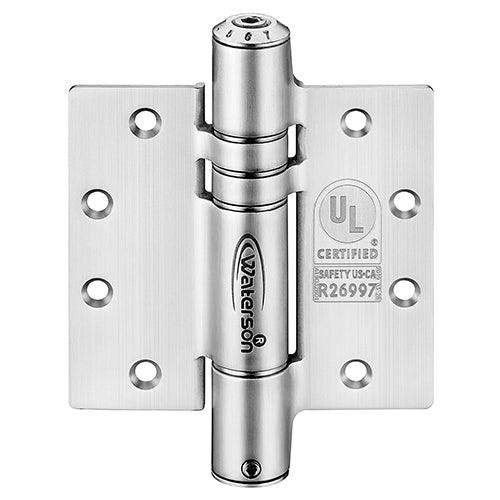

Color: Satin Stainless Steel-US32D
