3pcs Hydraulic Hinges Heavy Duty | Hold Open | 5x5 | 7ft | 260 lbs | 1 ¾” to 2 ¼” Thick | SS304 | K51M-500D-D3

$497.59 - $554.59
$554.59
$497.59 - $554.59
$554.59

For projects where overhead closers aren’t feasible, this hydraulic hinge door closer gives you controlled closing through an adjustable spring system and hydraulic damping.

Waterson hydraulic hinge door closer maintains soft-close motion and a stable hold-open point even on heavy 7-ft commercial doors.

Get the best of all worlds with our Waterson K51M-450-D3 self-closing hinge. It's in stock right now and offers superior speed control, adjustable power, and tension settings, as well as a hydraulic function and hold-open feature

Note: We currently have stock available! Simply send us a request!

  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO

  • Applications

    • Hotel Rooms
    • Interior Use Only
    • Fully Exterior
    • Arch Top
    • Heavy Duty
    • Courtyard Style

    Product Description and Features

    • Apply for door open ≤ 120°
    • Fully adjustable closing force and speed according to environment needs
    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • UL certified cycle testing ensures many years of low maintenance.

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

    Compliance Standards

    • ANSI A156.17 Grade 1: one million cycle testing
    • ANSI A156.7 Template Hinge : 5” x 5”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

  • Specifications

    Product SKU K51M-500D-D3
    Hinge Type Full Mortise, 5 Inch x 5 Inch
    Hinge Material Stainless Steel
    Door Weight Up to 260lbs
    Approx Door Size 1150mm W x 2200mm H (4ft x 7ft)
    Door Thickness 1 ¾” ~ 2 ¼” (45-57 mm)
    Self-closing o
    Fluid Motion o
    Hold-open o
    Fixing Method Screw-On, only spot weld AFTER speed adjustment
    Color/Finish Satin Brushed,Black,Gold,ORB
    Combination/Quantity DS.HA.SB,3 Pack





  • Product Video

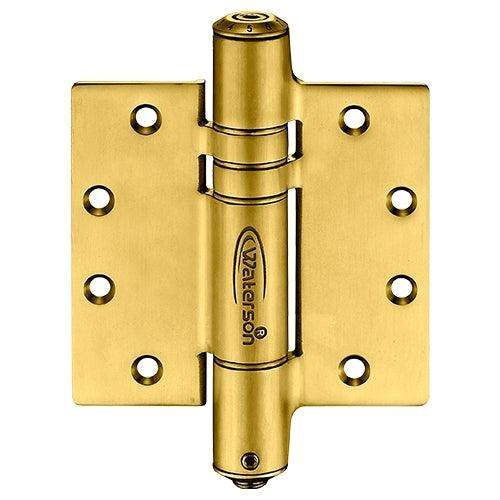

Color: Satin Brass-US4
