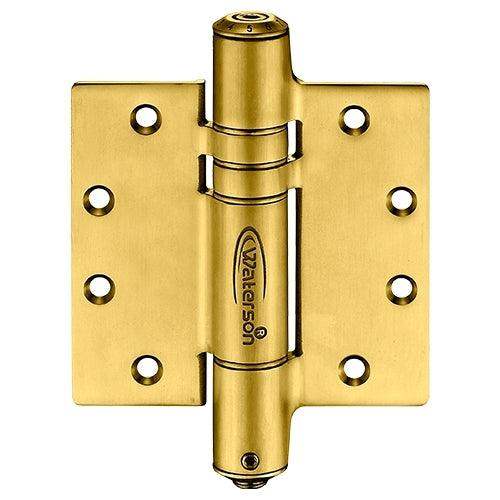

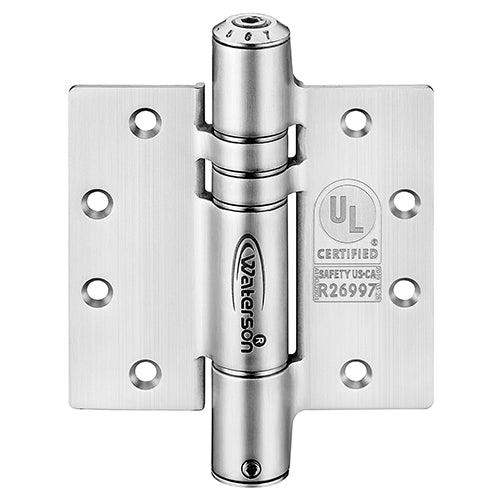

Hydraulic door hinges | Hold Open | 8ft | SS304 | 5"x5" | K51M-500D-D4 | 4 Pack

Original price $649.80 - Original price $725.80
Original price
$649.80
$649.80 - $725.80
Current price $649.80

Attention: This model is non-refundable

  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO
  • Applications

    • Hotel Rooms
    • Interior Use Only
    • Fully Exterior
    • Arch Top
    • Heavy Duty
    • Courtyard Style
    • 8ft Door

    Product Description and Features

    • Apply for door open ≤ 120°

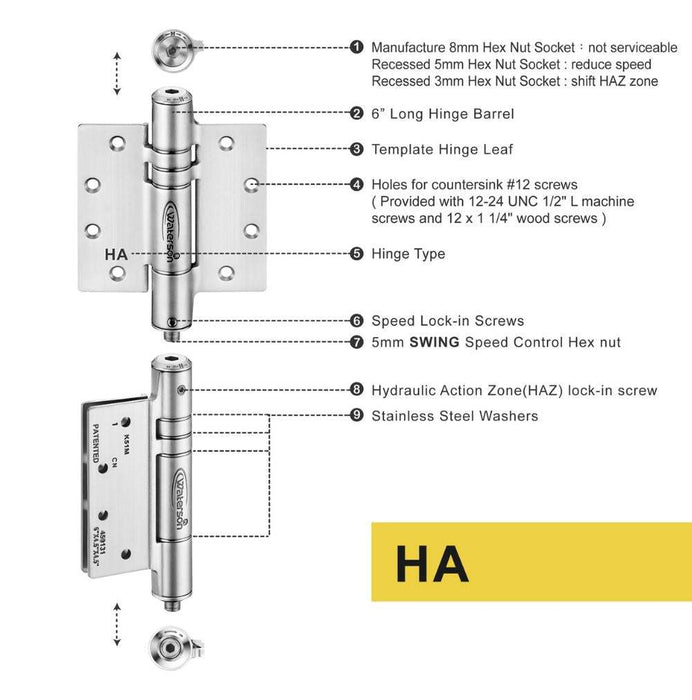

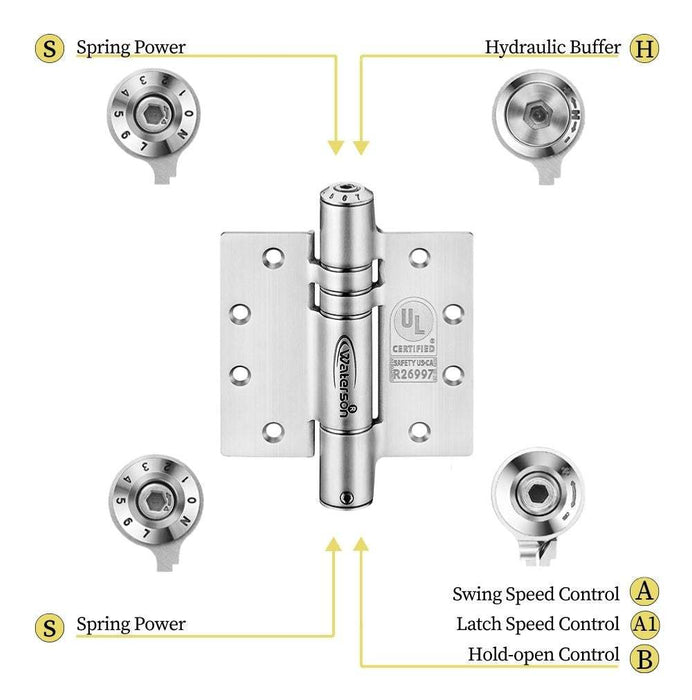

    • Fully adjustable closing force and speed according to environment needs

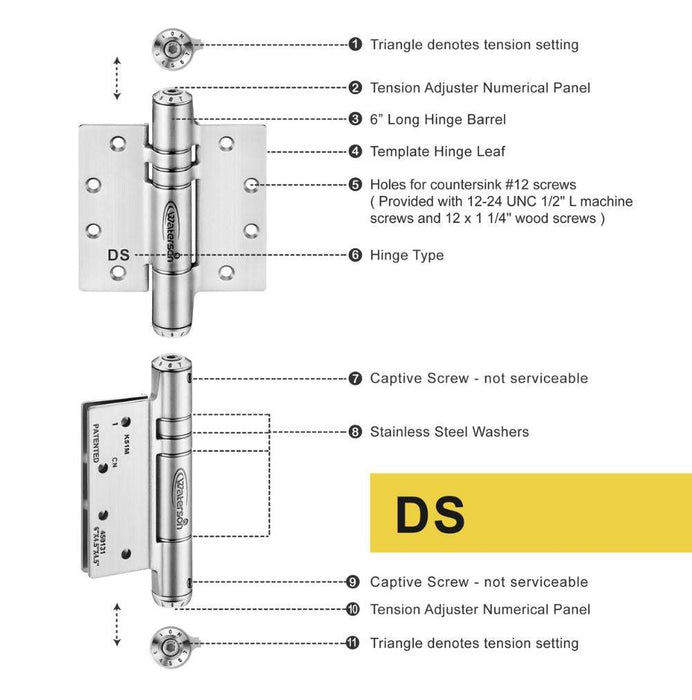

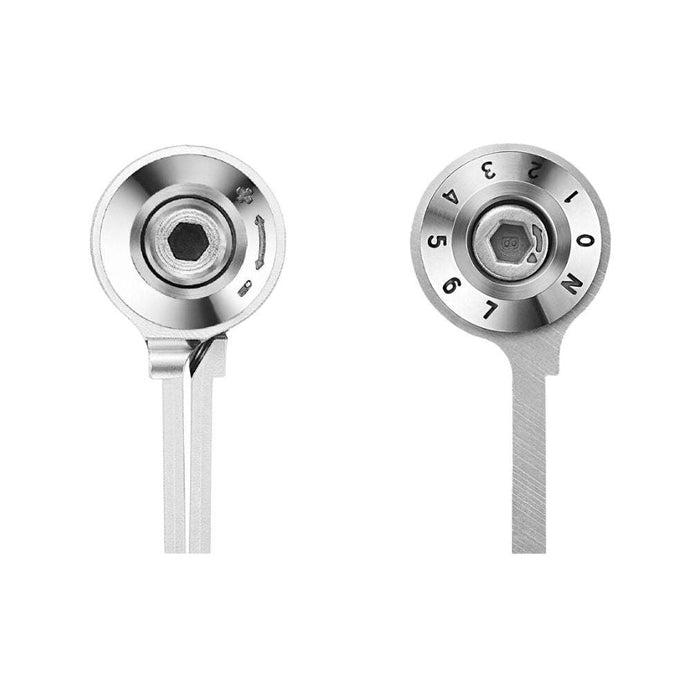

    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • UL certified cycle testing ensures many years of low maintenance.

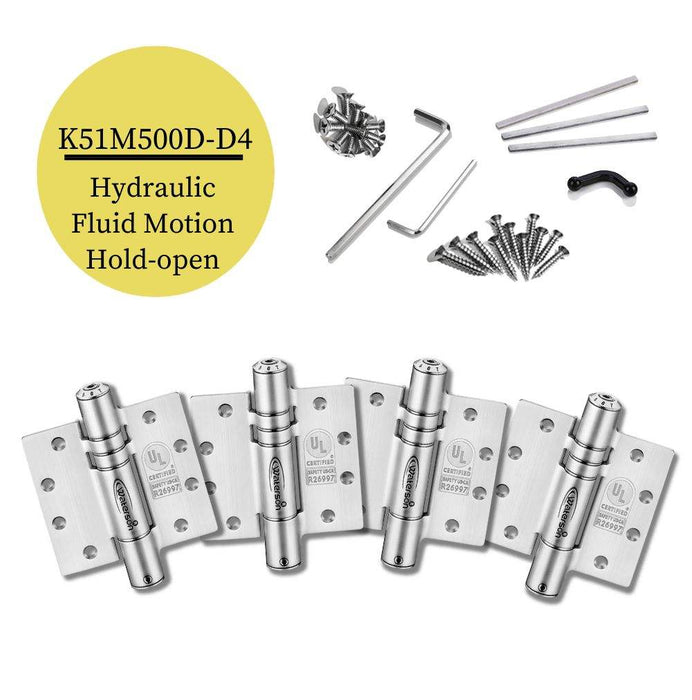

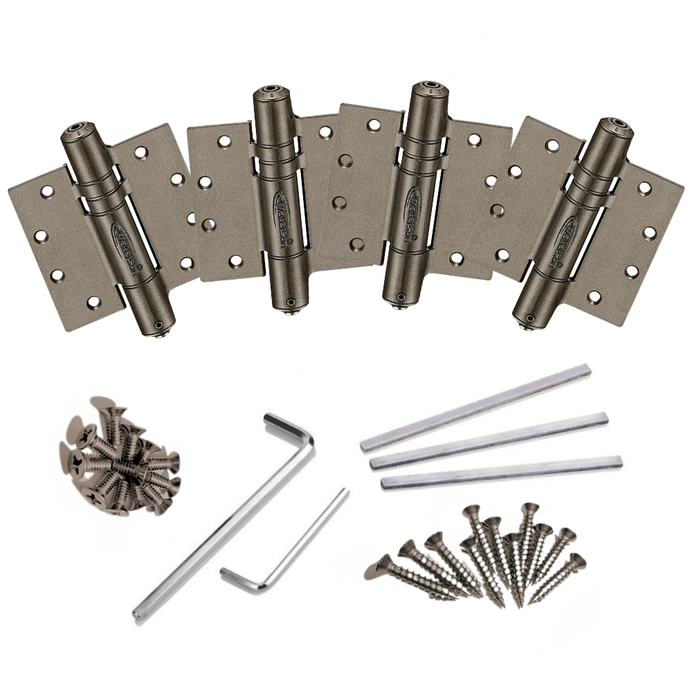

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

    Compliance Standards

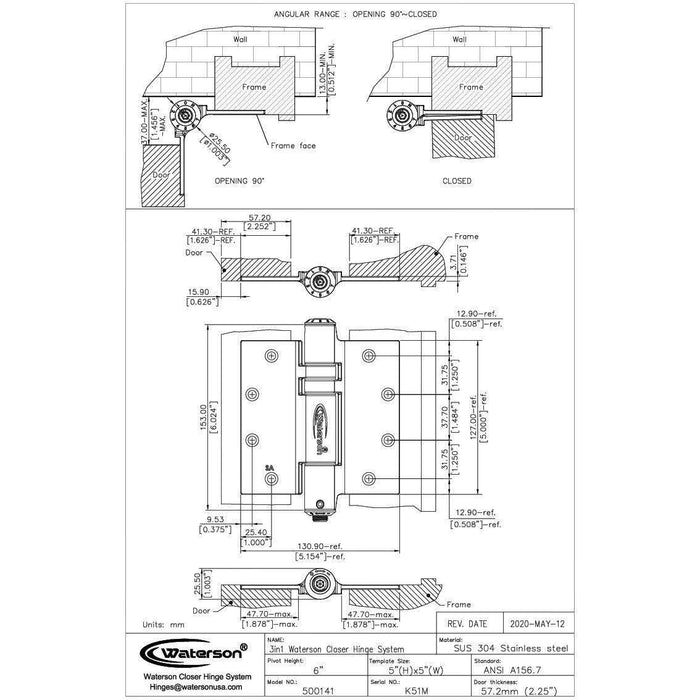

    • ANSI A156.7 Template Hinge : 5” x 5”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
  •

    Product SKU K51M-500D-D4
    Hinge Type Full Mortise, 5 Inch x 5 Inch
    Hinge Material Stainless Steel
    Door Weight Up to 330lbs
    Approx Door Size 1150mm W x 2200mm H (4ft x 8ft)
    Door Thickness 1 ¾” ~ 2 ½ (45-65 mm)

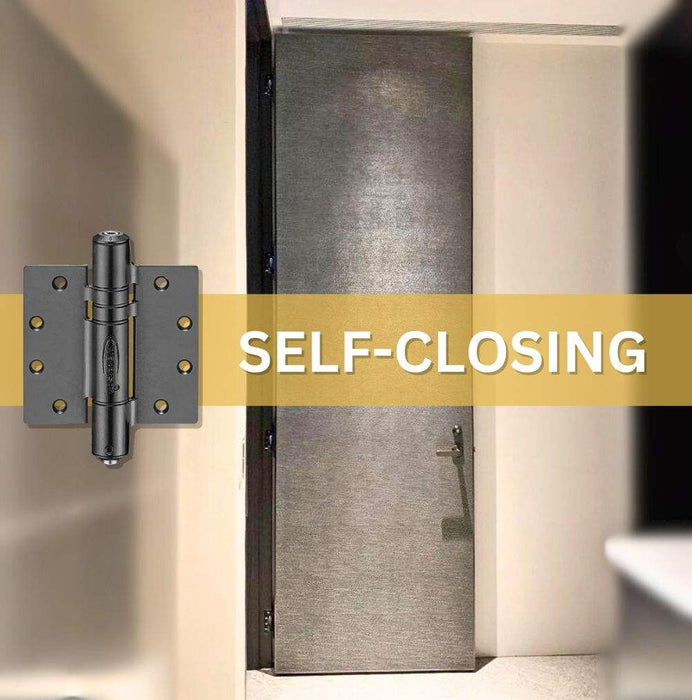

    Self-closing o
    Fluid Motion o

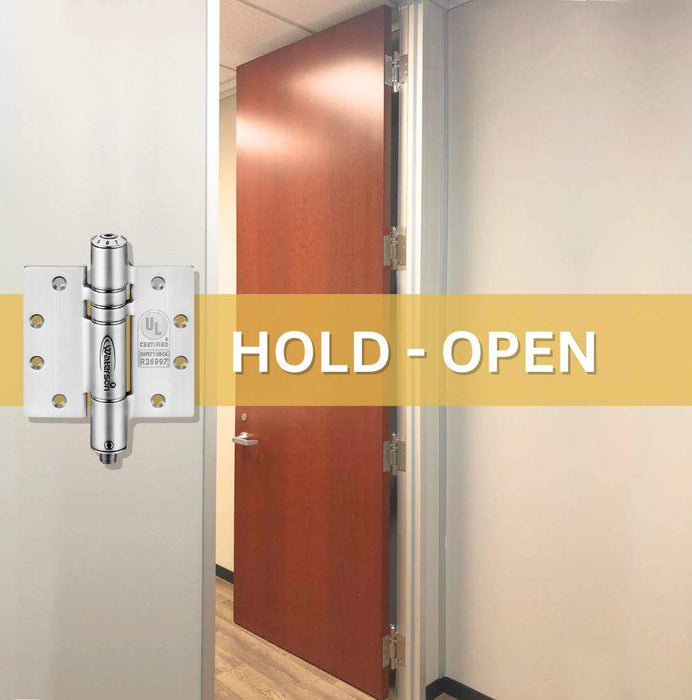

    Hold-open o
    Fixing Method Screw-On, only spot weld AFTER speed adjustment

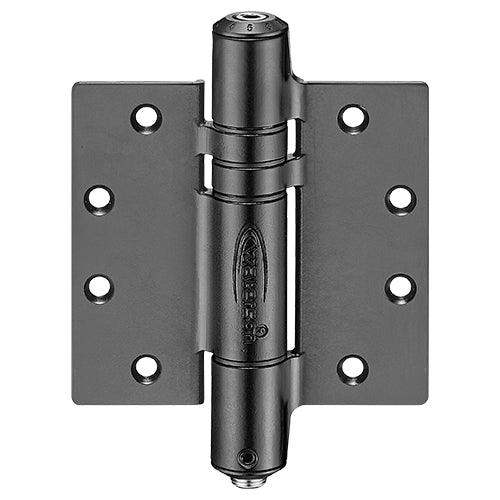

    Color/Finish Satin Brushed,Black,Gold,ORB
    Combination/Quantity DS.HA.SB.SA1,4 Pack





  • Youtube

Color: Satin Stainless Steel-US32D
