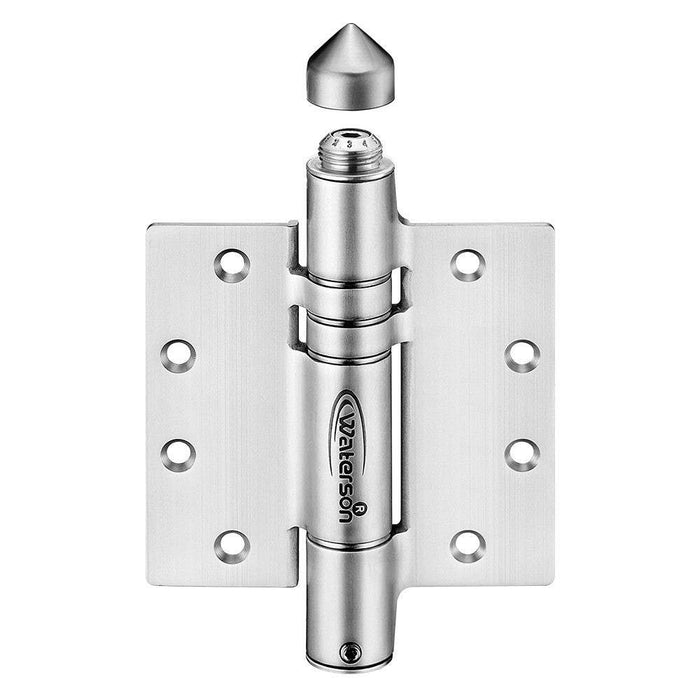

3pcs Wooden Gate Closer Heavy Duty | Mechanical | Weldable | 7ft | 260 lbs | 1.5” to 2” Thick | SS304 | K51MP-A3

Waterson Wooden Gate Closer Heavy Duty system delivers mechanical self-closing performance for 7 ft wooden gates up to 260 lbs.

These wooden gate closer provides adjustable closing tension and weatherproof operation, giving you a reliable heavy duty gate closer solution for exterior wood installations. 10 years warranty

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

  • Gate Entry
  • Pedestrian Gate
  • Heavier Gate
  • Garden Gate
  • Side Gate
  • Pool Gate (self-closing required)
  • Outdoor Shower Door
  • Interior & Exterior

  Product Description and Features

  • Reliable Self closing to enhance security and privacy

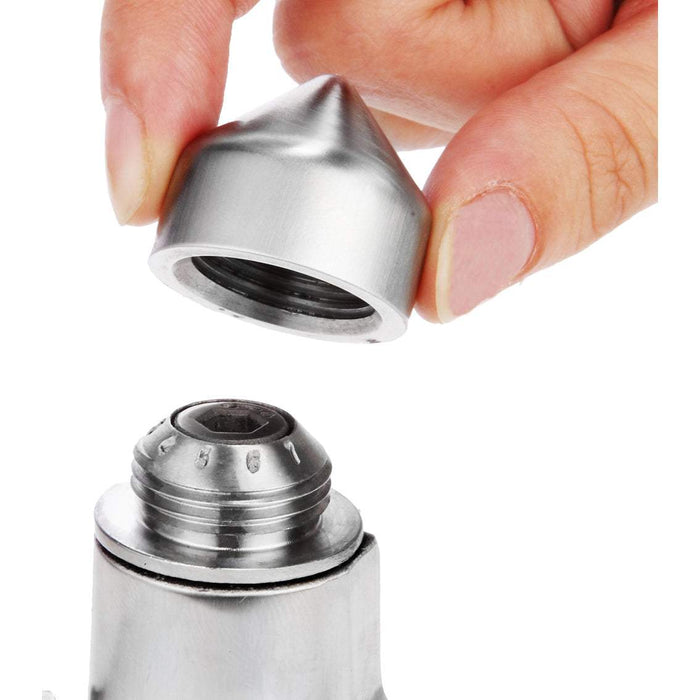

  • Suitable for Exterior Use, Stainless Steel ,Weather Cap Extra Protection
  • Without explosive closer arms
  • Mechanical-only mechanism ( no oil ) supporting sever weather - snow or desert
  • Aesthetically pleasing, match with gate color ( for more finishes, ask our sales for quote )

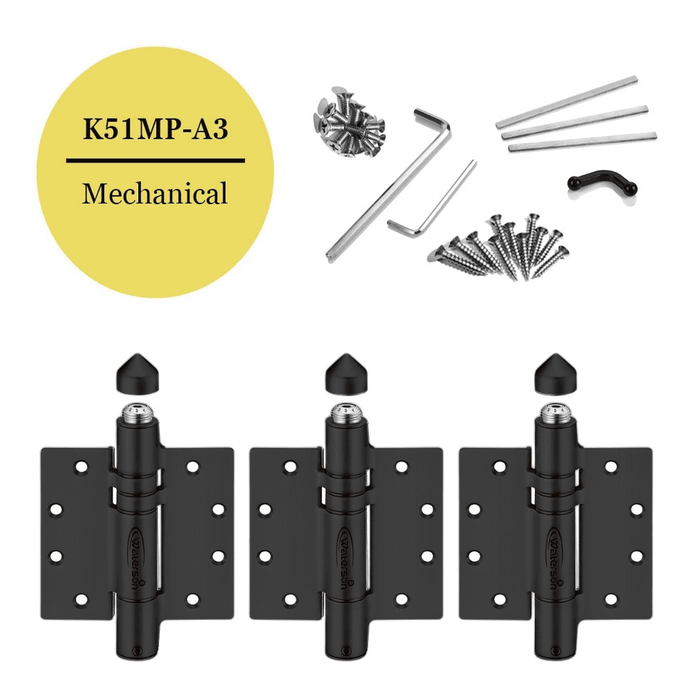

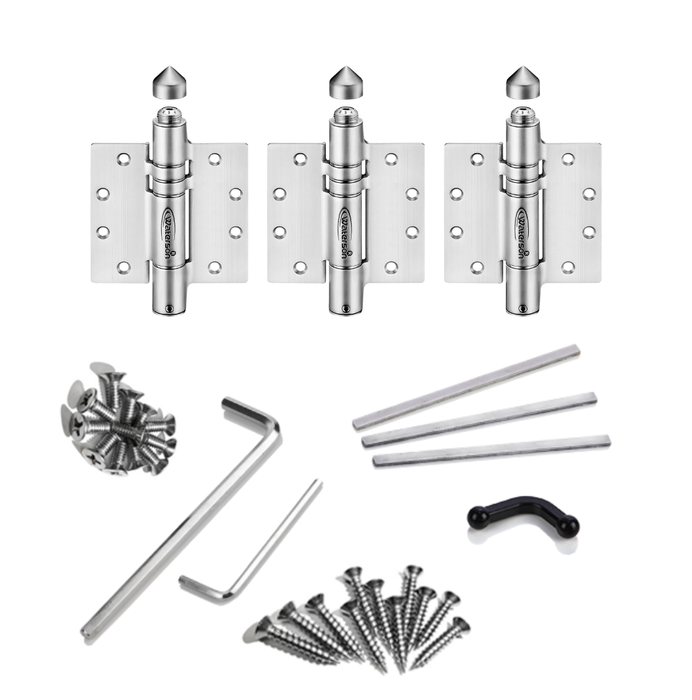

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

  • ANSI A156.17 Grade 1: one million cycle testing

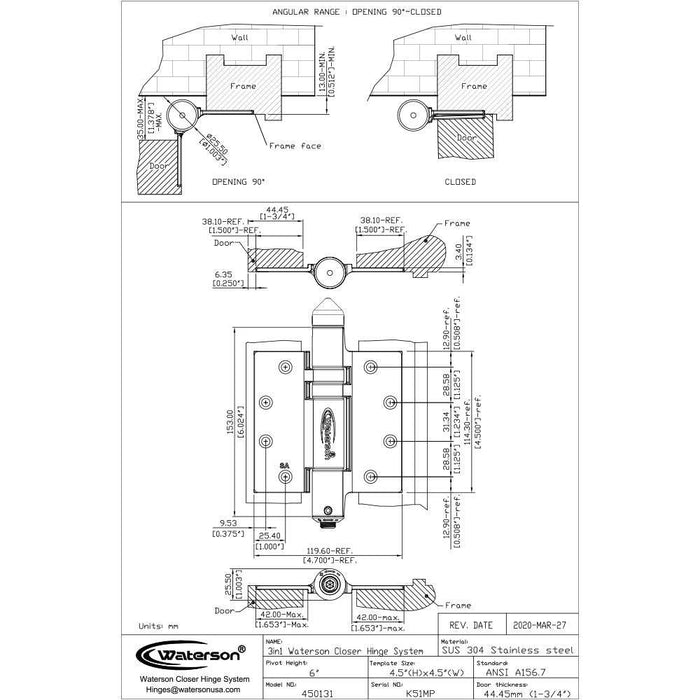

  • ANSI A156.7 Template Hinge : 4.5" x 4.5"
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force: opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

• Specifications

  Product SKU	K51MP-A3
  Hinge Type	Between square posts
  Hinge Material	Stainless Steel
  Door Weight	From 40lbs to 260lbs (120kg)
  Approx Door Size	1150mm W x 2100mm H (4ft x 7ft)
  Door Thickness	1 ¾” (40-50 mm)
  Self-closing	o
  Fluid Motion	x
  Hold-open	x
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment

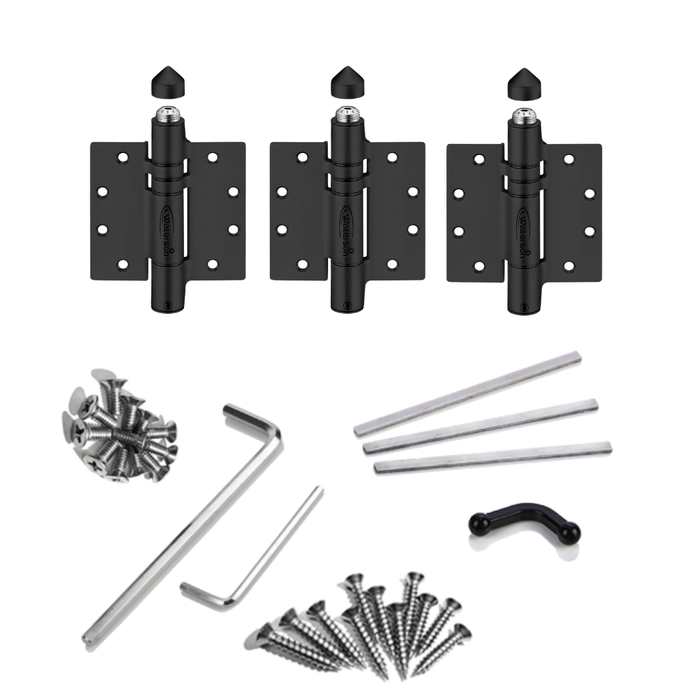

  Color/Finish	Satin Brushed, Black

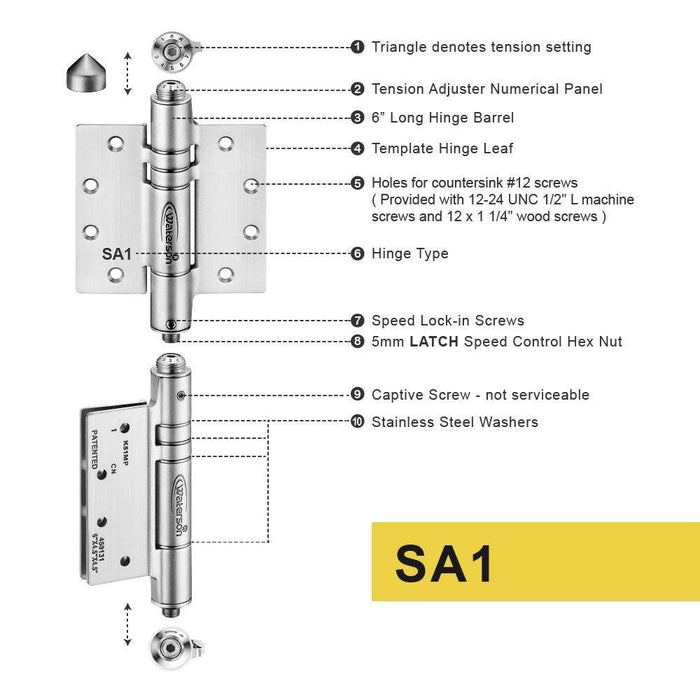

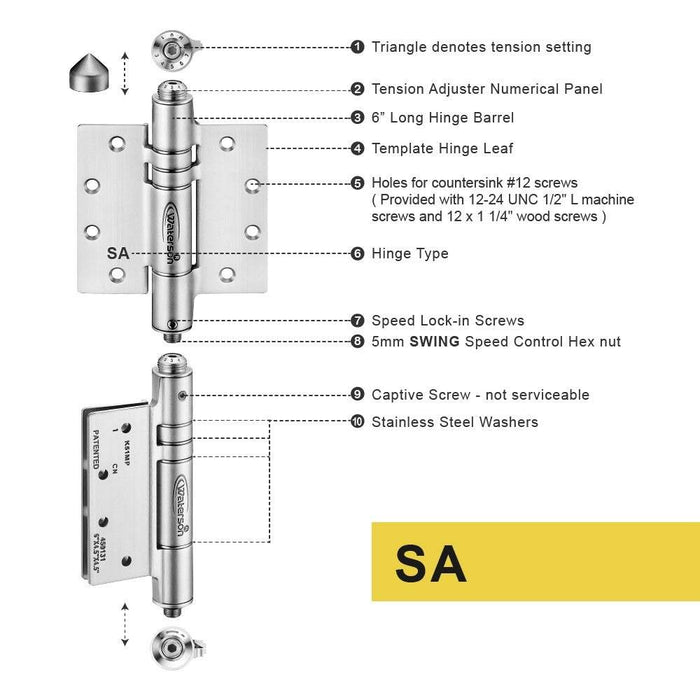

  Combination/Quantity	SA.SA.SA1,3 Pack
