K51MP-C3 | Adjustable Heavy Duty Gate Hinges Mechanical Self-Closing | Stainless Steel - Butt Hinge Type | 3 Pack

Original price $456.59 - Original price $456.59
Original price
$456.59
$456.59 - $456.59
Current price $456.59
  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO

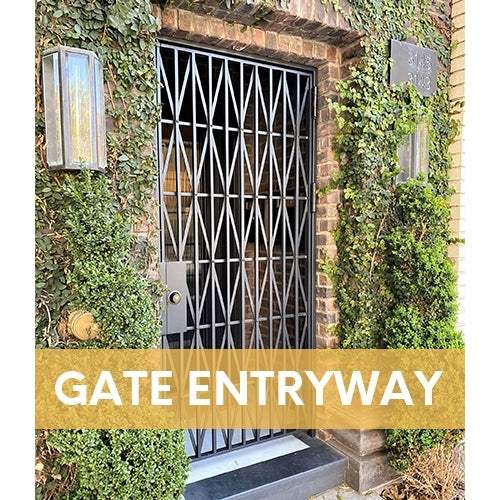

  • Applications

    • Hotel Rooms

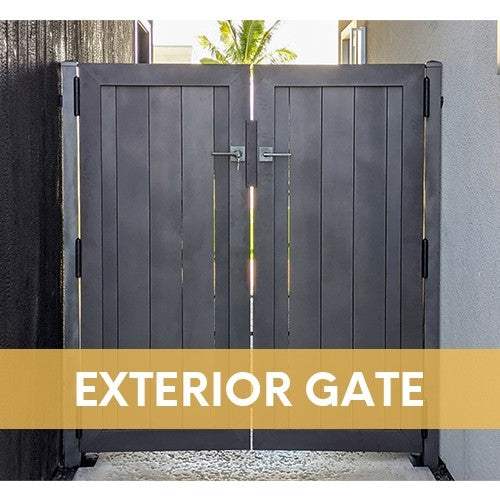

    • Fully Exterior
    • Arch Top
    • Heavy Duty
    • Courtyard Style

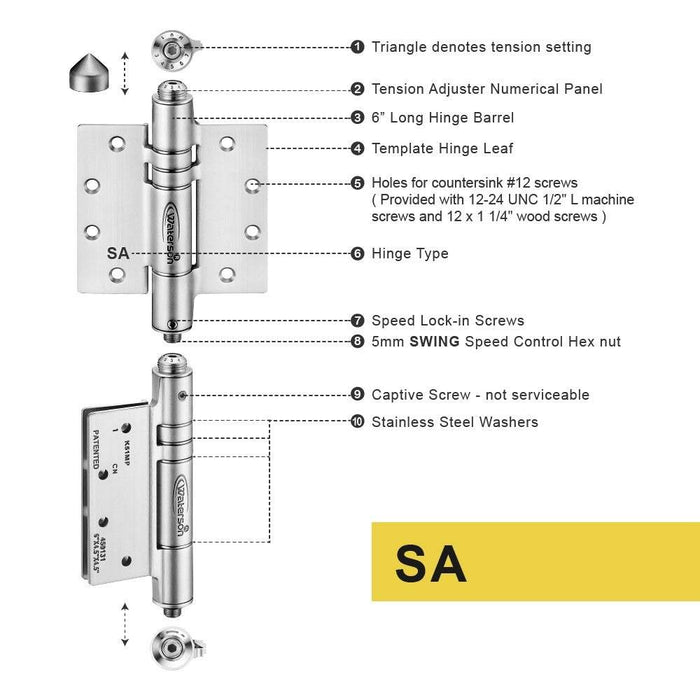

    Product Description and Features

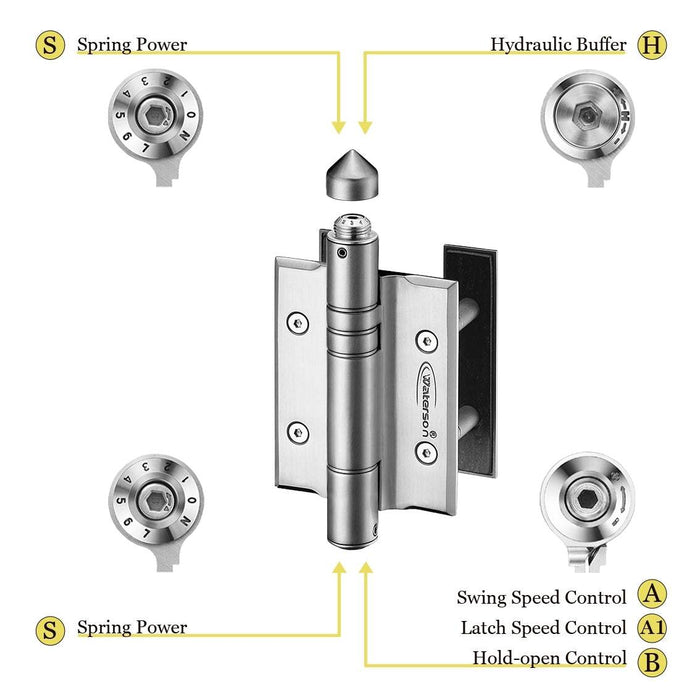

    • Fully adjustable closing force and speed according to environment needs

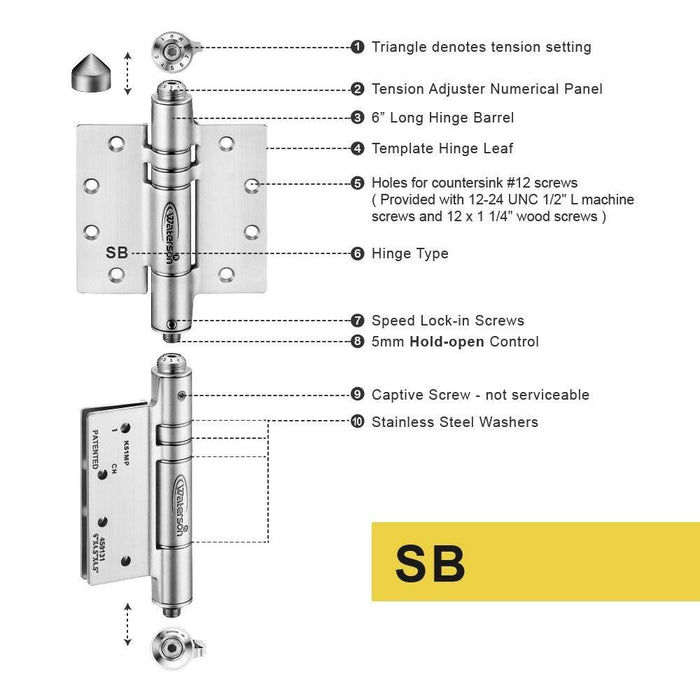

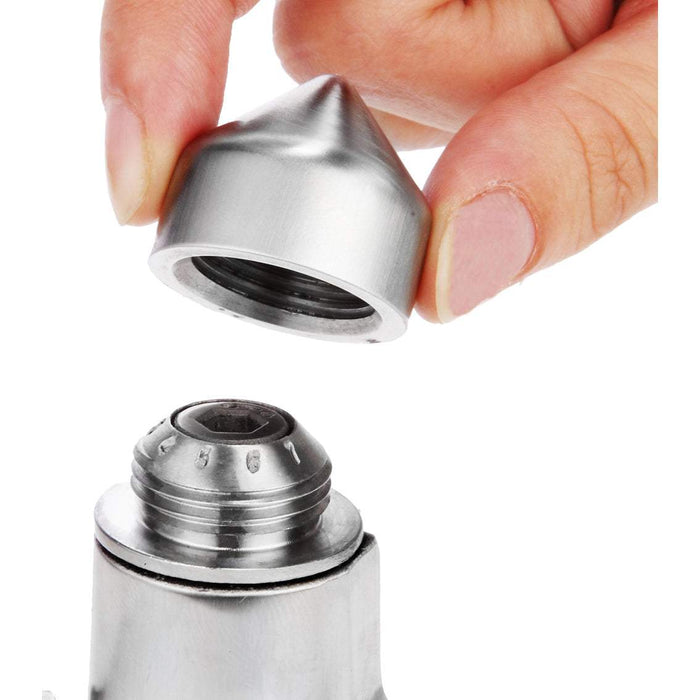

    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical-only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • UL-certified cycle testing ensures many years of low maintenance.

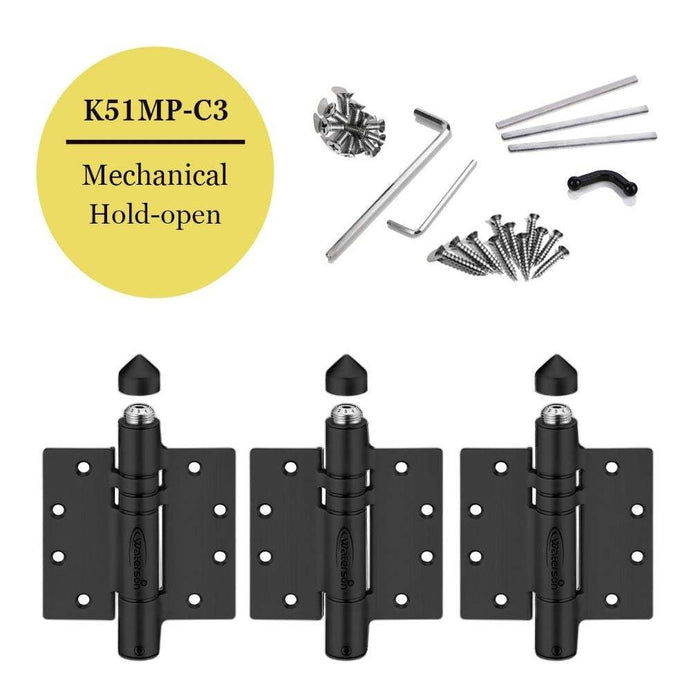

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

    Compliance Standards

    • ANSI A156.17 Grade 1: one million cycle testing

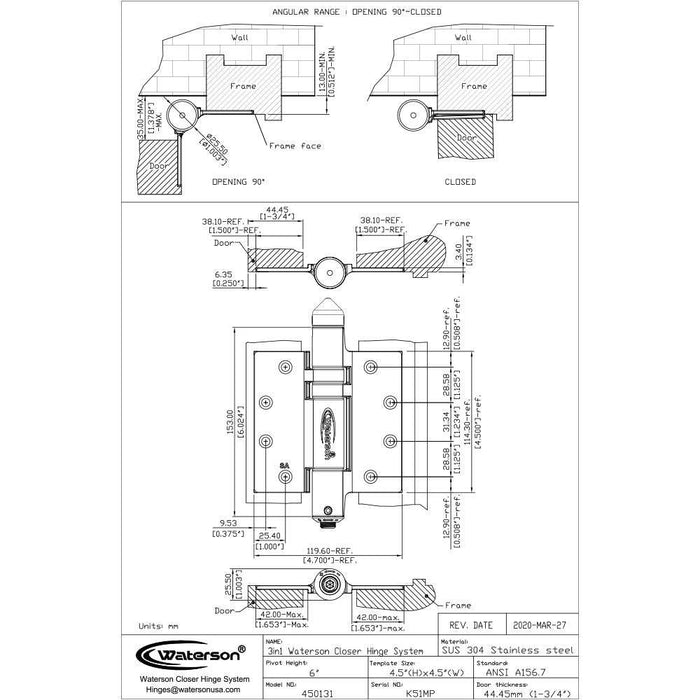

    • ANSI A156.7 Template Hinge : 4.5" x 4.5"
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force: opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
  •

    Product SKU K51MP-C3
    Hinge Type Between square posts
    Hinge Material Stainless Steel
    Door Weight Up to 260lbs (75kg)
    Approx Door Size 1150mm W x 2200mm H (4ft x 7ft)
    Door Thickness 1 ¾” (40-50 mm)
    Self-closing o
    Fluid Motion x
    Hold-open x
    Fixing Method Screw-On, only spot weld AFTER speed adjustment

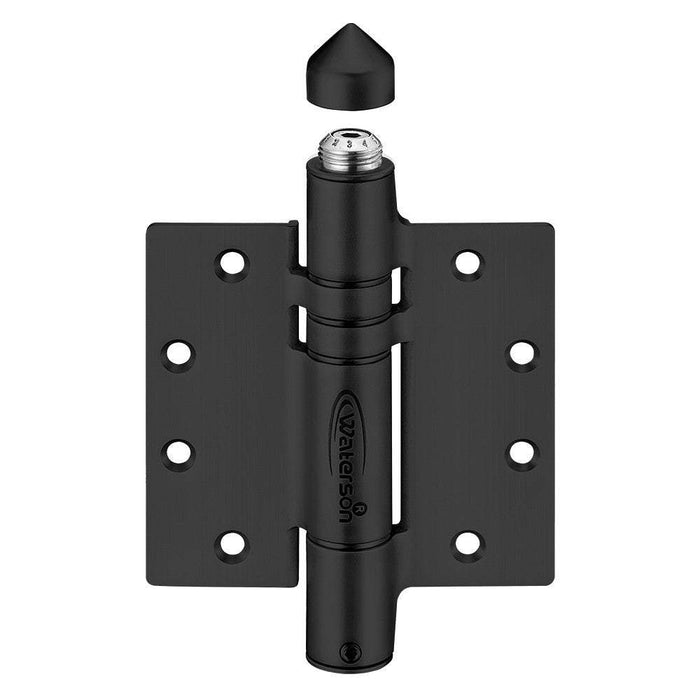

    Color/Finish Satin Brushed, Black

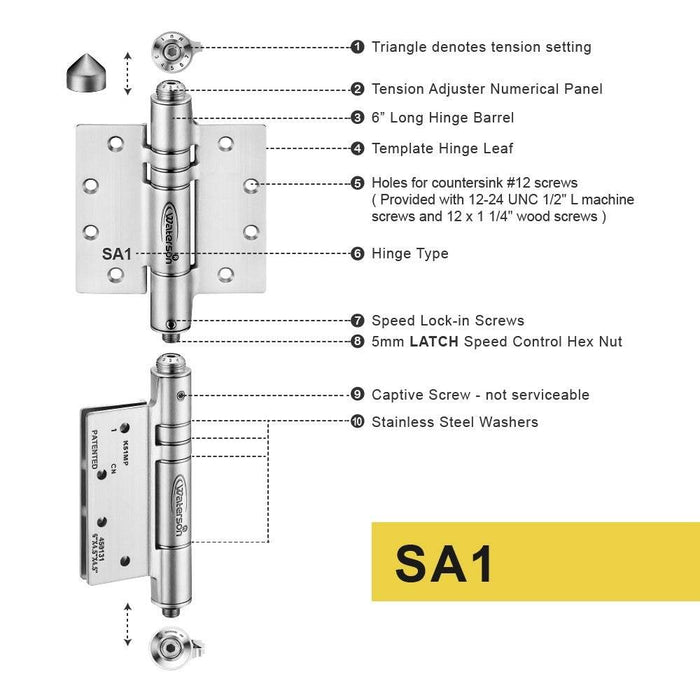

    Combination/Quantity SA.SA.SA1,3 Pack





  • Youtube

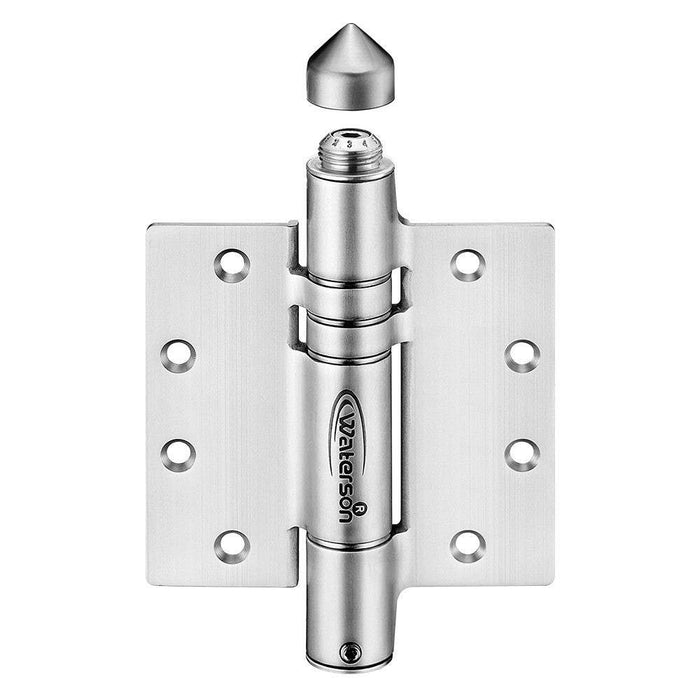

Color: Satin Stainless Steel-US32D
