3pcs Self Closing Gate Hinges Heavy Duty | Mechanical | 7ft | 260 lbs | 1” to 4” Thick | SS304 | K51P-A3

$529.50 - $529.50
$529.50
$529.50 - $529.50
$529.50

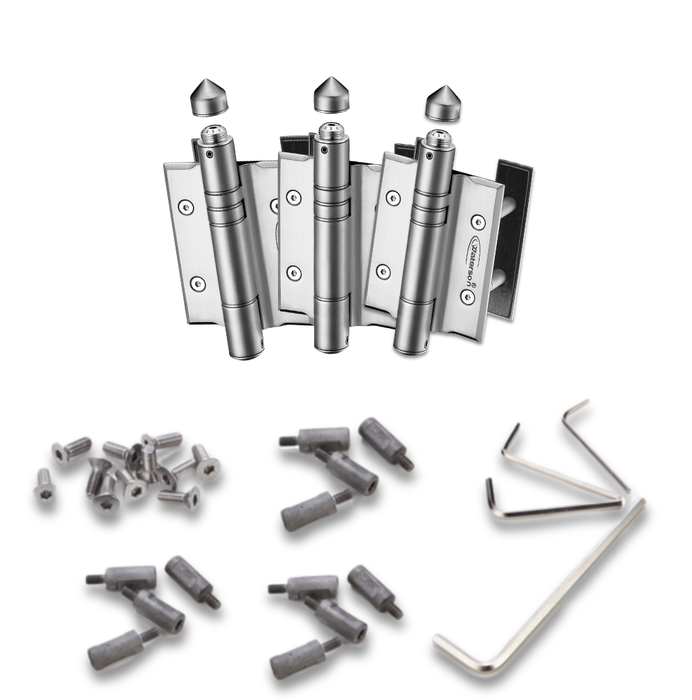

Color: Satin Stainless Steel-US32D

Waterson stainless steel self closing gate hinges give you a mechanical, spring loaded gate hinge setup with precise tension adjustment and full-surface mounting for 1"–4" posts.

If your project needs self closing gate hinges heavy duty enough for 260-lb exterior gates, this 3-hinge pack provides the load support, ADA-aligned speed control, and field-adjustable closing force your team expects. 10 years warranty

  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO

  • TALK TO SALES FIRST - NON REFUNDABLE

    Applications

    • Gate Entry
    • Pool Gate
    • Interior & Exterior
    • Courtyard Style
    • Breezy environments
    • Need Corrosion-Free, Marine-Grade Solutions? We got your back!

    Product Description and Features

    • Fully adjustable closing force and speed according to environment needs
    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical only mechanism supporting heavy duty and fully exterior
    • An aesthetically pleasing and sleek all-in-one component
    • One million cycle testing ensures low maintenance longevity

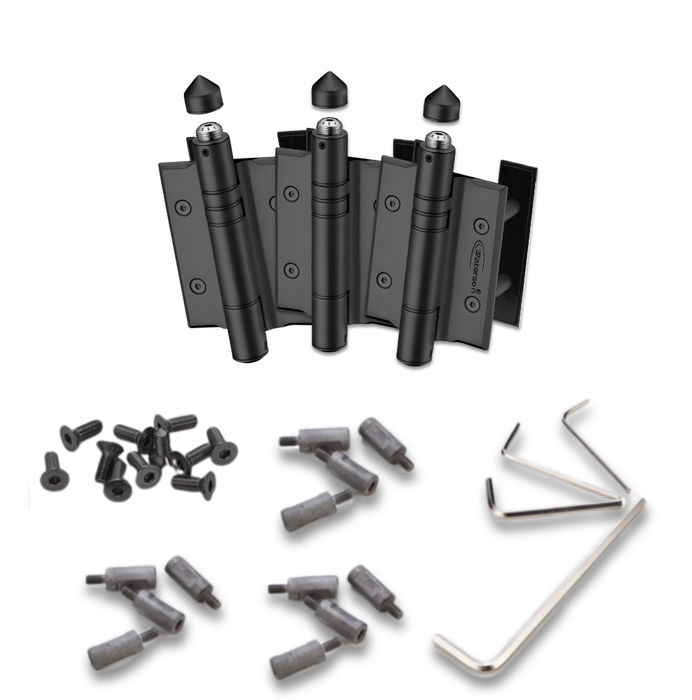

  • Installation Kits

    • 304 stainless steel Hex Drive Flat Head M6 x P1 x 0.630"L screws included -- eight (8) of each type per hinge.
    • 5mm & 4mm& 3mm& 2.5mm hex Allen wrenches
    • Sets include 1” extenders.
      * 2-hinge pack: 12 extenders
      * 3-hinge pack: 18 extenders
      * For 0.5” extenders, contact us. These are special order items and not available online.

    Compliance Standards

    • Hinge Leaf Size: 5” x 6”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force: opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°

  • Specifications

    Product SKU K51P-A3
    Hinge Type Full Surface
    Hinge Material Stainless Steel 304
    Door Weight From 40lbs to 260lbs (75kg)
    Approx Door Size 1150mm W x 2200mm H (4ft x 7ft)
    Posts Thickness 1” & 2”, 2" & 3" & 4"
    Self-closing o
    Fluid Motion x
    Hold-open x
    Fixing Method Screw-On, only spot weld AFTER
    speed adjustment
    Color/Finish Satin Brushed or Black
    Combination/Quantity SA.SA.SA1, 3 Pack





  • Product Video
