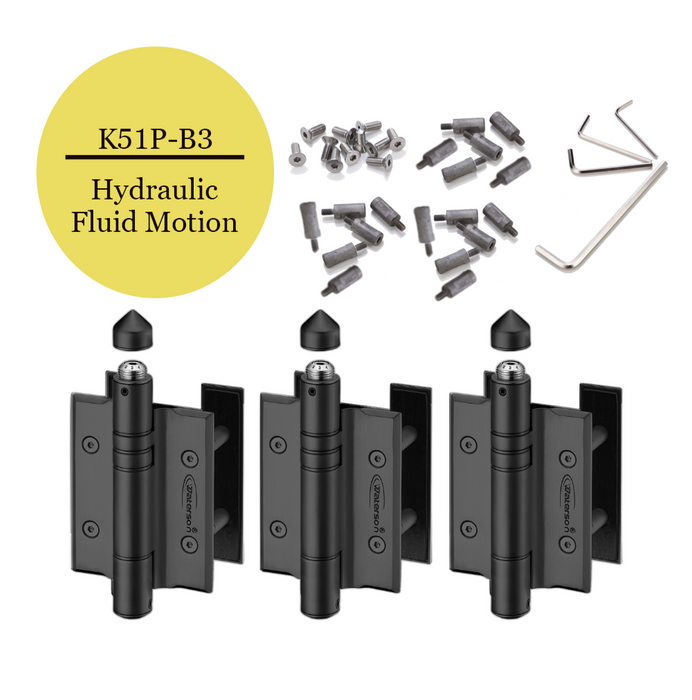

K51P-B3 | Hydraulic Hybrid Gate Closer Hinges |Stainless Steel 304 - Full Surface | 3 Pack

Original price $545.00 - Original price $560.00
Original price
$545.00
$545.00 - $560.00
Current price $545.00
  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO
  • Applications

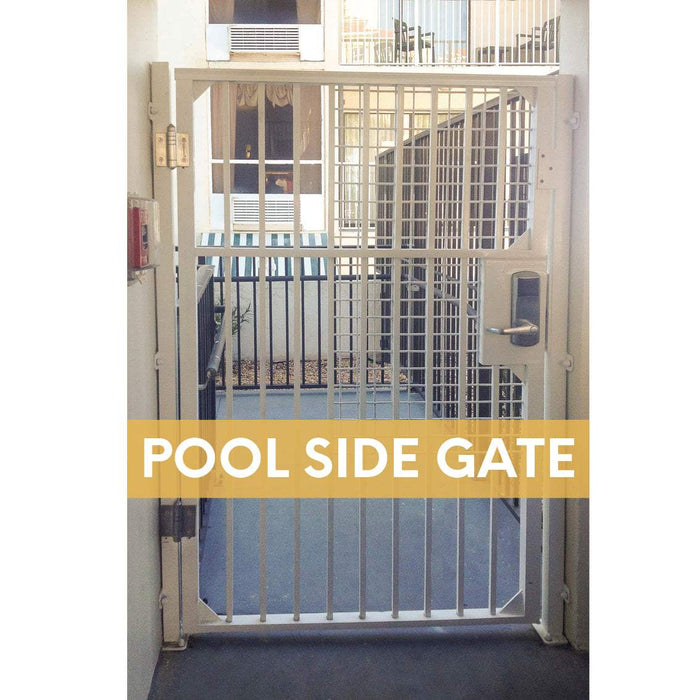

    • Pool & Fence
    • Fully Exterior
    • Arch Top
    • Heavy Duty

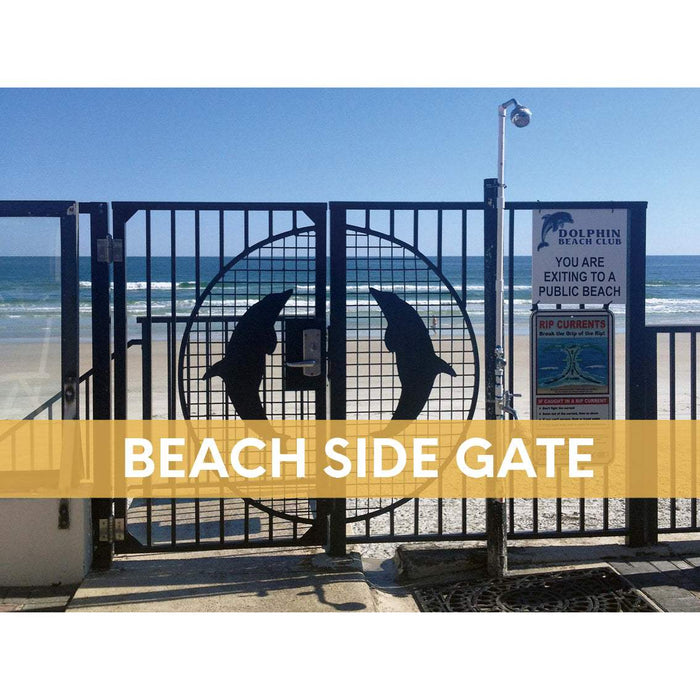

    • Corrosion Free (Marine Grade)

    Product Description and Features

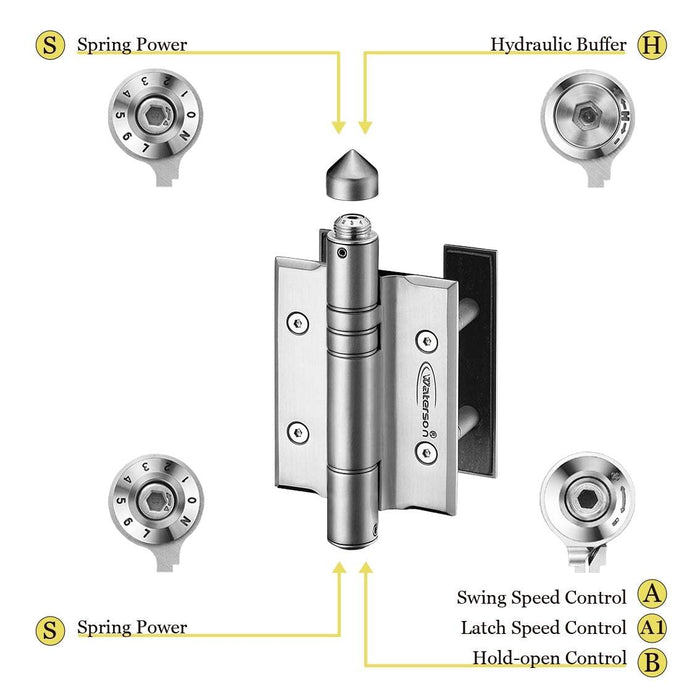

    • Fully adjustable closing force and speed according to environment needs

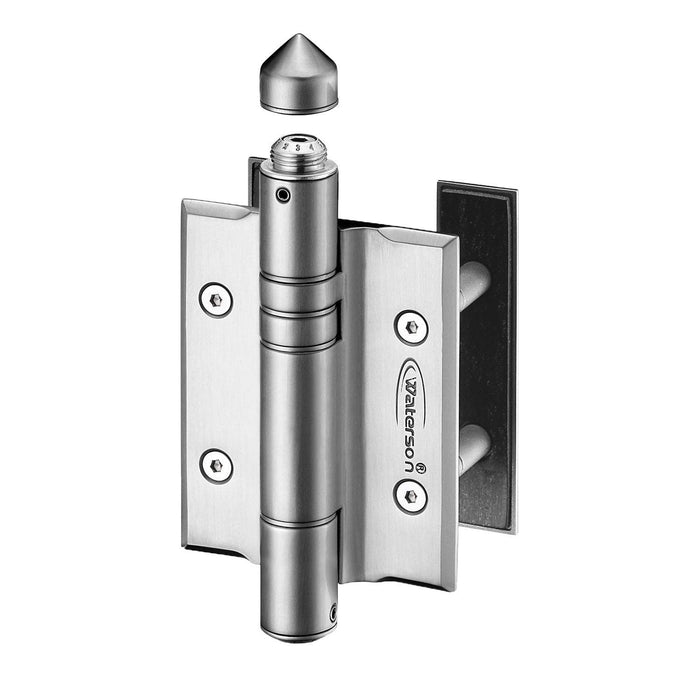

    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical only mechanism supporting heavy duty and fully exterior
    • An aesthetically pleasing and sleek all-in-one component
    • One million cycle testing ensures low maintenance longevity

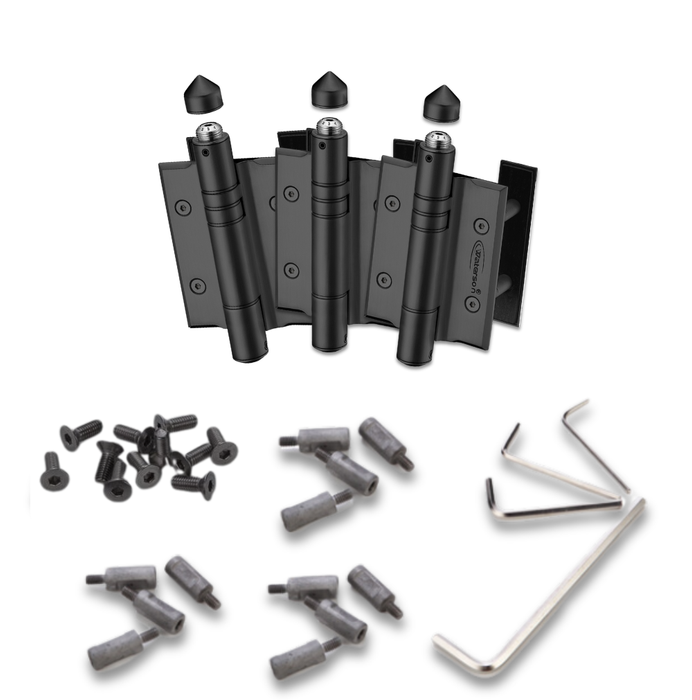

  • Installation Kits

    • 304 stainless steel Hex Drive Flat Head M6 P1 x 0.630"L screws included -- eight (8) of each type per hinge.
    • 5mm & 4mm& 3mm& 2.5mm hex Allen wrenches
    • Sets include 1” extenders.
      * 1”& 2” Post Set includes four (4) extenders
      * 2”,3”,4” Post Set includes twelve (12 ) extenders

    Compliance Standards

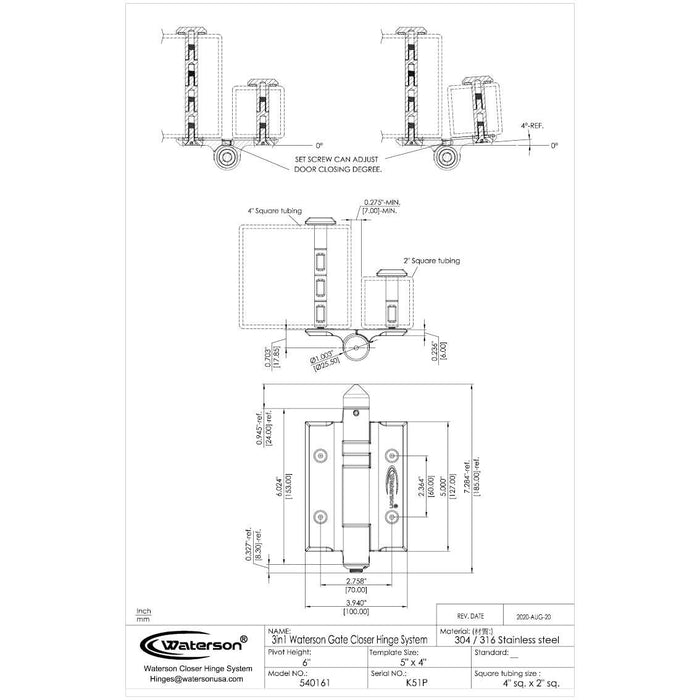

    • Hinge Leaf Size: 5” x 3.940”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force: opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  •

    Product SKU K51P-304-B3
    Hinge Type Full Surface
    Hinge Material Stainless Steel 304
    Door Weight Up to 260lbs (75kg)
    Approx Door Size 1150mm W x 2200mm H (4ft x 7ft)

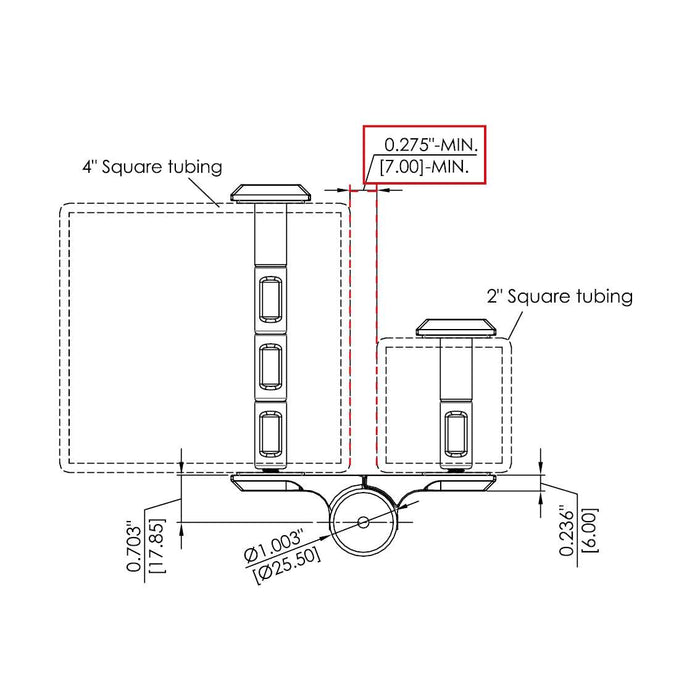

    Posts Thickness 1” & 2”, 2" & 3" & 4"
    Self-closing o
    Fluid Motion o
    Hold-open x
    Fixing Method Screw-On, only spot weld AFTER
    speed adjustment

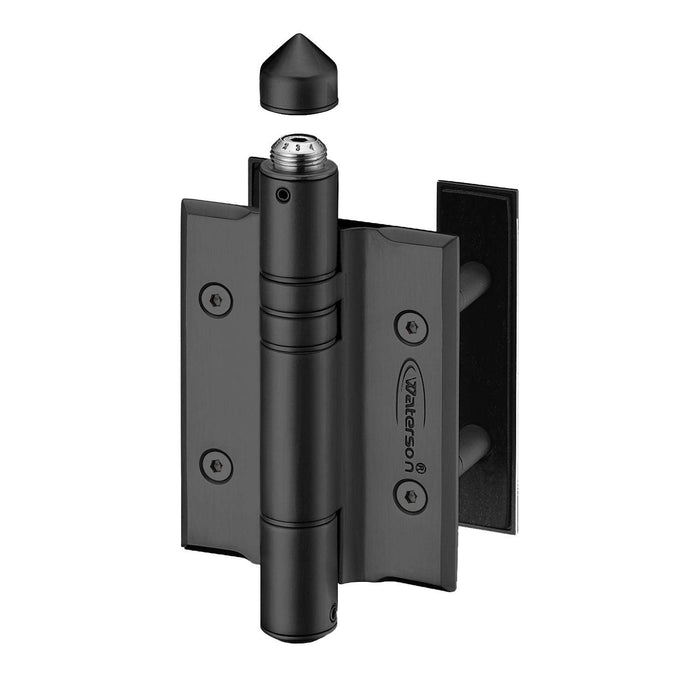

    Color/Finish Satin Brushed or Black

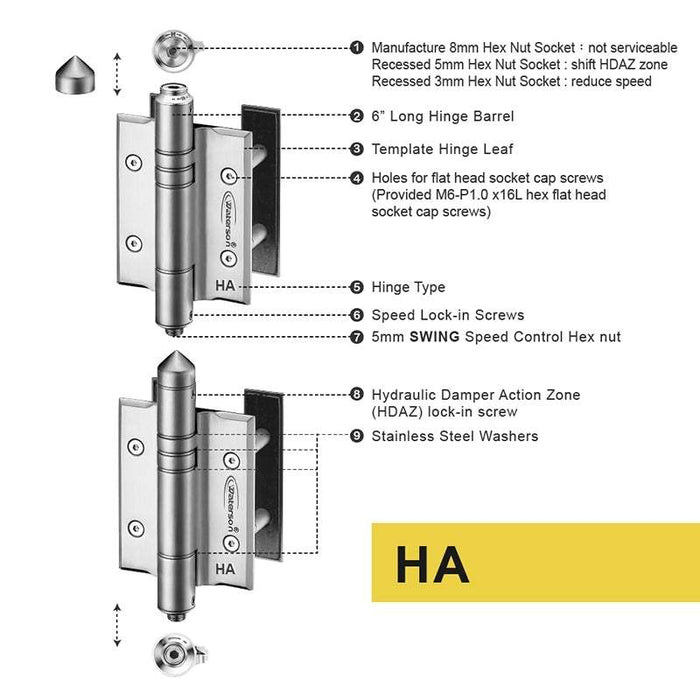

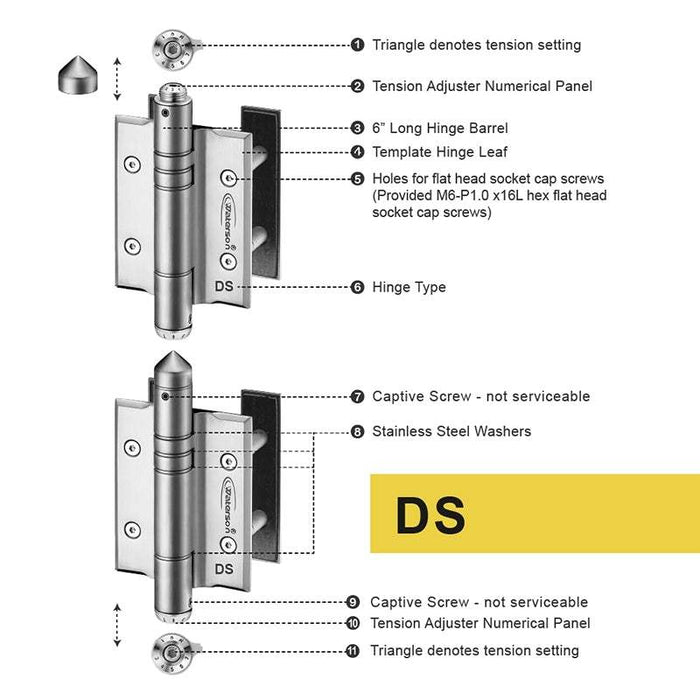

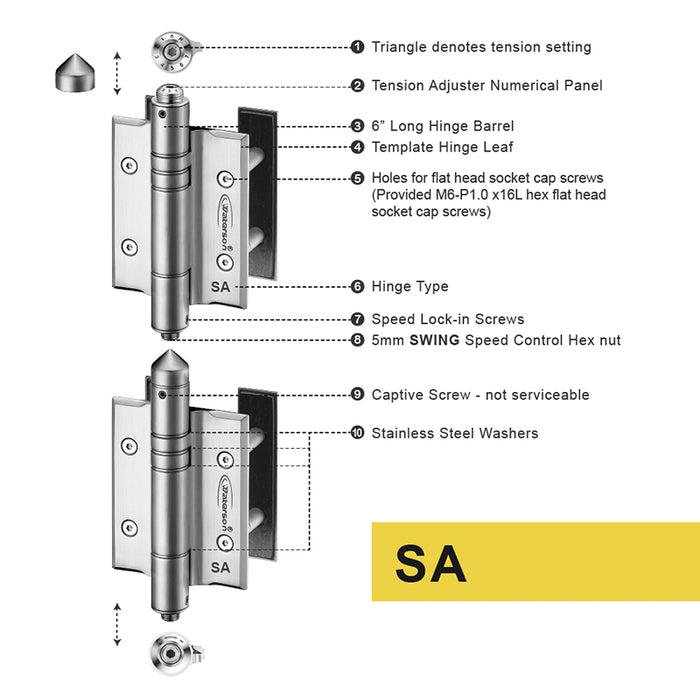

    Combination/Quantity DS.HA,SA1, 3 Pack





  • Tab 4 content goes here.

Color: Satin Stainless Steel-US32D
