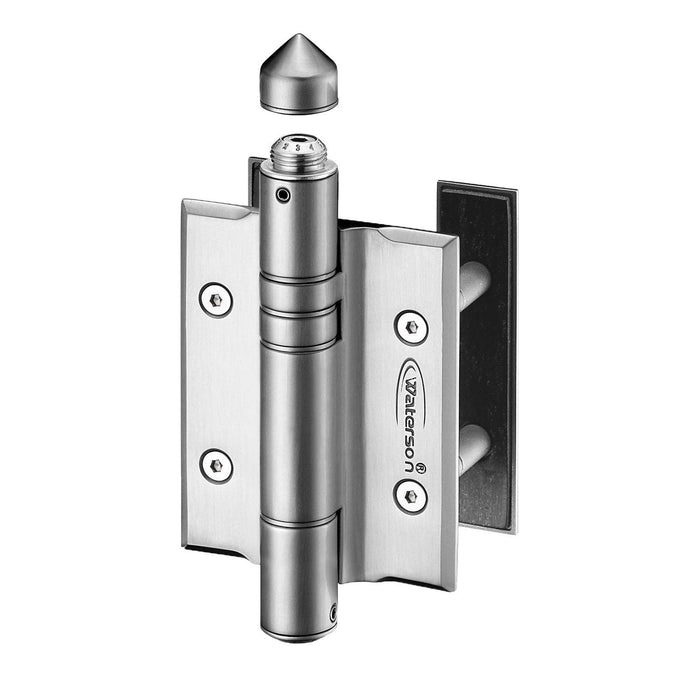

K51P-D3 | Hydraulic Hybrid Gate Closer Hinges |Stainless Steel 304 - Full Surface | 3 Pack

$500.00
Color: Satin Brushed
  • DESCRIPTION
  • DETAILS
  • SPECIFICATIONS
  • VIDEO
  • Applications

    • Offices
    • Frameless Glass Door
    • French Style
    • Quiet area
    • Breezy environments

    Product Description and Features

    • Apply for door open ≤ 120° and environment temperature > 32°F (0°C)

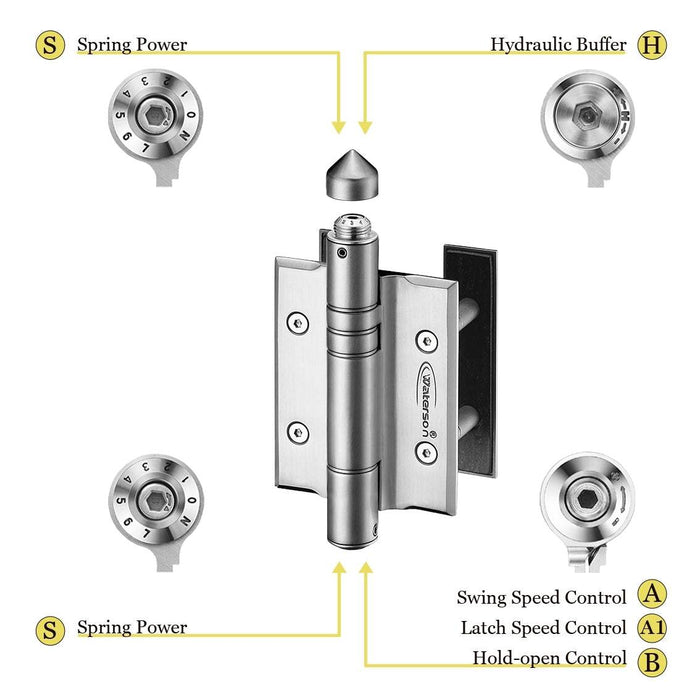

    • Fully adjustable closing force and speed according to environment needs

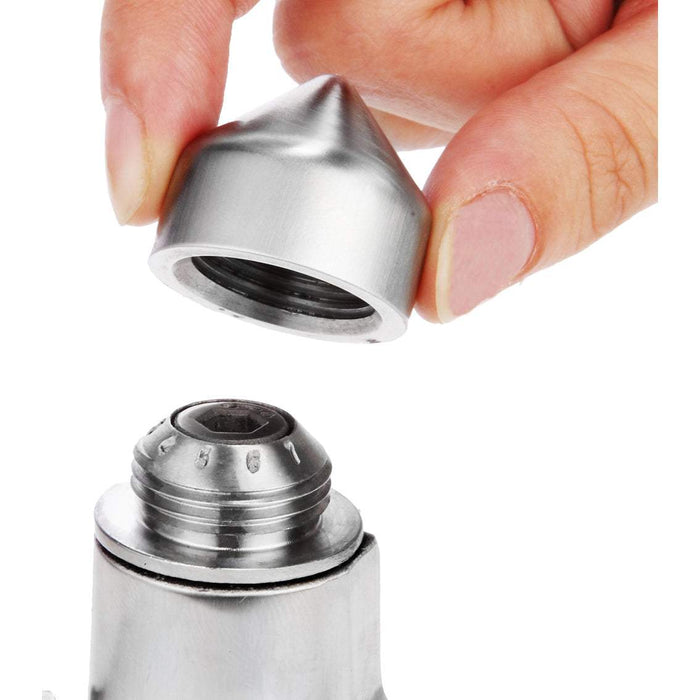

    • Numerical adjustment panel on hinge end to set up precise tension
    • Include both mechanical and hydraulic mechanism supporting quiet close needs
    • Aesthetically pleasing compared to door closers -- without obtrusive arm
    • Hold-open feature to keep door stay open at 90°

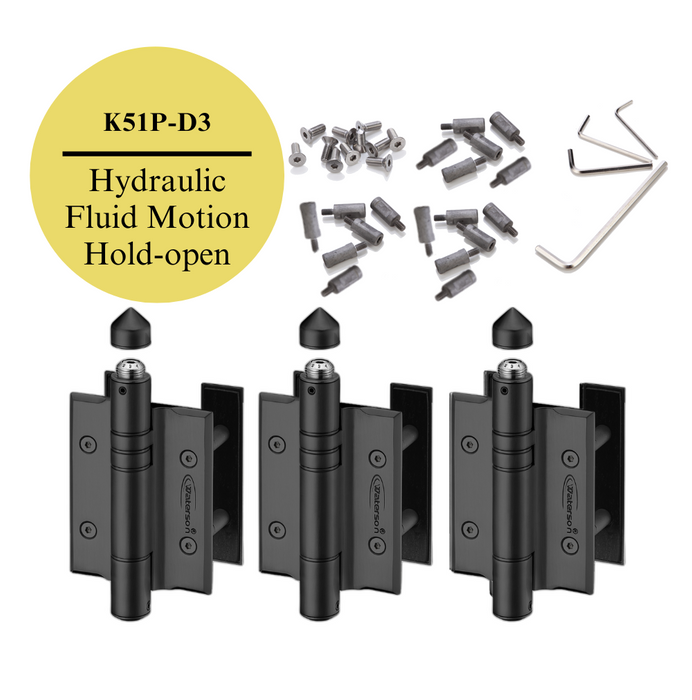

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

    Compliance Standards

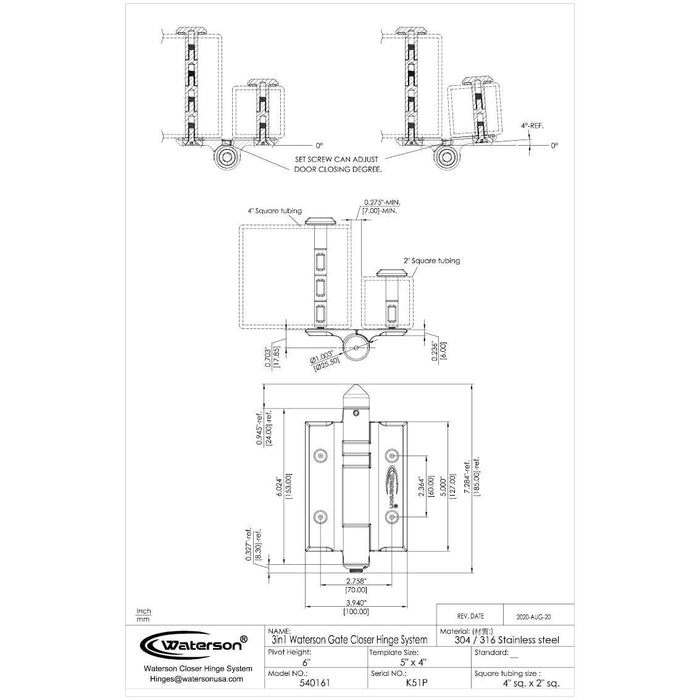

    • ANSI A156.7 Template Hinge : 4 ½ x 4 ½
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
  •

    Product SKU K51P-304-D3
    Hinge Type Full Surface
    Hinge Material Stainless Steel
    Door Weight Up to 260lbs (75kg)
    Approx Door Size 1150mm W x 2200mm H (4ft x 7ft)
    Door Thickness 1 ¾” (40-50 mm)
    Self-closing o
    Fluid Motion o
    Hold-open o

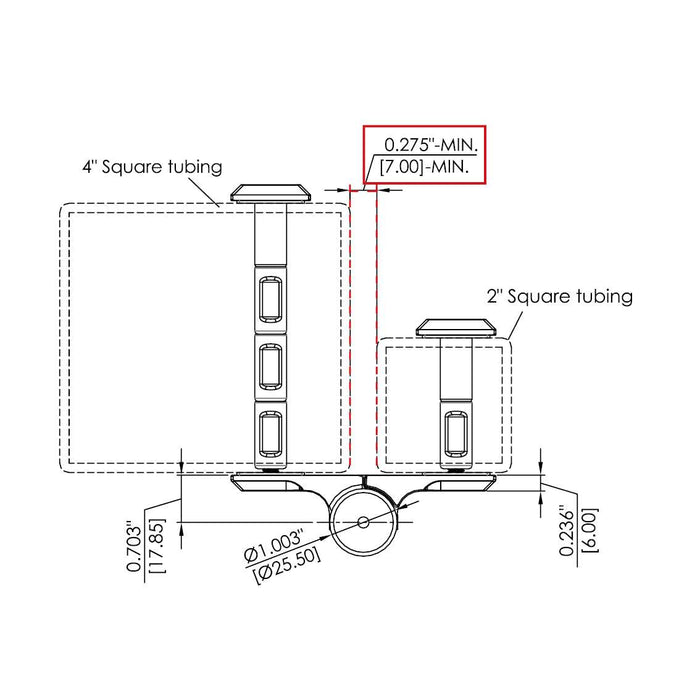

    Fixing Method Screw-On, only spot weld AFTER speed adjustment

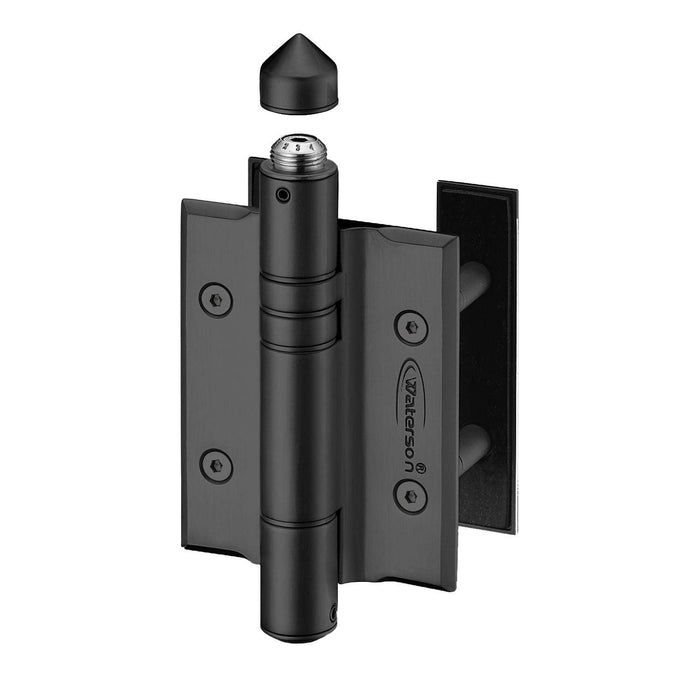

    Color/Finish Satin Brushed,Black
    Combination/Quantity DS.HA.SB,3 Pack
