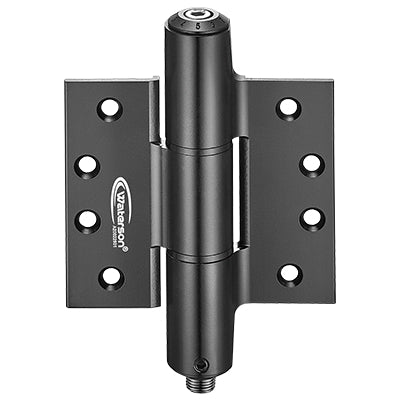

2pcs Aluminum Gate Hinges Soft Closing | Hydraulic | 4.5x4.5 | 6ft | 150 lbs | 1 ¾” Thick | W41M-450-B2

Waterson aluminum gate hinges soft closing use an adjustable hydraulic mechanism to control gate speed and closing force for residential 6ft installations.

These soft closing aluminum gate hinges rely on a full-mortise aluminum build with tension settings that let you tune movement and reduce slamming without external arms.

• DESCRIPTION
• DETAILS
• SPECIFICATIONS
• VIDEO

• Applications

  • Non-Fire Rated
  • Soft Close Spring Hinge

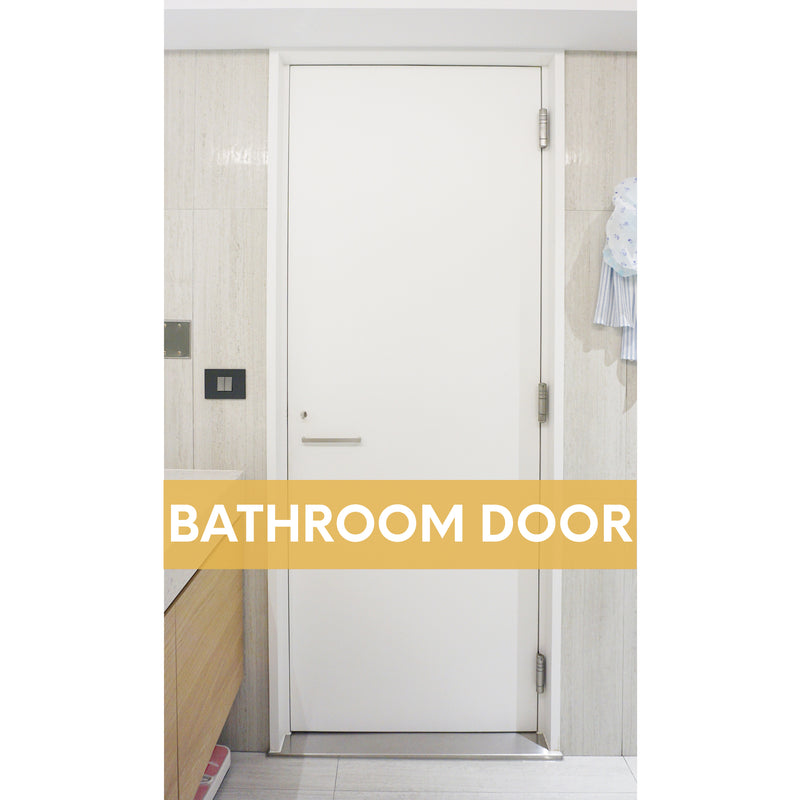

  • Residential Applications
  • Good to the Eye
  • Easy Installation
  • Replacement for the Traditional Door Closer

  Product Description and Features

  • Fully adjustable closing force and speed according to environment needs

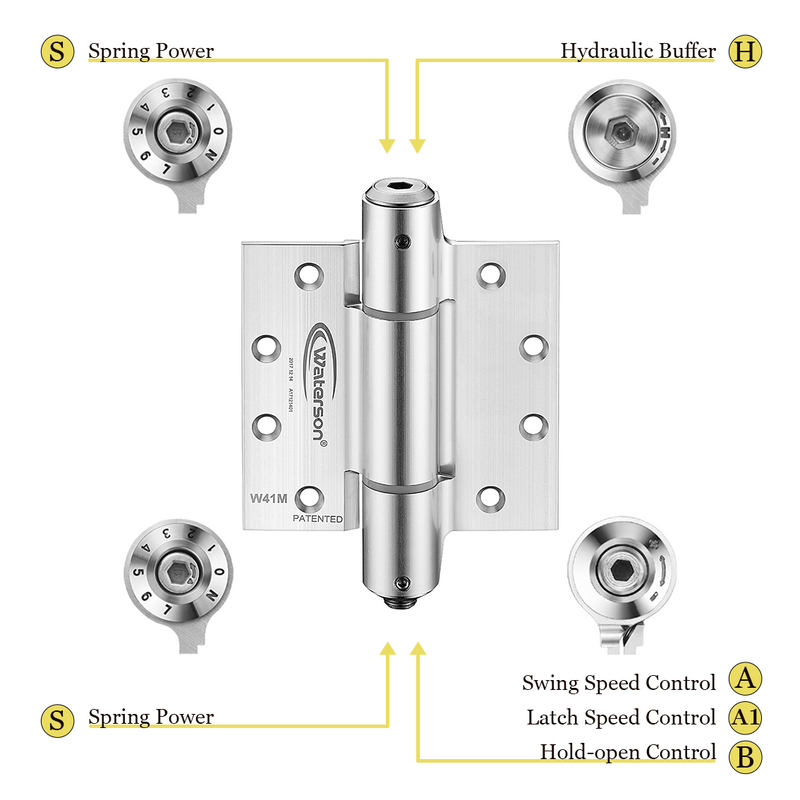

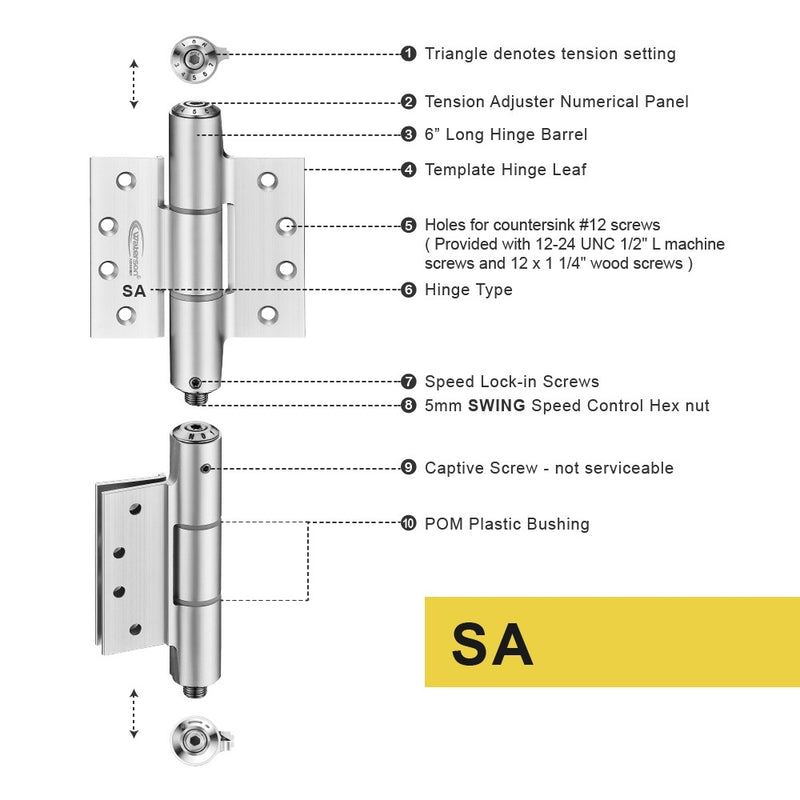

  • Numerical adjustment panel on hinge end to set up precise tension

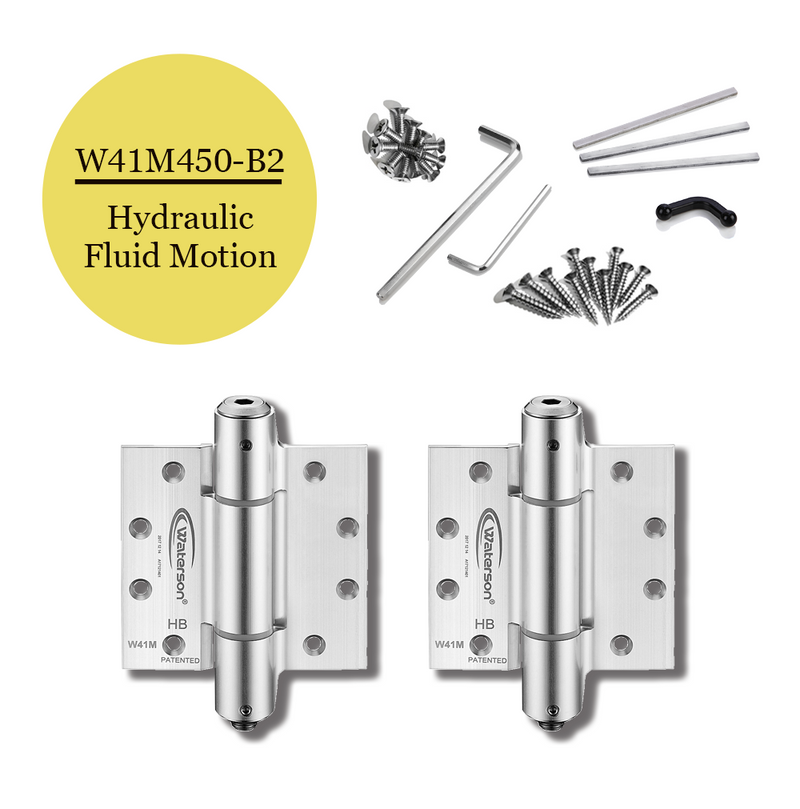

  • Hydraulic fluid mechanism supporting precise speed and closing force adjustment
  • Aesthetically pleasing compared to door closers -- without extrusive arms
  • Ensures many years of low maintenance.

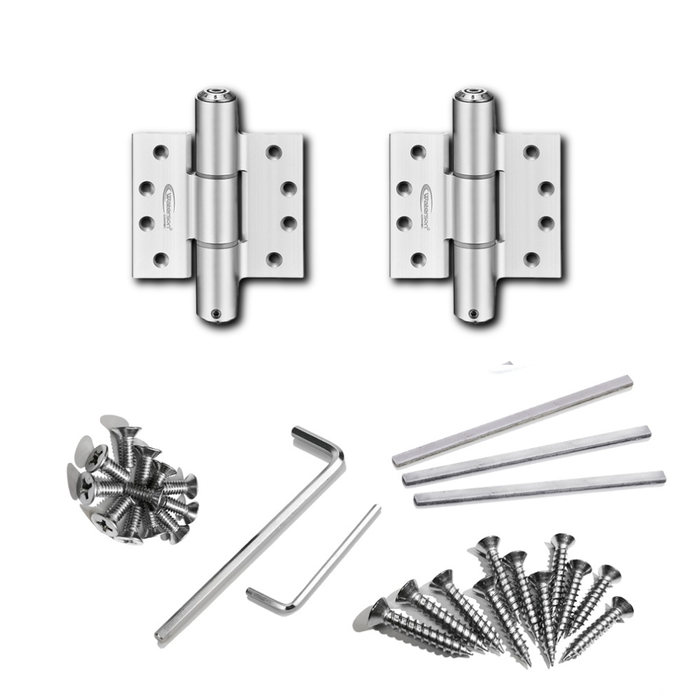

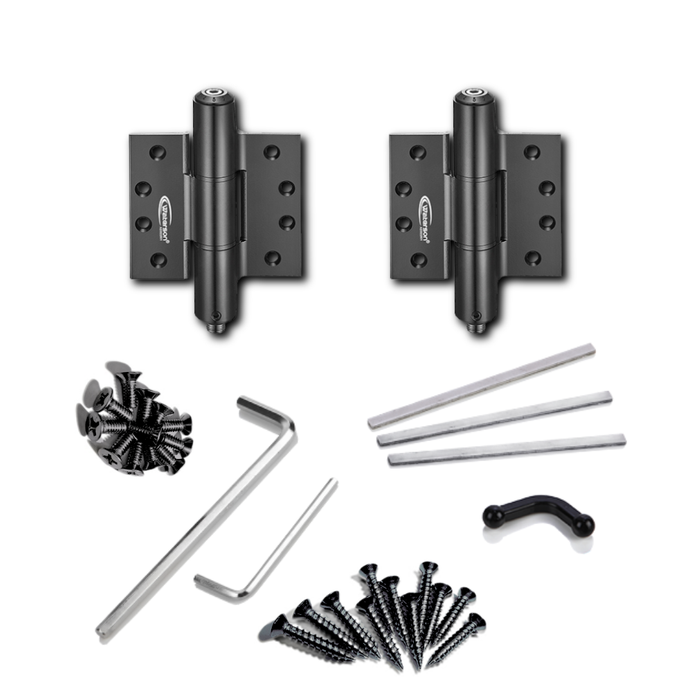

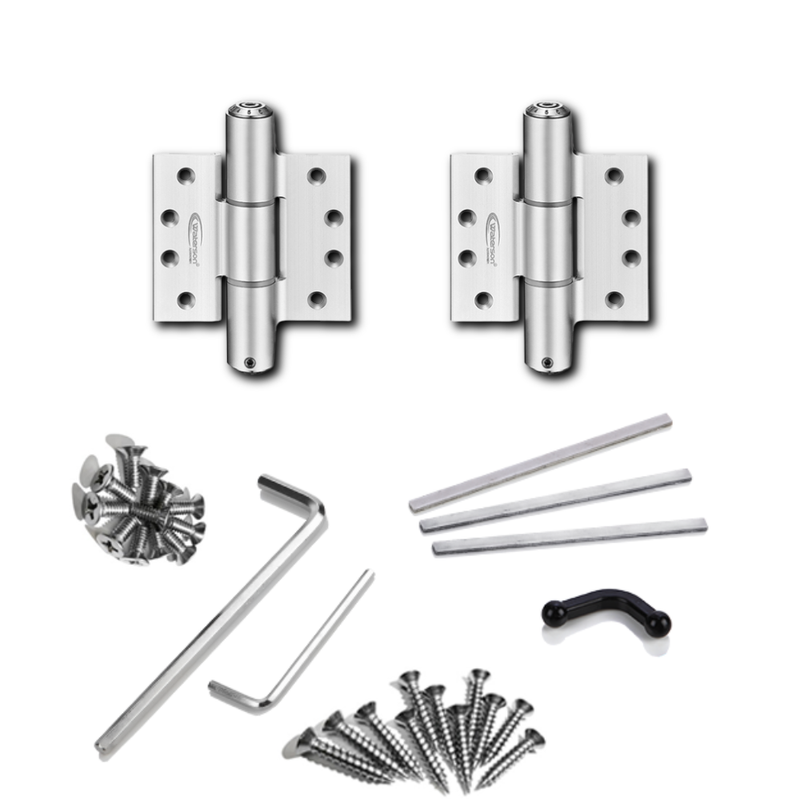

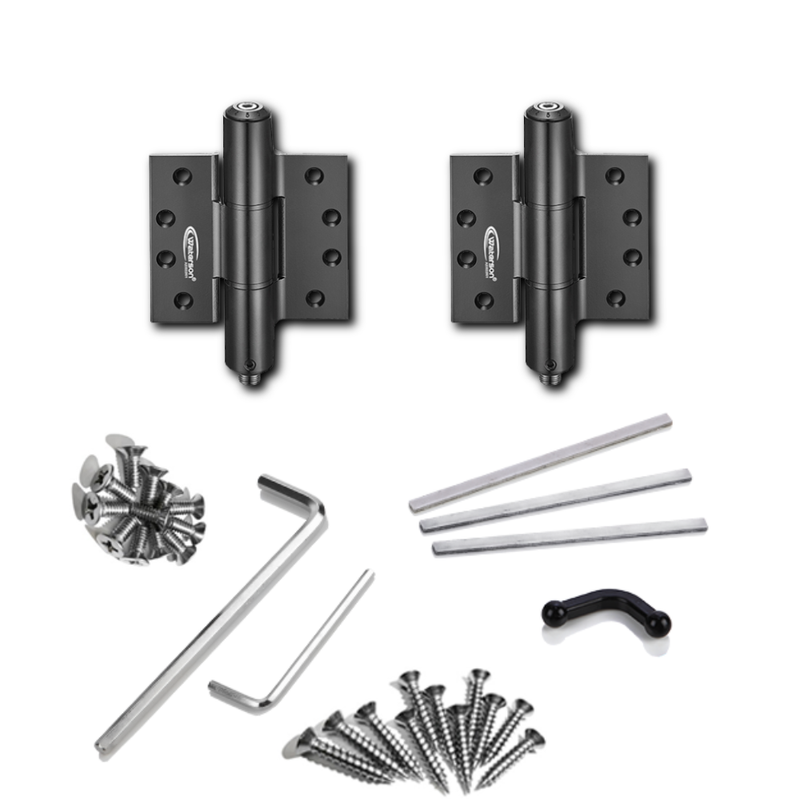

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

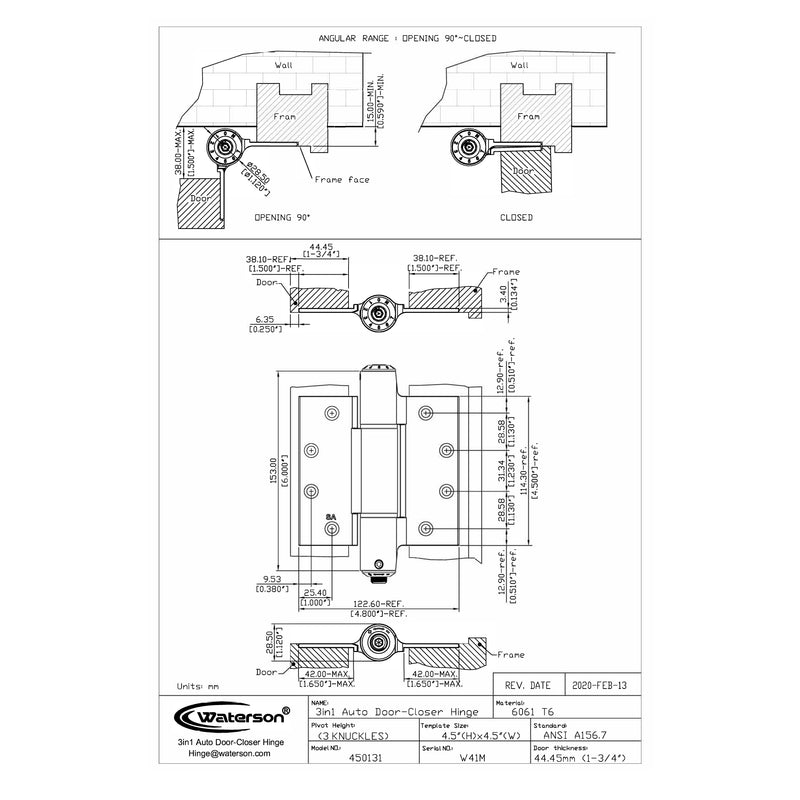

  • ANSI A156.7 Template Hinge : 4.5” x 4.5”
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

• Specifications

  Product SKU	W41M-450-B2
  Hinge Type	Full Mortise
  Hinge Material	Aluminum
  Door Weight	From 40lbs to 150lbs
  Approx Door Size	1150mm W x 1800mm H (4ft x 6ft)
  Door Thickness	1 ¾” (40-50 mm)
  Self-closing	o
  Fluid Motion	o
  Hold-open	x
  Fixing Method	Screw-On, only spot weld AFTER speed adjustment
  Color/Finish	Anodized Clear,Black
  Combination/Quantity	SA.HS,2 Pack
