How Do CloserHinge Spring-Loaded Door Hinges Compare to Typical U.S Hinges?

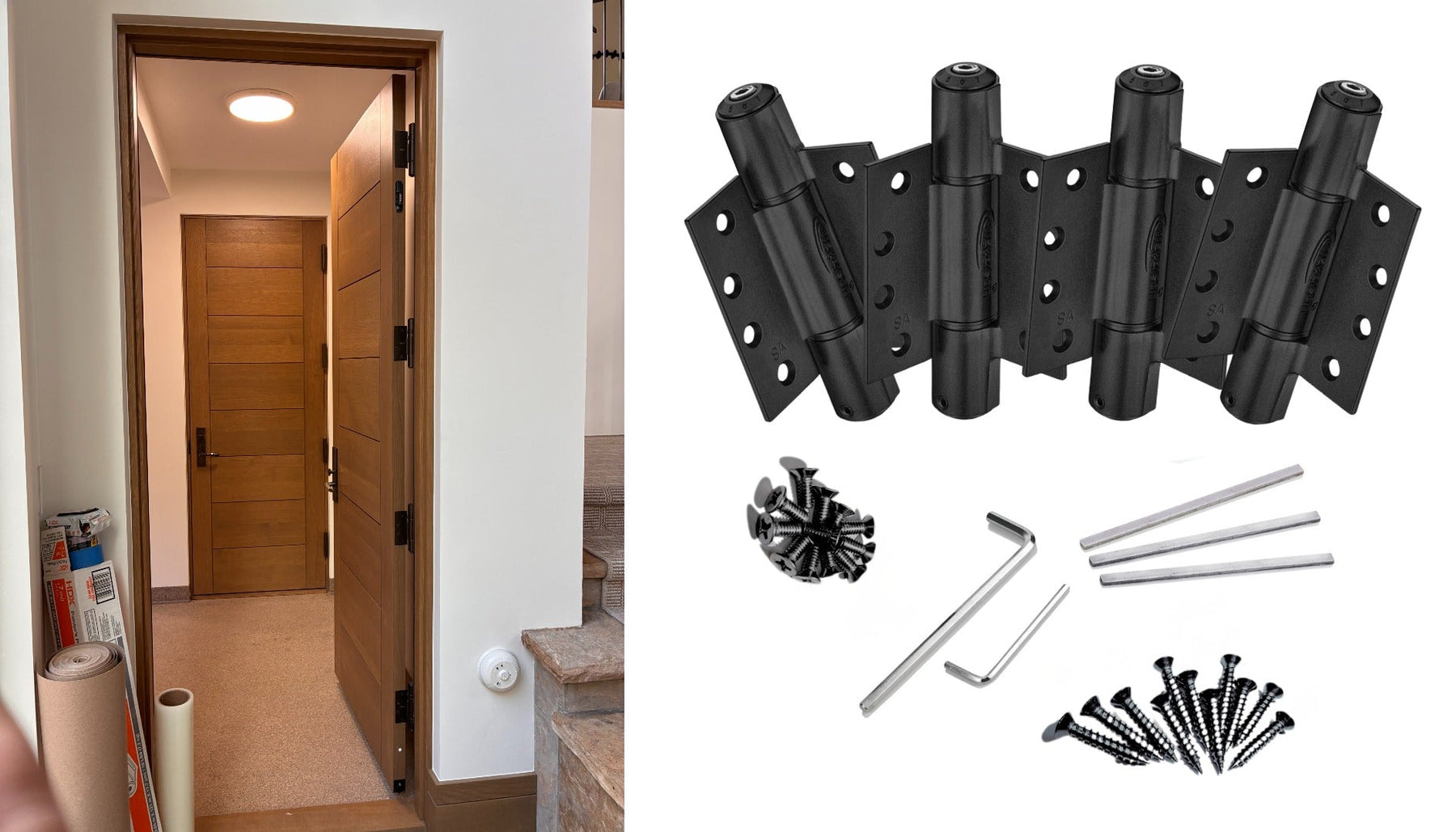

Most U.S. hinge brands sell hinges. To make a door close on its own, you still add an overhead closer, a hold-open device and a door stop. A Waterson K51 closer hinge set (sold at CloserHinge) builds the closer, speed control, hold open and stop into the hinges, with no arm above the door.
The sets are SS304 stainless steel, conform to ANSI/BHMA A156.17, and fire-rated sets are UL listed for doors up to 3 hours.
CloserHinge vs. a typical U.S. hinge setup
| Waterson K51 closer hinge set | Typical U.S. hinge + closer | |
|---|---|---|
| Parts per door | 1 set of 2 to 4 hinges | Hinges + overhead closer + hold open + stop |
| Self-closing | Built in | Separate closer |
| Soft, quiet close | Hydraulic hybrid sets | Depends on the closer |
| Fire-rated doors | UL listed, up to 3 hours | Depends on each part |
| Max door | 4 x 8 ft, 330 lbs | Varies |
| Installation | Standard hinge prep, one screwdriver | Hinges + closer mounting |
Waterson hinges are made in Taiwan and ship from U.S. warehouses in Michigan and California, usually in 1 to 5 business days.
Waterson vs. standard spring hinges
Standard spring hinges are the cheapest way to make a door self-close. They only have a spring, so the door shuts at full force with no speed control. That is why they often slam, and why many commercial doors still need a closer on top.
| Waterson K51 closer hinge | Standard spring hinge | |
|---|---|---|
| Closing control | Adjustable closing force and swing speed | Spring tension only |
| Slamming | Hydraulic hybrid sets close softly | Common, especially on heavy doors |
| Latching | Latch speed adjustment (SA1 hinge) helps the door latch every time | Door may stop short or bang the frame |
| Hold open | Built-in option (C and D sets) | Not available |
| Door stop | Mounts on the hinge barrel at 90° or 120° | Separate stop |
| Heavy doors | Up to 330 lbs with a 4-hinge set | Usually lighter doors |
| ADA force and speed | Adjustable to meet ADA | Hard to tune |
The key difference: each Waterson hinge in a set has its own job. One sets closing force, one controls swing speed, one controls latch speed. A spring hinge set does one thing only.
Waterson vs. overhead door closers
An overhead closer is the usual way U.S. specs add controlled closing. It works, but it adds a second product, a visible arm and a part that wears out.
| Waterson K51 closer hinge set | Hinges + overhead closer | |
|---|---|---|
| Look | Clean, only the hinges show | Closer body and arm on the door |
| Low ceilings, tight corners | No headroom needed | Needs space above the door |
| Oil leaks | Patented leak-free design | All-hydraulic closers can leak over time |
| Door prep | Standard hinge template | Closer mounting, often door reinforcement |
| Tools to install | One screwdriver | Several tools, more labor |
| Fire-rated doors | A and B sets UL listed, up to 3 hours | Closer and hinges listed separately |
| Durability | Passed 1 million cycle test | Arm and valves need periodic adjustment |
| Vandal risk | Nothing to grab or hang on | Exposed arm can be bent or pulled |
For most single-swing doors up to 4 x 8 ft, a closer hinge set gives the same controlled closing with fewer parts and less upkeep.
Where Waterson wins, and when another option fits better
Waterson is the stronger choice for:
- Fire-rated doors that need self-closing hardware under NFPA 80, without adding a closer.
- ADA restrooms and stall doors that need tuned closing force and speed.
- Hotels, offices and high-end homes where a closer arm would spoil the look.
- Exterior doors and gates, with 316 marine-grade steel and a weather-resistant cap option.
- Low ceilings, tight corners and aluminum or glass doors where an overhead closer does not fit.
- Retrofits, since the hinges fit standard hinge templates.
A traditional U.S. setup may fit better when:
- The project requires U.S.-made hardware, for example under the Buy American Act.
- The door is double acting (swings both ways). Waterson closer hinges are single acting only.
- The door is larger than 4 x 8 ft or heavier than 330 lbs. Contact Waterson for custom options first.
- A fire-rated door must be held open. Waterson hold-open sets (C and D) are not for fire-rated doors, so use an approved hold-open system instead.
How to pick the right K51M set
Every model code follows the same pattern: K51M, hinge size, function and hinges per set. For example, K51M-450-B3 is a three-hinge set with 4.5 inch hinges and hydraulic hybrid closing.
1. Hinge size, by door thickness
| Door thickness | Hinge size | Code |
|---|---|---|
| 1-3/8 or 1-3/4 in (residential) | 4 x 4 in | 400 |
| 1-3/4 in (commercial) | 4.5 x 4.5 in | 450 |
| 1-3/4 to 2-1/4 in | 5 x 5 in | 500D |
| 2-1/4 in and up | 6 x 6 in | 600 |
2. Function
| Code | Function | Fire-rated doors |
|---|---|---|
| A | Mechanical | Yes |
| B | Hydraulic hybrid (soft close) | Yes |
| C | Mechanical + hold open | No |
| D | Hydraulic hybrid + hold open | No |
3. Hinges per set, by door size
| Max door size | Max weight | Hinges per set |
|---|---|---|
| 4 x 6 ft | 150 lbs | 2 (non fire-rated) |
| 4 x 7 ft | 260 lbs | 3 |
| 4 x 8 ft | 330 lbs | 4 |
Options include 316 marine-grade steel, a weather-resistant cap (K51MP) for exterior doors, swing clear hinges (K51L) for wider ADA openings, and five finishes: satin stainless, flat black, dark bronze, satin brass and satin bronze.
How much do Waterson closer hinges cost?
Waterson K51M closer hinge sets range from about $307 to $650 per complete set, depending on the number of hinges, function and finish. A typical 3-hinge set for a 7 ft door runs about $400 to $500, and that one set replaces the hinges, closer and hold-open device.
Browse the full range on the spring loaded door hinges collection page.
Where to buy high-quality Spring-Loaded Door Hinges in the United States?
Waterson sells the full K51 range online through closerhinge.com and ships to all U.S. states as well as internationally. For larger projects, custom finishes or spec help, you can request a quotation, email hinges@watersonusa.com or call +1-770-343-2788. Quote requests get a reply within 12 hours.
