How Do You Choose Coastal Gate Hinges for a Salt-Air Environment?

Specifying hardware for a gate a few hundred feet from the surf is not the same as specifying a lobby door, and you already know that. The real question is which coastal gate hinges are still swinging and latching three years from now, so let us take the decisions in the order they actually bite.

Is 304 stainless ever acceptable on the coast, or does it have to be 316?

The difference is molybdenum, and it is measurable, not a matter of finish. 304 carries none; 316 carries roughly 2 to 3 percent, which is what lifts its pitting resistance in chloride-loaded air.

Rule of thumb for the spec: inside roughly a kilometer of surf, 316 is the baseline, not the upgrade. Waterson states its stainless gate hinges exceed ASTM B117 salt spray testing and have held in seaside installs for years with only minor surface staining.

Which part corrodes first, the hinge body, the cap crevice, or the fasteners?

Rarely the leaf itself. The failure usually starts at a detail:

• Fasteners: a carbon-steel or 18-8 screw set into a 316 leaf becomes the anode and bleeds rust first. Specify 316 screws to match the leaf. Waterson supplies them on request.
• Dissimilar substrate: a stainless leaf on an aluminum post or galvanized frame sets up a galvanic couple. Isolate the metals or match grades so the post is not sacrificial.
• Crevice under the cap and knuckle: trapped chloride film goes oxygen-starved and pits even 316. A sealed cap plus a free-draining detail matters as much as the raw grade.
• Field welds: welding can sensitize stainless and cut corrosion resistance at the heat-affected zone. Passivate after fabrication, or specify 316L where welding is involved.

How many hinges and how much closing force does a wind-loaded coastal gate need?

Size for static gate weight plus dynamic wind load, then set the force to latch through a gust:

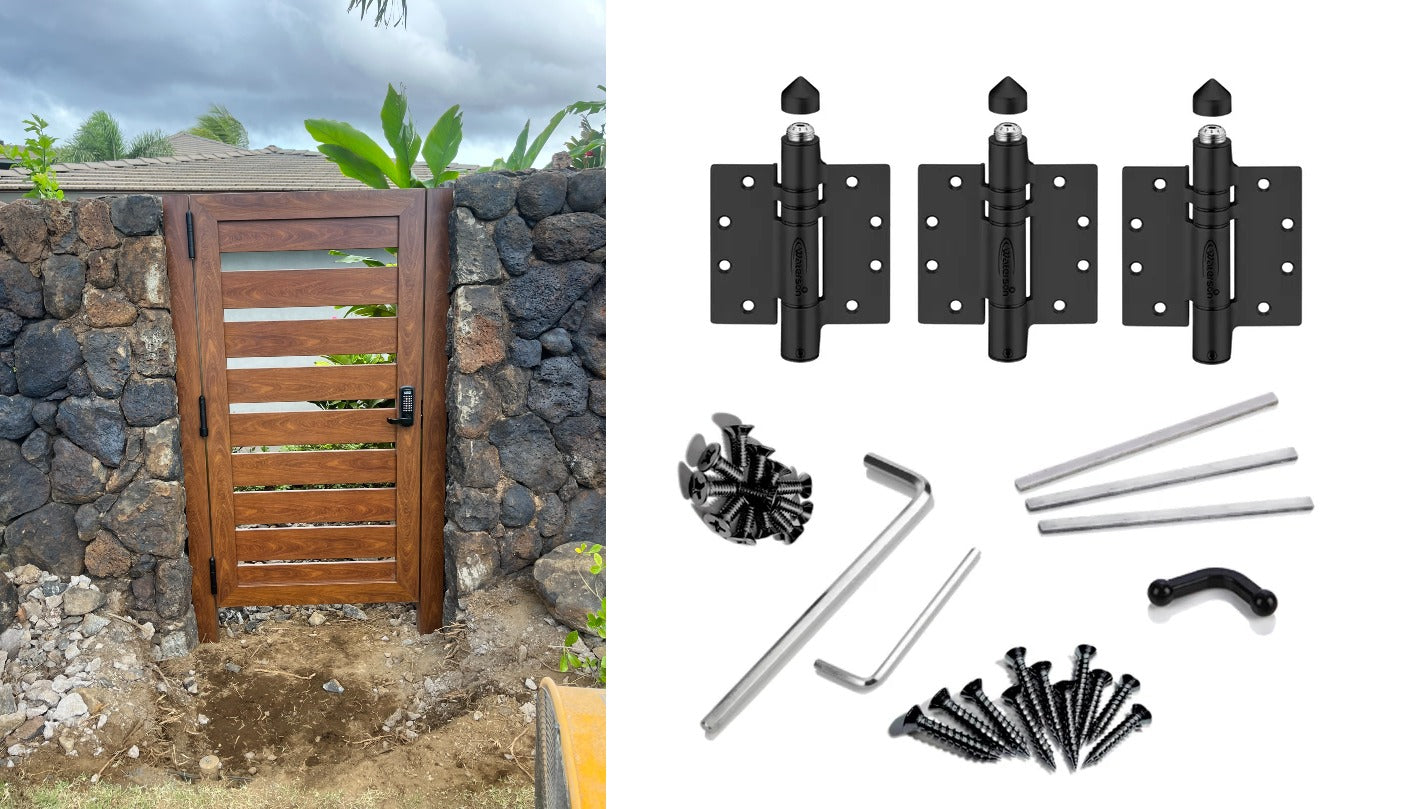

• Three Waterson hinges support over 260 lbs; four support up to 440 lbs with additional support, so heavy or high-wind coastal gates move to a four-hinge set.
• Dial adjustable closing speed high enough to overcome gusts, while keeping opening force at or under 5 lbf for ADA and ICC A117.1.
• Treat anti-slam as a spec line, not an option, on exposed sites: it absorbs gust-driven slamming that otherwise shears fasteners and knocks the gate out of alignment.

Does a salt-air pool or beach gate still have to be self-closing and self-latching by code?

On a pool or spa property the gate is a life-safety barrier, not just hardware. Model pool barrier codes, including the International Swimming Pool and Spa Code that most jurisdictions adopt, require barrier gates to be self-closing and self-latching, with the latch release set at a defined height.

Separately, accessible routes hold the gate to the opening-force limit used for ADA and ICC A117.1 compliance, commonly 5 lbf. Coastal gate hinges have to clear both at once: corrosion resistance and code-compliant, adjustable closing force. Single-function marine hardware that cannot be dialed to 5 lbf, or a closer that corrodes out of adjustment, is a failed inspection waiting to happen.

Why specify Waterson stainless steel coastal gate hinges?

Because the corrosion grade, the self-closing action, and the code compliance live in one investment-cast component instead of three separate failure points.

If you are speccing a beachfront, pool, or marine property, talk with Waterson about grade, size, and fastener match, or send the gate weight and exposure with a quotation request so the recommendation fits the opening rather than the catalog.
