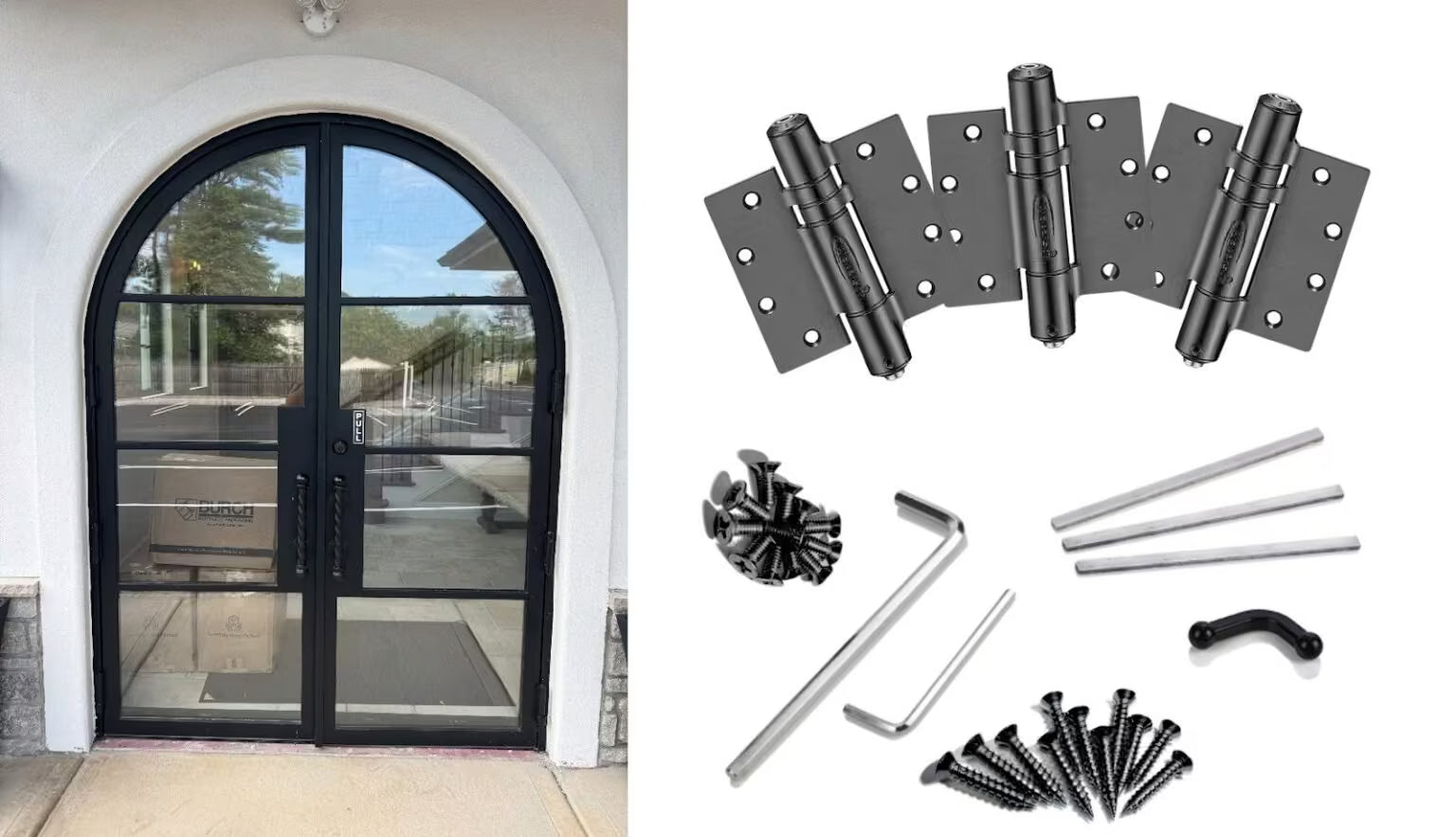

How to Install Soft Close Door Hinges on a Heavy Entry Door
A heavy entry door starts at 150 lbs and can exceed 440 lbs. At that weight, a wrong installation does not just perform poorly, it fails structurally. This guide covers everything you need to do before, during, and after installation to get it right the first time.
How Many Hinges Do You Need?
The number of hinges is determined by door height and weight together, not by one factor alone. Use too few and the top hinge absorbs a disproportionate share of the load, causing sag, binding, and premature failure.
| Door Height | Door Weight | Hinges Required |
|---|---|---|
| Up to 7 ft (84") | Up to 260 lbs | 3 hinges |
| 7 ft to 8 ft (84"–96") | 260–300 lbs | 4 hinges |
| 8 ft+ (96"+) | 330–440 lbs | 5 hinges |
For doors beyond these ranges, contact Waterson Hinges directly with your door height, width, thickness, and weight for a custom configuration.
Before Installing
Tools You Need
- 3mm and 5mm hex wrenches (included with hinges)
- Spreader bar (included with DS double spring hinges)
- Phillips screwdriver
- Tape measure and pencil
- Power drill for pilot holes
- Door hanging jack (strongly recommended for doors over 200 lbs)
Key Checks Before You Drill
- Match hinge size to door weight. Waterson offers 4", 4.5", 5", and 6" sizes. A 200 lb door typically needs 4.5" or 5". A 300 lb+ steel door needs 6".
- Verify the frame. The hinge-side frame must be solid wood or steel-reinforced. Hollow frames cannot carry the load of a heavy entry door.
- Clear 28.5mm around the barrel. The hinge barrel needs clearance in the frame reveal. Measure before marking your mortise positions.
- Mark all hinge positions before drilling. Top hinge: 5" from top. Bottom hinge: 10" from bottom. Middle hinges: evenly distributed across the remaining span.
During Installation
Step 1: Use the Baseline for Alignment
Each Waterson hinge has a built-in baseline edge along the barrel side of the leaf. Use this baseline, not the outer edge of the leaf, to align the hinge with the door and frame. All hinges must reference the same vertical baseline. Without it, even experienced installers report the process takes five times longer and alignment is unreliable.
Step 2: Attach the Door-Side Leaf First
Lay the door flat or support it in a door buck. Drill pilot holes at your marked positions using the hinge as a template. Drive all screws fully before the door is hung. Pilot holes prevent wood splitting and ensure screws pull flush without stripping.
Step 3: Use the Spreader Bar on DS Hinges
DS (double spring) hinges for heavy doors carry high spring tension. Use the included spreader bar to hold the hinge leaves open while driving screws. Do not skip this step. The hinge can snap shut during installation and damage the hinge, frame, or installer.
Step 4: Hang the Door and Attach the Frame Leaf
Use a door hanging jack to hold the door in position. Once aligned, follow this screw sequence to prevent sagging:
- Locate the top and bottom screws first (do not tighten yet)
- Adjust door position and confirm the door is not sagging
- Tighten all screws fully
Going straight to tighten without checking position first locks the door into a misaligned hang that is difficult to correct later.
Step 5: Verify Free Swing Before Any Adjustment
Open and close the door manually. It should swing freely and latch cleanly with no assistance. If it does not, fix the physical alignment before touching any adjustment dial. Adjusting closing speed on a binding door solves nothing and makes diagnosis harder.
After Installing: What to Check
Post-Installation Checklist
| Check | What to Do | If It Fails |
|---|---|---|
| Latching test | Open to 90°, release, let the spring close the door fully on its own | Increase spring tension (S dial) in small increments |
| Soft close test | Open to 30°-60°-90°, release, door should decelerate smoothly before the frame | Widen hydraulic zone (H1) or increase hydraulic power (H2) |
| Sag test | Sight along the latch edge from the floor. Gap should be even top to bottom | Add hinges or retighten frame-side screws |
| ADA opening force | Check opening force with a pull gauge at the handle. Limit is 5 lbs | Add hinges to distribute load; reduce individual spring tension |
| Screw check at 48 hrs | Retighten every screw on every hinge after two days of use | Add thread locker to frame-side screws on high-traffic doors |
Real-World Heavy Entry Door Installations
200 kg Door with Gold Finish
This project showcases Waterson large door hinges installed on a 200 kg (roughly 440 lb) door finished in gold. It demonstrates how Waterson's engineering handles extreme weight loads without sacrificing aesthetic quality. The hinges provide smooth operation and reliable self-closing performance even at this weight class, making them suitable for high-end commercial and hospitality environments where both function and appearance matter.
7 Waterson Self Closing Door Hinges Carrying a 10-Foot Arched Door
This installation uses seven Waterson self-closing hinges to support a 10-foot arched door, a format that creates significant challenges due to the door's height, weight distribution, and curved top geometry. Designed to support heavy and large doors, these hinges are engineered to prevent slamming while ensuring safety and durability over the long term. The result is a smooth, controlled closing experience that holds up under demanding real-world conditions.
UAE Project: 240 kg Heavy Duty Large Door Hinges
In this project from the UAE, Waterson successfully installed large door hinges on doors measuring 7.2 ft by 12.5 ft and 14.8 ft. These are genuinely extreme dimensions, well outside the range most hinge manufacturers can accommodate. Waterson's door hinges delivered both durability and aesthetic appeal for this challenging installation, proving their capability in demanding international commercial projects.
If your door is heavy enough to need this guide, Waterson soft close door hinges is the right solution to stop slamming with hydraulic damping built directly into the hinge. No separate closer, no visible hardware. View Soft Close Door Hinges Now!
