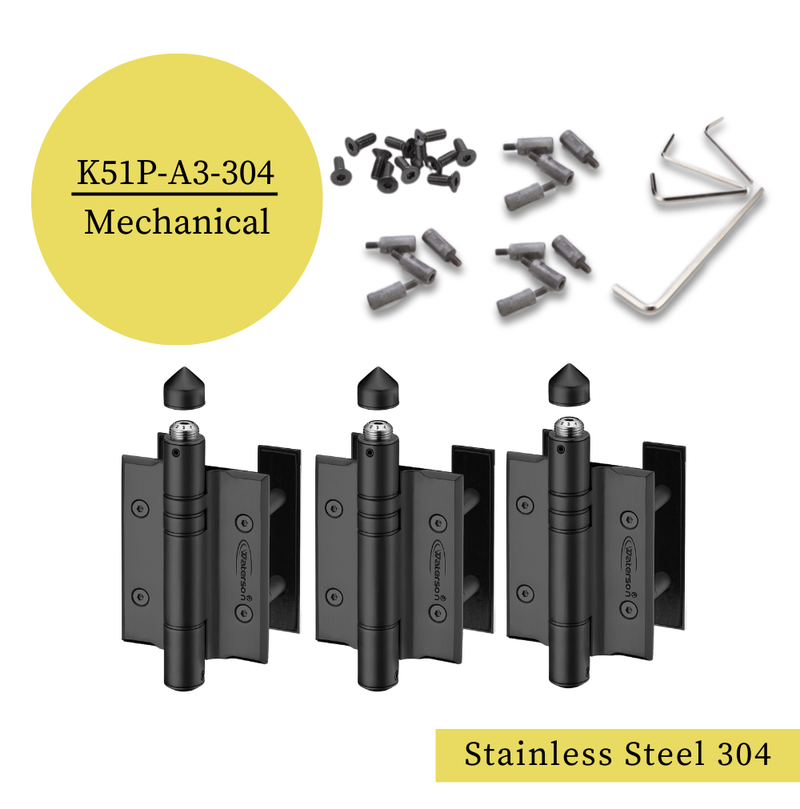

3pcs Heavy Duty Outdoor Gate Closer | Self Closing | Soft Closing | 5x4 | 7ft | 260 lbs | 1-4” Thick | SS304 | K51P-A3/B3

3pcs Heavy Duty Outdoor Gate Closer | Self Closing | Soft Closing | 5x4 | 7ft | 260 lbs | 1-4” Thick | SS304 | K51P-A3/B3

$529.50 - $570.50
$529.50
$529.50 - $570.50
$529.50
Color: Flat Black-US19
  • Material: Stainless Steel 304

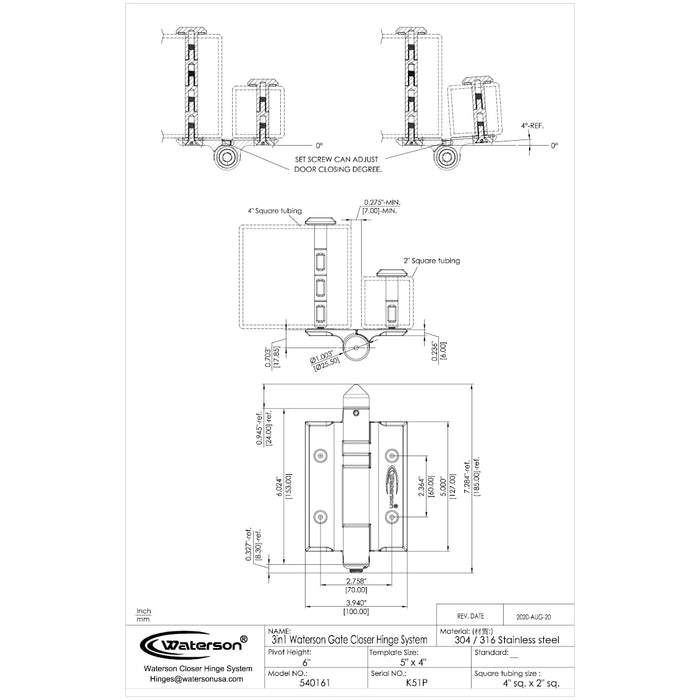

  • Product Dimensions: 5"H × 4"W
  • Mounting Type: Door Mount – Full Mortise
  • Door Size: 1150mm W x 2200mm H (4ft x 7ft)
  • Door Weight: Min 40 lbs - Max 260 lbs
  • Door Thickness:  1” - 4”
  • Unit: 3 pieces
  • Warranty: 3 years

TALK TO SALES FIRST - NON REFUNDABLE

  • FEATURES
  • APPLICATIONS
  • DETAILS
  • SPECIFICATIONS
  • ADJUSTMENT

  • Product Description and Features

    • Fully adjustable closing force and speed according to environment needs

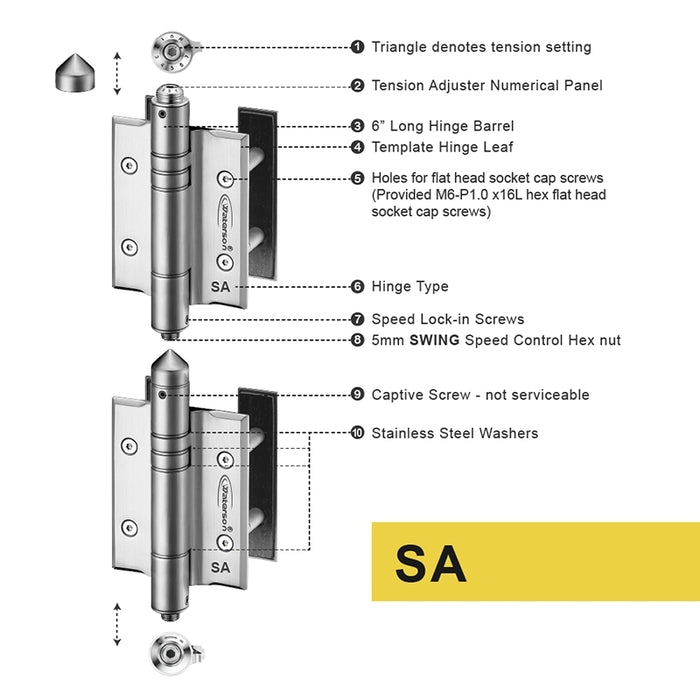

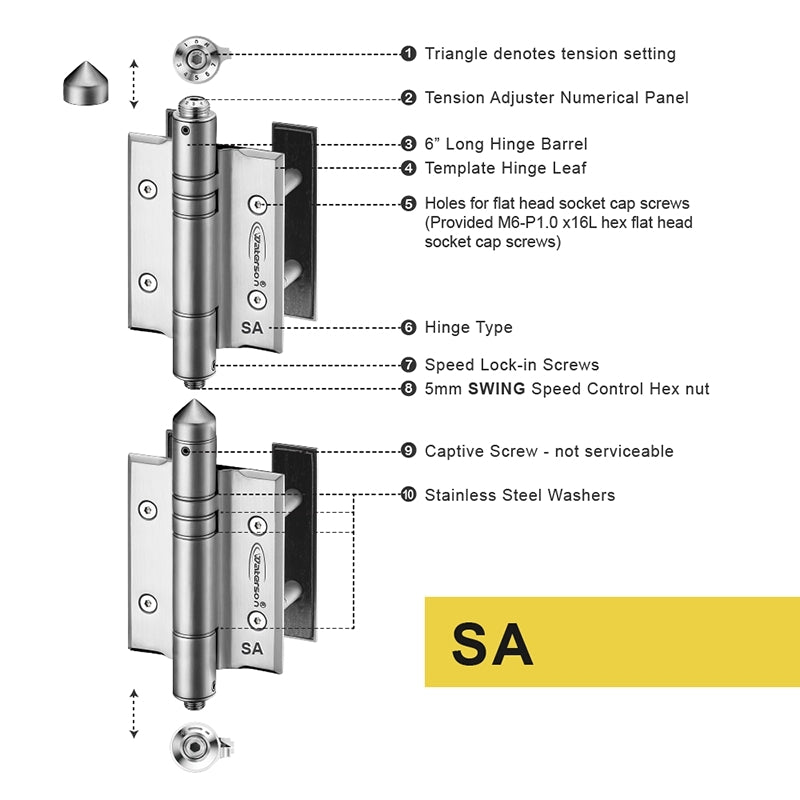

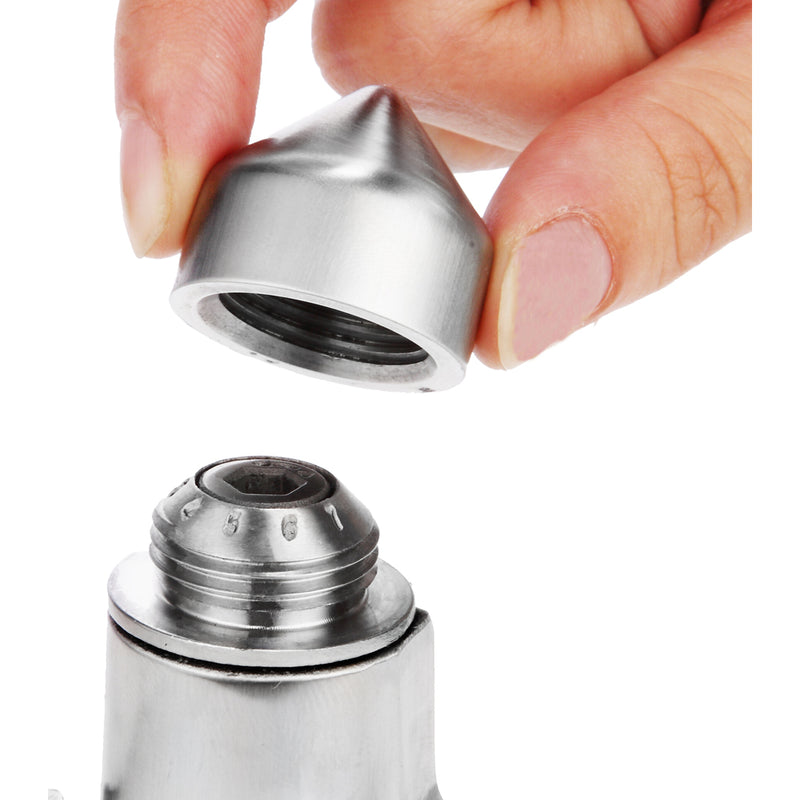

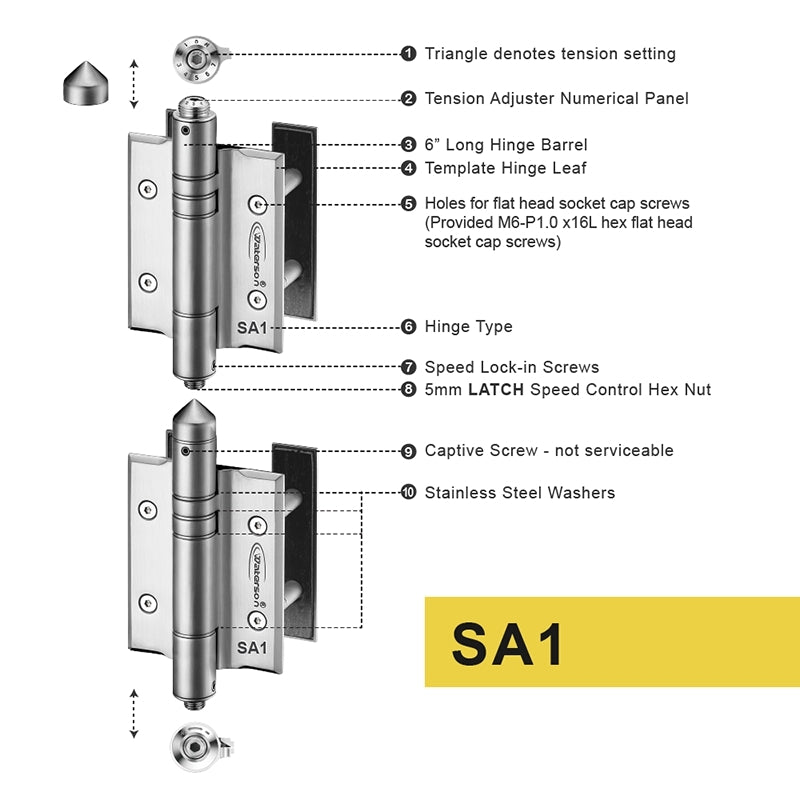

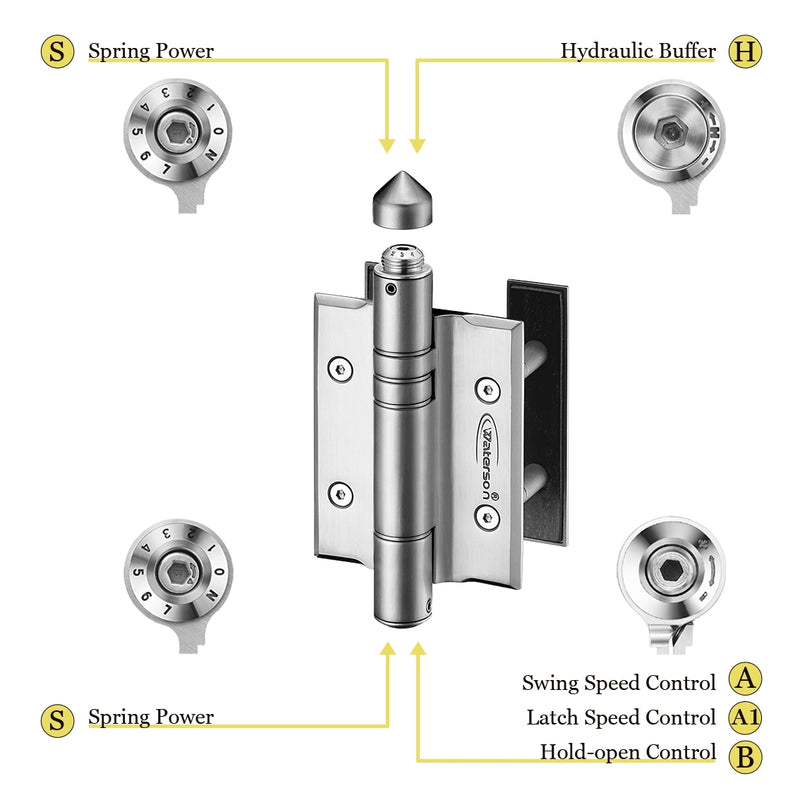

    • Numerical adjustment panel on hinge end to set up precise tension
    • Mechanical-only mechanism supporting heavy duty and fully exterior
    • Aesthetically pleasing compared to door closers -- without extrusive arms
    • UL-certified cycle testing ensures many years of low maintenance.

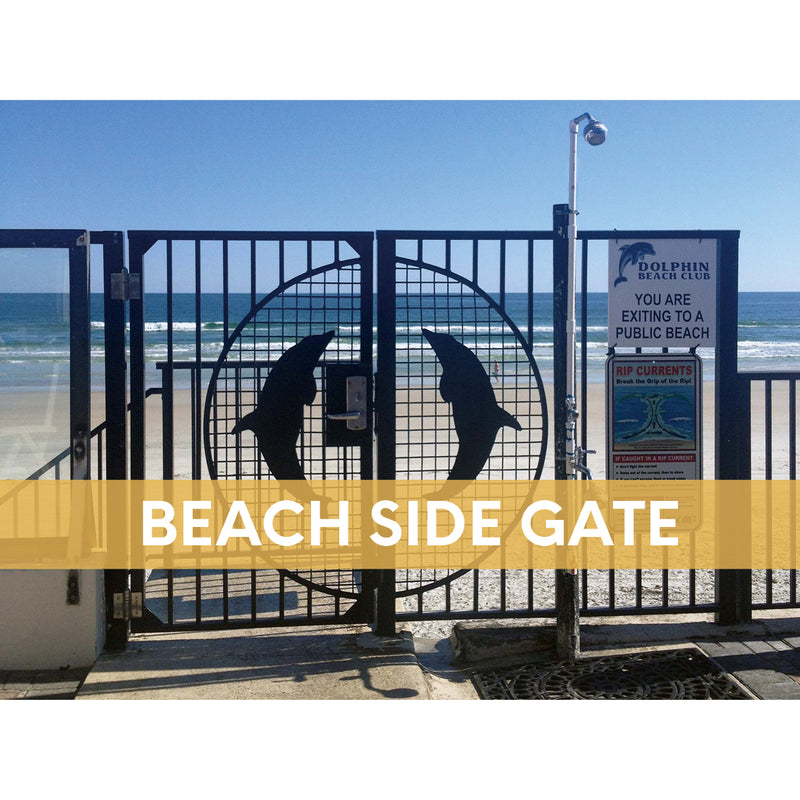

  • Applications

    • Driveway gate closer
    • Backyard security gate closer

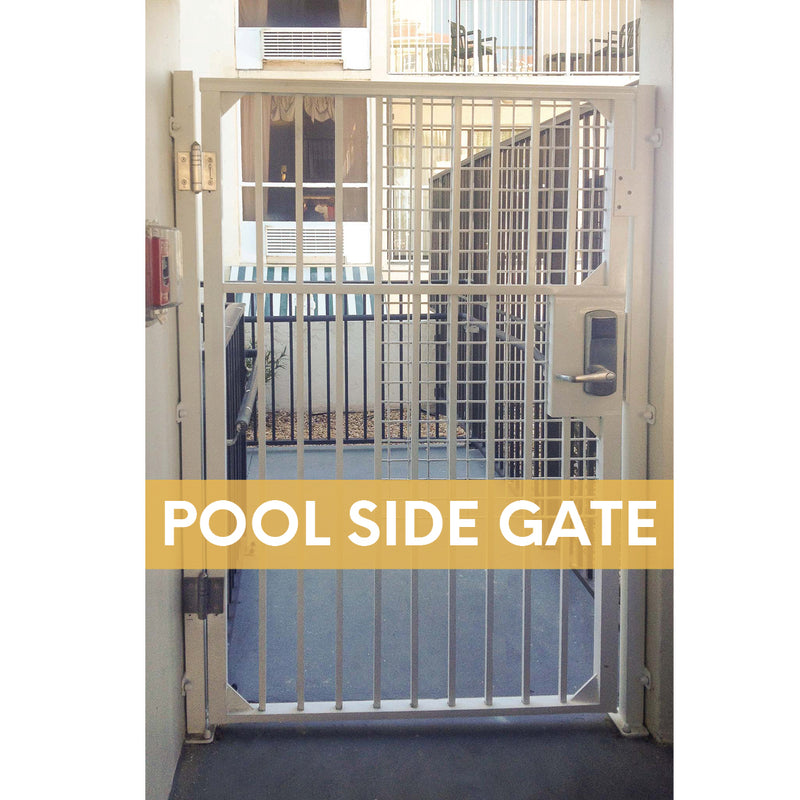

    • Community pool gate closer
    • Residential pool safety gate closer
    • Garden gate closer
    • Courtyard gate closer
    • Marina gate closer
    • High-wind area gate closer
    • Durability
    • Heavy duty
    • Exterior use
    • Standard screw pattern

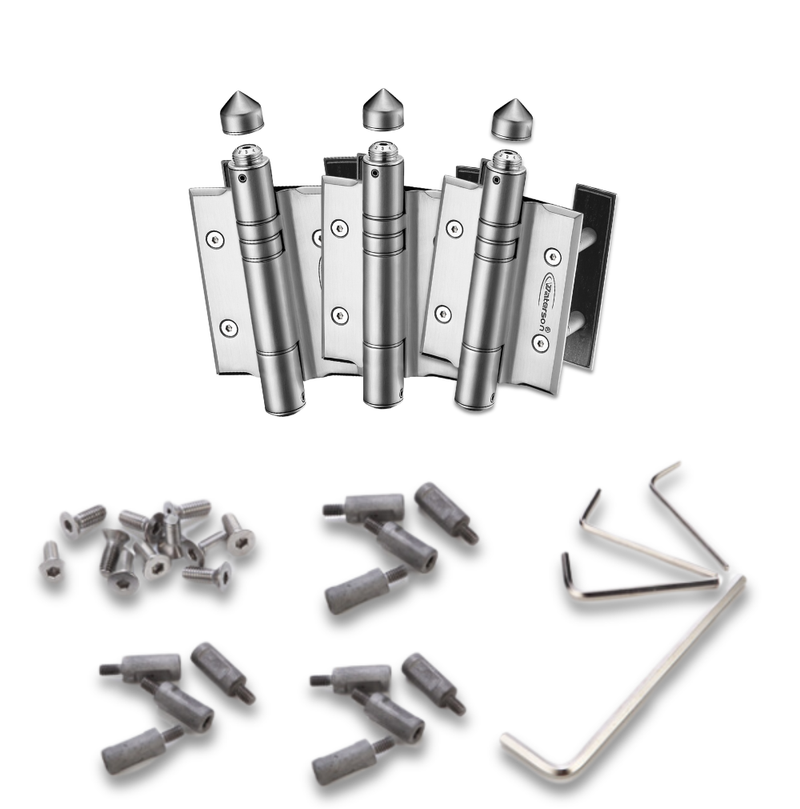

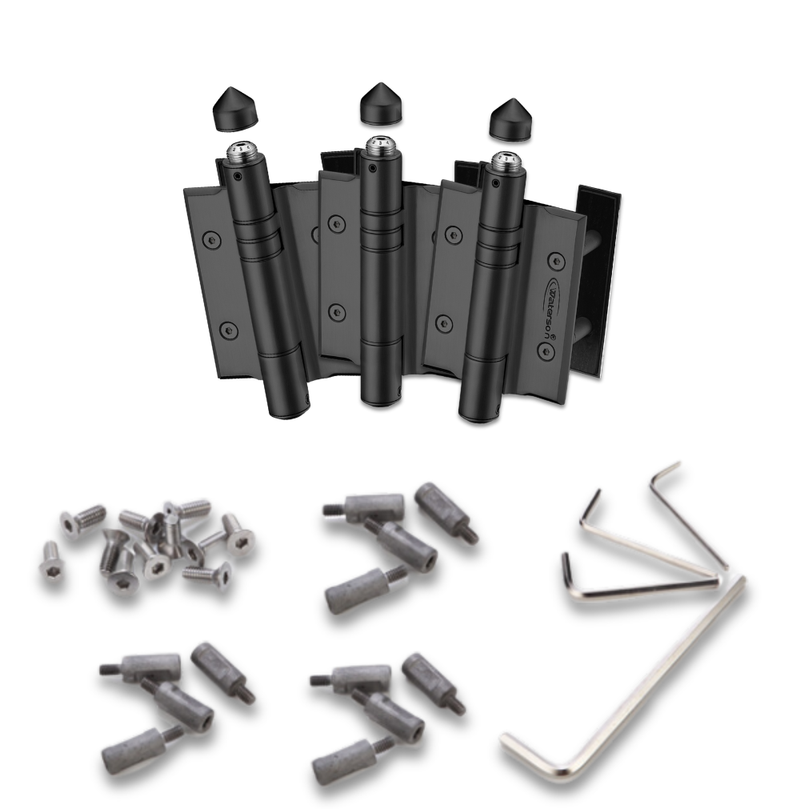

  • Installation Kits

    • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.

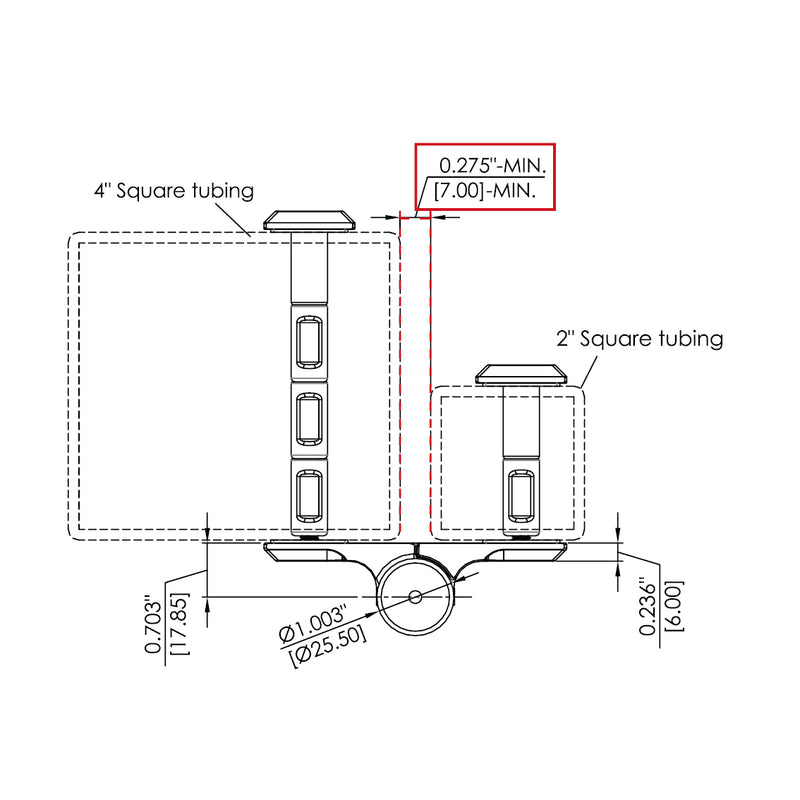

    • Three steel adhesive shims for gap adjustment between door and frame as needed
    • Tension Crook: Keeps hinge open during installation
    • 5mm & 3mm hex allen wrenches

  • Specifications

    Compliance Standards

    • ANSI A156.17 Grade 1 : one million cycle testing

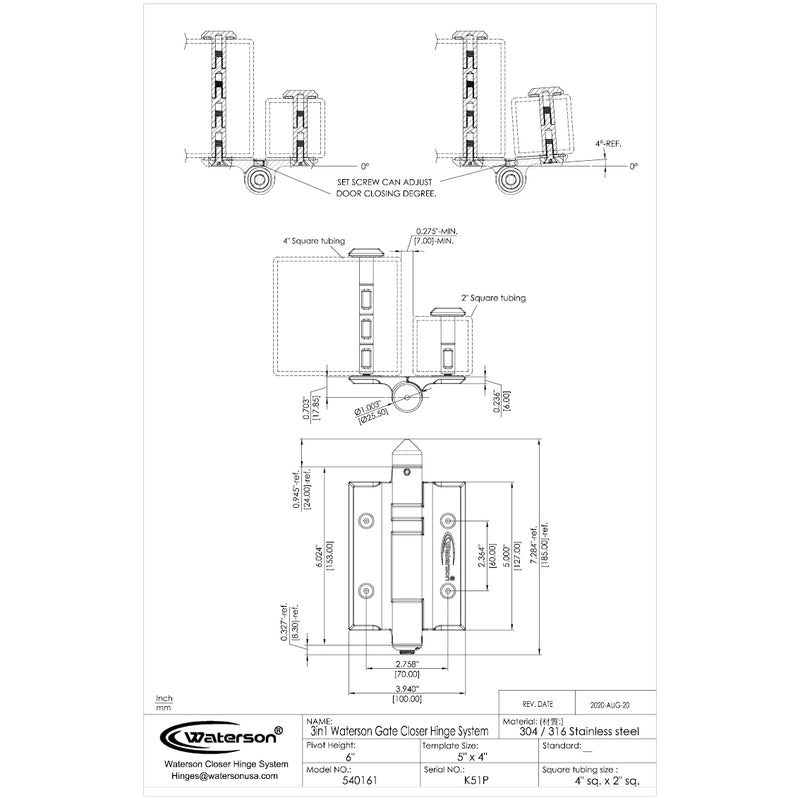

    • ANSI A156.7 Template Hinge : 6” x 6”
    • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
    • ADA Force : opening force no more than 5 lbs
    • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
    • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

    Code note:

    Fire-rated doors cannot use hold-open features.

    Waterson fire-rated soft-close garage door hinges are designed without hold-open, fully compliant with building and fire safety codes.

  • Adjustment Video

    Check the Full Adjustment Guidance here:
    English Version
    Spanish Version

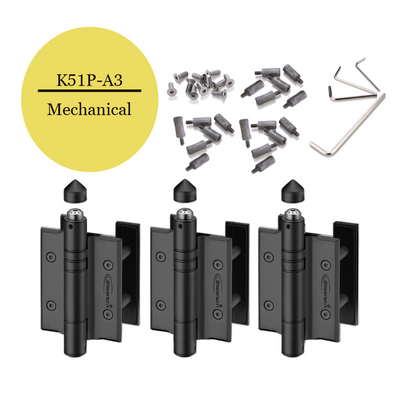

self closing gate hinges 3pcs Self Closing Gate Hinges Heavy Duty | Mechanical | 7ft | 260 lbs | 1” to 4” Thick | SS304 | K51P-A3
$529.50

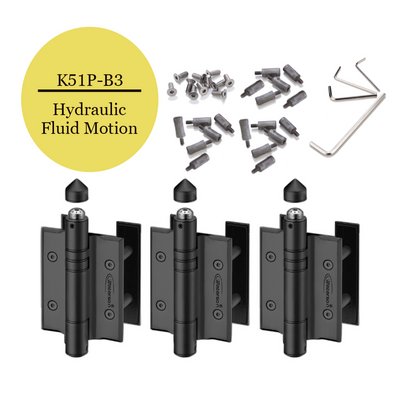

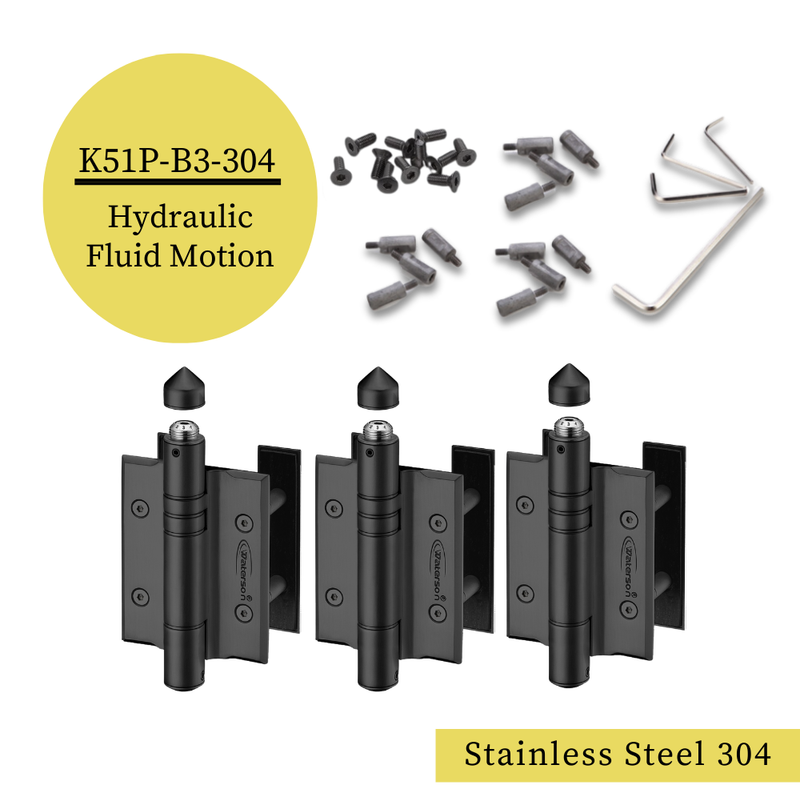

heavy duty outdoor door hinges 3pcs Heavy Duty Outdoor Door Hinges | Hydraulic | 7ft | 260 lbs | 1” to 4” Thick | SS304 | K51P-B3
$570.50
Key Difference Mechanical - Self Closing Hydraulic Hybrid - Soft Closing

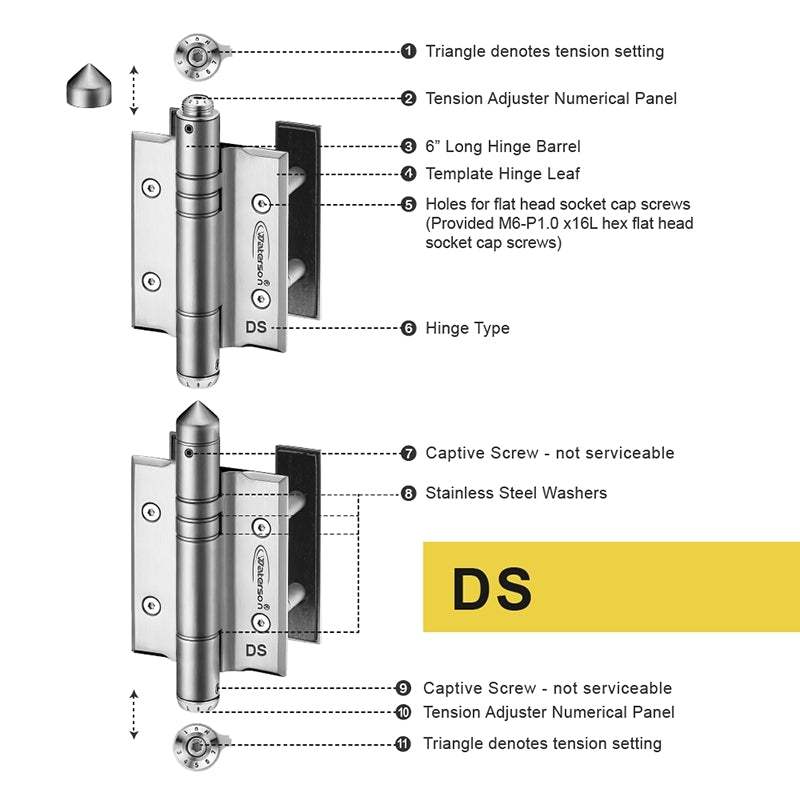

Qty of Hinge 3 hinges/gate (SA.SA.SA1) 3 hinges/gate (DS.HA.SA)
Dimension 5"(H) x 4"(W) 5"(H) x 4"(W)
Self Closing o o
Fluid Motion x o
Hold Open x x
