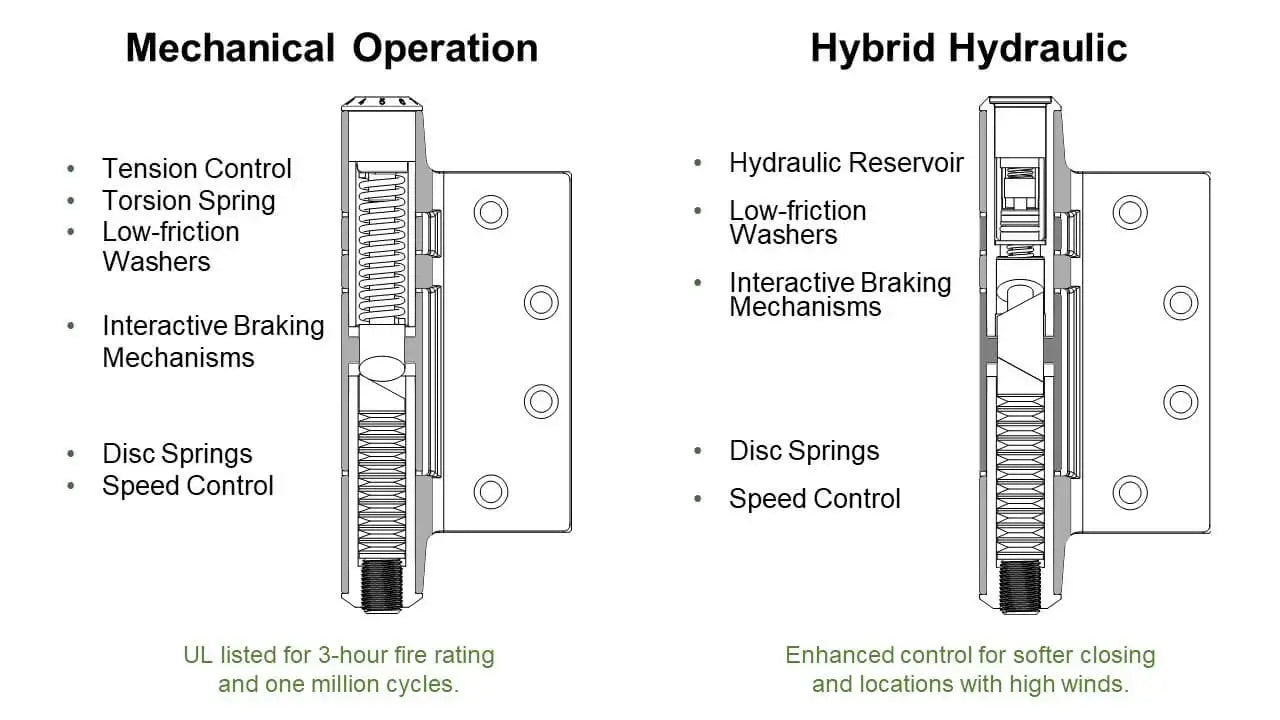

Self Close vs Soft Close Hinges: Which One Do You Actually Need?
Both mechanical self close hinges and hydraulic soft close hinges get the job done: the door shuts, latches, and stays closed. But spec the wrong one for your environment, and you'll be back on-site adjusting, replacing, or explaining callbacks. Here's what actually separates them.
5 Differences That Matter When You're Specifying
1. Warranty: 10 Years vs. 3 Years
| Mechanical Self Closing | Hydraulic Soft Closing |
|---|---|
|
10-Year Warranty No fluid or seals to degrade. Designed for high-cycle, long-service applications with minimal maintenance. ✓ Best for heavy-duty / high traffic |
3-Year Warranty Hydraulic fluid and seals are subject to wear. Well-suited for standard-traffic applications in controlled environments. Standard moderate-use warranty |
2. Wind Response: Fixed Tension vs. Oil-Buffered Absorption
| Mechanical Self Closing | Hydraulic Soft Closing |
|---|---|
|
Fixed Preset Setting Tension calibrated once at install. Excess wind force transfers directly to the door — closing speed cannot be moderated in the moment. ⚠ Risk of slamming in variable wind |
Floating Force Absorption Hydraulic oil buffers excess closing force. Door closes smoothly regardless of gust intensity — self-regulating by design. ✓ Consistent close in windy locations |
3. Temperature Range: All-Season vs. Oil-Dependent
| Mechanical Self Closing | Hydraulic Soft Closing |
|---|---|
|
Temperature-Stable Steel spring behavior does not change with ambient temperature. Set it once — performs consistently across all seasons and climates. ✓ Reliable in any climate, indoors or out |
Oil Viscosity Varies with Temp Cold weather thickens the oil, slowing the close. Hot weather thins it, speeding it up. Significant temperature swings cause inconsistent performance. ⚠ Closing speed varies with weather |
4. Door Swing Angle: Up to 180° vs. 120° Max
| Mechanical Self Closing | Hydraulic Soft Closing |
|---|---|
|
Opens Up to 180° Optimal controlled-close range is 0–120°. Can open to 180° when a door needs to fold flat against the wall. Beyond 120°, closing is uncontrolled and not covered under warranty. ✓ Only option for 180° applications |
Limited to 120° Maximum Mechanically limited to 120° — the hydraulic damper cannot operate correctly beyond that point. Cannot be specified for applications requiring a wider swing. ⚠ Not suitable for wide-swing doors |
5. Unit Price: Mechanical Runs ~10% Less
| Mechanical Self Closing | Hydraulic Soft Closing |
|---|---|
|
Lower Unit Cost All-mechanical construction. Simpler to source, fewer parts, no hydraulic components. More margin flexibility on price-sensitive projects. ✓ Better value for budget-conscious buyers |
~10% Price Premium Hydraulic damper mechanism adds cost. Justify to buyers with the performance story: smoother close, wind resistance, and fewer callbacks. Sell the performance, not the price |
Full Side-by-Side Comparison
| Factor | Mechanical Self Closing | Hydraulic Soft Closing |
|---|---|---|
| Self-Closing | ✓ Yes | ✓ Yes |
| Adjustable Speed | ✓ Yes | ✓ Yes |
| Soft-Close | ✓ Yes | ✓ Yes |
| Warranty | 10 Years | 3 Years |
| Wind Response | Fixed tension — may slam in gusts | Self-regulating — smooth in variable wind |
| Temperature | Stable in all climates | Oil viscosity varies — speed shifts with weather |
| Max Swing | Up to 180° (controlled to 120°) | Hard limit: 120° |
| Unit Price | Lower (~10% less) | ~10% premium |
| Best Doors | Hotel room, fire-rated, heavy-duty, courtyard, exterior | Office, glass frameless, screen door, French style, courtroom gate |
| Ideal For | High latch force, high frequency, exterior, harsh environments, heavy doors | No-latch openings, quiet areas, wind-exposed interiors |
When to Choose Each Type
| Choose Mechanical Self Close (K51M - A/C Model) When: | Choose Hydraulic Soft Close (K51M - B/D Model) When: |
|---|---|
| → Fire-rated door requiring code-compliant self-closing → High-frequency use — 50+ cycles per day → Fully exterior or exposed to weather extremes → Heavy door (up to 330 lbs on 5" hinges) → Arch-top or non-standard frame openings → Budget-driven project with volume requirements → 180° fold-flat capability required UL fire-rated to 3 hours. NFPA 80 compliant. ADA-adjustable. 1,000,000+ cycles per ANSI A156.17 Grade 1. Available in 4″, 4.5″, and 5″. |
→ Wind-exposed location where slamming is a real risk → Quiet environment — offices, hospitality, healthcare → Glass or frameless door (controlled close protects the glass) → Users who push doors too hard → Climate-controlled interior with consistent temperature Oil-damped braking with no leakage. Rated to -32°F. Fire-rated and hold-open configurations. Available in 4″, 4.5″, and 5″. |
Mechanical Self Close Hinges (K51M - A/C Models)
| Fire Rated | Hold Open | |
|---|---|---|
| 3-pack |
K51M-400-A3 K51M-450-A3 K51M-500D-A3 |
K51M-400-C3 K51M-450-C3 K51M-500D-C3 |
| 4-pack |
K51M-400-A4 K51M-450-A4 K51M-500D-A4 |
K51M-400-C4 K51M-450-C4 K51M-500D-C4 |
– 400: 4″x4″ | – 450: 4.5″x4.5″ | – 500D: 5″x5″ – 0.190″ Gauge
Hydraulic Soft Close Hinges (K51M - B/D Models)
| Fire Rated | Hold Open | |
|---|---|---|
| 3-pack |
K51M-400-B3 K51M-450-B3 K51M-500D-B3 |
K51M-400-D3 K51M-450-D3 K51M-500D-D3 |
| 4-pack |
K51M-400-B4 K51M-450-B4 K51M-500D-B4 |
K51M-400-D4 K51M-450-D4 K51M-500D-D4 |
– 400: 4″x4″ | – 450: 4.5″x4.5″ | – 500D: 5″x5″ – 0.190″ Gauge
Not Sure Which One Fits?
Both types share the same hinge footprint, the same mortise template, and the same installation process. The decision comes down to the environment, not the door.
On projects with mixed conditions, it's common to spec both: mechanical on high-traffic fire doors, hydraulic on glass interiors or wind-exposed entries.
